The purge valve is a crucial component of a vehicle's evaporative emission control (EVAP) system. It is typically located between the fuel tank and the intake manifold. Depending on the vehicle's make and model, the purge valve may be situated in various locations, including between the fuel tank and the intake manifold or on top of the engine. The purge valve controls the flow of fuel vapors from the fuel tank and the evaporative canister into the engine, where they are burned as part of the combustion process. This process helps to reduce harmful hydrocarbon emissions and improves fuel efficiency. A faulty purge valve can cause various issues, including difficulty starting the engine, rough idle, and increased emissions.
| Characteristics | Values |
|---|---|
| Function | Controls the flow of fuel vapors from the fuel tank and evaporative canister into the engine |
| Location | Typically located between the fuel tank and the intake manifold |
| Controlled by | The engine's powertrain control module (PCM) |
| Opening conditions | Opens at a specific temperature and RPM |
| Purpose | Reduces harmful hydrocarbon emissions, improves fuel efficiency, and enhances vehicle performance |
| Faulty indicators | Check engine light illuminates, rough idle, increased emissions, reduced fuel efficiency, difficulty starting the engine, fuel odor |
| Common issues | Age and wear, dirt and contamination, faulty electrical connections, faulty vacuum lines, damage from fuel contaminants, manufacturing defects |
| Replacement procedure | Remove electrical harness and vacuum lines, install new purge valve, replace vacuum lines and harness, reconnect the battery |
Explore related products
What You'll Learn
- Location: Typically found near the engine intake manifold, between the fuel tank and intake manifold, or atop the engine
- Function: Controls the flow of fuel vapours from the charcoal canister to the engine for combustion
- Faults: A faulty purge valve may cause the check engine light to come on, engine performance issues, and increased emissions
- Maintenance: A purge valve can be replaced by disconnecting electrical harnesses and vacuum lines, unscrewing the bolt, and installing a new valve
- Malfunctions: Wiring problems, fuel deposits, and faulty electrical connections can all hinder valve operation
Location: Typically found near the engine intake manifold, between the fuel tank and intake manifold, or atop the engine
The location of the fuel tank purge valve varies depending on the vehicle's make and model. Typically, it is found near the engine intake manifold, between the fuel tank and intake manifold, or atop the engine.
The purge valve is a crucial component of a vehicle's evaporative emission control (EVAP) system, and its function is to control the flow of fuel vapors from the fuel tank and evaporative canister into the engine. The vapors are then burned as part of the normal combustion process. This process helps to reduce harmful hydrocarbon emissions and improves fuel efficiency.
The purge valve is usually located between the fuel tank and the intake manifold and is connected to the EVAP system's hoses and tubing. It is controlled by the engine's powertrain control module (PCM) and typically opens at a specific temperature and RPM. When the PCM sends a signal to open the valve, the fuel vapors flow into the engine. When the valve is closed, the vapors are trapped in the evaporative canister.
If you need to replace your car's purge valve, the first step is to locate the valve. Once you have found it, you can then disconnect the electrical harness and vacuum lines connected to the valve, unscrew the bolt securing the valve to the fuel tank or mounting bracket, and install the new purge valve.
Dodge Charger's Unique Fuel System: Two Tanks?
You may want to see also
Explore related products
Function: Controls the flow of fuel vapours from the charcoal canister to the engine for combustion

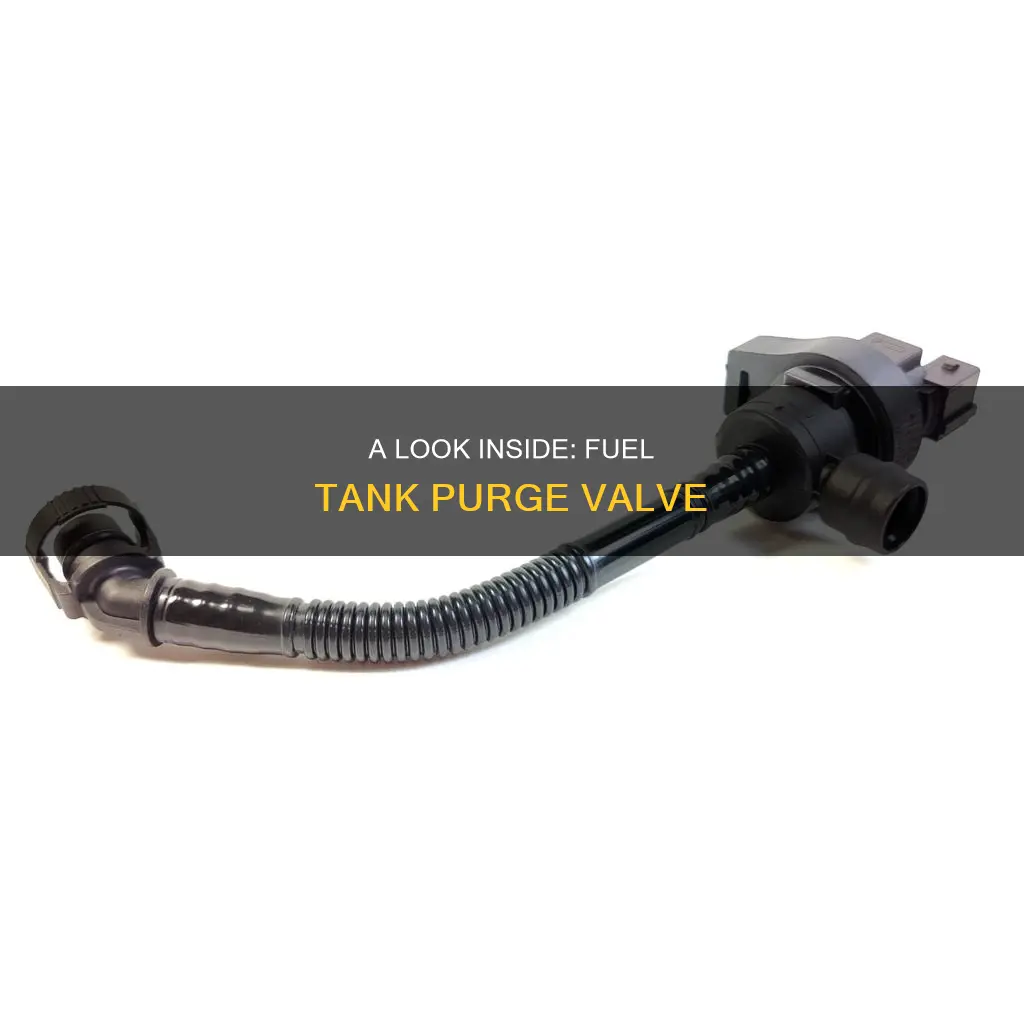

The purge valve is an electrically-operated solenoid that controls the flow of fuel vapours from the charcoal canister to the engine for combustion. It is a crucial component of a vehicle's evaporative emission control (EVAP) system, which prevents fuel vapours from escaping into the atmosphere. When a car is parked or turned off, fuel vapours from the gas tank are collected and stored in the charcoal canister. This process prevents harmful emissions from being released into the environment.
When the engine is running, the purge valve opens and allows the fuel vapours to be drawn out of the charcoal canister and directed into the engine's intake manifold. These vapours are then burned as part of the normal combustion process. The purge valve regulates the flow of fuel vapours, allowing more flow when the engine is hot or working hard, and less flow when the engine is cold or idling. This ensures optimal engine performance, improved fuel efficiency, and reduced emissions.
The purge valve is typically located next to the fuel tank and charcoal canister, particularly in cars with rear-mounted fuel tanks. Some vehicles may have the valve positioned closer to the engine, often on or near the intake manifold. The valve's operation is controlled by the engine computer, which monitors its performance and adjusts the vapour flow accordingly. This precise operation is crucial for both the performance of the vehicle and its environmental impact.
A properly functioning purge valve is essential for maintaining optimal engine performance and reducing harmful emissions. If the purge valve becomes stuck or experiences mechanical wear and tear, it can lead to issues such as increased emissions, decreased fuel efficiency, and poor engine performance. Regular testing and maintenance of the purge valve are important to ensure its proper functioning and to avoid more expensive repairs down the line.
Draining ATV Fuel Tank: A Step-by-Step Guide
You may want to see also
Explore related products
Faults: A faulty purge valve may cause the check engine light to come on, engine performance issues, and increased emissions
A faulty purge valve can cause a range of issues with your vehicle, from reduced engine performance to increased emissions. The purge valve is part of the evaporative emission control system (EVAP) and plays a crucial role in regulating fuel vapour flow, preventing it from being released into the atmosphere. When the purge valve malfunctions, it can get stuck open or closed, leading to the following issues:
Check Engine Light
A malfunctioning purge valve is one of the most common reasons for the check engine light to illuminate. This warning sign may be accompanied by diagnostic trouble codes (DTCs) such as P0441, P0446, or other EVAP codes, indicating a problem with the vapour tank flush valve. These codes can be read by a mechanic to help pinpoint the exact cause of the issue.
Engine Performance Issues
A faulty purge valve can lead to poor engine performance. When the valve gets stuck open, the vehicle takes in more air than expected, resulting in reduced fuel intake. This causes the engine to run poorly, stall, or have difficulty starting. Engine performance issues are more noticeable when driving at low RPMs, going uphill, or trying to pass another vehicle.
Increased Emissions
The purge valve is responsible for preventing toxic hydrocarbons from being released through the tailpipe. When the valve malfunctions and gets stuck closed, these harmful vapours are not redirected back into the engine but are instead released directly into the atmosphere, leading to increased emissions and adverse environmental impact.
Reduced Fuel Efficiency
A malfunctioning purge valve can also affect fuel efficiency. When the valve is stuck open, excess fuel vapour is drawn into the engine, resulting in higher fuel consumption and reduced mileage. Additionally, when the valve is stuck closed, the engine may not receive enough fuel vapour, causing incomplete combustion and reduced fuel efficiency.
Rough Idling
A faulty purge valve can cause the engine to idle roughly. This is because the engine may not be able to draw in enough fuel vapour to maintain a smooth idle, resulting in a bumpy or unstable engine speed when the vehicle is stationary.
It is important to address these issues promptly and have a qualified mechanic diagnose and repair any problems with the purge valve to maintain optimal vehicle performance and minimise harmful emissions.
Welding Fuel Oil Tanks: What You Need to Know
You may want to see also
Explore related products
Maintenance: A purge valve can be replaced by disconnecting electrical harnesses and vacuum lines, unscrewing the bolt, and installing a new valve
The purge valve, a crucial component of a vehicle's evaporative emission control (EVAP) system, can be replaced by performing the following steps:
Locate the Purge Valve:
The purge valve is typically located between the fuel tank and the intake manifold, but its exact position can vary depending on the vehicle's make and model. In some cases, it may be situated atop the engine or beneath the intake manifold. Before attempting any replacement, it is essential to consult vehicle-specific information to accurately locate the purge valve.
Disconnect the Battery:
Prior to initiating any work on the purge valve, it is imperative to disconnect the vehicle's battery. This step ensures safety during the procedure by preventing electrical shock. By disconnecting the battery, power to the vehicle is cut off, allowing for a secure working environment.
Disconnect Electrical Harness and Vacuum Lines:
The next step is to disconnect the electrical harness and vacuum lines connected to the purge valve. It is important to note their positions carefully to facilitate proper reinstallation during the final steps.
Unscrew the Bolt:
After disconnecting the electrical components, the physical removal of the purge valve can begin. The purge valve is typically secured to the fuel tank or a mounting bracket by a bolt. Unscrewing this bolt will release the valve, allowing it to be extracted.
Install the New Purge Valve:
With the old purge valve removed, the new purge valve can now be installed. It is crucial to ensure proper alignment and secure all fasteners tightly to prevent any leaks or issues.
Reconnect Vacuum Lines and Harness:
Finally, reconnect the vacuum lines and electrical harness to the new purge valve. Ensure that all connections are secure and that the valve is firmly in place.
It is important to note that while these steps provide a general guide, specific procedures may vary depending on the vehicle's make and model. Consulting vehicle-specific repair manuals or seeking the assistance of a professional mechanic can ensure a safe and effective purge valve replacement.
Draining a Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Malfunctions: Wiring problems, fuel deposits, and faulty electrical connections can all hinder valve operation
A fuel tank purge valve is an electrically-operated solenoid that is part of the vehicle's evaporative emission control (EVAP) system. It is typically located between the fuel tank and the intake manifold and is responsible for removing excess fuel vapour. When the purge valve is not functioning properly, it can cause issues with the EVAP system, leading to potential engine problems and increased emissions.
Wiring problems, fuel deposits, and faulty electrical connections are common causes of purge valve malfunction. Wiring issues or faulty electrical connections can compromise the purge valve solenoid, hindering its operation. This can include damage to the electrical harness connected to the purge valve. Over time, fuel deposits or debris can also accumulate and obstruct the valve, impacting its functionality.
In some cases, a compromised Engine Control Unit (ECU) may be unable to properly control the purge valve, resulting in operational issues. This can lead to the valve sticking or not closing fully, causing the "Check Engine" light to illuminate. A stuck-open purge valve can cause difficulty in starting the engine, particularly after refuelling, as the engine may run rough and stumble for a few seconds.
To diagnose a faulty purge valve, a technician will typically perform a combination of visual inspections and diagnostic tests. This may include checking for diagnostic trouble codes (DTCs) using an OBD-II scanner to read the vehicle's computer for any codes related to the EVAP system. Understanding the underlying causes of purge valve malfunction can help prevent future issues and ensure the proper functioning of the EVAP system and engine.
Unearthing Fuel Tanks: A Comprehensive Guide to Digging Safely
You may want to see also
Frequently asked questions
The purge valve is typically located between the fuel tank and the intake manifold and is connected to the EVAP system's hoses and tubing. It is controlled by the engine's powertrain control module (PCM) and typically opens at a specific temperature and RPM. A visual inspection can be done to locate and check for any signs of damage or leakage.
A purge valve is a device used to remove excess fuel vapour from a vehicle's evaporative emission control (EVAP) system. It controls the flow of fuel vapours from the charcoal canister, where they are temporarily stored, back into the engine for combustion.
If the purge valve is stuck closed, it can cause the vehicle to emit higher levels of hydrocarbon emissions, which is harmful to the environment.
If the purge valve is stuck open, it can cause the engine to draw in too much air, reducing fuel efficiency and increasing emissions.
