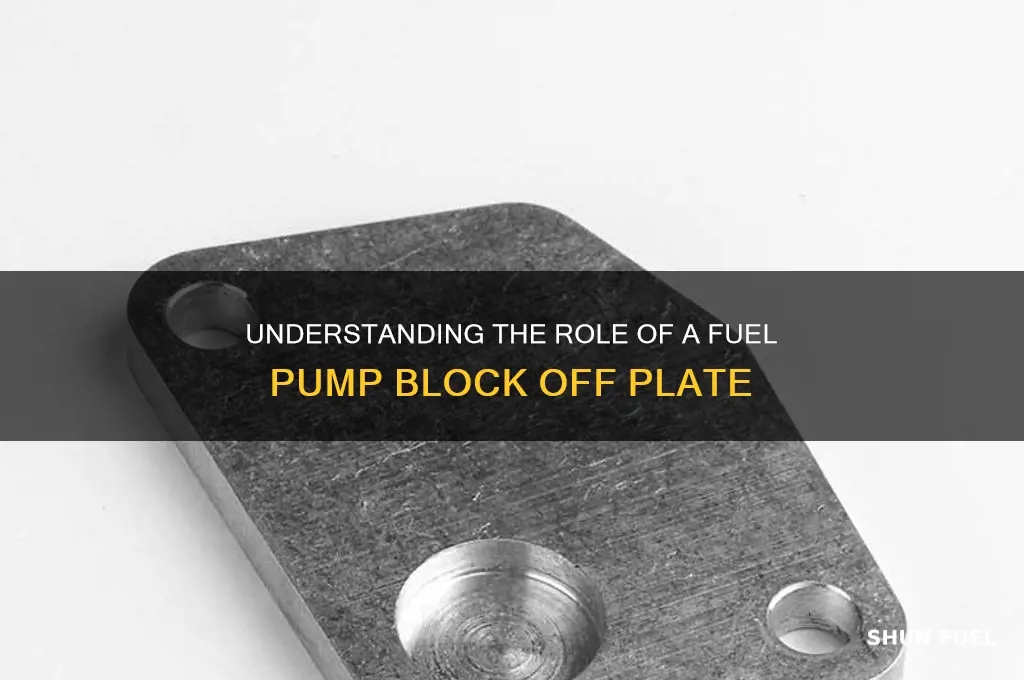

A fuel pump block-off plate is a component used in vehicles, particularly those with aftermarket modifications or conversions, to seal the opening where a fuel pump would typically be installed. This plate is commonly employed when removing the factory in-tank fuel pump or when transitioning to an external fuel pump setup, such as in carbureted or high-performance engines. By securely covering the fuel pump opening, the block-off plate prevents fuel leakage, ensures tank integrity, and maintains safety by eliminating potential hazards associated with an exposed fuel system. It is often made from durable materials like aluminum or steel to withstand the harsh environment inside the fuel tank and is essential for applications where the original fuel pump is no longer needed or has been relocated.
| Characteristics | Values |
|---|---|
| Purpose | Seals the fuel pump opening in a fuel tank when the pump is removed or not in use. |
| Application | Used in vehicles or systems where a fuel pump has been removed, such as during conversion to a carbureted system or when upgrading to an external fuel pump. |
| Material | Typically made of aluminum, steel, or other durable materials resistant to fuel and corrosion. |
| Installation | Requires cleaning the fuel tank opening and securing the plate with bolts or gasket to ensure an airtight seal. |
| Benefits | Prevents fuel leaks, debris entry, and ensures proper tank pressure when the fuel pump is not present. |
| Compatibility | Must match the specific fuel pump opening size and shape of the vehicle or system. |
| Maintenance | Minimal; inspect for cracks or damage during routine maintenance. |
| Cost | Relatively inexpensive, ranging from $10 to $50 depending on material and brand. |
| DIY Friendly | Yes, can be installed by individuals with basic mechanical skills. |
Explore related products
What You'll Learn
- Prevents Fuel Flow: Blocks fuel delivery to specific cylinders or systems when not in use
- Maintenance Tool: Used during repairs to isolate fuel pump and prevent leaks
- Safety Feature: Reduces fire risk by stopping fuel flow in emergencies or storage
- Testing Purpose: Allows testing of fuel system components without full pump operation
- Compatibility: Ensures proper fit and function with specific fuel pump models
Prevents Fuel Flow: Blocks fuel delivery to specific cylinders or systems when not in use
In high-performance engines, especially those in racing or modified vehicles, fuel delivery precision is critical. A fuel pump block off plate serves as a strategic tool to prevent fuel flow to specific cylinders or systems when they are not in use. This is particularly useful in applications where certain cylinders are deactivated during specific operating conditions, such as in V8 engines running on four cylinders during cruising to save fuel. By blocking off unused fuel injectors or lines, the plate ensures that fuel is not wasted and that the active cylinders receive the correct amount of fuel for optimal performance.
Consider a scenario where a vehicle is equipped with a dual-fuel system, allowing it to run on either gasoline or ethanol. When one fuel type is not in use, the block off plate can be installed to seal off the corresponding fuel pump or injector rail. This prevents cross-contamination and ensures that only the active fuel system is operational. For instance, if a driver switches from ethanol to gasoline, the ethanol fuel pump can be blocked off to avoid any residual ethanol from entering the gasoline system, which could lead to performance issues or damage.
From a maintenance perspective, the fuel pump block off plate is invaluable during repairs or modifications. When working on a specific cylinder or fuel system, technicians can install the plate to isolate the area, preventing fuel from flowing to the work zone. This not only enhances safety by reducing the risk of fuel spills or fires but also allows for more precise diagnostics and repairs. For example, when replacing a fuel injector, the block off plate ensures that fuel does not spray out of the disconnected injector, making the process cleaner and safer.
In the context of engine tuning, the block off plate can be used to simulate different engine configurations. By blocking off fuel delivery to certain cylinders, tuners can test the impact of cylinder deactivation on performance and fuel efficiency. This is especially useful in developing fuel-saving strategies for high-performance engines. For instance, a tuner might block off two cylinders in a six-cylinder engine to analyze how the remaining four cylinders handle the load, providing data to optimize fuel maps and ignition timing.
Practical implementation of a fuel pump block off plate requires careful consideration of the engine’s design and the specific application. Ensure the plate is made of a material compatible with the fuel type (e.g., aluminum or stainless steel for gasoline, ethanol-resistant materials for ethanol blends). Installation should be done with precision to avoid leaks, using appropriate gaskets and torque specifications. For DIY enthusiasts, it’s crucial to consult the vehicle’s manual or seek professional guidance to avoid damaging the fuel system. When used correctly, the block off plate is a versatile tool that enhances efficiency, safety, and performance in various automotive applications.
Are All SBC Fuel Pump Rods Interchangeable? A Comprehensive Guide
You may want to see also
Explore related products
Maintenance Tool: Used during repairs to isolate fuel pump and prevent leaks
A fuel pump block off plate is a critical maintenance tool designed to isolate the fuel pump during repairs, ensuring a safe and leak-free work environment. When working on a vehicle’s fuel system, even a small spill can pose significant risks, from fire hazards to environmental contamination. This plate acts as a barrier, sealing the fuel pump’s inlet or outlet to prevent fuel from escaping into the engine bay or surrounding areas. Its primary function is to safeguard both the mechanic and the vehicle by containing potential leaks, making it an indispensable tool for professional and DIY repairs alike.
To use a fuel pump block off plate effectively, follow these steps: first, relieve the fuel system pressure according to the vehicle’s manual, typically by disconnecting the fuel pump fuse or relay and running the engine until it stalls. Next, locate the fuel pump, which is often found inside the fuel tank. After removing the tank or accessing the pump, disconnect the fuel lines and install the block off plate over the pump’s inlet or outlet using the appropriate gasket and bolts. Ensure a tight seal to prevent any fuel from seeping through. This process not only isolates the pump but also allows for safe testing or replacement of other fuel system components without the risk of spills.
While the block off plate is straightforward in design, its importance cannot be overstated. For instance, during fuel pump replacement, the plate enables mechanics to work on the pump without draining the entire fuel tank, saving time and reducing the risk of fuel exposure. Similarly, when diagnosing fuel system issues, the plate allows for pressure testing or cleaning of fuel lines without the hazard of leaks. Its simplicity and effectiveness make it a must-have tool for any fuel system repair, ensuring both efficiency and safety in the workshop.
Despite its utility, there are a few cautions to keep in mind when using a fuel pump block off plate. Always double-check the compatibility of the plate with your vehicle’s fuel pump model to ensure a proper fit. Over-tightening the bolts can damage the plate or the pump housing, so use a torque wrench to achieve the manufacturer’s recommended specifications. Additionally, never attempt fuel system repairs without proper ventilation and fire safety measures in place. By adhering to these precautions, the block off plate becomes a reliable ally in maintaining and repairing fuel systems safely.
In conclusion, the fuel pump block off plate is a small yet powerful tool that plays a vital role in vehicle maintenance. Its ability to isolate the fuel pump and prevent leaks during repairs not only enhances safety but also streamlines the diagnostic and replacement process. Whether you’re a professional mechanic or a DIY enthusiast, understanding and utilizing this tool can significantly reduce the risks associated with fuel system work, making it an essential addition to any automotive toolkit.
Understanding the Fuel Pump System in Your Ford Bronco
You may want to see also
Explore related products
Safety Feature: Reduces fire risk by stopping fuel flow in emergencies or storage
In high-risk environments, such as automotive racing or industrial storage, a fuel pump block off plate acts as a critical safety barrier. By physically sealing the fuel pump outlet, it halts fuel flow entirely, mitigating the risk of fire during emergencies like collisions or leaks. This simple yet effective device transforms a potential disaster into a manageable situation, ensuring fuel remains contained when the system is compromised.
Consider the installation process: after removing the fuel pump, the block off plate is bolted securely in its place, creating an airtight seal. This step is particularly vital during vehicle storage or when converting a fuel system (e.g., from mechanical to electric pumps). Without it, residual fuel pressure or leaks could lead to hazardous vapors accumulating, especially in enclosed spaces. Always use a gasket and torque specifications appropriate for your vehicle to prevent seepage.
Comparatively, vehicles without this safety feature rely solely on fuel lines and pumps to maintain integrity, which can fail under extreme conditions. For instance, in a rollover accident, a damaged fuel pump might continue to deliver fuel, increasing ignition risk. A block off plate, however, provides a fail-safe—a physical barrier that requires deliberate removal to restore fuel flow, making it ideal for scenarios where the fuel system is inactive or decommissioned.
Persuasively, investing in a fuel pump block off plate is a small price for significant peace of mind. For racers, it’s a mandatory safety measure in many competitions, while for classic car restorers, it prevents long-term storage hazards. Pair it with regular inspections of fuel lines and tanks to ensure comprehensive protection. Remember, in emergencies, seconds count—and this device buys you the time needed to act safely.
Signs Your Fuel Pump is Failing: What to Watch For
You may want to see also
Explore related products
Testing Purpose: Allows testing of fuel system components without full pump operation
A fuel pump block off plate serves a critical diagnostic function by isolating the fuel pump from the rest of the fuel system. This isolation is particularly useful when testing fuel system components without engaging the full pump operation. By installing the block off plate, technicians can prevent fuel from being drawn into the pump, allowing them to focus on evaluating other parts of the system, such as fuel injectors, pressure regulators, or fuel lines, without interference. This method ensures that any issues detected are not influenced by the pump’s operation, providing a clearer diagnostic picture.
To effectively use a fuel pump block off plate for testing, follow these steps: first, disconnect the fuel pump relay or fuse to prevent accidental activation. Next, remove the fuel pump from the tank or module and install the block off plate in its place, ensuring a secure seal to prevent leaks. With the pump isolated, connect a fuel pressure gauge to the fuel rail and cycle the ignition to test the system. Observe the gauge for proper pressure buildup and holding capacity, which indicates the functionality of components like the pressure regulator and injectors. This process allows for targeted troubleshooting without the complexity of a fully operational pump.
One practical example of this testing method is diagnosing a suspected fuel pressure regulator failure. By using a block off plate, the technician can isolate the regulator and apply a controlled fuel pressure source to observe whether it maintains the correct pressure or leaks. Without the plate, the pump’s operation could mask regulator issues or introduce variables that complicate diagnosis. This approach saves time and reduces the risk of misdiagnosis, making it a valuable tool in automotive repair.
While the block off plate is highly effective for testing, caution must be exercised to avoid common pitfalls. Ensure the fuel system is depressurized before installation to prevent fuel spray or injury. Additionally, verify compatibility between the plate and the fuel pump module to avoid damage or improper sealing. Overlooking these precautions can lead to unsafe conditions or inaccurate test results. When used correctly, however, the block off plate transforms complex fuel system diagnostics into a straightforward, controlled process.
In conclusion, the fuel pump block off plate is an indispensable tool for isolating and testing fuel system components without the interference of pump operation. Its application streamlines diagnostics, enhances accuracy, and reduces the risk of misdiagnosis. Whether testing pressure regulators, injectors, or fuel lines, this method provides a clear, controlled environment for evaluation. By understanding its purpose and proper use, technicians can leverage the block off plate to efficiently resolve fuel system issues, ensuring optimal vehicle performance and safety.
Step-by-Step Guide: Installing a Mechanical Fuel Pump on Chevy SB
You may want to see also
Explore related products
Compatibility: Ensures proper fit and function with specific fuel pump models
A fuel pump block off plate is a critical component in automotive systems, particularly when transitioning from an in-tank fuel pump setup to an external or aftermarket system. Its primary function is to seal the opening in the fuel tank where the original pump was mounted, preventing fuel leaks and ensuring system integrity. However, compatibility is the linchpin that determines whether this component will perform its role effectively. Without precise alignment with specific fuel pump models, the block off plate risks improper sealing, leading to leaks, reduced fuel efficiency, or even safety hazards.
Consider the fuel pump block off plate as a bespoke key for a specific lock. Just as a key must match the lock’s grooves to function, the block off plate must align perfectly with the fuel pump’s mounting pattern, bolt holes, and gasket surface. For instance, a plate designed for a Walbro 255 fuel pump will not fit a Bosch 044 pump due to differences in size, shape, and mounting points. Manufacturers often provide compatibility charts or part numbers to ensure users select the correct plate for their pump model, avoiding costly mistakes.
Compatibility extends beyond physical dimensions to material and design considerations. Fuel pump block off plates are typically made from aluminum, steel, or composite materials, each with varying resistance to corrosion, heat, and fuel types (e.g., ethanol-blended gasoline). A plate incompatible with the fuel type or environmental conditions can degrade prematurely, compromising its sealing ability. For example, an aluminum plate may corrode in ethanol-rich fuels, while a steel plate might warp under high temperatures. Always verify material compatibility with your fuel system specifications.
Installation is another area where compatibility plays a pivotal role. Some fuel pump block off plates require specific gaskets, O-rings, or sealing compounds to ensure an airtight fit. Others may necessitate torque specifications tailored to the pump’s mounting hardware. Ignoring these details can result in overtightening, which warps the plate, or undertightening, which causes leaks. Always follow the manufacturer’s instructions and use recommended tools, such as torque wrenches, to achieve the correct fitment.
Finally, compatibility ensures long-term reliability and safety. A properly matched block off plate maintains fuel system pressure, prevents vapor lock, and safeguards against fuel spills that could ignite. For high-performance or racing applications, where fuel demands are extreme, compatibility becomes even more critical. A mismatched plate can lead to fuel starvation, engine misfires, or catastrophic failures. Investing in a compatible block off plate tailored to your fuel pump model is not just a matter of fitment—it’s a safeguard for your vehicle’s performance and your peace of mind.
Locating the Fuel Pump Relay in a 1995 S10 Truck
You may want to see also
Frequently asked questions
A fuel pump block off plate is a metal or aluminum plate used to seal the opening in a fuel tank where a fuel pump assembly was previously installed, typically when converting from an in-tank fuel pump to an external or aftermarket system.
Someone would need to use a fuel pump block off plate when removing the factory in-tank fuel pump, often during a fuel system upgrade or conversion to an external pump setup, to prevent fuel leaks and ensure the tank remains sealed.
A fuel pump block off plate is installed by placing it over the fuel pump opening in the tank, applying a gasket or sealant if required, and securing it with bolts or screws to create an airtight seal.
A fuel pump block off plate can often be reused if removed carefully, provided the gasket or sealant is replaced, and the plate is not damaged during the removal process.
Yes, fuel pump block off plates come in various sizes and shapes to match different fuel tank openings, depending on the vehicle make, model, and fuel pump design. Always verify compatibility before purchasing.
