A car's fuel pump is a critical component of its powertrain system. It transfers petrol or diesel from the fuel tank to the engine. A malfunctioning fuel pump can cause a range of issues, from a lack of power output to a complete breakdown. To avoid this, it's important to regularly check the fuel pressure and take immediate action if it drops, as this indicates a weak pump. Checking fuel pressure involves testing the vehicle's fuel pressure levels by attaching a gauge to the fuel pump test point and activating the engine. This guide will outline the steps to test fuel pressure and explain what different readings mean for your car.
| Characteristics | Values |
|---|---|
| Engine performance issues | Lack of power output from the engine, slow start-up, low performance, misfires, stalling, excessive fuel consumption, black smoke from unburned gas, overheating catalytic converter, rough idle |
| Fuel pump issues | Overheating, low fuel pressure, weak performance, failure to pump fuel to the engine |
| Fuel pressure tester components | Fuel gauge, fuel hose |
| Fuel pressure tester procedure | Attach the gauge to the fuel pump test point, activate the engine, record the pressure reading |
| Fuel pressure readings | Zero fuel pressure: pump might be dead or not operational; Low fuel pressure: fuel pump might be malfunctioning, clogged fuel filter, loose gas cap; High fuel pressure: bad components, failing fuel pump driver, malfunctioning fuel pressure regulator |
| Fuel system issues | Fuel leaks, failing fuel pump, clogged fuel filters, air stuck in the filter, fuel gelling in low temperatures, faulty fuel pressure regulator, obstructed return lines, malfunctioning fuel rail pressure sensors, bad release valves |
| Fuel pump test port | Located on the engine fuel rail (remove cap) or may need an adapter from the test kit attached at the fuel filter or fuel pressure feed line |
| Fuel pump test kit | Basic kit costs $70 to $80, auto parts stores will lend a kit for free in most cases |
Explore related products
What You'll Learn

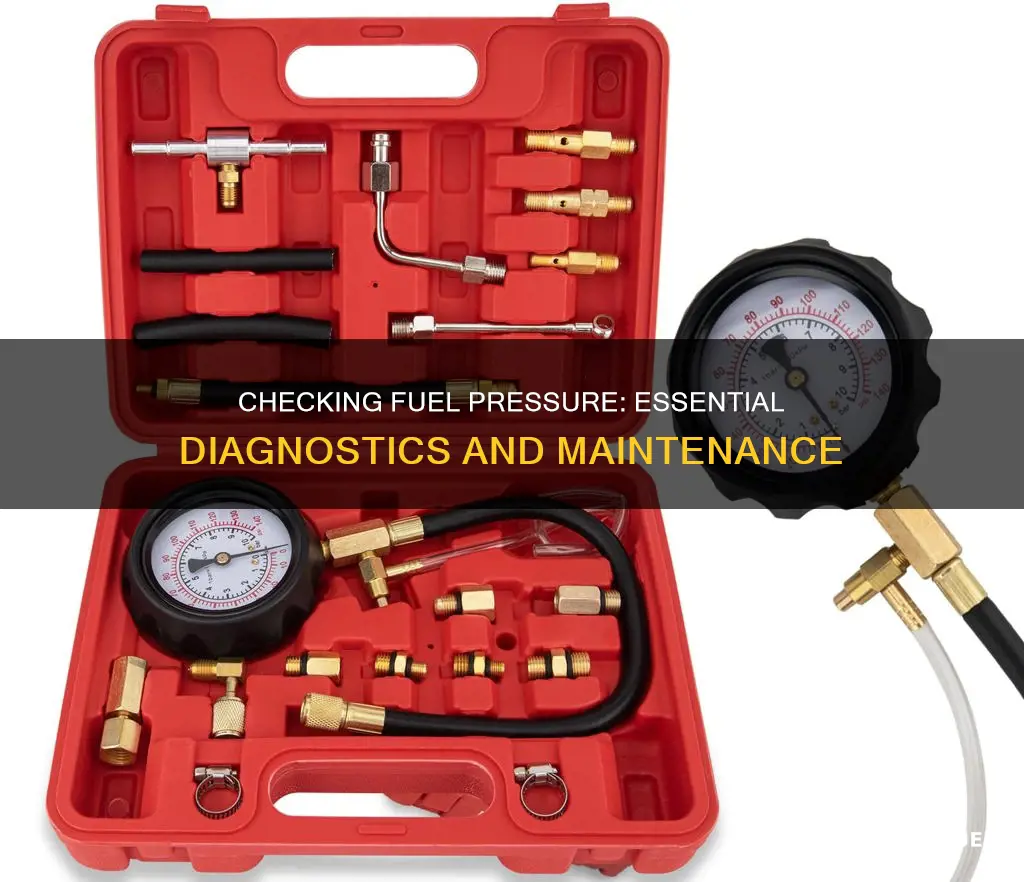

Fuel pressure tester kits
There are various fuel pressure tester kits available on the market, offering different features and price points. Here is an overview of some popular options:
Basic Fuel Pressure Test Kit:
This kit includes a gauge attached to a fuel hose and multiple fittings, allowing connection to the fuel system of most vehicles. It provides a simple and effective way to test fuel pressure and identify any potential issues.
Fuel Injection Pressure Tester:
The fuel injection pressure tester is designed to test the pressure specifically in fuel injection systems. It includes adapters and fittings to connect to different types of fuel injectors and helps diagnose issues related to fuel delivery and performance.
Master Fuel Pressure Test Set:
The master test set offers a comprehensive solution for fuel pressure testing. It typically includes a range of adapters, hoses, and gauges to fit various vehicle makes and models. This set is ideal for professional mechanics or enthusiasts who work on a diverse range of vehicles.
Universal Fuel Pressure Gauge Kit:
As the name suggests, this kit offers a universal solution for fuel pressure testing. It is designed to fit most gasoline cars, trucks, and motorcycles. The kit typically includes a gauge, hoses, and adapters, providing a versatile and convenient option for fuel pressure diagnosis.
Comprehensive Fuel Injection Pump Pressure Tester:
This tester kit is designed to be a complete solution for fuel injection pump diagnosis. In addition to the standard gauge and hoses, it may also include additional tools such as a carrying case, instruction manual, and adapters for different fuel systems.
When choosing a fuel pressure tester kit, it is important to consider the specific needs and requirements of your vehicle. Ensure that the kit you select is compatible with your vehicle's fuel system and provides the necessary features and accuracy for effective diagnosis.
Additionally, it is crucial to prioritise safety when working with fuel systems. Always refer to the manufacturer's instructions and take appropriate precautions to avoid any hazards associated with flammable fuels.
Understanding Low Fuel Rail Pressure in Cummins Engines
You may want to see also
Explore related products
How to test fuel pressure
Testing the fuel pressure can help you diagnose any starting or running issues with your car. Before you begin, ensure you are wearing safety glasses and gloves, and are working in a well-ventilated area. Fuel vapours are highly flammable, so have a fire extinguisher nearby.
First, park your car and apply the parking brake. Then, turn off the engine and let it cool down. Locate the Schrader valve fitting on the fuel rail. Most vehicles will have them, but they may be hidden under a fuel rail cover or other plastic engine cover. Remove the Schrader valve cap and attach the appropriate fuel pressure tester fitting. Ensure it is threaded on properly for a leakproof fit.
Turn the ignition to "on", but not start. Check the psi reading and wait. If the fuel pressure drops over 10 minutes, this indicates a leak in the fuel system. Once the engine is warmed up, give the engine a slow rev, making sure the pressure rises with the RPMs. If the pressure holds steady, rises with engine speed, and is at the recommended pressure, your engine problem does not seem fuel-related.
If you are experiencing zero fuel pressure, check the fuel pump fuse. Then, verify power to the pump with a multimeter, and if it's good, swap out the fuel pump. Low fuel pressure could be caused by a clogged fuel filter or a failing pump. If it is a serviceable type filter, replace the fuel filter. High fuel pressure could be caused by a clogged or kinked fuel return line, a bad fuel pump driver module, or a faulty fuel pressure regulator.
Removing Fuel Pressure Sensor: A Step-by-Step Guide
You may want to see also
Explore related products
Signs of a malfunctioning fuel pump
A malfunctioning fuel pump can cause several issues and result in vehicle breakdown. Here are some signs that indicate a malfunctioning or failing fuel pump:
- Lack of Power Output from the Engine: A common symptom of a malfunctioning fuel pump is low engine power delivery. Even with the accelerator pressed flat out, the power output is inadequate. This decline in power results in a lack of fuel delivery to the engine, leading to lower power output.
- Engine Struggles to Start: If your vehicle is having difficulty starting or isn't starting at all, it could be due to a faulty fuel pump. The car may still crank when the key is turned, but it won't start because fuel isn't reaching the engine.
- Sputtering or Stalling While Driving: If your engine is sputtering or stalling during your drive, it's likely due to a faulty fuel pump. The low pressure caused by a malfunctioning fuel pump results in the engine not getting the required fuel and air mixture for combustion, especially when the vehicle is accelerating or under stress, such as towing a heavy load or driving uphill.
- Engine Surging: A malfunctioning fuel pump can cause the engine to surge, leading to repeated speed spikes and drops without any input from the driver. This is caused by the pump sending too much fuel to the engine.
- Whining or Whirring Noise from the Fuel Tank: A healthy fuel pump makes a low, barely noticeable humming sound. However, if you hear a low-grade whining or whirring noise coming from the fuel tank, it could indicate a problem with the fuel pump.
- Lower Gas Mileage: Poor fuel efficiency is another sign of a malfunctioning fuel pump. Damaged or worn components in the fuel pump can allow excess fuel to enter the engine, resulting in increased fuel consumption.
- Performance Issues: A weak fuel pump can cause performance issues such as a slow start-up, low performance, misfires, and stalling.
- Overheating: If the fuel pump is unable to deliver enough fuel, it can cause the engine to overheat.
- Loss of Power During High-Speed or Stressful Conditions: When driving at higher speeds or under stressful conditions, such as driving up steep inclines or carrying heavy cargo, the engine demands more fuel. If the fuel pump is faulty, you may experience a loss of power during these situations.
Relieving Fuel Pressure in a 2003 Hummer H2
You may want to see also
Explore related products
Fuel injection systems
To check the fuel pressure in a fuel injection system, it is important to first understand the components involved. The fuel pump plays a crucial role in supplying fuel from the tank to the fuel pressure regulator and the injectors themselves. The fuel pressure regulator then divides the fuel between the pressure line and the return line. The pressure line carries fuel to the injectors, while the return line sends excess fuel back to the tank.
When troubleshooting fuel injection systems, checking the fuel pressure is key. Abnormal fuel pressure can cause a range of issues. High fuel pressure can lead to excessive fuel consumption, black smoke from unburned gasoline, and an overheating catalytic converter. On the other hand, low fuel pressure may result in a slow startup, reduced engine performance, misfires, and stalling.
To test fuel pressure, you can use a fuel pressure tester, which consists of a gauge attached to a fuel hose with multiple fittings. These fittings allow the tester to connect to almost any vehicle's fuel system. Once connected and pressurized, the tester displays the fuel pressure in psi. By comparing this reading to the manufacturer's specifications, you can identify any issues. For example, high fuel pressure may be caused by problems in the return line fuel components, while low fuel pressure could indicate issues in the pressure line fuel components.
Fuel Pressure Loss: What Causes It After Engine Shutdown?
You may want to see also
Explore related products
Fuel pump test
A fuel pump is a critical component of a car's powertrain system. It transfers the petrol or diesel from the fuel tank to the car's engine. A malfunctioning fuel pump can cause several issues and result in the vehicle breaking down, leaving you stranded anywhere. Therefore, it is always suggested to check the fuel pump's performance and look for subtle failure signs.
Step 1: Safety First
Before performing any diagnostic tests, it is important to remember that releasing fuel under pressure can cause fires and injuries. Therefore, safety should be the top priority. Wear safety glasses and gloves, work in a well-ventilated area, and ensure there are no sources of sparks or smoke nearby.
Step 2: Fuel Pressure Test
First, check the fuel pressure. Start the car and let it idle. Install a fuel pressure gauge, run the pump, and note the pressure reading. Then, compare it to the manufacturer's specifications. If the pressure is low, address this issue. If the fuel pump is supplying sufficient pressure, perform a fuel volume test to determine if the proper amount of fuel is being delivered to the fuel injectors.
Step 3: Use a Flowmeter or Glass Measuring Container
The most accurate way to test fuel delivery is by using a flowmeter. However, if you do not have access to one, you can perform a timed fuel delivery test using a glass measuring container. Fuel can corrode or fog up plastic, so glass is a better choice.
Start the car and let it idle. Collect a fuel sample for five seconds with the pump running. The pump should deliver a specific amount of fuel within that time frame, which you can find in your manufacturer's specifications. You might need to convert milliliters per second to gallons per hour to make this comparison.
Step 4: Electrical Test
Before condemning the fuel pump, it is important to check if the problem is electrical. Check the fuel pump fuse in the fuse box. If the fuse is blown, it will be broken or burned. If the fuse looks good, check the rest of the fuses related to the fuel system and replace them if necessary. If no fuses are blown, listen for the fuel pump relay clicking on when the ignition is turned on.
Step 5: Check Voltage at the Pump
Check the voltage at the pump itself. Consult your vehicle's service manual to find the proper procedure for checking the voltage. Test for source voltage to determine if the charge is reaching the pump. If no power is reaching the fuel pump, check the fuel pump relay circuit for a bad relay.
Step 6: Perform a Drop Test Using a Voltmeter
Check the power wire and the grounding wire using a voltmeter. If the power wire does not show the full voltage or the grounding wire is not grounded properly, you may have an issue with corroded wires or the circuit.
Step 7: Eliminate the Filter as a Possibility
If the filter is clogged with sediment, it can cause problems with acceleration, similar to a faulty fuel pump. To check the filter, remove it from the vehicle and drain excess fuel. Use a short piece of rubber hose on the filter inlet and blow through it, paying attention to the resistance. If there is significant resistance, inspect the screen for debris and replace the filter if necessary.
Step 8: Get a Fuel Pressure Gauge
Fuel pressure gauges are commonly available at auto parts stores and can also be borrowed from machine shops or auto shops. Locate the fuel pump test point, usually near the fuel injectors, and attach the pressure gauge to the separation joint or test port.
Step 9: Rev the Engine and Check the Gauge
Let the engine warm up slightly, then check the pressure at idle speed and the rated speed listed in your pump specifications. If there is a serious problem, the needle won't move or will go below the specified pressure, indicating the need to replace the fuel pump and filter.
Oil Pressure Sensor: Can It Destroy Your Fuel Pump?
You may want to see also
Frequently asked questions
A malfunctioning fuel pump could result in a lack of power output from the engine. Low fuel pressure is usually caused when the pump is functioning weakly. The decline in power eventually results in a lack of fuel delivery to the engine and lower power output.
You will need a screwdriver, a fuel pressure gauge, ratchets, and sockets. You can get a basic fuel pressure test kit for $70 to $80.
Ideal fuel pressure levels vary from model to model. Older throttle-body injected systems need as little as 10 psi, while multi-port injection systems usually need 60 psi. A port-injected vehicle requires fuel pressure between 30 and 80 psi.
