Fuel injection systems in modern vehicles are controlled by a sophisticated network of components working in harmony to optimize engine performance, efficiency, and emissions. At the heart of this system is the Engine Control Unit (ECU), a computer that processes data from various sensors, such as the mass airflow sensor, throttle position sensor, and oxygen sensor, to determine the precise amount of fuel needed for combustion. The ECU calculates the ideal fuel-to-air ratio based on factors like engine load, speed, temperature, and driver input, and then sends signals to the fuel injectors, which spray a measured amount of fuel into the combustion chamber. Additionally, components like the fuel pressure regulator and fuel pump ensure consistent fuel delivery, while feedback loops allow the system to adjust in real-time for optimal performance. Together, these elements ensure that fuel injection is tightly controlled, balancing power, efficiency, and environmental compliance.
| Characteristics | Values |
|---|---|
| Control System | Electronic Control Unit (ECU) or Engine Control Module (ECM) |
| Sensors | Mass Airflow Sensor (MAF), Manifold Absolute Pressure (MAP), Oxygen Sensor (O2), Throttle Position Sensor (TPS), Crankshaft Position Sensor (CKP), Camshaft Position Sensor (CMP), Intake Air Temperature Sensor (IAT), Coolant Temperature Sensor (CTS) |
| Actuators | Fuel Injectors, Fuel Pump, Pressure Regulator |
| Fuel Pressure Regulation | Controlled by the ECU via the fuel pressure regulator |
| Injection Timing | Determined by ECU based on sensor inputs and engine load |
| Fuel Quantity | Calculated by ECU using MAF/MAP and other sensor data |
| Closed-Loop Control | Uses O2 sensor feedback to adjust fuel-air mixture for optimal combustion |
| Open-Loop Control | Operates without O2 sensor feedback (e.g., during cold start) |
| Adaptive Learning | ECU adjusts fuel injection parameters based on driving conditions |
| Diagnostics | On-Board Diagnostics (OBD) system monitors fuel injection performance |
| Fuel Type Compatibility | Systems are calibrated for specific fuel types (e.g., gasoline, diesel) |
| Environmental Compliance | Designed to meet emissions standards (e.g., Euro 6, EPA Tier 4) |
| Power Source | 12V or 24V electrical system from the vehicle's battery |
| Communication Protocols | CAN (Controller Area Network) for sensor and actuator communication |
| Fail-Safe Mechanisms | ECU switches to default settings if sensors fail |
| Software Updates | ECU firmware can be updated for improved performance or emissions |
Explore related products
What You'll Learn
- Engine Control Unit (ECU): The ECU manages fuel injection timing, duration, and pressure based on sensor data
- Sensors and Inputs: Mass airflow, throttle position, and oxygen sensors provide critical data for injection control
- Fuel Pressure Regulation: The fuel pressure regulator ensures consistent pressure for precise injection into cylinders
- Injector Operation: Fuel injectors spray atomized fuel into the intake manifold or combustion chamber
- Feedback Control Systems: Closed-loop systems adjust injection based on oxygen sensor feedback for optimal air-fuel ratio
Engine Control Unit (ECU): The ECU manages fuel injection timing, duration, and pressure based on sensor data
The Engine Control Unit (ECU) is the brain behind modern fuel injection systems, orchestrating a complex dance of timing, duration, and pressure to optimize engine performance. At its core, the ECU processes data from sensors scattered throughout the vehicle—such as the mass airflow sensor, throttle position sensor, and oxygen sensor—to determine the precise amount of fuel needed for combustion. For instance, during cold starts, the ECU increases fuel injection duration to compensate for inefficient vaporization, ensuring smoother ignition. This real-time adaptability is what sets the ECU apart from older carbureted systems, which relied on mechanical adjustments and were less responsive to changing conditions.
To understand the ECU’s role, consider the process of fuel injection as a recipe where the ECU is the chef. It adjusts the "ingredients"—fuel and air—based on the engine’s demands. For example, under heavy acceleration, the ECU increases fuel pressure and shortens injection duration to deliver more fuel quickly, maximizing power output. Conversely, during cruising, it reduces fuel delivery to improve efficiency. This dynamic control is achieved through algorithms that analyze sensor data up to 100 times per second, ensuring the engine operates within optimal parameters. Without the ECU, achieving such precision would be impossible, leading to inefficiencies, higher emissions, and reduced performance.
One practical tip for vehicle owners is to monitor the ECU’s health through diagnostic tools like OBD-II scanners. If the ECU malfunctions—say, due to a faulty sensor or corrupted software—it can lead to symptoms like rough idling, poor fuel economy, or even engine stalling. Regular maintenance, such as cleaning sensors and updating the ECU’s firmware, can prevent these issues. For DIY enthusiasts, understanding the ECU’s role allows for informed decisions when tuning engines, such as adjusting fuel maps for performance gains or optimizing for fuel efficiency. However, caution is advised: improper modifications can void warranties or damage the engine, so consulting a professional is often the safest route.
Comparatively, the ECU’s role in fuel injection is akin to a conductor leading an orchestra. Each sensor acts as a musician, providing feedback that the ECU uses to harmonize the engine’s operation. For example, the oxygen sensor’s feedback on exhaust gas composition allows the ECU to fine-tune the air-fuel mixture, reducing emissions and improving combustion efficiency. This level of control is particularly evident in modern turbocharged engines, where the ECU must balance fuel delivery with boost pressure to prevent knock or misfires. In contrast, carbureted engines lack this sophistication, relying on fixed jets and mechanical linkages that cannot adapt to varying conditions.
In conclusion, the ECU is not just a component but a critical system integrator that ensures fuel injection aligns with the engine’s needs. Its ability to process sensor data and adjust fuel delivery in milliseconds is a testament to automotive engineering’s advancements. Whether you’re a car owner, mechanic, or enthusiast, understanding the ECU’s function empowers you to maintain, diagnose, and optimize your vehicle’s performance. As technology evolves, the ECU’s role will only grow, paving the way for smarter, more efficient engines in the future.
Exploring the Power Behind Space Travel: How Are Spaceships Fueled?
You may want to see also
Explore related products
Sensors and Inputs: Mass airflow, throttle position, and oxygen sensors provide critical data for injection control
Modern fuel injection systems rely on a symphony of sensors and inputs to deliver the precise fuel-air mixture an engine demands. At the heart of this system are three critical sensors: the mass airflow (MAF) sensor, the throttle position sensor (TPS), and the oxygen (O2) sensor. Each plays a unique role in ensuring optimal combustion, efficiency, and emissions control.
Without accurate data from these sensors, the engine’s computer (ECU) would be blind, leading to poor performance, increased fuel consumption, and potential damage.
Consider the MAF sensor as the engine’s lungs, measuring the volume and density of air entering the intake. This data is crucial because the ECU uses it to calculate the correct fuel dosage, typically aiming for a 14.7:1 air-fuel ratio for efficient combustion. For instance, a clogged MAF sensor can report incorrect airflow, causing the ECU to inject too much or too little fuel. Symptoms include rough idling, hesitation during acceleration, or a check engine light. Cleaning the MAF sensor with a specialized cleaner or replacing it can restore proper function, ensuring the engine receives the right fuel mixture under all driving conditions.
The TPS acts as the engine’s throttle translator, informing the ECU of the driver’s intent by measuring the throttle plate’s angle. This input is vital for adjusting fuel injection and ignition timing in real-time. For example, during hard acceleration, the TPS signals wide-open throttle, prompting the ECU to increase fuel delivery and advance ignition timing for maximum power. A failing TPS can cause erratic idle, stalling, or poor throttle response. Diagnosing TPS issues often involves checking voltage readings at idle (typically 0.5–1.0 volts) and at full throttle (around 4.5–5.0 volts). Calibration or replacement may be necessary to restore smooth operation.
O2 sensors are the engine’s emissions guardians, monitoring the oxygen content in exhaust gases to fine-tune the air-fuel mixture. Located in the exhaust system, these sensors provide feedback to the ECU, which adjusts fuel injection to maintain optimal combustion. Modern vehicles often have multiple O2 sensors: one before the catalytic converter (upstream) and one after (downstream). A failing O2 sensor can lead to increased fuel consumption, higher emissions, and reduced performance. For instance, a rich mixture (excess fuel) can cause the catalytic converter to overheat and fail. Replacing O2 sensors every 60,000–90,000 miles, as recommended by most manufacturers, ensures the system remains efficient and compliant with emissions standards.
Together, these sensors form a feedback loop that allows the ECU to adapt to changing driving conditions, ensuring the engine operates at peak efficiency. For DIY enthusiasts, understanding their roles and symptoms of failure can save time and money. Regular maintenance, such as cleaning the MAF sensor, checking TPS voltage, and replacing O2 sensors at recommended intervals, keeps the fuel injection system running smoothly. Ignoring these sensors’ health can lead to costly repairs and compromised performance, underscoring their importance in modern vehicle operation.
Unveiling the Sun's Power: The Nuclear Fusion Energy Source
You may want to see also
Explore related products
Fuel Pressure Regulation: The fuel pressure regulator ensures consistent pressure for precise injection into cylinders
Fuel injection systems rely on precise pressure control to deliver the right amount of fuel to the engine cylinders. At the heart of this process is the fuel pressure regulator, a critical component that maintains consistent fuel pressure regardless of engine load or speed. Without it, fuel delivery would fluctuate, leading to inefficient combustion, reduced power, and increased emissions. This regulator acts as a gatekeeper, ensuring that the fuel rail pressure remains within a narrow, optimal range—typically between 30 and 60 psi for most modern gasoline engines.
Consider the fuel pressure regulator as a dynamic valve that responds to changes in engine demand. When the engine requires more fuel, such as during acceleration, the regulator adjusts to allow higher pressure in the fuel rail. Conversely, during idle or deceleration, it reduces pressure to prevent over-fueling. This real-time adjustment is crucial for maintaining the stoichiometric air-fuel ratio (14.7:1 for gasoline engines), which ensures complete combustion and minimizes pollutants. For diesel engines, the pressure requirements are even higher, often exceeding 20,000 psi, making the regulator’s role even more critical.
To understand the regulator’s function, imagine a scenario where it fails. If the regulator sticks open, fuel pressure drops, causing lean mixtures that lead to misfires and rough idling. Conversely, if it sticks closed, pressure rises excessively, resulting in rich mixtures that foul spark plugs and damage catalytic converters. Diagnosing regulator issues involves checking for symptoms like poor fuel economy, black smoke from the exhaust, or a fuel smell in the cabin. A simple test is to inspect the vacuum hose connected to the regulator for fuel seepage, a common sign of failure.
Practical maintenance tips include replacing the regulator every 100,000 miles or as recommended by the manufacturer, especially in high-mileage vehicles. When installing a new regulator, ensure the diaphragm is intact and the vacuum hose is securely connected. For DIY enthusiasts, always relieve fuel system pressure before working on the regulator to avoid accidents. Additionally, use a fuel pressure gauge to verify the system operates within specifications after replacement. Proper care of this component not only extends engine life but also ensures optimal performance and fuel efficiency.
In summary, the fuel pressure regulator is a small yet indispensable part of the fuel injection system. Its ability to maintain consistent pressure directly impacts engine efficiency, emissions, and drivability. By understanding its function, recognizing failure symptoms, and following maintenance best practices, vehicle owners can ensure their engines run smoothly and reliably. Whether you’re a mechanic or a car enthusiast, appreciating the regulator’s role highlights its significance in modern automotive engineering.
Eco Fuel Saver: Fact or Fiction? Unveiling the Truth
You may want to see also
Explore related products

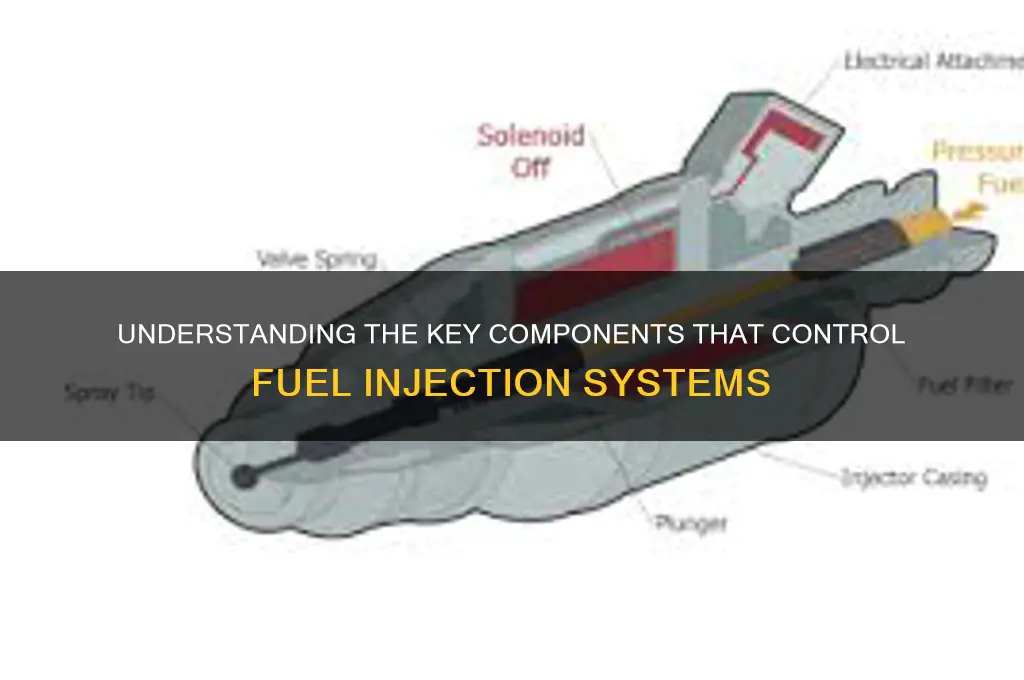

Injector Operation: Fuel injectors spray atomized fuel into the intake manifold or combustion chamber
Fuel injectors are precision instruments, and their operation is a delicate dance of timing and pressure. When the injector nozzle opens, it releases a fine mist of fuel, atomized to maximize surface area for efficient combustion. This process is not a simple on-off switch but a carefully choreographed sequence. The injector's solenoid or piezoelectric actuator responds to an electrical signal, typically from the engine control unit (ECU), which dictates the duration and timing of the fuel spray. This precision is crucial; a variation of just a few milliseconds can significantly impact engine performance and emissions.
The Art of Atomization:
Imagine a garden hose with a nozzle—adjusting the spray from a solid stream to a fine mist. Fuel injectors achieve a similar effect but with far greater precision. The fuel is pressurized, often to several thousand pounds per square inch (psi), and forced through a tiny nozzle. This high pressure, combined with the injector's design, breaks the fuel into a fine spray, ensuring it mixes thoroughly with air for optimal combustion. The atomization process is key to efficient engine operation, as it allows for a more complete burn, reducing unburned fuel and emissions.
In modern engines, the injector's spray pattern is engineered to match the combustion chamber's geometry. This ensures that the fuel-air mixture reaches every corner of the chamber, promoting a uniform burn. For instance, in direct injection systems, the injector might be positioned to spray fuel directly onto the back of the intake valve, ensuring it is drawn into the cylinder during the intake stroke. This strategic placement and timing are critical for performance and efficiency.
Timing is Everything:
Injector operation is a matter of precise timing. The ECU sends an electrical pulse to the injector, opening it for a specific duration, often measured in milliseconds. This duration, known as the injection pulse width, determines the amount of fuel delivered. For example, a typical injector might flow at a rate of 250 cc/min, so a 2-millisecond pulse would deliver approximately 0.5 cc of fuel. The ECU calculates this pulse width based on various sensor inputs, such as engine speed, load, and temperature, ensuring the correct air-fuel ratio for the given conditions.
Maintenance and Longevity:
Given their critical role, fuel injectors require regular maintenance to ensure optimal performance. Over time, injectors can become clogged with fuel deposits or wear out due to the high-pressure environment. Symptoms of failing injectors include rough idling, reduced fuel efficiency, and increased emissions. Cleaning or replacing injectors at recommended service intervals is essential, especially in modern engines where precise fuel delivery is critical for meeting emissions standards.
In summary, injector operation is a complex yet fascinating process, where the precise control of fuel delivery is achieved through a combination of high-pressure atomization and millisecond-accurate timing. This technology is fundamental to modern engine efficiency and emissions control, showcasing the intricate engineering behind every combustion cycle.
Are Top Fuel Gaskets Copper? Unveiling the Truth Behind the Material
You may want to see also
Explore related products
Feedback Control Systems: Closed-loop systems adjust injection based on oxygen sensor feedback for optimal air-fuel ratio
Modern fuel injection systems rely heavily on feedback control mechanisms to achieve precision in engine performance. At the heart of this process is the closed-loop system, which continuously monitors and adjusts fuel injection based on real-time data. The oxygen sensor, typically located in the exhaust stream, plays a pivotal role by measuring the oxygen content in the exhaust gases. This measurement is critical because it indicates whether the air-fuel mixture is too rich (excess fuel) or too lean (insufficient fuel). For optimal combustion, the air-fuel ratio must be finely tuned, typically around 14.7:1 for gasoline engines, ensuring maximum efficiency and minimal emissions.
The closed-loop system operates by comparing the oxygen sensor’s feedback to a predetermined target value. If the sensor detects a deviation from the ideal ratio, the engine control unit (ECU) adjusts the fuel injection rate accordingly. For instance, if the mixture is too lean, the ECU increases fuel delivery; if it’s too rich, it reduces it. This dynamic adjustment occurs within milliseconds, ensuring the engine operates smoothly under varying conditions, such as acceleration, idling, or cruising. Practical examples include the Bosch Motronic system, which has been a benchmark in automotive fuel injection technology for decades, showcasing the effectiveness of closed-loop feedback systems.
One of the key advantages of closed-loop systems is their ability to adapt to external factors like temperature, altitude, and fuel quality. For example, at higher altitudes, where air density decreases, the system automatically leans out the mixture to maintain the optimal ratio. Similarly, during cold starts, the ECU enriches the mixture to aid combustion until the engine reaches operating temperature. This adaptability not only enhances performance but also reduces fuel consumption and emissions, making it a cornerstone of modern vehicle compliance with environmental regulations.
Implementing a closed-loop system requires careful calibration to avoid pitfalls. Over-reliance on oxygen sensor feedback without considering other parameters, such as engine load or throttle position, can lead to inefficiencies. Regular maintenance, including sensor cleaning and ECU software updates, is essential to ensure accuracy. For DIY enthusiasts, tools like OBD-II scanners can diagnose sensor malfunctions, while professional mechanics often use oscilloscopes to analyze sensor waveforms for precise tuning. Understanding these nuances empowers both drivers and technicians to optimize fuel injection systems for longevity and performance.
In conclusion, closed-loop feedback control systems represent a sophisticated solution to the complex challenge of fuel injection management. By leveraging oxygen sensor data, these systems achieve an optimal air-fuel ratio, balancing power, efficiency, and environmental responsibility. Whether in everyday commuting or high-performance racing, the precision of closed-loop systems underscores their indispensability in contemporary automotive engineering.
Is Sainsbury's Fuel Supplied by BP? Uncovering the Partnership
You may want to see also
Frequently asked questions
The Engine Control Unit (ECU) is the primary component that controls fuel injection in modern vehicles. It uses data from various sensors to determine the optimal amount of fuel to inject into the engine.
Sensors such as the mass airflow (MAF) sensor, oxygen (O2) sensor, throttle position sensor (TPS), and crankshaft position sensor provide critical data to the ECU. This data helps the ECU adjust fuel injection timing and quantity for efficient combustion.
No, most modern vehicles have fully electronic fuel injection systems controlled by the ECU. Manual adjustments are not possible without specialized tools or tuning software. Older carbureted systems, however, allowed for some manual adjustments.
The fuel pressure regulator ensures that the fuel injectors receive a consistent and correct pressure of fuel. It maintains the proper pressure in the fuel rail, allowing the injectors to deliver the precise amount of fuel as commanded by the ECU.
