The fuel filter in a 1998 S10 pickup truck is located on the driver's side of the truck, clamped to the frame rail just behind the crossmember. The fuel filter can be replaced using anti-seize or waterproof grease to prevent rusting. The fuel filter connections for the 1998 S10 are designed to offer reliable, leak-free performance and are manufactured from premium materials for durability.
Explore related products
What You'll Learn
The 1998 Chevrolet S10's fuel filter location
The fuel filter on a 1998 Chevrolet S10 is located along the passenger side frame rail. The process of replacing the fuel filter is as follows:
Firstly, relieve the pressure in the fuel system. This can be done by pulling the fuel pump relay or fuse. The relay can usually be found in the glove box, or under the hood. Once the relay or fuse is pulled, turn the key to the run position and you should not hear the fuel pump prime.
Next, remove the fuel filler cap, followed by the fuel feed nuts, the clamp bolt, the filter, and the clamp from the fuel lines. It may be useful to use a small flathead screwdriver for this step.
Now, install the new fuel filter. Ensure that the direction of flow on the filter is correct. Installation is the reverse of the removal process. Use anti-seize on the line threads and where the nuts rotate on the lines.
Finally, plug the relays back in and turn the key to the run position. You should now hear the fuel pump prime. Check to make sure that there are no leaks. If there are no leaks, start the truck and let it run for a little while, ensuring that there are still no leaks.
Where's the Fuel Filter on a Can-Am Maverick?
You may want to see also
Explore related products
Removing the fuel filter
To remove the fuel filter from a 1998 S10, you will need a 16mm and a 20mm wrench, a 13mm ratchet, a 1/4 extension, and a 1/4 ratchet. Some sources also recommend a flare end wrench to avoid stripping the fuel line nut. You may also need a small flathead screwdriver.
Before you begin, relieve the pressure in the fuel system. Do this by pulling the fuel pump relay (or fuse) from the glove box or under the hood. Then, turn the key to the run position and ensure you do not hear the fuel pump prime (a whining or hissing noise). Next, remove as much gas as possible. To do this, push in the two tabs on the plastic piece—one on the front, and one on the back—then pull it off and drain it into a pan.
Now, use your 16mm and 20mm wrenches to loosen the inlet. Then, use the 13mm ratchet, 1/4 extension, and 1/4 ratchet to remove the fuel filter from the frame. The extension should fit right between the fuel lines and the band around the fuel filter. Once the bolt is out, the fuel lines should come out of the top with some wiggling. There are three lines in total.
Finally, make a note of how far down the band is, then drive the filter out of the clamp.
Easy Guide: Installing a Fuel Filter on a 2008 Model
You may want to see also
Explore related products
Replacing the fuel filter
The fuel filter on a 1998 Chevrolet S10 can be replaced by following these steps:
Firstly, purchase the necessary parts and tools, including a new fuel filter, anti-seize, rags, a pan or shallow bucket, and proper wrenches. If your truck is lowered, you may need to drive it up on ramps or jack it up and secure it with properly rated jack stands.
The fuel system is always pressurized, so you must relieve some of the pressure. This can be done by pulling the fuel pump relay (or a fuse would work too). The relay is typically located in the glove box, but on newer trucks, it may be found under the hood. Once the relay is pulled, turn the key to the run position, and you should not hear the fuel pump prime (it usually makes a whining or hissing noise).
Next, push in the two tabs on the plastic piece—one in the front and one at the back—and then pull it off and drain the fuel into a pan. Now, loosen the inlet, using a 16 and 20mm wrench. After removing both lines, use a 13mm ratchet on a 1/4 extension to remove the fuel filter from the frame. There will be three lines at the top that can be removed with some wiggling.
When installing the new fuel filter, ensure that you follow the direction of flow marked on the filter or in the filter directions. Use anti-seize on the line threads and where the nuts rotate, which will make future replacements easier. Plug the relays back in and turn the key to the run position, but do not start the engine. Check for any leaks, and if there are none, start the truck and let it run for a while to ensure there are no leaks.
Tips:
- Some people suggest not worrying about the pressure as it is not a large volume. You can simply wrap a rag around the filter nuts, crack the lines, and let the fuel drain. However, this method still has pressure, and you will have to deal with a fuel-soaked rag.
- If your lines are rusty, consider relocating the fuel filter to the engine bay and adding a water fuel separator.
Fuel Filter Efficiency: Are 35 Microns Enough?
You may want to see also
Explore related products
Fuel line connectors

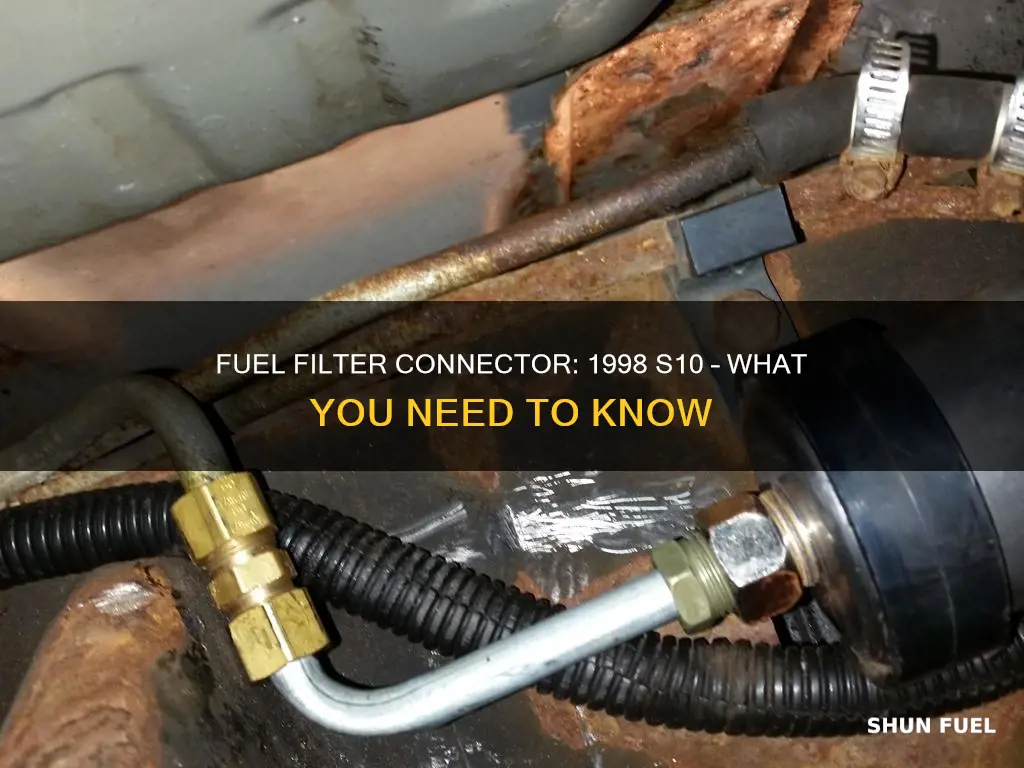

The fuel filter in the 1998 S10 pickup is located on the driver's side of the truck, clamped to the frame rail just behind the crossmember. It features a quick-disconnect fitting on one end and a nut on the other, allowing for convenient removal and replacement. This quick-disconnect mechanism is a crucial aspect of fuel line connectors, facilitating easy detachment of the fuel filter for maintenance or upgrades.
Advance Auto Parts offers a range of fuel line connectors specifically designed for the 1998 Chevrolet S10. These connectors are direct replacements, ensuring a precise fit and reliable performance equivalent to the original equipment. The connectors are manufactured from premium materials, guaranteeing durability and leak-free operation. By replacing only the damaged connectors instead of the entire fuel line, vehicle owners can save money and maintain the efficiency of their S10.
When replacing the fuel filter in the 1998 S10, it is important to relieve the fuel system's pressure before beginning any work. This can be achieved by pulling the fuel pump relay or fuse. Additionally, applying anti-seize or waterproof grease to the line threads can prevent rusting and make future maintenance easier.
Overall, fuel line connectors play a vital role in maintaining the fuel system's integrity in the 1998 Chevrolet S10. By offering secure connections and facilitating easy maintenance, these connectors contribute to the vehicle's overall performance and longevity.
Charging Fuel Filter: 2002 Chevy Tracker Guide
You may want to see also
Explore related products
Fuel filter anti-seize
When replacing the fuel filter on a 1998 S10, it is recommended to use fuel filter anti-seize on the line threads and where the nuts rotate on the lines. This will make it easier to replace the fuel filter in the future. It is important not to use too much anti-seize, as it can get into the diesel fuel going to the high-pressure pump.
The fuel filter on a 1998 S10 can be replaced by first relieving the pressure in the fuel system. This can be done by pulling the fuel pump relay or fuse. Once the pressure is relieved, the inlet and outlet lines of the fuel filter can be disconnected, and the fuel filter can be removed from the frame. When installing the new fuel filter, it is important to note the direction of flow indicated on the filter or in the filter directions. The installation process is the reverse of the removal process.
The fuel filter anti-seize can be applied to the threads of the fittings to prevent rust and seizure. This will make it easier to remove the fuel filter in the future. It is also recommended to use a penetrating oil to help loosen the fittings if they are stuck.
Some people recommend against using anti-seize on fuel filters, as it can contain ground-up metal particles that can get into the oil or fuel. However, others find it helpful in preventing rust and seizure, especially in areas with high humidity and salt. It is important to use the right amount of anti-seize and to follow the manufacturer's recommendations for the specific product being used.
The fuel filter anti-seize is a product that is designed to prevent the fuel filter from seizing or becoming difficult to remove. It is typically applied to the threads of the fuel filter during installation to create a protective layer that prevents rust and corrosion. This makes it easier to remove the fuel filter during future replacements.
