Chainsaw fuel vent valves are essential components that help relieve pressure in the fuel tank. They are designed to allow air to enter the tank as fuel is consumed, preventing a vacuum from forming. This ventilation system is crucial for the smooth operation of the chainsaw, ensuring that the fuel flow is not restricted by vacuum locks. The vent valve is typically attached to a hose and screwed into the tank, with some models featuring a red rubber component or a duckbill valve design. While most chainsaw fuel vent valves are external, some older models may have internal venting systems. Proper maintenance of the fuel vent valve is important, as issues with the valve can lead to erratic performance or difficulty starting the chainsaw.
Explore related products
What You'll Learn
Chainsaw venting tanks and vacuum pressure
Some chainsaws have vents located on the outside of the tank, attached to a hose, which can be brand-specific or universal, depending on the model. These vents can become plugged, causing the saw to run erratically or die after idling. A plugged vent can often be unblocked using compressed air, aerosol, or a long punch to dislodge any debris.
The design of the venting system is crucial to prevent gas spills. Some vents feature a one-way valve, such as a rubber duckbill valve, which allows air to enter the tank but not escape, reducing the risk of spills. However, these vents may still leak small amounts of fuel when the saw is on its side or left full and idle for extended periods.
To verify proper venting, a vacuum gauge can be connected to the fuel line with the tank empty. If the gauge shows a vacuum, the vent is functioning correctly. Additionally, a hissing sound when opening the fuel cap indicates that the tank is building and holding pressure, which is necessary for adequate fuel delivery to the carburettor.
It is important to note that pressurization of the tank due to heat or other factors is unlikely to cause damage. At worst, it may force fuel through the carburettor if pressure exceeds 10 psi, but this is uncommon.
Cooking Oil for Fuel: A Viable Option?
You may want to see also
Explore related products
$12.29 $12.95
One-way valve systems

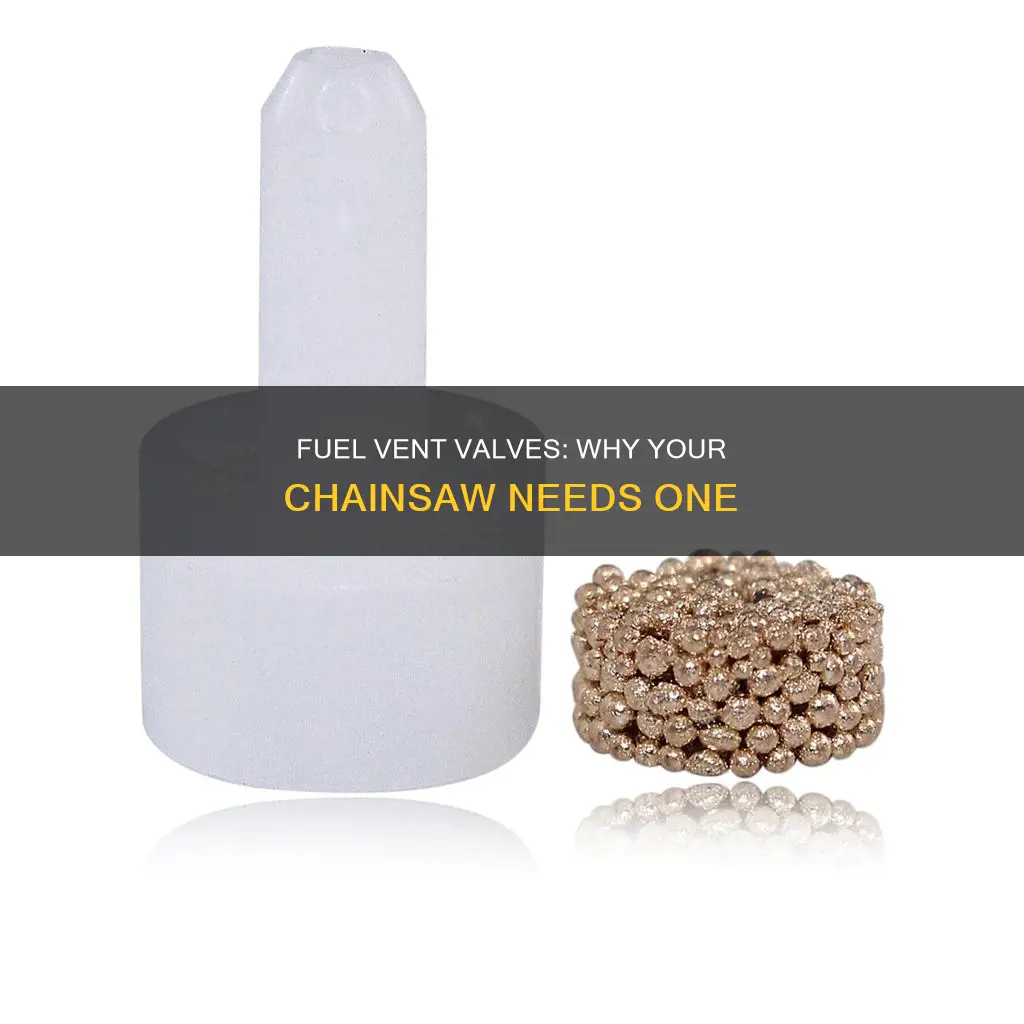

The one-way valve, also known as a duckbill valve due to its resemblance to a duck's bill, is commonly found in chainsaw fuel venting systems. This valve is strategically installed to enable airflow into the tank while preventing fuel leakage. The duckbill design ensures that the valve opens in one direction, allowing air to enter while forming a tight seal to keep fuel from escaping. This mechanism is crucial for maintaining airflow and preventing spills, enhancing the overall safety and performance of the chainsaw.
In some cases, chainsaws may utilise a combination of a duckbill valve and a sintered bronze breather element. The breather element aids in airflow regulation, while the duckbill valve acts as a one-way gatekeeper, ensuring fuel remains securely inside the tank. This design is often seen in cheaper homeowner chainsaws, offering a cost-effective solution without compromising safety.
It is important to note that some vents may still experience minor fuel leaks, especially if the chainsaw has been resting on its side for an extended period. This issue can be mitigated by employing a true one-way vent system, as recommended by experts. These advanced venting mechanisms, such as those found in the Stihl MS250, ensure that fuel does not escape, providing enhanced protection against fuel spills.
When dealing with chainsaw fuel vent valves, it is always advisable to consult a professional or refer to the manufacturer's instructions. Proper installation and maintenance of these valves are critical for the safe and efficient operation of the chainsaw. By understanding the intricacies of one-way valve systems, users can make informed decisions to ensure their equipment functions optimally while minimising the risk of fuel-related incidents.
Old Diesel Fuel Tanks: Empty or Keep?
You may want to see also
Explore related products
Chainsaw fuel line replacement
Chainsaw fuel lines may need to be replaced when the chainsaw struggles to start, fails to rev, or won't tick over. This is a fairly easy and inexpensive fix, which can be done at home if you have the right tools.
Firstly, you need to empty the fuel tank. Next, remove the cover and choke lever. Then, follow the fuel line where it exits the tank. This is a push fit onto the nipple on the carburettor. Using a screwdriver, push this back and away from the nipple, and the fuel line needs to come through the gap where the choke lever sits. You can use long-nose pliers for this step.
Now, the fuel filter needs to be removed. Using a metal hook or long-nose pliers, pull the filter out of the tank, and then pull the fuel pipe off the filter. You can then discard the old filter.
Taking the new fuel line, push the end that goes onto the filter through the hole, and then push the fuel pipe retaining part into the hole. The tab should be facing the vent on the tank. Now, pull the end out of the tank with long-nose pliers and push the new filter on. Then, push the filter back into the tank.
Refit the fuel tank back into its recess, and then do the opposite to how the fuel pipe was removed, pushing it back in where the fuel nipple is. Push the choke lever mechanism back in place, paying attention to where the steel spring clip is positioned.
Finally, replenish the fuel tank and replace the fuel cap.
Kia Sorento Fuel Tank Capacity: How Many Gallons?
You may want to see also
Explore related products
Chainsaw tank vent blockages
A vent valve is a small part of a chainsaw's fuel system, which is designed to allow air to enter the fuel tank as the fuel is consumed, preventing vacuum lock. Some chainsaws have a vent valve that is screwed into the tank, while others have a vent valve attached to a hose that is connected to the tank.
A blocked vent can cause a chainsaw to run erratically or die. Symptoms of a blocked vent include the chainsaw dying after idling for a few minutes, or the saw running fine as long as it is kept running, but being difficult to start again. If the vent is blocked, the tank will pressurise, which can force fuel through the carburettor and flood the engine.
If you suspect that your chainsaw's fuel vent is blocked, you can try to unblock it using compressed air or an aerosol such as WD40. You can also try poking something long and thin through the fill hole to dislodge the blockage. If the blockage cannot be cleared, the vent will need to be replaced. Replacement vents are available for many chainsaw models, and generic vents can also be purchased online.
Unlocking the Fuel Door Mystery in Motorcycles
You may want to see also
Explore related products
Chainsaw maintenance and troubleshooting
Chainsaws are powerful tools that can make light work of heavy-duty tasks. However, they require regular maintenance to keep them in good working order. Here are some tips for chainsaw maintenance and troubleshooting to help you get the most out of your tool and keep it running safely for longer:
Maintenance
Before each use, perform a quick maintenance check on your chainsaw. Wearing work gloves, clean the chainsaw by scraping out any debris inside the track. Check the chain safety and tension, and tighten the chain if necessary. Sharpen the chain using the file size recommended by the manufacturer, and inspect it for any damage. Remember to add bar and chain oil when fuelling up. It is also important to regularly check the lubrication system to ensure that oil is being fed to the chain. Place a sheet of white paper under the chainsaw and rev the engine. If the paper is not marked with oil spray, clean the oil reservoir and replace the filter. The clutch drum bearing should be lubricated between every few uses to prolong the life and performance of the clutch.
It is crucial to keep the filters clean. Check the air, fuel, and oil filters regularly. Remove the cylinder cover to access the air filter. Use a can of compressed air to blow out any dust and debris, and replace the filter if necessary. The fuel filter helps to prevent contamination of the fuel, so if it is blocked, use a fuel system cleaner and leave it to sit for several hours before starting the chainsaw. The oil filter can be found under the cap of the bar lubricating tank. If it is clogged, clean it with gasoline or replace it if necessary.
Troubleshooting
If your chainsaw is not running smoothly, there are a few things you can check. Firstly, pull the starter rope to see if the engine turns over and if compression is adequate. Check the fuel for quality and correct mix, and replace it if necessary. Check the fuel filter, fuel supply pickup, and hose for blockages or cracking. The fuel line is connected to the carburettor, so ensure that this is not cracked or broken. Check the carburettor settings, including the idle adjustment. Check for a spark, and inspect the spark plug electrode for wear or carbon build-up, correcting the gap if needed. Check the muffler spark arrestor screen, and visually inspect the hoses, manifold, and cylinder base gasket for leaks. If compression seems inadequate, remove the exhaust and check for piston seizure or ring damage.
If your chain does not seem to be getting enough oil, clean out any debris around the oiling mechanism. If the chain is still not receiving enough oil, you may need to adjust the tension.
Plastic Fuel Tanks: Revolutionizing the Industry
You may want to see also
Frequently asked questions
A fuel vent valve is a mechanism that allows air to enter the fuel tank as fuel is consumed, preventing a vacuum from forming.
If your chainsaw is experiencing difficulty revving up from idle and suddenly dying after running for a short period, this could indicate a problem with the fuel vent valve. Another sign is the presence of a hissing sound when opening the fuel tank cap.
You can try using compressed air or an aerosol to dislodge any debris that might be blocking the valve. If this doesn't work, you may need to replace the valve or seek professional assistance.
