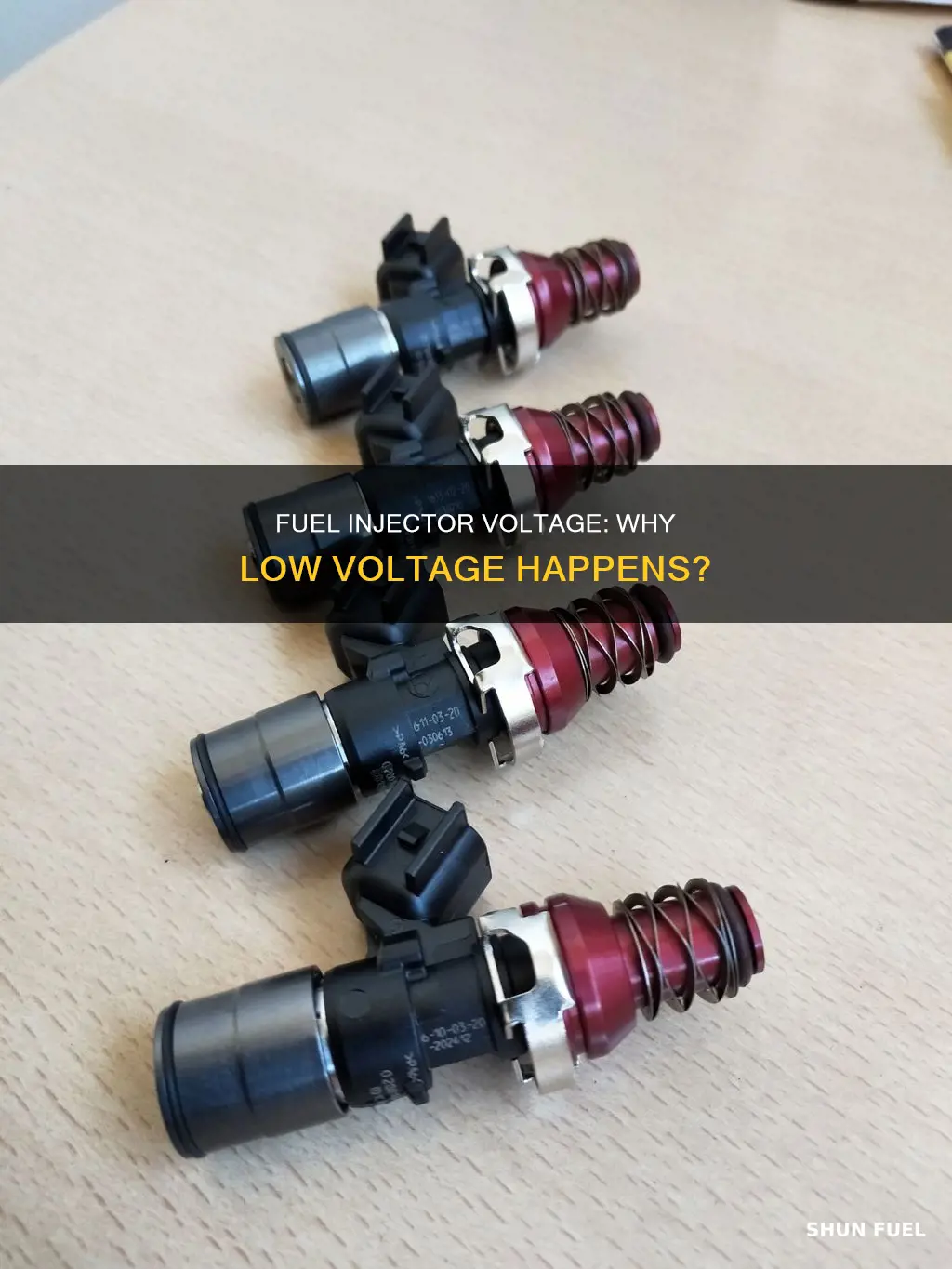

Low voltage in fuel injectors can be caused by several issues with a vehicle's electrical system or fuel injection system. Fuel injectors are responsible for passing the right amount of fuel into the cylinders, and when the injectors open, pressurized fuel is sprayed through small nozzles. The fuel injectors receive fuel from the fuel pump at a constant high pressure. If the voltage is too low, the injectors won't open and close as they should, causing the engine to stall or not start at all. Low voltage can be caused by a faulty fuel pump, a clogged fuel filter, or loose, corroded, or damaged wiring connections.
| Characteristics | Values |
|---|---|
| Low voltage causes | Faulty fuel pump, clogged fuel filter, loose/corroded connections, injector driver module malfunction, faulty fuel injectors, poor contact within relay, bad MAP sensor, low battery, bad ECM, excess resistance in the wire |
| Fuel injector voltage | Around 12 volts |
| Low impedance injectors | 2-5 ohms |
| High impedance injectors | 12-17 ohms |
| Fuel injector function | Pass the right amount of fuel into the cylinders |
Explore related products
What You'll Learn
A faulty fuel pump
One of the first signs of a failing fuel pump is an increase in the engine's temperature. This can lead to stalling, especially when the vehicle gets hot. A faulty pump may struggle to supply enough fuel to the engine under high-temperature conditions, resulting in a rough idle or difficulty starting the car.
Another symptom of a problematic fuel pump is when your vehicle surges forward for no apparent reason. This occurs when the pump occasionally delivers too much fuel, causing the car to surge and then slow down. You may experience an extreme lack of power under full throttle, with bursts of power followed by nothing. This can be indicative of a faulty fuel pump that is unable to supply consistent fuel pressure.
In some cases, a faulty fuel pump may cause issues with starting the car, especially when the fuel level is low or when the vehicle is parked facing uphill. This could be due to a failure of the pump to create sufficient pressure or a vacuum, resulting in the engine not receiving enough fuel to start.
If you suspect a faulty fuel pump, it is essential to seek professional help. Depending on the severity of the damage, options such as fuel pump replacement or repair may be considered. Regular maintenance and prompt action when warning signs appear can prevent future breakdowns and ensure a safe and reliable driving experience.
Cleaning Fuel Injectors: The Comprehensive Guide to Clean Fuel Injectors
You may want to see also
Explore related products
Clogged fuel filter
A clogged fuel filter can cause low voltage to fuel injectors. Fuel injectors are responsible for delivering fuel into the engine's combustion chamber in a fine mist, which is necessary for efficient combustion. Over time, dirt, rust, and debris can accumulate in the fuel tank, and the filter ensures these contaminants don't reach the engine, where they could cause damage.
A clogged fuel filter prevents fuel from flowing freely to the fuel injectors, increasing resistance and lowering the voltage supplied to the injectors. This can cause the engine to stumble, stall, or not start at all. Engine stalling, particularly at low speeds, can indicate a clogged fuel filter. If your engine frequently stalls while idling or driving, it's a sign that the fuel flow to the engine is severely restricted.
Clogged fuel injectors can also lead to various performance issues. For example, your engine may run inefficiently, resulting in poor fuel economy. You may notice that you're filling up your tank more often than usual. Additionally, your car may experience rough idling, with the engine sputtering or vibrating more than normal due to the restricted fuel flow.
To fix a clogged fuel filter, it is recommended to replace it. Fuel filters should be replaced every 30,000 to 60,000 miles, depending on your vehicle's make and model.
It is also worth noting that fuel injectors can become clogged over time due to hydrocarbons, sediment, and other elements in the fuel. This can further restrict fuel flow and impact the engine's performance. To address clogged fuel injectors, you may need to use a fuel injector cleaner additive or seek professional cleaning or replacement services.
Bypassing Fuel Injector Module: DIY Guide to Engine Modification
You may want to see also
Explore related products
Loose, corroded or damaged wiring connections
Loose, corroded, or damaged wiring connections can lead to low voltage in fuel injectors. To address this, it is important to inspect wiring harnesses and connections for signs of wear and corrosion. Repairs or replacements may be necessary, although cleaning connections may temporarily solve the issue.
To determine if low voltage is indeed the problem, testing the voltage supply is required. This can be done by using a Digital Volt-Ohmmeter (DVOM) or a multimeter with an ohms setting. With the engine off, the injector wiring harness can be removed, and the DVOM can be set to measure ohms. All injectors should then be checked individually for their resistance. If the meter does not auto-range, it should be set to the lowest range.
If there is a slide lock, it should be removed first to access the wiring harness. The negative lead of the DVOM should then be touched to a ground source. The car's frame is typically connected to the ground and can be found under the hood.
It is important to note that high impedance injectors, commonly found in modern cars, will range from 12 to 17 ohms. On the other hand, low impedance injectors, found in high-performance and larger injectors, have a much lower resistance, usually around 2 to 5 ohms.
If there is a significant difference in resistance between injectors, it may indicate an issue with the injector's firing. In such cases, further inspection of the injector is warranted to ensure it is functioning correctly.
Fuel Injector Installation: Carburetor Upgrade Guide
You may want to see also
Explore related products
Malfunctioning injector driver module
The injector driver module, also known as the fuel injector control module, is responsible for directing voltage to the fuel injectors. If this module malfunctions, it may send irregular or low voltage to the injectors. This can lead to issues such as decreased spray inside the cylinder, resulting in incomplete fuel burning and potential misfires.
To diagnose a malfunctioning injector driver module, you can perform the following steps:
- Ensure the engine is off, as you won't need power for this test.
- Remove the injector wiring harness by locating and moving the slide lock, if present, before pressing down on the tabs to remove it.
- Set a Digital Volt-Ohmmeter (DVOM) or a multimeter to measure ohms. If your meter doesn't auto-range, set it to the lowest range.
- Check the resistance of each injector. High-impedance injectors, which are common in modern cars, typically range from 12 to 17 ohms. Low impedance injectors will show a range of 2 to 5 ohms.
- Compare the resistance readings between all injectors. They should be within half an ohm of each other. Any significant differences indicate that the injector with higher resistance should be inspected for proper firing.
- If the injector resistance is within the acceptable range, proceed to test the spray pattern on an injector tester.
- If you encounter difficulties during testing or require further assistance, it is recommended to consult a certified technician.
If a malfunctioning injector driver module is confirmed, replacement of the module will be necessary to resolve the issue.
Diagnosing Fuel Injector Issues in Your Honda CRV
You may want to see also
Explore related products
Poor contact within the fuel system relay
The fuel pump relay is a simple but important component for the proper operation of the vehicle. A relay is basically an electromagnetic switch that uses low current to control a higher current circuit. Inside the relay, there is a coil and a switching mechanism with a set of contacts. Most automotive relays are normally open, meaning current does not flow between the contacts until the relay is activated. In a typical automotive fuel pump circuit, a control module activates the relay. When the module deems conditions are correct, it supplies ground to the coil inside the relay, causing current to flow through the coil. The current flowing through the coil creates a magnetic field that pulls the relay’s contacts closed.
When the fuel pump relay goes bad, the fuel pump won't work properly, and the engine will be starved of fuel and refuse to run. A bad relay can also cause the fuel pump to run continuously. A faulty relay may allow the vehicle to be restarted a short while later, while a completely failed relay will not. One of the first symptoms of an issue with the fuel pump relay is an engine that suddenly stalls. Another symptom is an engine that does not start. If the fuel pump relay fails, the fuel pump will be left without power. The engine may still crank when the key is turned, but it will not be able to start due to a lack of fuel.
There are several ways to test and address issues with the fuel pump relay. The easiest way is to temporarily swap it with another relay from the power distribution box. Jump-starting your vehicle may also temporarily resolve the issue, as fuel pump relays perform better at higher voltages. If you are experiencing issues with your fuel pump relay, it is recommended to have the vehicle inspected by a professional technician.
Testing Fuel Injectors: Using an Ohm Meter
You may want to see also
Frequently asked questions
The ideal voltage for fuel injectors is around 12 volts.
Low voltage to your fuel injectors can be caused by a few issues with your vehicle’s electrical system or fuel injection system. Some common causes include a faulty fuel pump, clogged fuel filter, or loose, corroded, or damaged wiring connections.
You can test for low voltage to fuel injectors by using a Digital Volt-Ohmmeter (DVOM) or a multimeter with an ohms setting. With the engine off, remove the injector wiring harness and set the DVOM or multimeter to measure ohms. Check the resistance of each injector one by one.
Some symptoms of low voltage to fuel injectors include rough, uneven idle, or stalling of the engine. You may also have to crank the engine a few times before it turns over.
To fix low voltage to fuel injectors, you need to test the components in the circuit such as fuses, relays, wiring, and the alternator to determine the cause of the voltage drop. Once the source of the problem is identified, repair or replace the faulty part.
