Sylvie Willis

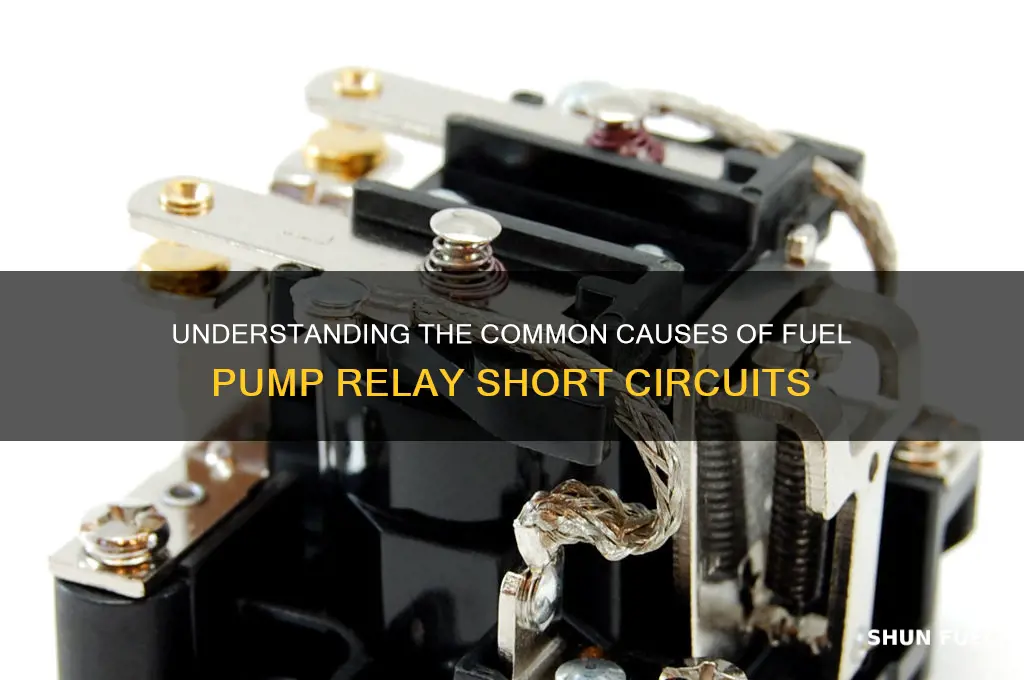

A fuel pump relay can short out due to several factors, including electrical overloads, corrosion, or damage to the relay’s internal components. Over time, exposure to heat, moisture, or contaminants can degrade the relay’s wiring or connections, leading to a short circuit. Additionally, a faulty fuel pump drawing excessive current or a malfunctioning powertrain control module (PCM) can place undue stress on the relay, causing it to fail. Poor installation, manufacturing defects, or age-related wear and tear are also common culprits. Identifying the root cause is crucial, as a shorted fuel pump relay can disrupt fuel delivery, leading to engine performance issues or a complete stall.
| Characteristics | Values |
|---|---|
| Electrical Overload | Excessive current flow due to a malfunctioning fuel pump or wiring issues. |
| Corroded or Damaged Wiring | Exposed or frayed wires, moisture intrusion, or poor connections leading to short circuits. |
| Faulty Relay Contacts | Worn-out or pitted relay contacts causing improper electrical flow. |
| High Resistance in Circuit | Increased resistance due to dirty connections, oxidized terminals, or damaged components. |
| Overheating | Prolonged operation under high load or poor ventilation causing the relay to overheat. |
| Manufacturing Defects | Poorly constructed relays or substandard materials leading to premature failure. |
| Voltage Spikes | Sudden surges in voltage from the battery or alternator damaging the relay. |
| Improper Installation | Incorrect wiring or placement of the relay causing stress on the component. |
| Age and Wear | Natural degradation of the relay over time due to repeated use and environmental factors. |
| External Contamination | Dust, debris, or oil entering the relay housing and interfering with its operation. |
Explore related products
What You'll Learn
Overheating due to high resistance in the relay's circuit
High resistance in a fuel pump relay circuit can silently escalate into a critical overheating issue, often going unnoticed until it’s too late. When current flows through a circuit with elevated resistance, it encounters greater opposition, converting electrical energy into heat. In the context of a fuel pump relay, this heat buildup can degrade the relay’s internal components, such as the coil or contacts, eventually leading to a short circuit. The problem often stems from corroded connections, undersized wiring, or poor-quality relay materials, all of which increase resistance and accelerate thermal stress.
To diagnose this issue, start by measuring the voltage drop across the relay circuit using a multimeter. A significant drop indicates high resistance, which could be caused by loose connections, damaged wires, or a failing relay. Inspect the wiring harness for signs of melting or discoloration, as these are telltale signs of overheating. If the relay itself feels excessively hot to the touch after running the vehicle for a few minutes, it’s a strong indicator that resistance is causing thermal overload. Addressing this promptly is crucial, as prolonged overheating can damage the fuel pump or even pose a fire risk.
Preventing overheating due to high resistance begins with proper maintenance and component selection. Ensure all wiring is appropriately sized for the current draw of the fuel pump, as undersized wires inherently increase resistance. Regularly clean and tighten electrical connections to minimize contact resistance. When replacing a fuel pump relay, opt for a high-quality unit rated for the specific amperage and environmental conditions of your vehicle. Upgrading to relays with heat-resistant materials or adding a heat sink can also mitigate thermal stress in high-demand systems.
A comparative analysis reveals that vehicles with aftermarket fuel systems or high-performance upgrades are particularly susceptible to this issue. These systems often draw more current than stock setups, amplifying the effects of even minor resistance increases. For instance, a vehicle with a turbocharged engine and upgraded fuel pump may experience relay overheating if the wiring or relay isn’t matched to the increased load. In such cases, proactive measures like installing a relay with a higher temperature rating or relocating it to a cooler area of the engine bay can make a significant difference.
In conclusion, overheating due to high resistance in a fuel pump relay circuit is a preventable yet often overlooked cause of shorts. By understanding the underlying mechanisms, conducting regular inspections, and implementing targeted upgrades, vehicle owners can safeguard their fuel systems against thermal damage. Treat this issue as a maintenance priority, especially in high-performance or modified vehicles, to ensure reliability and safety on the road.
Step-by-Step Guide: Removing Fuel Pump on 2000 Mercury Mystique
You may want to see also
Explore related products
Corrosion or moisture damaging the relay's internal components
Corrosion and moisture are silent saboteurs of fuel pump relays, often leading to shorts that cripple a vehicle’s fuel system. These issues typically arise when water infiltrates the relay housing, either through cracks, faulty seals, or exposure to harsh weather conditions. Over time, moisture reacts with the metal contacts and circuitry, forming rust or corrosive deposits that disrupt electrical flow. This process is accelerated in environments with high humidity or frequent temperature fluctuations, where condensation can form inside the relay. The result? Intermittent or complete failure of the fuel pump, leaving drivers stranded and frustrated.
To diagnose moisture-related damage, inspect the relay for visible signs of corrosion, such as greenish deposits or discolored pins. A multimeter can also be used to test for continuity, which may fluctuate or fail entirely in a compromised relay. Prevention is key: regularly check the relay’s housing for cracks or gaps, and ensure the surrounding wiring harness is sealed properly. Applying dielectric grease to the relay terminals can provide an additional barrier against moisture intrusion, though this is a temporary solution and not a substitute for proper sealing.
When replacing a relay damaged by corrosion, opt for a high-quality, weather-resistant unit designed for your vehicle’s specific make and model. Generic relays may lack the necessary seals or coatings to withstand moisture. Additionally, consider relocating the relay to a drier area of the engine bay if possible, though this requires careful consideration of wiring lengths and compatibility. Always disconnect the battery before handling electrical components to avoid short circuits or injury.
Comparatively, corrosion in fuel pump relays is more insidious than other causes of shorts, such as overheating or manufacturing defects. While overheating often presents immediate symptoms like melting or burning, corrosion can go unnoticed until the relay fails. Unlike defects, which are typically covered under warranty, moisture-related damage is often considered preventable and thus not eligible for repair claims. This underscores the importance of proactive maintenance, particularly for vehicles operated in wet or coastal regions.
In conclusion, corrosion and moisture are preventable yet pervasive threats to fuel pump relays. By understanding their mechanisms and implementing targeted preventive measures, drivers can significantly extend the lifespan of their relays and avoid costly repairs. Regular inspections, proper sealing, and strategic replacements are not just recommendations—they are essential practices for maintaining a reliable fuel system.
Stock Fuel Pump Variations in the BMW 335i Models Explained
You may want to see also
Explore related products
Electrical surges from the vehicle's charging system
Electrical surges from a vehicle's charging system can wreak havoc on sensitive components like the fuel pump relay. These surges, often caused by a malfunctioning alternator or voltage regulator, send excessive voltage spikes through the electrical system. The fuel pump relay, designed to operate within a specific voltage range (typically 12-14 volts), can't withstand these sudden spikes. Over time, this stress weakens the relay's internal components, leading to a short circuit.
Imagine a garden hose with a kink – the water pressure builds until it bursts. Similarly, electrical surges create pressure within the relay, eventually causing it to fail.
Diagnosing surge-related relay failure requires a systematic approach. Start by checking the alternator's output voltage with a multimeter. A reading significantly above 14.5 volts at idle or under load indicates a potential problem. Next, inspect the voltage regulator, often integrated into the alternator, for signs of damage or malfunction. If either component is faulty, it's crucial to replace them before installing a new fuel pump relay. Otherwise, the new relay will likely suffer the same fate.
Remember, treating the symptom (replacing the relay) without addressing the root cause (the surge) is a temporary fix.
Preventing surge-induced relay failure involves proactive maintenance. Regularly inspect the alternator belt for proper tension and signs of wear. A loose or damaged belt can cause the alternator to overwork, leading to excessive voltage output. Additionally, consider using a surge suppressor or voltage regulator specifically designed for automotive applications. These devices act as buffers, absorbing voltage spikes before they reach the fuel pump relay. While not foolproof, they provide an extra layer of protection against electrical surges.
Think of it as installing a surge protector for your car's delicate electronics.
In conclusion, electrical surges from a vehicle's charging system pose a significant threat to the fuel pump relay. Understanding the causes, implementing diagnostic procedures, and adopting preventive measures are crucial for ensuring the longevity of this vital component. By addressing the root cause of the surges and providing adequate protection, drivers can avoid the inconvenience and potential safety hazards associated with a failed fuel pump relay.
Where to Find the Fuel Pump Emoji on iPhone: Quick Guide
You may want to see also
Explore related products
$7.39
Faulty wiring connections causing excessive current flow
Faulty wiring connections are a leading cause of fuel pump relay shorts, often due to excessive current flow that overwhelms the relay’s capacity. When wires become loose, corroded, or damaged, resistance increases, forcing the electrical system to work harder. This heightened resistance generates heat, which can melt insulation or fuse wires together, creating unintended pathways for current. Over time, this leads to a short circuit, bypassing the relay’s protective mechanisms and causing it to fail. For instance, a frayed wire near the fuel pump may intermittently touch the vehicle’s chassis, grounding the circuit and triggering a sudden surge of current that fries the relay.
To diagnose this issue, start by inspecting the wiring harness for visible signs of wear, such as cracked insulation or exposed copper. Use a multimeter to test for continuity and resistance in the circuit; readings significantly lower than the manufacturer’s specifications indicate a potential short. Pay close attention to areas prone to moisture or vibration, like the undercarriage or engine bay, as these conditions accelerate corrosion and wire degradation. If the relay has already failed, examine it for burn marks or melted plastic, which are telltale signs of excessive current flow. Addressing these issues promptly prevents further damage to the fuel system and ensures reliable vehicle operation.
Preventing shorts caused by faulty wiring requires proactive maintenance and careful installation practices. When replacing a fuel pump relay, ensure all connections are tight and free of debris. Use dielectric grease on terminals to inhibit corrosion, especially in humid climates. If installing aftermarket components, verify the wiring gauge matches the original specifications; undersized wires increase resistance and current density, elevating the risk of shorts. Regularly inspect high-stress areas during routine maintenance, and replace any wires showing signs of aging or damage. These steps not only extend the relay’s lifespan but also safeguard the entire electrical system.
Comparing this issue to other causes of relay failure highlights the importance of wiring integrity. While a faulty relay switch or a malfunctioning fuel pump can also lead to shorts, wiring problems are often more insidious, developing gradually and going unnoticed until failure occurs. Unlike a defective relay, which can be swapped out, wiring issues demand a systematic approach, combining visual inspection, testing, and preventive measures. By prioritizing wiring health, vehicle owners can avoid the costly and inconvenient consequences of a shorted fuel pump relay, ensuring consistent fuel delivery and engine performance.
Are Electronic Fuel Pump Kits a Worthwhile Upgrade for Your Vehicle?
You may want to see also
Explore related products
![True MODS 1 Pack 5-Pin 12V Bosch Style Waterproof Relay Kit [Harness Socket] [12 AWG Hot Wires] [SPDT] [30/40 Amp] 12 Volt Automotive Marine Relays for Boats Auto Fan Cars](https://m.media-amazon.com/images/I/81m2P8Wl3RL._AC_UY218_.jpg)
Manufacturing defects in the relay's construction or materials
Manufacturing defects in a fuel pump relay’s construction or materials can silently undermine its reliability, often leading to premature short circuits. One common issue arises from subpar soldering during assembly. If the solder joints connecting the relay’s internal components are weak or contaminated, they may fail under thermal stress or vibration, causing unintended electrical pathways that trigger a short. For instance, a microscopic crack in a solder joint can expand over time due to engine heat, eventually bridging adjacent circuits. Inspecting for dull, grainy solder joints or signs of flux residue during maintenance can help identify such defects early.
Another critical area prone to manufacturing flaws is the relay’s encapsulation material. Relays are often encased in plastic or resin to protect internal components from moisture and debris. However, if this material is improperly mixed or cured, it can shrink, crack, or degrade, exposing sensitive parts to environmental hazards. For example, a relay with a brittle encapsulation may allow moisture to seep in, corroding contacts and causing a short. Manufacturers should adhere to precise curing temperatures (typically 150–170°C for epoxy resins) and conduct quality checks for voids or weaknesses in the casing.
The quality of the relay’s internal contacts and springs is equally vital. Contacts made from inferior alloys or improperly plated with silver or gold may wear prematurely or develop uneven surfaces, increasing resistance and heat buildup. Over time, this can melt insulation or weld contacts together, creating a short. Similarly, weak or misaligned springs can fail to maintain proper tension, leading to intermittent contact and arcing, which degrades the relay’s integrity. Specifying high-grade materials (e.g., silver-nickel alloys for contacts) and conducting spring force tests (targeting 100–150 grams of force) during production can mitigate these risks.
Lastly, assembly errors such as misaligned components or missing insulation barriers can introduce immediate failure points. For instance, if a metal fragment or debris is left inside the relay during manufacturing, it can act as a conductor, bridging circuits and causing an instant short. Similarly, omitted insulation sleeves on terminals can allow contacts to touch under vibration. Implementing rigorous inspection protocols, such as X-ray scanning for foreign objects and automated visual checks for alignment, can prevent such defects from reaching the consumer.
In summary, manufacturing defects in a fuel pump relay’s construction or materials are often invisible but impactful. From soldering inconsistencies to encapsulation flaws, these issues demand meticulous quality control at every production stage. By focusing on material selection, assembly precision, and post-production testing, manufacturers can significantly reduce the likelihood of shorts, ensuring safer and more reliable operation for vehicle owners.
How Long Does It Take to Replace a Fuel Pump?
You may want to see also
Frequently asked questions
Common causes include electrical overloads, corrosion or moisture in the relay socket, faulty wiring, or a defective relay itself.
Yes, a failing fuel pump can draw excessive current, overloading the relay and causing it to short out.
Moisture or corrosion in the relay socket can create a conductive path, leading to unintended electrical connections and causing the relay to short out.
No, a blown fuse typically prevents current flow, but repeated fuse failures or improper fuse replacement can indicate an underlying issue that may eventually damage the relay.
