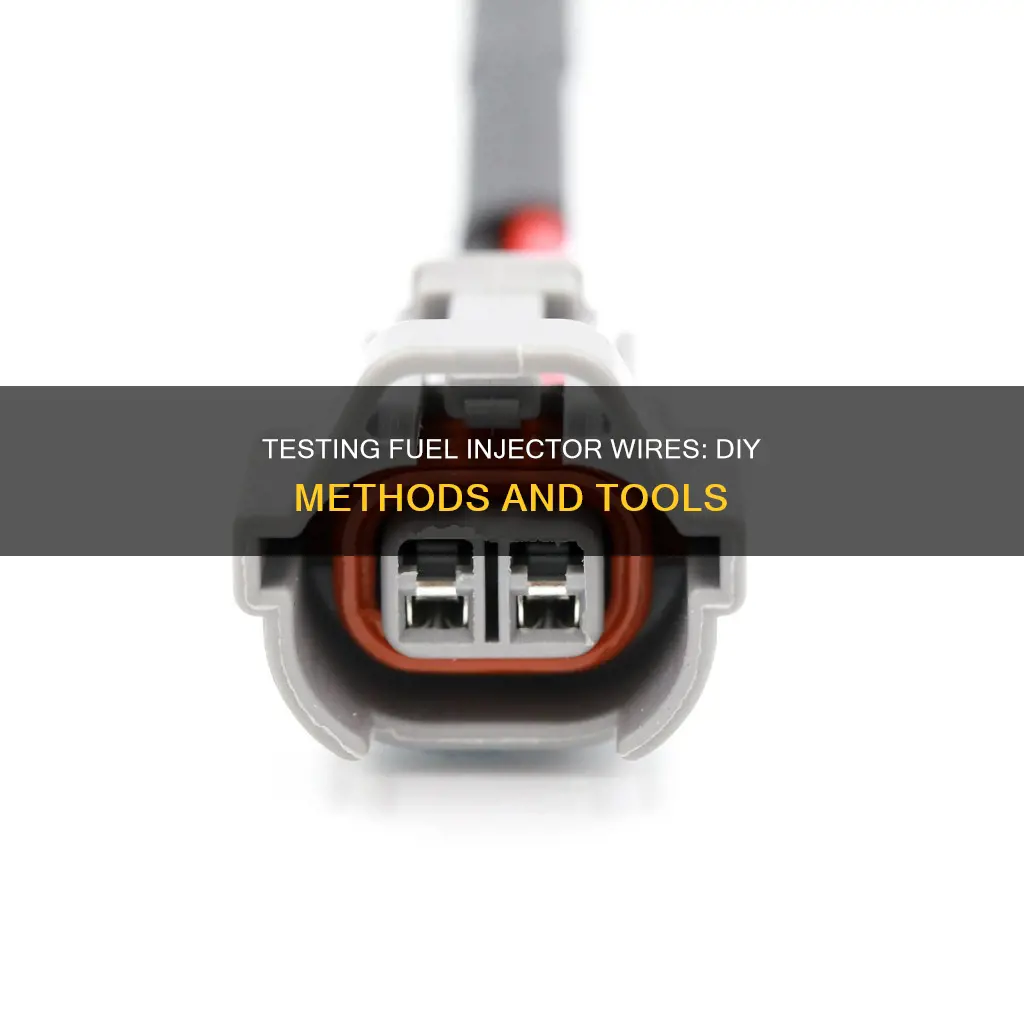

Testing a fuel injector wire is important to ensure your car's fuel injectors are receiving the correct voltage and to prevent issues with the vehicle's fuel delivery system. A faulty injector can cause one of your cylinders to not ignite fully, throwing off the balance of the engine and reducing fuel economy. To test a fuel injector wire, you can use a test light or a multimeter to check for voltage and resistance. You can also try disconnecting each injector connector to observe any changes in the idle. Additionally, checking for wiring differences specific to your car model and production year is crucial to accurate testing.
Characteristics and Values of Testing the Fuel Injector Wire
| Characteristics | Values |
|---|---|
| Tools | Test light, voltmeter/multimeter, screwdriver, DVOM, noid light, oscilloscope |
| Safety precautions | Wear protective gloves and eyewear, observe fire precautions |
| Engine status | Engine should be running at an idle |
| Voltage | Injectors should be receiving 12V, with a range between 11-14 ohms |
| Resistance | High impedance injectors: 12-17 ohms; Low impedance injectors: 2-5 ohms |
| Spray pattern | Should be robust; if muted, the injector should be replaced |
| Wiring | Check for exposed wires, corrosion, and leaks |
| ECU | A faulty ECU can cause issues with the fuel injector |
| Fuel delivery | A faulty injector can cause issues with fuel delivery and engine balance |
| Cleaning | Fuel injectors can be cleaned but will eventually need to be replaced |
Explore related products
What You'll Learn
Using a voltmeter to check for resistance
To test the fuel injector wire, you can use a voltmeter to check for resistance through the injector. This test gives a baseline ohm reading of all injectors, and a service manual should also have this information. Most injector readings should range between 11 and 14 ohms, or 12 to 17 ohms for high-impedance injectors, and 2-5 ohms for low-impedance injectors.
Before you begin, ensure you are wearing protective gloves and eyewear, as fuel may be present during testing. Also, ensure you have the key in the 'on' position, so you have battery power flowing, but the engine is not running.
Firstly, connect the voltmeter leads to the terminals – the polarity of the leads is irrelevant. Then, gently probe both sides of the injector wiring connector. One of the wires should react by registering around 12 volts on the meter. Repeat this process with all injector wiring harnesses, and they should all be around 12 volts. A lower reading means there is excess resistance in the wire somewhere.
If the test shows high resistance or an open circuit, the injector needs replacement. You can also test each wire for voltage using a test light. Press the sharp end of the test light into the rubber coating around each wire until it penetrates the metal wiring. One of the two wires should make the test light turn on when it comes into contact with the wire inside the protective coating. If the test light turns on with one wire, the injector is receiving the necessary constant voltage.
