Regan Brown
Formula 1 fuel tanks have evolved significantly over the years, with safety being a key focus. The tanks are now constructed from highly durable materials like Kevlar, in the form of a single puncture-proof rubber bladder, to meet stringent FIA safety regulations. The bladder is placed within a strong composite structure, providing additional protection and ensuring the tank can withstand extreme racing conditions and potential crash impacts. The manufacturing process involves the simultaneous vulcanization of the entire structure, creating a seamless and robust fuel bladder. This technique ensures compatibility with the intended fuel contents and enhances safety during shipment and storage. The position of the tank is also carefully designed, located in the centre of the car, between the engine and the driver, to minimize the risk of fire and optimize performance.
| Characteristics | Values |
|---|---|
| Material | Military-grade ballistic material, Kevlar, rubber, high modulus fibres, synthetic elastomers, sealants, bounding agents, adhesives, polyurethane |
| Manufacturing Process | Vulcanization of the entire structure |
| Safety | Fuel flow meters, non-return valves, anti-surge baffles, dry-break frangible couplings, fire-resistant, puncture-proof |
| Capacity | 160+ litres, 110 kilograms |
| Location | Between the engine and the driver, in the centre of the car, in the monocoque rear |
| Refuelling | Banned since 2010 |
Explore related products
$6.99 $8.99
What You'll Learn
Fuel tank composition and construction
The fuel tank in a Formula 1 car is located in the centre of the vehicle, between the driver's seat and the engine. The tank is positioned within the monocoque, a strong composite structure that provides additional protection. The size of the tank is carefully calculated, considering factors such as fuel consumption, expected race length, and aerodynamics. Regulations stipulate that the tank must not exceed the width of the chassis and must be situated directly behind the driver and in front of the engine.

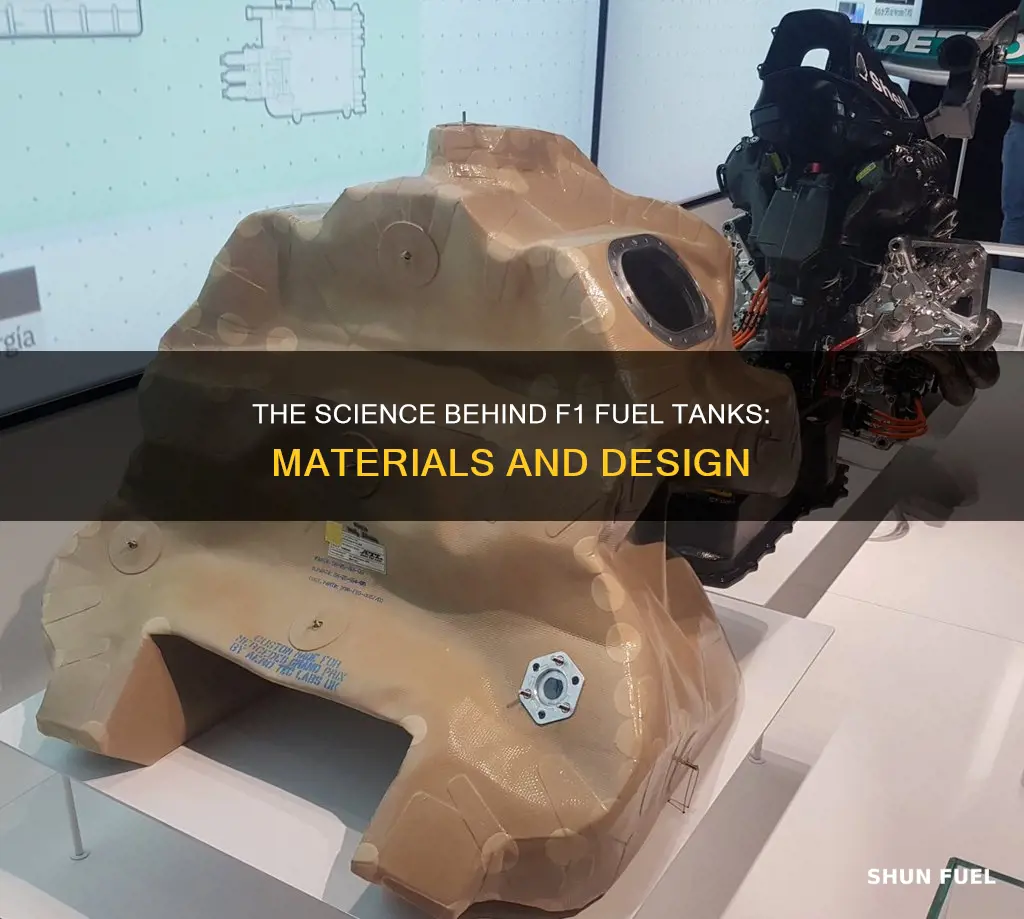

The fuel tank itself is composed of a single puncture-proof bladder made of military-grade ballistic material, typically Kevlar, reinforced with rubber. This bladder design meets the FIA's FT5 fuel tank standard and provides flexibility to fit the profile of the monocoque. The bladder is encased within the protective monocoque structure, which is designed to withstand high-impact loads and protect the delicate fuel system components.
The construction of the fuel cell involves the use of multiple internal baffles and fuel collection chambers. The manufacturing process includes the simultaneous vulcanization of the entire structure, resulting in a seamless and robust fuel bladder. This technique ensures compatibility with the intended fuel and enhances mechanical strength for shipment and storage.
To address fuel temperature concerns, developments have been made in car design to reduce heat transfer to the fuel. These include changes such as positioning the tank away from the engine and exhausts, implementing additional constraints on fuel formulation, and improving fuel cell and lift pump designs.
Fuel Tank Noises: What's the Fuss?
You may want to see also
Explore related products
Safety features and regulations
Safety is of paramount importance in Formula 1 racing, and the fuel tank is one of the critical areas of focus. Over the years, the fuel tank has evolved significantly to ensure the utmost protection for drivers. Modern F1 fuel tanks are constructed from highly durable materials and designed with advanced safety features to minimise the risk of fire and ensure optimal performance. Here are the key safety features and regulations governing F1 fuel tanks:
Stringent Regulations by FIA:
The safety of fuel tanks in Formula 1 is governed by stringent regulations set by the Fédération Internationale de l’Automobile (FIA). These regulations aim to ensure that fuel tanks can withstand extreme racing conditions and potential crash impacts. All F1 fuel tanks must adhere to specific standards for tensile strength, tear strength, puncture strength, and seam strength.
Single Rubber Bladder Construction:
F1 fuel tanks are constructed as a single puncture-proof bladder made of military-grade ballistic material, typically Kevlar, reinforced with rubber. This design meets FIA safety regulations and provides durability and flexibility. The bladder is placed within a strong composite structure, forming a safety cell that offers additional protection.
Rigorous Crash Testing:
FIA mandates rigorous crash testing of fuel tanks to simulate various impact scenarios. These tests include puncture resistance trials, ensuring the tank can withstand sharp objects and high-pressure impacts without leaking fuel. The tanks must also be fire-resistant and capable of withstanding high temperatures without igniting, a crucial factor in ensuring driver safety during accidents.
Fuel Flow Meters and Safety Protocols:
FIA requires the use of multiple fuel flow meters to monitor fuel usage and detect anomalies that could indicate leaks or other issues. These meters are part of a broader safety protocol that includes non-return valves and anti-surge baffles, preventing fuel from moving excessively within the tank during high-speed manoeuvres.
Fuel Line Safety:
The hoses feeding fuel to the engine are equipped with dry-break frangible couplings. In the event of an accident that separates the engine and chassis, these couplings automatically close, sealing the fuel bag and preventing fuel leakage, thus reducing the risk of fire.
No Refuelling During Races:
Since 2010, Formula 1 regulations have prohibited refuelling during races. Cars must start the race with a full fuel load of approximately 160 litres, strategically calculated against fuel consumption, race length, and aerodynamics. This rule eliminates the risks associated with refuelling, such as fuel hose incidents and pit stop fires.
Tank Location and Size Standardisation:
Formula 1 regulations specify that fuel tanks should be stored in the monocoque rear, located between the driver's seat and the engine. This positioning ensures the driver's safety and maintains consistency in vehicle design. The tank size is also standardised, with a maximum width of 800mm, and teams aim for a low tank level to optimise aerodynamics and fuel economy.
Heat Management and Technical Constraints:
Fuel temperature management is crucial in F1 cars due to heat transfer from the engine and exhaust. Developments in car design, fuel formulation, and fuel cell improvements aim to reduce heat transfer and maintain engine performance. Injection pressure is limited to a maximum of 100 bar, and technical regulations govern fuel formulation and tank design.
