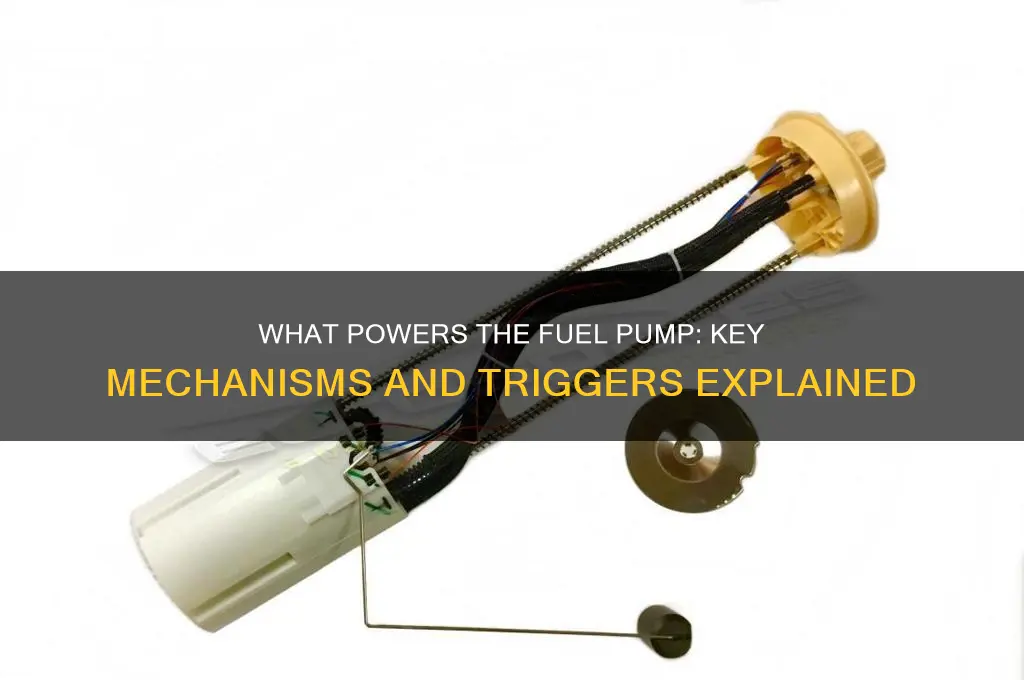

The fuel pump is a critical component in a vehicle's fuel system, responsible for delivering fuel from the tank to the engine at the required pressure and volume. What actuates the fuel pump depends on the type of system used; in most modern vehicles, an electric fuel pump is employed, which is typically activated by the ignition system when the engine is started. This pump is often located inside the fuel tank and is controlled by a relay that receives a signal from the engine control unit (ECU) or the ignition switch. In older carbureted systems, a mechanical fuel pump, driven by the engine's camshaft or crankshaft, was commonly used, operating in sync with the engine's motion. Understanding the actuation mechanism of the fuel pump is essential for diagnosing issues related to fuel delivery and ensuring optimal engine performance.
| Characteristics | Values |
|---|---|
| Actuation Method | Electric Motor, Mechanical (Camshaft-driven), Vacuum-operated, Electronic Control Unit (ECU) Signal |
| Power Source | 12V DC (most common), Vehicle Battery, Alternator |
| Control Type | Relay-controlled, ECU-controlled, Pressure Regulator Feedback |
| Fuel Pump Types | In-tank (most common), External (inline or frame-mounted), Mechanical (older vehicles) |
| Actuation Timing | Continuous (while ignition is on), Pulsed (ECU-controlled), Demand-based (modern systems) |
| Pressure Regulation | Integrated Pressure Regulator, External Regulator, Returnless Fuel System |
| Safety Features | Inertia Switch (for accidents), Thermal Cutoff, Fuel Pump Relay with Diode Protection |
| Actuation Signal | Ignition Switch On, ECU Command, Crankshaft Position Sensor Input |
| Common Failures | Relay Failure, Pump Motor Burnout, Clogged Fuel Filter, Wiring Issues |
| Modern Trends | Brushless DC Motors, High-Pressure Pumps (for direct injection), Integrated Fuel Modules |
Explore related products
What You'll Learn
- Electric Fuel Pump Operation: Electric motor drives pump to deliver fuel from tank to engine
- Mechanical Fuel Pump Mechanism: Camshaft-driven diaphragm pump pushes fuel through the system
- Fuel Pump Relay Function: Relay controls power supply to the fuel pump based on engine status
- Inertia Fuel Shut-Off Switch: Cuts power to pump during collisions to prevent fuel leaks
- ECM Control of Fuel Pump: Engine Control Module regulates pump speed for optimal fuel delivery
Electric Fuel Pump Operation: Electric motor drives pump to deliver fuel from tank to engine
The electric fuel pump is a critical component in modern vehicles, ensuring a consistent and precise fuel supply to the engine. At its core, the operation is straightforward: an electric motor drives the pump, which draws fuel from the tank and delivers it to the engine. This mechanism replaces older, mechanical systems, offering improved reliability and efficiency. The electric motor’s role is pivotal, as it must operate silently, efficiently, and with precision to meet the engine’s varying demands, from idle to full throttle.
Consider the process step-by-step. When the ignition is turned on, the fuel pump’s electric motor activates, creating a vacuum that pulls fuel from the tank. This fuel is then pressurized and sent through the fuel lines to the engine. The pump’s design often includes a check valve to maintain pressure in the lines when the engine is off, ensuring quick starts. Modern systems also incorporate a fuel pressure regulator, which adjusts the fuel flow based on engine load, optimizing performance and fuel efficiency.
One of the key advantages of electric fuel pumps is their ability to be mounted inside the fuel tank, known as an in-tank design. This setup immerses the pump in fuel, which helps dissipate heat and reduces the risk of fuel vaporization, a common issue in older external pump systems. In-tank pumps also minimize the distance fuel must travel, reducing the chance of air bubbles entering the system, which can disrupt engine operation. For example, in high-performance vehicles, in-tank pumps are often paired with high-pressure fuel rails to meet the engine’s demanding fuel requirements.
However, electric fuel pumps are not without their challenges. Over time, the electric motor can wear out, leading to reduced pump efficiency or failure. Contaminants in the fuel, such as dirt or debris, can also damage the pump’s internal components. Regular maintenance, including fuel filter replacements, is essential to prolong the pump’s lifespan. Additionally, diagnosing pump issues requires specific tools, like a fuel pressure gauge, to accurately measure the pump’s output and identify problems before they escalate.
In conclusion, the electric fuel pump’s operation is a testament to modern automotive engineering, combining simplicity with precision. By understanding its function and maintenance needs, vehicle owners can ensure reliable performance and avoid costly repairs. Whether in a compact sedan or a high-performance sports car, the electric fuel pump remains a vital link in the fuel delivery chain, quietly powering the journey ahead.
Locate Your 2004 Yukon XL Fuel Pump: A Quick Guide
You may want to see also
Explore related products
Mechanical Fuel Pump Mechanism: Camshaft-driven diaphragm pump pushes fuel through the system
The mechanical fuel pump, a stalwart of carbureted engines, relies on a camshaft-driven diaphragm mechanism to deliver fuel with precision. This system, though largely supplanted by electric pumps in modern fuel-injected vehicles, remains a testament to the elegance of mechanical engineering. Its operation hinges on the rhythmic motion of the camshaft, which translates rotational energy into the reciprocating action necessary to pressurize and move fuel.
Mechanism Breakdown:
The camshaft lobe, as it rotates, depresses a pushrod connected to the pump’s diaphragm. This depression creates a low-pressure zone, drawing fuel into the pump chamber through a one-way inlet valve. When the lobe rotates away, the diaphragm springs back, compressing the fuel and forcing it through a second one-way valve into the fuel line. This cycle repeats with every camshaft revolution, ensuring a steady fuel supply to the carburetor. The diaphragm’s flexibility and the valves’ unidirectional flow control are critical to maintaining system efficiency.
Advantages and Limitations:
Mechanical pumps excel in simplicity and reliability, requiring no external power source beyond the engine itself. Their direct linkage to the camshaft ensures fuel delivery scales with engine speed, a natural match for carbureted systems. However, this design is not without drawbacks. The pump’s output is inherently tied to engine RPM, which can lead to insufficient fuel delivery at idle or excessive pressure at high speeds. Additionally, the diaphragm’s lifespan is finite, and wear can introduce air into the system, causing hard starting or rough idling.
Practical Maintenance Tips:
For vehicles still employing this system, regular inspection of the pump’s mounting and pushrod alignment is essential. A misaligned pushrod can reduce pump efficiency or cause premature diaphragm failure. If the engine exhibits symptoms like sputtering under load or difficulty starting, check the fuel lines for leaks and the pump for signs of diaphragm rupture. Replacement diaphragms are typically inexpensive and can restore performance, but ensure compatibility with the specific pump model.
Comparative Perspective:
While electric fuel pumps offer greater flexibility and precision, particularly in fuel-injected systems, the mechanical diaphragm pump remains a viable option for classic or simplified setups. Its integration with the camshaft eliminates the need for additional wiring or control modules, making it ideal for restorations or off-grid applications. Understanding its operation not only aids in troubleshooting but also highlights the ingenuity of early automotive engineering, where mechanical solutions reigned supreme.
DIY Fuel Pump Construction Guide for Wisconsin Motors: Step-by-Step
You may want to see also
Explore related products
Fuel Pump Relay Function: Relay controls power supply to the fuel pump based on engine status
The fuel pump relay is a critical component in modern vehicles, acting as the gatekeeper for power delivery to the fuel pump. Its primary function is to manage the electrical supply to the fuel pump based on the engine's operational status, ensuring that fuel is delivered efficiently and only when necessary. This mechanism is essential for optimizing fuel consumption, reducing wear on the pump, and enhancing overall engine performance. Without the relay, the fuel pump would either run continuously, wasting energy, or fail to activate at the right moments, leading to engine stalling or poor performance.
Consider the sequence of events during engine startup. When the ignition is turned on, the engine control unit (ECU) sends a signal to the fuel pump relay, instructing it to close the circuit and allow power to reach the fuel pump. This initial activation primes the fuel system by pressurizing the lines and ensuring fuel is available for combustion. Once the engine starts, the relay continues to monitor signals from the ECU, maintaining power to the fuel pump as long as the engine is running. This dynamic control is a prime example of how the relay’s function is directly tied to the engine’s operational state, ensuring seamless fuel delivery without unnecessary energy expenditure.
However, the relay’s role extends beyond mere activation. It also acts as a protective device, safeguarding the fuel pump and the vehicle’s electrical system. For instance, if the engine stalls or the ignition is turned off, the relay immediately cuts power to the fuel pump, preventing fuel from being unnecessarily pumped into the engine. This not only conserves fuel but also reduces the risk of fuel system damage or fire hazards. Additionally, the relay is designed to handle high electrical currents, protecting the ECU and other sensitive components from potential overloads.
Practical troubleshooting tips can highlight the relay’s importance. If a vehicle fails to start or experiences erratic fuel delivery, the fuel pump relay is often one of the first components to inspect. Symptoms like a whirring noise from the fuel tank upon ignition (indicating the pump is working) but no engine start suggest a relay issue rather than a faulty pump. Testing the relay involves checking for continuity with a multimeter or swapping it with a known-good relay to confirm functionality. This diagnostic approach underscores the relay’s central role in the fuel system’s operation.
In summary, the fuel pump relay’s function is a masterclass in precision engineering, balancing power delivery with engine demands. Its ability to control the fuel pump based on engine status not only optimizes performance but also enhances safety and efficiency. Understanding its operation and troubleshooting techniques empowers vehicle owners and mechanics alike to address fuel system issues effectively, ensuring reliable and economical operation.
Camry Fuel Pump Failure: Recognizing the Warning Signs and Symptoms
You may want to see also
Explore related products
Inertia Fuel Shut-Off Switch: Cuts power to pump during collisions to prevent fuel leaks
Modern vehicles are equipped with an inertia fuel shut-off switch, a critical safety feature designed to mitigate the risk of fuel-related fires during collisions. This switch operates on a simple yet effective principle: it detects sudden deceleration or impact, typical in accidents, and immediately cuts power to the fuel pump. By doing so, it prevents fuel from being delivered to the engine, significantly reducing the likelihood of fuel leaks and subsequent fires. This mechanism is particularly vital in high-speed crashes where the potential for fuel ignition is greatest.
The inertia fuel shut-off switch is typically located in the vehicle’s trunk or near the fuel pump itself, depending on the make and model. It is engineered to activate at a specific threshold of deceleration, often around 1 to 3 G-forces, which corresponds to the force experienced during a moderate to severe collision. Once triggered, the switch remains in the "off" position until manually reset, ensuring that fuel delivery remains halted even if the vehicle is jostled further. This reset mechanism is intentionally straightforward, often requiring the push of a button, but is designed to be inaccessible unless the vehicle is inspected, encouraging a thorough post-accident check.
While the inertia fuel shut-off switch is a passive safety feature, its effectiveness relies on proper maintenance and awareness. Vehicle owners should periodically inspect the switch for damage or corrosion, especially after minor accidents, to ensure it functions as intended. Additionally, understanding its location and reset procedure is crucial for emergency responders and mechanics, as it allows them to safely manage fuel systems post-collision. This switch is a prime example of how automotive engineering prioritizes safety through innovative, fail-safe designs.
Comparatively, older vehicles without this feature were significantly more prone to fuel-related hazards during accidents. The introduction of the inertia fuel shut-off switch marked a substantial leap in vehicle safety standards, now mandated in most countries. Its design underscores the principle of "prevention over reaction," addressing a critical vulnerability in fuel systems before an accident escalates. For drivers, this feature provides an added layer of protection, though it’s essential to complement it with safe driving practices and regular vehicle maintenance.
In practical terms, the inertia fuel shut-off switch is a silent guardian, working seamlessly in the background to protect occupants and bystanders alike. Its activation during a collision is immediate and automatic, requiring no intervention from the driver. However, after an accident, drivers should be aware that the switch may need to be reset before the vehicle can operate again. This deliberate design ensures that a professional assessment is conducted, further safeguarding against potential risks. By understanding and appreciating this feature, vehicle owners can better grasp the intricate safety measures built into modern automobiles.
Mastering Fuel Pump Repair: A Step-by-Step Guide Using Kit 27160
You may want to see also
Explore related products
ECM Control of Fuel Pump: Engine Control Module regulates pump speed for optimal fuel delivery
The Engine Control Module (ECM) is the brain behind modern fuel pump operation, ensuring precise fuel delivery tailored to engine demands. Unlike older systems reliant on mechanical or vacuum-driven mechanisms, the ECM employs a sophisticated feedback loop to modulate pump speed dynamically. This real-time adjustment is critical for maintaining optimal air-fuel ratios across varying driving conditions, from idle to full throttle. For instance, during acceleration, the ECM increases pump speed to supply more fuel, while deceleration triggers a reduction to conserve fuel and minimize emissions.
To achieve this precision, the ECM relies on inputs from sensors such as the mass airflow (MAF) sensor, throttle position sensor (TPS), and oxygen (O2) sensors. These sensors provide data on air intake, engine load, and exhaust composition, allowing the ECM to calculate the exact fuel volume required. For example, at highway speeds, the ECM might maintain the pump at 60% duty cycle to balance performance and efficiency, whereas idling may reduce this to 30% to prevent over-fueling. This adaptive control not only enhances fuel economy but also reduces wear on the pump by avoiding unnecessary operation.
One practical aspect of ECM-controlled fuel pumps is their diagnostic capability. If the ECM detects a discrepancy between expected and actual fuel pressure—say, due to a clogged filter or failing pump—it triggers a trouble code, often illuminating the check engine light. Mechanics can then use scan tools to retrieve these codes, pinpointing issues like a pump operating at 90% duty cycle but failing to deliver adequate pressure. This diagnostic feature underscores the ECM’s role not just in regulation but also in system health monitoring.
However, the ECM’s control isn’t without limitations. Extreme conditions, such as a sudden loss of power or a malfunctioning sensor, can disrupt its ability to regulate pump speed effectively. For instance, a faulty MAF sensor might cause the ECM to overestimate air intake, leading to excessive fuel delivery and potential engine flooding. Drivers should remain vigilant for symptoms like rough idling or reduced power, which could indicate ECM-related fuel pump issues. Regular maintenance, including sensor checks and fuel filter replacements, can mitigate these risks.
In conclusion, the ECM’s regulation of fuel pump speed exemplifies the integration of technology in modern vehicles for efficiency and performance. By dynamically adjusting pump operation based on real-time data, it ensures engines receive the right amount of fuel under all conditions. While this system is robust, its reliance on accurate sensor data and proper maintenance highlights the need for proactive vehicle care. Understanding this interplay between the ECM and fuel pump empowers drivers and technicians alike to diagnose and address issues effectively, ensuring optimal engine operation.
Step-by-Step Guide to Installing a Myvi Fuel Pump Easily
You may want to see also
Frequently asked questions
In most modern gasoline engines, the fuel pump is actuated by an electric motor powered by the vehicle's electrical system. The pump is typically located inside the fuel tank and is controlled by the engine's computer (ECU) to deliver the correct amount of fuel based on engine demand.
In older carbureted engines, a mechanical fuel pump is actuated by the engine's camshaft or crankshaft via an eccentric lobe or lever mechanism. This mechanical linkage creates a pumping action to draw fuel from the tank and deliver it to the carburetor.
In diesel engines, the fuel pump is typically actuated by an electric motor or a mechanical drive system connected to the engine. High-pressure diesel fuel pumps are often driven by the engine's timing system to ensure precise fuel delivery for combustion.
