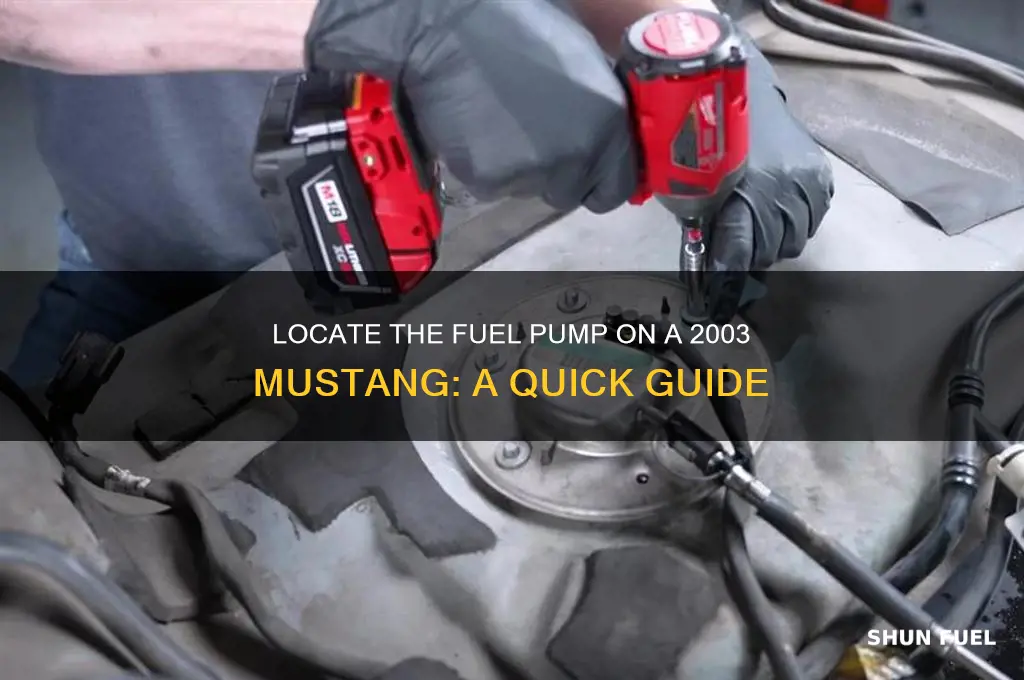

Fuel Pump Location in 03 Mustang
The fuel pump in a 2003 Ford Mustang is located inside the fuel tank, a common placement in modern vehicles to help maintain fuel pressure and reduce the risk of vapor lock. This design choice also protects the pump from external damage and temperature extremes, ensuring reliability. Accessing the fuel pump requires removing the fuel tank, a task that demands caution due to the flammable nature of gasoline. Always work in a well-ventilated area and disconnect the battery before starting any work on the fuel system.
To locate and replace the fuel pump, begin by relieving the fuel system pressure using the Schrader valve on the fuel rail. Next, raise the vehicle and support it securely on jack stands to access the fuel tank. Disconnect the electrical connector and fuel lines from the tank, then carefully lower the tank to access the pump assembly. The pump is typically secured with a locking ring or bolts, which can be removed with standard hand tools. When installing a new pump, ensure the fuel tank is clean and free of debris to prevent contamination.
Comparing the 2003 Mustang’s fuel pump location to earlier models highlights advancements in automotive engineering. Older Mustangs often had external fuel pumps, which were more susceptible to heat and mechanical failure. The in-tank design not only improves performance but also extends the pump’s lifespan. However, this placement makes replacement more labor-intensive, requiring more time and precision than external pump swaps.
For DIY enthusiasts, replacing the fuel pump on a 2003 Mustang is a manageable task with the right tools and precautions. A fuel pump removal tool, available at most auto parts stores, simplifies the process of removing the locking ring. Always refer to a repair manual for specific torque specifications and safety guidelines. If you’re unsure about any step, consulting a professional mechanic is a wise investment to avoid costly mistakes or safety hazards.
In summary, the fuel pump on a 2003 Mustang is located inside the fuel tank, a design that enhances performance and durability. Accessing and replacing it requires careful planning, proper tools, and adherence to safety protocols. While the task is more involved than external pump replacements, understanding the process empowers vehicle owners to tackle the job confidently or make informed decisions about professional repairs.
Can a 12-Volt Fuel Pump Operate Efficiently on a 6-Volt System?
You may want to see also
Explore related products
Identifying Fuel Pump Components
The fuel pump on a 2003 Mustang is located inside the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure. Identifying its components requires understanding both the pump itself and its associated parts. The primary component is the electric fuel pump, a compact unit responsible for drawing fuel from the tank and delivering it to the engine. This pump is typically integrated into a module that includes a sender unit for the fuel gauge and a filter to prevent contaminants from reaching the engine. Recognizing these elements is crucial for diagnostics or replacement.
Analyzing the fuel pump module reveals its layered design. The top layer often houses the fuel level sender, which communicates with the dashboard gauge. Below this lies the pump assembly, consisting of a motor and impeller. The bottom layer typically includes a sock-like filter that traps debris. When troubleshooting, inspect the filter for clogging, as this is a common cause of pump failure. Additionally, check the wiring harness connected to the module, as corrosion or loose connections can disrupt power delivery. Understanding these layers simplifies pinpointing issues.
A comparative approach highlights differences between in-tank and external fuel pumps. Unlike older vehicles with external pumps, the 2003 Mustang’s in-tank design reduces noise and improves efficiency. However, this placement complicates access, requiring fuel tank removal for pump replacement. External pumps, while easier to service, are less common in modern vehicles due to safety concerns. This comparison underscores the trade-offs in design and emphasizes the need for specialized tools when working on in-tank systems.
For practical identification, start by locating the fuel tank access panel, usually beneath the rear seat. Remove the panel to expose the pump module’s wiring harness and retaining ring. Disconnect the harness and use a specialized tool to release the ring, then carefully extract the module. Inspect each component: the sender for damage, the pump for wear, and the filter for blockage. If replacement is necessary, ensure the new module matches the original specifications, including pressure rating and filter type. Reinstallation follows the reverse process, with caution to avoid damaging the tank seal.
In conclusion, identifying fuel pump components on a 2003 Mustang involves recognizing the integrated module’s layers and understanding its in-tank design. Practical tips, such as inspecting the filter and checking wiring, streamline diagnostics. While access is more challenging than external systems, familiarity with the components and their functions ensures efficient maintenance or replacement. This knowledge is invaluable for both DIY enthusiasts and professional mechanics tackling fuel system issues.
Understanding Pulse Fuel Pump Operation: A Comprehensive Guide to Its Functionality
You may want to see also
Explore related products
Accessing the Fuel Pump Assembly
The fuel pump on a 2003 Mustang is located inside the fuel tank, a common placement in modern vehicles to reduce fire hazards and maintain fuel pressure stability. Accessing the fuel pump assembly requires careful preparation and a systematic approach to avoid damage or safety risks.
Steps to Access the Fuel Pump Assembly:
- Relieve Fuel System Pressure: Before starting, disconnect the negative battery terminal and relieve residual fuel pressure by loosening the fuel rail service valve or using a pressure tester. Failure to do this can result in fuel spraying during disassembly.
- Remove the Fuel Tank: Drain the tank using a siphon pump or by loosening the drain valve. Support the tank with a jack or stand, then unbolt the straps holding it in place. Lower the tank carefully to access the top-mounted fuel pump assembly.
- Detach Electrical and Fuel Lines: Disconnect the electrical connector and fuel lines from the pump module. Use line disconnect tools to avoid damaging the quick-connect fittings. Label connections if reassembling the original unit.
Cautions and Practical Tips:
- Work in a well-ventilated area and avoid open flames or sparks. Fuel vapors are highly flammable.
- If the tank is difficult to lower due to rusted bolts or tight space, apply penetrating oil and use a breaker bar for leverage.
- Inspect the fuel tank for corrosion or damage while it’s accessible. Minor surface rust can be treated with rust converter, but severe corrosion may require tank replacement.
Comparative Insight: Unlike older Mustangs with external fuel pumps, the 2003 model’s in-tank design offers better cooling and protection but complicates access. This trade-off highlights the importance of proper tools and patience during maintenance.
Resetting Your Dodge Charger's Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Tools Needed for Fuel Pump Removal
The fuel pump on a 2003 Mustang is located inside the fuel tank, which means removing it requires a specific set of tools to access and extract the component safely. Before diving into the removal process, it’s crucial to gather the right tools to avoid complications or damage. Here’s a breakdown of what you’ll need and why each tool is essential.
Essential Tools for Fuel Pump Removal:
- Floor Jack and Jack Stands: These are necessary to safely lift the vehicle and provide stable support while you work underneath. Ensure the car is securely positioned before proceeding.
- Socket Set and Wrenches: A metric socket set and wrenches are required to remove bolts securing the fuel tank and its components. Common sizes include 10mm, 12mm, and 14mm.
- Fuel Line Disconnect Tools: Specialized tools are needed to safely disconnect the fuel lines without causing leaks or damage. These tools vary by vehicle, so verify compatibility for a 2003 Mustang.
- Flathead and Phillips Screwdrivers: These are used for removing screws or prying components as needed during the process.
- Safety Equipment: Safety goggles and nitrile gloves are essential to protect against fuel spills and debris. Additionally, a fire extinguisher should be nearby as a precaution.
Additional Tools for Efficiency:
While not strictly necessary, a fuel pump module removal tool can simplify the extraction process by securely gripping the pump assembly. A drain pan is also recommended to catch any residual fuel when lowering the tank. For those working in tight spaces, a flexible LED light can improve visibility under the vehicle.
Cautions and Practical Tips:
Always relieve fuel system pressure before starting work by locating the Schrader valve on the fuel rail and depressurizing the system. Work in a well-ventilated area and avoid open flames or sparks. If you’re unsure about any step, consult a repair manual specific to the 2003 Mustang for detailed instructions.
By equipping yourself with these tools and following safety precautions, you’ll be well-prepared to tackle fuel pump removal on a 2003 Mustang efficiently and safely.
Fixing a Bad Fuel Pump: Steps to Start Your Tahoe Smoothly
You may want to see also
Explore related products
Common Issues with 03 Mustang Fuel Pumps
The 2003 Ford Mustang's fuel pump is located in the fuel tank, a common placement for modern vehicles to ensure fuel stays cool and reduce vapor lock risks. However, this location can complicate diagnosis and replacement when issues arise. One of the most frequent problems owners encounter is a failing fuel pump, often signaled by a sputtering engine, difficulty starting, or sudden stalls. These symptoms can mimic other issues, such as a clogged fuel filter or faulty ignition system, making accurate diagnosis critical.
Diagnosing a faulty fuel pump in an '03 Mustang requires a systematic approach. Start by checking the fuel pressure using a gauge; it should read between 30 and 60 psi, depending on the engine. If pressure is low, inspect the fuel pump relay and fuse, as these components can fail independently. A common oversight is neglecting to test the inertia switch, a safety feature that cuts power to the pump during collisions but can trip accidentally. Resetting this switch, often located in the trunk or near the driver’s side kick panel, is a simple fix that many overlook.
Replacement of the fuel pump is labor-intensive due to its in-tank location. The process involves dropping the tank, which requires draining the fuel, disconnecting lines, and removing mounting straps. Aftermarket kits often include a new pump, sending unit, and float assembly, but ensure compatibility with the Mustang’s 3.8L V6 or 4.6L V8 engines. DIYers should exercise caution when working with fuel systems; always relieve pressure before opening lines and avoid sparks near the tank. Professional installation is recommended for those uncomfortable with the complexity.
Preventive maintenance can extend the life of the fuel pump. Regularly replacing the fuel filter every 30,000 miles reduces strain on the pump by ensuring clean fuel flow. Using high-quality gasoline minimizes debris buildup, a common cause of premature failure. Additionally, keeping the fuel tank at least a quarter full prevents the pump from overheating, as it relies on fuel for cooling. Owners should also address engine misfires promptly, as unburned fuel can damage the pump over time.
Comparing the '03 Mustang’s fuel pump to earlier models highlights advancements in durability but also reveals persistent design weaknesses. While the in-tank placement improves performance, it remains susceptible to contamination from ethanol-blended fuels, which can degrade internal components. Owners of this model year often report pump failure between 100,000 and 150,000 miles, a lifespan shorter than some competitors. Upgrading to a higher-quality aftermarket pump can mitigate this issue, though it requires balancing cost with long-term reliability. Understanding these nuances empowers owners to make informed decisions about maintenance and repairs.
