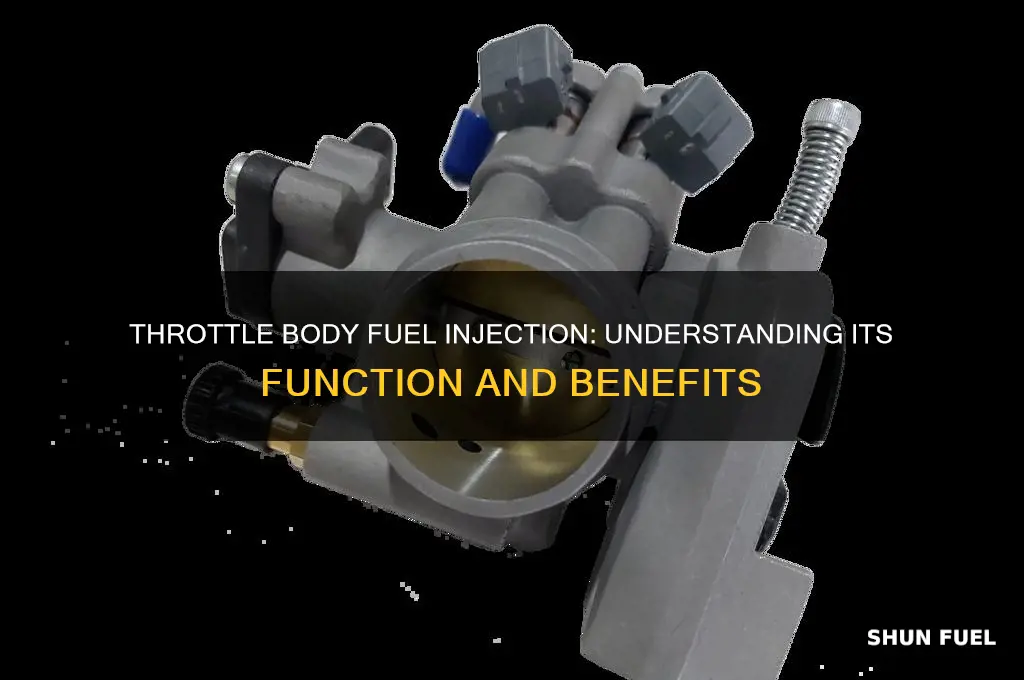

Throttle body fuel injection is a type of fuel delivery system used in internal combustion engines, where fuel is injected directly into the throttle body, just before the intake manifold. This system, which emerged as an intermediate step between carburetors and more advanced multi-port fuel injection, offers improved fuel efficiency and performance compared to traditional carburetors. By precisely metering fuel and mixing it with air at the throttle body, this system ensures a more consistent air-fuel mixture, leading to better engine responsiveness and reduced emissions. Although it has been largely replaced by more sophisticated fuel injection technologies in modern vehicles, throttle body fuel injection played a significant role in the evolution of automotive engineering, bridging the gap between older carbureted systems and today's high-performance engines.
| Characteristics | Values |
|---|---|
| Type | Single-point fuel injection system |
| Location | Mounted on the throttle body, just above the throttle valve |
| Fuel Delivery | Injects fuel into the intake manifold at a single point |
| Air/Fuel Mixing | Mixing occurs in the intake manifold, not directly in the cylinders |
| Performance | Improved over carburetors but less efficient than multi-point or direct injection systems |
| Fuel Efficiency | Moderate improvement over carburetors, but lower than modern systems |
| Emissions | Better control than carburetors, but higher emissions compared to multi-point or direct injection |
| Complexity | Simpler and less expensive than multi-point or direct injection systems |
| Maintenance | Easier to maintain and troubleshoot compared to more complex systems |
| Applications | Commonly used in older vehicles and some motorcycles; less prevalent in modern vehicles |
| Response Time | Slower throttle response compared to multi-point or direct injection |
| Cost | Lower cost compared to more advanced fuel injection systems |
| Reliability | Generally reliable, with fewer moving parts than carburetors |
| Cold Start Performance | Better cold start performance than carburetors but not as good as modern systems |
| Power Output | Moderate power output, suitable for everyday driving but not high-performance applications |
