Rajan Wilcox

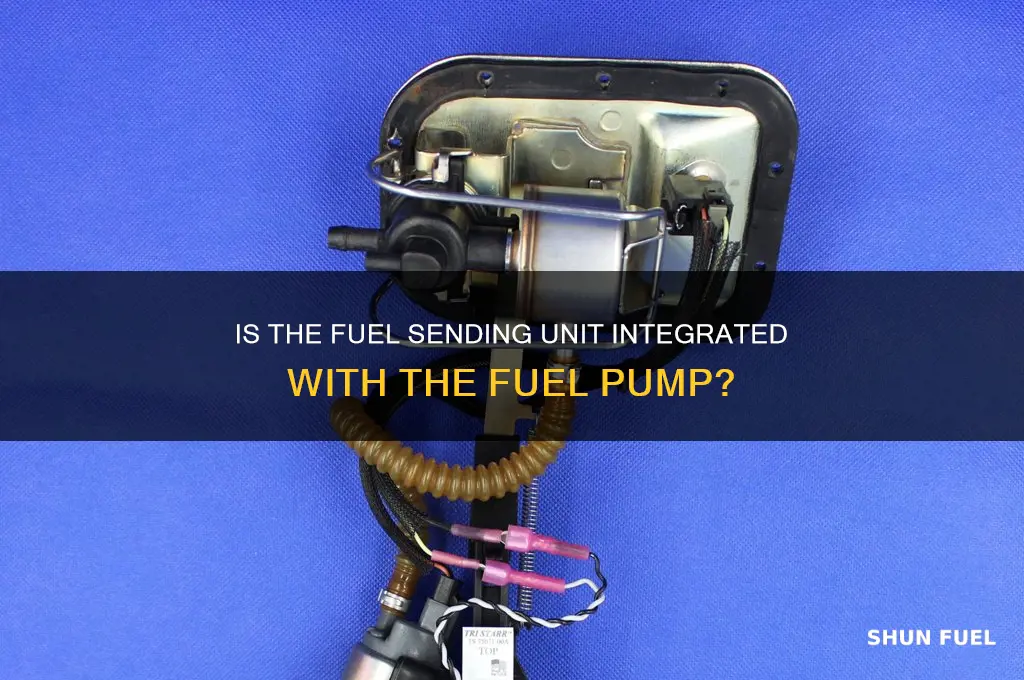

The fuel sending unit is a critical component of a vehicle's fuel system, often integrated with the fuel pump assembly, particularly in modern vehicles. Its primary function is to measure the amount of fuel in the tank and relay this information to the fuel gauge on the dashboard, ensuring the driver is aware of the fuel level. In many designs, the fuel sending unit is mounted directly on the fuel pump module, which is submerged in the fuel tank. This integration allows for efficient operation and reduces the number of components within the tank. However, the exact location and design can vary depending on the make and model of the vehicle. Understanding whether the fuel sending unit is part of the fuel pump is essential for diagnostics, maintenance, and repairs, as issues with either component can lead to inaccurate fuel readings or fuel delivery problems.
| Characteristics | Values |
|---|---|
| Location | Typically integrated into the fuel pump module in modern vehicles. |
| Function | Measures the fuel level in the tank and sends the data to the fuel gauge. |
| Components | Float arm, resistor, and electrical contacts. |
| Compatibility | Designed to work with the specific fuel pump and tank configuration. |
| Power Source | Draws power from the vehicle's electrical system. |
| Signal Output | Sends variable resistance or voltage signal to the fuel gauge. |
| Common Issues | Wear, corrosion, or electrical failure leading to inaccurate readings. |
| Replacement | Often requires replacing the entire fuel pump module if integrated. |
| Vehicle Types | Found in most cars, trucks, and SUVs with electronic fuel systems. |
| Maintenance | Typically not serviceable individually; replaced as part of the pump. |
| Cost | Replacement cost varies; integrated units are more expensive. |
| Diagnostic Tools | Multimeter or scan tool to test for proper operation. |
| Lifespan | Generally lasts the life of the fuel pump, but can fail prematurely. |
Explore related products
What You'll Learn
Location of the Fuel Sending Unit
The fuel sending unit is a critical component in your vehicle's fuel system, responsible for measuring the amount of fuel in the tank and relaying that information to the fuel gauge on your dashboard. Understanding its location is essential for diagnostics, maintenance, or replacement. In most modern vehicles, the fuel sending unit is integrated directly into the fuel pump module, which is submerged in the fuel tank. This design ensures accurate readings by keeping the sending unit in constant contact with the fuel level. However, the exact placement can vary depending on the make and model of your vehicle.
For instance, in many rear-wheel-drive cars, the fuel pump and sending unit are located at the top of the fuel tank, accessible by removing a panel in the trunk or rear seating area. In contrast, front-wheel-drive vehicles often have the fuel pump module positioned near the rear of the tank, requiring you to drop the tank for access. Some older vehicles or specific models may have a standalone sending unit separate from the fuel pump, typically mounted on the side or top of the tank. Always consult your vehicle’s service manual to confirm the exact location before attempting any work.
When diagnosing issues related to the fuel sending unit, such as an inaccurate fuel gauge, understanding its location is the first step. For example, if the sending unit is part of the fuel pump module, you may need to inspect the wiring harness or the float mechanism for damage. In vehicles with a separate sending unit, check for corrosion or a faulty resistor card. Practical tip: If you suspect a problem, use a multimeter to test the sending unit’s resistance at different fuel levels before assuming it needs replacement.
Replacing a fuel sending unit often requires removing the fuel tank, a task that demands caution due to the flammable nature of gasoline. Ensure the fuel tank is as empty as possible before starting, and work in a well-ventilated area. If the sending unit is integrated with the fuel pump, you’ll likely need to replace the entire module, which can be costly. For DIY enthusiasts, this is an intermediate-level task, but if you’re unsure, it’s best to consult a professional to avoid safety risks or further damage.
In summary, the location of the fuel sending unit is vehicle-specific but is commonly found within the fuel pump module inside the tank. Knowing this location simplifies troubleshooting and maintenance, saving time and potential frustration. Whether integrated or standalone, proper identification and handling of the sending unit are key to ensuring your fuel system operates reliably. Always prioritize safety and accuracy when working on this critical component.
Step-by-Step Guide to Testing Your Arctic Cat Fuel Pump
You may want to see also
Explore related products
Function and Role in Fuel System
The fuel sending unit is a critical component in modern vehicles, often integrated directly into the fuel pump assembly, especially in in-tank fuel pump designs. This integration serves a dual purpose: it ensures accurate fuel level readings and streamlines the fuel delivery process. Located inside the fuel tank, the sending unit consists of a float connected to a variable resistor. As the fuel level changes, the float moves, altering the resistance and sending an electrical signal to the fuel gauge. This real-time data keeps the driver informed of the fuel status, preventing unexpected runouts. Without this component, drivers would lack the essential feedback needed to manage their vehicle’s fuel consumption effectively.
Consider the fuel system as a well-choreographed dance, where the fuel sending unit plays a key role in maintaining harmony. Its primary function is to communicate with the vehicle’s computer and dashboard, ensuring the fuel gauge reflects the actual fuel level. For instance, in a typical sedan with a 15-gallon tank, the sending unit must accurately map the float’s position to the gauge’s needle, whether the tank is full, half-empty, or nearing empty. This precision is achieved through a potentiometer mechanism, which adjusts resistance based on the float’s height. However, this system isn’t foolproof; factors like fuel sloshing during sharp turns or a faulty resistor can lead to inaccurate readings. Regular maintenance, such as checking for corrosion or loose connections, can mitigate these issues.
From a practical standpoint, understanding the fuel sending unit’s role can save time and money. For DIY enthusiasts, diagnosing a malfunctioning sending unit involves a few straightforward steps. First, disconnect the fuel gauge and test the sending unit’s resistance with a multimeter; it should range from 0 to 90 ohms as the float moves. If the readings are inconsistent, the unit may need replacement. Second, inspect the wiring harness for damage or corrosion, as this can cause intermittent gauge failures. Lastly, if the fuel pump is accessible (e.g., in older vehicles), visually check the float for cracks or debris. Replacing a faulty sending unit typically costs between $200 and $500, depending on the vehicle make and labor rates, making proactive troubleshooting a cost-effective approach.
Comparing the fuel sending unit to other fuel system components highlights its unique importance. While the fuel pump delivers fuel to the engine and the filter ensures cleanliness, the sending unit provides the driver with actionable data. In electric vehicles (EVs), this role is replaced by battery management systems, which monitor charge levels instead of fuel. However, in traditional internal combustion engines, the sending unit remains indispensable. Its integration with the fuel pump assembly in modern designs not only saves space but also reduces the risk of electrical faults. This innovation underscores the evolution of fuel systems, where efficiency and reliability are prioritized to meet the demands of contemporary driving.
In conclusion, the fuel sending unit’s function within the fuel system is both precise and indispensable. By accurately measuring fuel levels and relaying this information to the driver, it bridges the gap between the mechanical and user-interface aspects of a vehicle. Whether integrated into the fuel pump or installed as a separate component, its role remains pivotal. For vehicle owners, recognizing its importance and understanding basic diagnostics can prevent inconvenience and costly repairs. As fuel systems continue to evolve, the sending unit’s reliability will remain a cornerstone of efficient vehicle operation.
Marine Fuel Pump Lifespan: Factors Affecting Durability and Longevity
You may want to see also
Explore related products
Common Signs of a Faulty Unit
A faulty fuel sending unit can manifest in several subtle yet critical ways, often leaving drivers puzzled about the root cause. One of the most common indicators is an erratic or inconsistent fuel gauge reading. If your gauge fluctuates wildly or fails to register the correct fuel level, it’s a strong sign that the sending unit is malfunctioning. This issue can lead to unexpected fuel depletion, leaving you stranded if not addressed promptly.
Another telltale symptom is the illumination of the check engine light, often accompanied by diagnostic trouble codes (DTCs) related to fuel system irregularities. Modern vehicles rely on precise fuel level data for optimal engine performance, and a faulty sending unit can disrupt this balance. If you notice the check engine light paired with poor fuel efficiency or rough idling, it’s worth inspecting the sending unit as a potential culprit.
For older vehicles, a less obvious but equally problematic sign is fuel pump strain or failure. The fuel sending unit is often integrated with the fuel pump assembly, meaning a malfunction in one can affect the other. If your fuel pump is working harder than usual or has failed prematurely, the sending unit’s inaccuracy could be overloading the system. Regularly monitoring fuel gauge behavior can help catch this issue before it escalates.
Lastly, a descriptive yet practical tip: listen for unusual noises from the fuel tank area. A failing sending unit can sometimes cause whining or buzzing sounds as the fuel pump struggles to compensate for inaccurate readings. If you hear such noises during refueling or while driving, it’s a red flag that warrants immediate attention. Addressing these signs early can save you from costly repairs and ensure your vehicle’s fuel system operates smoothly.
Unbypass Fuel Pump Inertia Switch: Step-by-Step Guide to Restore Functionality
You may want to see also
Explore related products
Steps to Replace the Sending Unit
The fuel sending unit, often integrated into the fuel pump assembly, plays a critical role in monitoring fuel levels. Replacing it requires precision and care to avoid damage or fuel leaks. Begin by ensuring the vehicle is on a level surface and the fuel tank is no more than a quarter full to minimize spillage and weight. Disconnect the battery to prevent electrical hazards, then relieve fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using a tool. Always wear safety goggles and gloves during this process.
Next, locate the fuel tank, typically beneath the rear seat or under the vehicle. Accessing it may require removing the rear seat cushion or underbody panels. Once exposed, carefully unbolt the fuel tank straps and lower the tank slightly to access the pump assembly. Disconnect the electrical connectors and fuel lines, noting their positions for reassembly. Use a fuel line quick disconnect tool to avoid damaging the lines. Extract the pump assembly by turning the locking ring counterclockwise with a specialized tool, such as a fuel pump module removal tool, to prevent stripping.
With the pump assembly removed, inspect the sending unit for damage or wear. The sending unit is usually part of the fuel pump module, so replacing the entire assembly is often necessary. Install the new unit by aligning it properly and securing the locking ring. Reattach the fuel lines and electrical connectors, ensuring a tight fit to prevent leaks. Reinstall the fuel tank, tightening the straps securely but not over-torquing to avoid damage. Reconnect the battery and turn the ignition to the "on" position to pressurize the system, then check for leaks using a fuel system smoke tester or soapy water solution.
Finally, test the sending unit’s functionality by starting the vehicle and verifying the fuel gauge reads accurately. If the gauge behaves erratically, recheck connections and ensure the float arm isn’t binding. Replacing the sending unit is a task that demands attention to detail, but with the right tools and precautions, it’s manageable for intermediate DIYers. Always consult the vehicle’s service manual for model-specific instructions and torque specifications to ensure a successful repair.
BMW 328i Fuel Pump Removal Guide: 2007 Model DIY Steps
You may want to see also
Explore related products
$37.95 $39.95
Compatibility with Different Fuel Pumps
The fuel sending unit's compatibility with different fuel pumps is a critical aspect of vehicle maintenance, often overlooked until a malfunction occurs. This component, responsible for measuring and transmitting fuel levels to the dashboard gauge, must seamlessly integrate with the fuel pump to ensure accurate readings and efficient fuel delivery. Compatibility issues can arise from variations in electrical systems, fuel types, and mechanical designs across different pump models. For instance, a sending unit designed for a carbureted engine may not function correctly with an electronic fuel injection system, leading to inaccurate fuel level displays or erratic pump operation.
When upgrading or replacing a fuel pump, it’s essential to verify the sending unit’s compatibility with the new system. Start by checking the vehicle’s make, model, and year to identify the original equipment manufacturer (OEM) specifications. Cross-reference these details with the new pump’s technical data sheet to ensure the sending unit’s resistance range and float arm design align with the pump’s requirements. For example, a sending unit with a resistance range of 0–90 ohms may not work with a pump expecting 10–90 ohms, causing the gauge to read incorrectly.
In some cases, aftermarket fuel pumps may require a sending unit adapter or a universal sending unit to bridge compatibility gaps. These adapters adjust the electrical signals or mechanical fit, ensuring the sending unit communicates effectively with the new pump. However, using adapters can introduce additional points of failure, so it’s crucial to select high-quality components and follow installation guidelines meticulously. For diesel vehicles, compatibility extends to the fuel type, as diesel sending units often feature more robust materials to withstand the higher pressure and density of diesel fuel.
A practical tip for diagnosing compatibility issues is to test the sending unit independently before installation. Disconnect the unit from the fuel pump and use a multimeter to measure its resistance at various fuel levels. Compare these readings to the manufacturer’s specifications to ensure the unit functions within the expected range. If discrepancies arise, consider replacing the sending unit with a model specifically designed for the new pump to avoid long-term reliability issues.
Ultimately, ensuring compatibility between the fuel sending unit and pump is a blend of research, precision, and proactive troubleshooting. By understanding the technical requirements of both components and addressing potential mismatches early, vehicle owners can avoid costly repairs and maintain accurate fuel level monitoring. Always consult a professional mechanic if uncertainty arises, as improper compatibility can lead to safety hazards or system failures.
Best Fuel Pump Options for Your Honda EP3 Civic Performance Upgrade
You may want to see also
Frequently asked questions
No, the fuel sending unit is not always located on the fuel pump. In some vehicles, it is integrated with the fuel pump assembly, while in others, it may be a separate component mounted inside the fuel tank.
Yes, the fuel sending unit can function independently of the fuel pump. Its primary role is to measure the fuel level in the tank and send that information to the fuel gauge, regardless of whether the pump is operating.
Consult your vehicle’s service manual or contact a mechanic. In many modern vehicles, the fuel sending unit is integrated into the fuel pump module, but this varies by make and model.
No, a faulty fuel sending unit typically does not cause the fuel pump to fail. However, both components are often located together, so issues with one may require accessing or replacing the entire fuel pump assembly.
