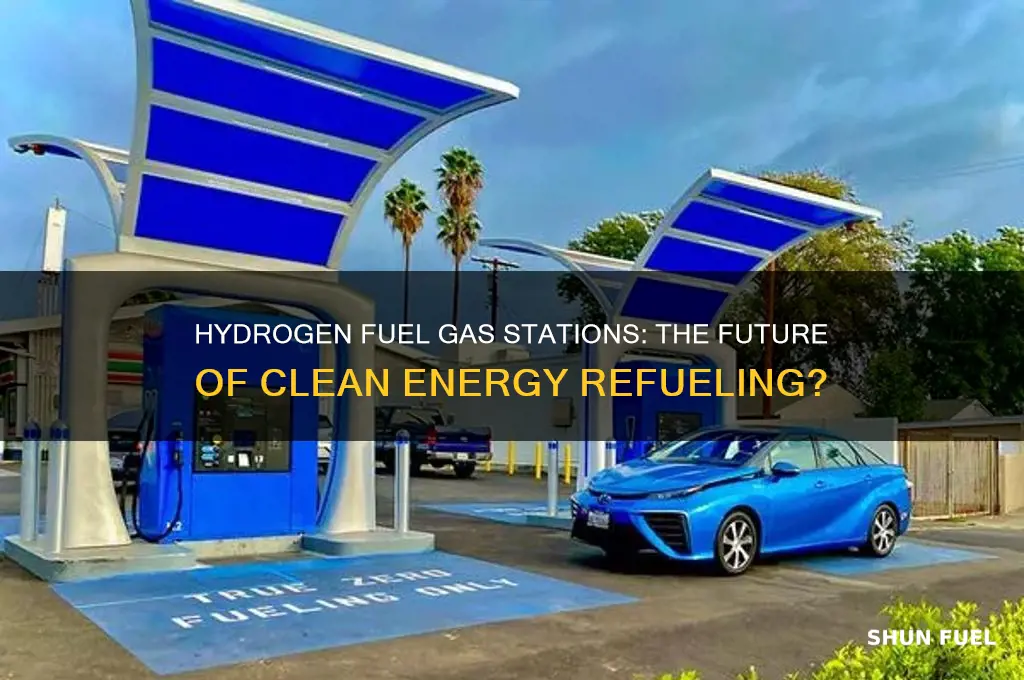

Hydrogen fuel gas stations represent a critical component of the emerging hydrogen economy, serving as the infrastructure backbone for hydrogen-powered vehicles and other applications. These stations function similarly to traditional gas stations but dispense compressed hydrogen gas instead of gasoline or diesel, enabling zero-emission transportation. As the world shifts toward cleaner energy sources, hydrogen fuel stations are gaining attention for their potential to reduce greenhouse gas emissions and combat climate change. However, challenges such as high production and storage costs, limited refueling infrastructure, and the need for sustainable hydrogen production methods remain significant hurdles. Despite these obstacles, governments and industries are investing heavily in hydrogen technology, positioning these stations as a key player in the transition to a low-carbon future.
Explore related products
What You'll Learn
Hydrogen Fuel Production Methods
Hydrogen fuel production is a critical component in the viability of hydrogen gas stations, and several methods dominate the landscape. Steam methane reforming (SMR) is the most common, accounting for approximately 95% of global hydrogen production. This process involves reacting methane with high-temperature steam (700–1,000°C) to produce hydrogen and carbon dioxide. While cost-effective, SMR’s reliance on natural gas and significant CO₂ emissions make it less sustainable without carbon capture technologies. For instance, a single SMR plant can emit up to 10 million metric tons of CO₂ annually, underscoring the need for greener alternatives.
In contrast, electrolysis offers a cleaner pathway by splitting water into hydrogen and oxygen using electricity. This method’s environmental impact hinges on the energy source: renewable electricity yields "green hydrogen," while fossil fuel-derived power results in "gray hydrogen." Alkaline electrolysis, the most mature technology, operates at 50–80% efficiency, but newer proton exchange membrane (PEM) electrolysis promises higher efficiency (up to 80%) and faster response times, ideal for integrating with intermittent renewable energy sources. For example, a 10 MW PEM electrolyzer can produce approximately 4,000 kg of hydrogen daily, sufficient to fuel 800 fuel cell vehicles.
Biomass gasification presents another route, converting organic materials like agricultural waste into hydrogen through high-temperature processes (800–1,000°C). This method reduces waste while producing hydrogen with a lower carbon footprint. However, its scalability is limited by feedstock availability and the complexity of removing impurities from the syngas. A 1 MW biomass gasification plant can process 1 ton of biomass per hour, yielding around 150 kg of hydrogen, suitable for small-scale hydrogen stations in rural areas.
Finally, thermochemical water splitting and photoelectrochemical (PEC) cells are emerging technologies with transformative potential. Thermochemical processes use heat from solar concentrators or nuclear reactors to drive water-splitting reactions, achieving efficiencies up to 50%. PEC cells, meanwhile, directly convert sunlight and water into hydrogen using semiconductor materials, though their current efficiency (below 10%) requires significant advancements. Despite their infancy, these methods could revolutionize hydrogen production by decoupling it entirely from fossil fuels.
Each production method carries trade-offs in cost, scalability, and environmental impact, shaping the feasibility of hydrogen gas stations. While SMR dominates today, electrolysis and emerging technologies are pivotal for a sustainable hydrogen economy. Practical considerations, such as integrating renewable energy into electrolysis or optimizing biomass supply chains, will determine which methods prevail in the transition to cleaner fuel infrastructure.
How Inverters Impact Fuel Efficiency in Vehicles and Generators
You may want to see also
Explore related products
Station Infrastructure Requirements
Hydrogen fuel stations demand robust infrastructure to ensure safety, efficiency, and scalability. At the core lies the storage system, typically featuring high-pressure tanks capable of holding hydrogen at 350–700 bar (5,000–10,000 psi). These tanks must comply with stringent international standards, such as ISO 19880, to mitigate risks like leaks or explosions. Cryogenic storage, maintaining hydrogen at -253°C (-423°F), is an alternative for larger-scale operations, though it requires advanced insulation and energy-intensive cooling systems.
Beyond storage, dispensing systems are critical. Hydrogen dispensers must handle high pressures while ensuring precise metering, often within ±1.5% accuracy, to comply with regulatory requirements. Nozzle design is equally vital, incorporating features like automatic shut-off valves and cooling mechanisms to prevent overheating during rapid fueling. Stations must also integrate compressors to maintain pressure differentials between storage and dispensing, ensuring a consistent flow rate of 5–10 kg/min for passenger vehicles.
Safety systems are non-negotiable. Hydrogen’s low ignition energy (0.02 mJ) necessitates explosion-proof electrical components, continuous gas monitoring, and ventilation systems capable of diluting concentrations below 4% (the lower flammability limit). Emergency shutdown protocols, including remote activation and automatic triggers, must be seamlessly integrated into the station’s control system. Fire suppression systems, such as dry chemical extinguishers, are mandatory, though water-based systems are ineffective due to hydrogen’s buoyancy.
Site layout and logistics play a pivotal role in operational efficiency. Stations require ample space for vehicle maneuvering, with fueling positions spaced at least 6 meters apart to prevent congestion. On-site hydrogen production, via electrolysis or reforming, can reduce dependency on deliveries but demands additional infrastructure like water purification systems or natural gas pipelines. Proximity to renewable energy sources, such as solar or wind farms, enhances sustainability but may increase initial costs by 20–30%.
Finally, scalability and interoperability are emerging priorities. Modular designs allow stations to expand capacity incrementally, from 100 kg/day for early adopters to 1,000+ kg/day for fleet operators. Standardization of connectors (e.g., SAE J2601) and communication protocols ensures compatibility across vehicle makes. Stations must also integrate digital payment systems and telemetry for remote monitoring, aligning with the broader shift toward smart energy networks. Without these considerations, hydrogen infrastructure risks becoming obsolete as technology evolves.
Understanding the Duramax Fuel System: Components, Functionality, and Maintenance
You may want to see also
Explore related products
Safety Protocols and Standards
Hydrogen fuel stations operate under stringent safety protocols to mitigate risks associated with hydrogen's highly flammable nature. The foundation of these protocols lies in international standards such as ISO 19880, which outlines design, operation, and maintenance requirements for hydrogen refueling stations. These standards ensure that stations are built with robust materials, equipped with leak detection systems, and designed to minimize ignition sources. For instance, hydrogen dispensers are fitted with automatic shut-off valves that activate if a leak is detected, reducing the risk of accidental release.
One critical aspect of safety is the management of hydrogen's unique properties, particularly its low ignition energy and wide flammability range (4–75% in air). To address this, stations implement ventilation systems that prevent gas accumulation and use non-sparking materials in construction. Additionally, hydrogen is stored at high pressures (up to 700 bar) in specialized tanks designed to withstand extreme conditions. Regular inspections and pressure tests are mandatory to ensure tank integrity, with replacement required after 15–20 years of service, depending on usage and environmental factors.
Training and emergency response planning are equally vital components of safety protocols. Station operators undergo rigorous training to handle hydrogen safely, including procedures for leak detection, fire suppression, and evacuation. Emergency response plans are tailored to hydrogen's behavior, emphasizing the use of dry chemical or foam extinguishers rather than water, which can spread the fire. Public awareness campaigns are also conducted to educate nearby communities on hydrogen safety, reducing panic and ensuring cooperation during emergencies.
Comparatively, hydrogen fuel stations adopt more proactive safety measures than traditional gasoline stations due to hydrogen's lighter-than-air property, which allows it to dissipate quickly in open environments. However, this advantage does not negate the need for strict adherence to protocols. For example, stations are often located in well-ventilated areas, away from densely populated zones, to minimize exposure risks. In contrast, gasoline stations focus more on spill containment and groundwater protection, highlighting the distinct safety challenges each fuel type presents.
Finally, technological advancements continue to enhance safety standards in hydrogen refueling. Innovations such as smart monitoring systems use IoT sensors to track pressure, temperature, and flow rates in real time, enabling immediate response to anomalies. Research is also underway to develop hydrogen storage materials with improved safety profiles, such as metal hydrides, which release hydrogen only under specific conditions. As the hydrogen economy grows, these advancements will play a pivotal role in ensuring that safety protocols remain effective and adaptable to evolving demands.
Understanding the Fuel System: Components, Functions, and Maintenance Tips
You may want to see also
Explore related products
Cost and Economic Viability
The initial investment for a hydrogen fuel station is staggering, often exceeding $2 million, primarily due to the high cost of electrolysis equipment, compression systems, and storage tanks. This upfront expense is a significant barrier for entrepreneurs and energy companies, especially when compared to the relatively lower cost of building traditional gasoline stations. However, governments and private investors are increasingly offering subsidies and grants to offset these costs, recognizing the long-term environmental benefits of hydrogen fuel. For instance, the U.S. Department of Energy’s H2@Scale initiative provides funding opportunities to reduce the capital expenditure for hydrogen infrastructure projects.
Operating costs for hydrogen stations present another layer of economic complexity. Producing hydrogen via electrolysis requires a substantial amount of electricity, which can account for up to 60% of operational expenses. To mitigate this, station operators are encouraged to source renewable energy, such as solar or wind power, to reduce both costs and carbon footprints. For example, a hydrogen station in California powered by a nearby solar farm has reported a 30% reduction in energy costs compared to grid-dependent stations. Additionally, advancements in electrolyzer efficiency, which have improved by 20% in the last decade, are further lowering production costs.
The economic viability of hydrogen fuel stations is also tied to the demand for hydrogen-powered vehicles (HPVs). Currently, HPVs represent less than 0.1% of the global vehicle market, limiting the customer base for these stations. However, projections indicate that HPV sales could reach 10 million annually by 2030, driven by stricter emissions regulations and declining fuel cell costs. To capitalize on this growth, station developers should strategically locate facilities in urban areas with high traffic density and near industrial hubs where hydrogen can also be used for manufacturing processes.
A critical factor in the economic sustainability of hydrogen stations is the pricing of hydrogen fuel itself. At present, hydrogen costs approximately $12–$16 per kilogram, compared to gasoline’s equivalent energy cost of $6–$8 per gallon. To compete, stations must either lower production costs or increase consumer willingness to pay through incentives like tax credits or loyalty programs. Some European countries, such as Germany, have introduced a hydrogen fuel subsidy of €2 per kilogram, making it more affordable for consumers and improving station profitability.
Finally, the long-term economic viability of hydrogen fuel stations depends on their integration into a broader hydrogen economy. Beyond transportation, hydrogen can be used for energy storage, industrial processes, and residential heating, creating multiple revenue streams for station operators. For instance, excess hydrogen produced during off-peak hours can be sold to power plants or chemical manufacturers, diversifying income sources. By adopting a multi-sector approach, hydrogen stations can become profitable hubs in a decarbonized energy landscape, ensuring their economic sustainability for decades to come.
Does Daylight Saving Time Actually Reduce Fuel Consumption? Exploring the Facts
You may want to see also
Explore related products
Environmental Impact Analysis
Hydrogen fuel stations, while promising for decarbonizing transportation, introduce complex environmental trade-offs that demand careful scrutiny. The production of hydrogen, particularly through steam methane reforming, emits significant greenhouse gases unless coupled with carbon capture technology. Even "green" hydrogen, produced via electrolysis powered by renewables, faces efficiency losses and infrastructure challenges. A single hydrogen station requires approximately 1-2 megawatts of renewable energy capacity to operate sustainably, highlighting the strain on already-taxed grids. Without stringent sourcing standards, hydrogen stations risk perpetuating fossil fuel dependencies under a cleaner guise.
Consider the lifecycle emissions of hydrogen vehicles versus battery-electric counterparts. A 2022 study by the International Council on Clean Transportation found that green hydrogen cars produce 20-30% more emissions than battery-electric vehicles (BEVs) due to energy losses during electrolysis and compression. For instance, fueling a hydrogen car requires 55 kWh of electricity per 100 km, compared to 15-20 kWh for a BEV. This inefficiency underscores the critical need for hydrogen stations to prioritize green hydrogen production and minimize distribution losses through localized electrolysis hubs.
Water consumption emerges as another overlooked environmental concern. Producing 1 kilogram of hydrogen via electrolysis consumes 9-12 liters of water, a non-trivial amount in drought-prone regions. In California, where over 50 hydrogen stations operate, this equates to approximately 1.5 million liters of water annually per station, rivaling the consumption of small communities. Operators must implement closed-loop systems or source water from non-potable supplies to mitigate this impact, adding complexity to station design and operational costs.
Noise pollution and land use further complicate the environmental profile of hydrogen stations. On-site electrolysis units generate noise levels of 70-80 decibels, comparable to urban traffic, necessitating sound barriers in residential areas. Additionally, a single station requires 0.5-1 acre of land, often in urban zones where space is premium. Comparative analysis shows that BEV charging infrastructure occupies 80% less space, offering a more land-efficient alternative. Policymakers must weigh these spatial demands against hydrogen’s refueling speed advantage (5 minutes vs. 30+ minutes for BEVs).
To maximize environmental benefits, hydrogen stations should adopt a three-pronged strategy: 1) Mandate 100% renewable energy for electrolysis, with real-time grid monitoring to avoid fossil-fueled production; 2) Integrate water recycling systems to reduce consumption by 70-80%; and 3) Co-locate stations with industrial hubs to repurpose waste heat and minimize land disruption. Without such measures, hydrogen infrastructure risks becoming an ecological half-measure rather than a transformative solution.
Exploring the Power of Love: Does it Truly Fuel Our Lives?
You may want to see also
Frequently asked questions
A hydrogen fuel gas station, also known as a hydrogen refueling station, is a facility where vehicles powered by hydrogen fuel cells can refill their hydrogen tanks. It works similarly to a conventional gas station but dispenses compressed hydrogen gas instead of gasoline or diesel.
Hydrogen fuel gas stations compress and store hydrogen gas, which is then dispensed into fuel cell vehicles through a nozzle. The process involves cooling, compressing, and storing hydrogen at high pressures (typically 350–700 bar) to ensure safe and efficient refueling.
Yes, hydrogen fuel gas stations are designed with stringent safety measures. Hydrogen is stored and dispensed under controlled conditions, and the infrastructure includes leak detection systems, ventilation, and emergency shut-off mechanisms to minimize risks.
Refueling a hydrogen fuel cell vehicle typically takes 3–5 minutes, similar to refueling a conventional gasoline car. This quick turnaround makes hydrogen a viable option for long-distance travel.
Hydrogen fuel gas stations are currently concentrated in regions with strong support for hydrogen infrastructure, such as California in the U.S., Japan, Germany, and South Korea. Their availability is growing as more countries invest in hydrogen technology.
