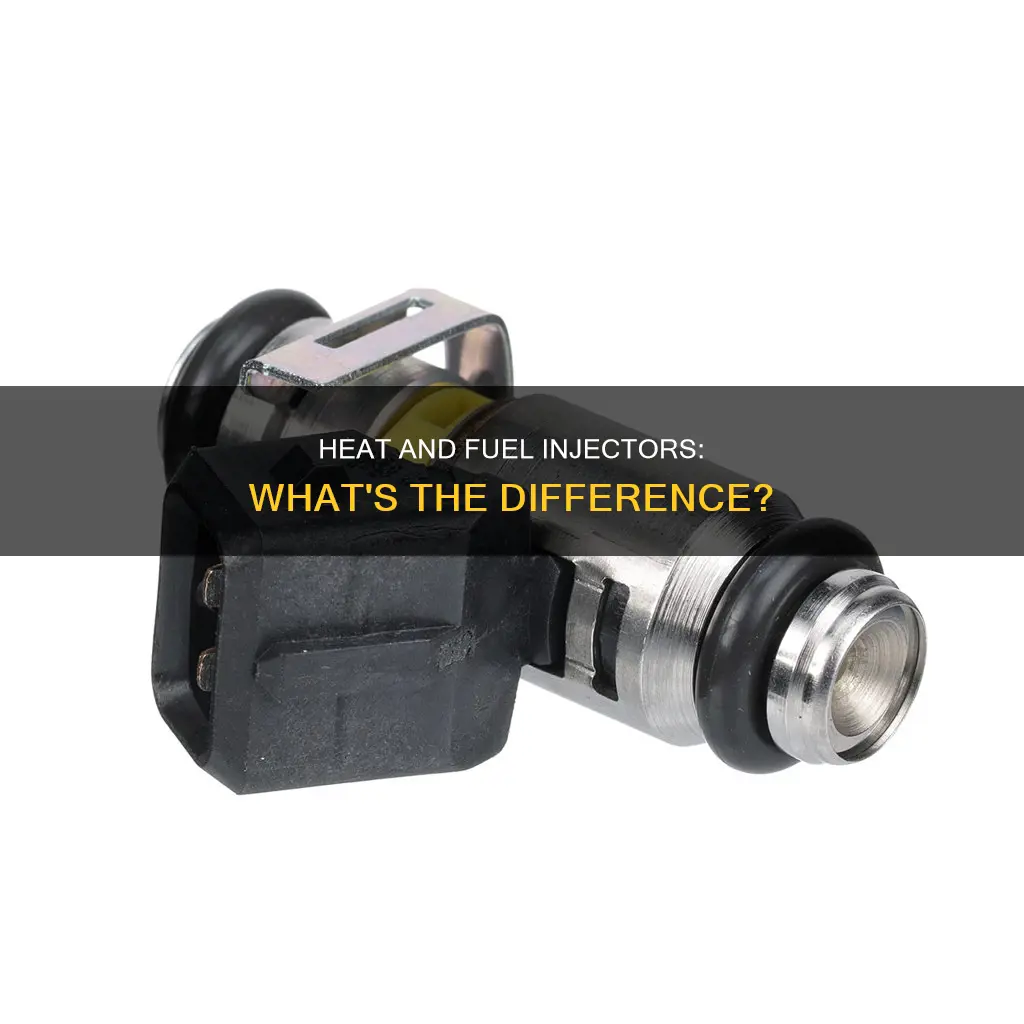

Heat and fuel injectors are two different concepts. Fuel injection is the process of introducing fuel into an internal combustion engine, most commonly an automotive engine, using a fuel injector. The injector is located in the combustion chamber, inlet manifold, or throttle body. It is designed to deliver a precise amount of fuel to each cylinder, improving engine efficiency and reducing emissions. On the other hand, heat refers to the thermal energy generated or transferred within the engine system. While not the same, heat and fuel injectors are related as the temperature of the fuel and the engine system can impact the performance of fuel injectors.
Characteristics and Values of Heat and Fuel Injectors
| Characteristics | Values |
|---|---|
| Fuel Injector Function | Spray pressurised fuel into the engine |
| Heat's Effect on Fuel Injectors | Fuel flow is affected by temperature; as fuel temperature increases, mass flow decreases |
| Fuel Injector Design | Key to achieving high-efficiency engine combustion with low tailpipe emissions |
| Fuel Injector Precision | Calibrated to force the same amount of fuel into each cylinder consistently |
| Fuel Injector Control | Electronically-controlled fuel injectors open and close to control the amount of fuel entering the engine |
| Fuel Injector Types | Common-rail systems, air-guided injection, spray-guided injection, M-System, etc. |
Explore related products
What You'll Learn
- Fuel injectors are calibrated to force the same amount of fuel into each cylinder consistently
- Heat and mass transfer effects in the nozzle of a fuel injector
- Fuel injection systems permit monitoring of each cylinder’s exhaust gas temperature
- Fuel temperature increase can affect the flow of the injector
- Fuel injection is the introduction of fuel in an internal combustion engine
Fuel injectors are calibrated to force the same amount of fuel into each cylinder consistently
Fuel injection is the introduction of fuel into an internal combustion engine, most commonly automotive engines, via a fuel injector. All compression-ignition engines (e.g. diesel engines) and many spark-ignition engines (e.g. petrol engines) use fuel injection.
There are two main types of fuel injection systems: continuous injection and intermittent injection. In a continuous injection system, fuel flows at all times from the fuel injectors, but at a variable flow rate. The most common automotive continuous injection system is the Bosch K-Jetronic system, introduced in 1974 and used until the mid-1990s. Intermittent injection systems can be further categorized into sequential, batched, simultaneous, and cylinder-individual designs. Sequential injection times the injection to coincide with each cylinder's intake stroke, while batched injection injects fuel to the cylinders in groups without precise synchronization to any particular cylinder's intake stroke. Simultaneous injection injects fuel at the same time to all cylinders, and cylinder-individual injection allows the engine control unit to adjust the injection for each cylinder individually.
The injection scheme can be either blast-of-air or hydraulic, with the latter being more common in automotive engines. Direct injection means that the fuel is injected into the main combustion chamber of each cylinder, and the air and fuel are mixed only inside the combustion chamber. This can be achieved with a conventional helix-controlled injection pump, unit injectors, or a sophisticated common-rail injection system. In a common-rail system, fuel from the fuel tank is supplied to a common header (accumulator) and then sent through tubing to the injectors, which inject it into the combustion chambers.
Fuel Injector Cleaning: Necessary Service or Unnecessary Expense?
You may want to see also
Explore related products
Heat and mass transfer effects in the nozzle of a fuel injector
The flow inside fuel injectors and the subsequent spray formation process are complex and influenced by various factors, including injection pressure, air pressure, fuel temperature, and wall temperature. Higher injection pressures, for example, lead to a thermal effect that raises fuel temperature at the nozzle, affecting the spray cone angle and inhibiting primary break-up during the initial and termination phases. The temperature increase of the fuel at the nozzle holes depends on the injection pressure drop and the duty cycle of the injection pulse.
Numerical studies, including those using transient Reynolds Averaged Navier-Stokes (RANS) modelling and Volume of Fluid (VOF) methods, have been conducted to understand the flow during and after injection, including fuel dribble and air backfilling effects. These studies have revealed the importance of considering non-isothermal compressibility in predicting the steady-state temperature increase of continuously flowing fuel.
Additionally, the preheating temperature of the fuel has a significant impact on spray characteristics and injection pump performance. Higher preheating temperatures are required for biodiesel-diesel fuel blends, and proper mixing ratios of high and low volatility fuels can stabilize the breakup process, leading to more uniform fuel spray distributions. Understanding and optimizing these heat and mass transfer effects in the nozzle of a fuel injector are crucial for improving engine performance, reducing emissions, and meeting sustainability goals.
Fuel Injectors: One Per Cylinder, Enhancing Performance and Efficiency
You may want to see also
Explore related products
Fuel injection systems permit monitoring of each cylinder’s exhaust gas temperature
Fuel injection systems are used to introduce fuel into an internal combustion engine, most commonly automotive engines. Fuel injection systems are operated by spraying pressurised fuel into the engine through a nozzle. The nozzle is opened and closed with a solenoid-operated needle valve. The system must determine the appropriate amount of fuel to be supplied and control the fuel flow to supply this amount.
Fuel injectors are calibrated to force the same amount of fuel into each cylinder consistently. Due to their precision, many fuel injection systems also permit monitoring of each cylinder's exhaust gas temperature (EGT). EGT probes on each cylinder allow the pilot to create the ideal engine performance to save fuel, reduce wear on the engine, and eliminate carburetor icing. For these reasons, fuel-injected engines are standard on most new aircraft.
The design of fuel injectors is key to achieving high-efficiency engine combustion with low tailpipe emissions. The small dimensions of injector nozzles contribute to engine unburnt HC and affect the spray's initial formation at the next injection event, or lead to fuel film formation inside the nozzle that may gradually lead to nozzle coking.
The end of injection has also been associated with bubbles forming in the sac of the injector, composed of fuel vapour and undissolved gas. This can cause issues such as rough running, inability to hold idle when power is reduced, and engine flooding.
Fuel Injector Maintenance: Pulling Out Injectors Safely
You may want to see also
Explore related products
Fuel temperature increase can affect the flow of the injector
Fuel injection is the introduction of fuel into an internal combustion engine, most commonly automotive engines, by means of a fuel injector. The injector is effectively a spray nozzle that performs the final stage in the delivery of fuel into the engine. The design of the fuel injectors is key to achieving high-efficiency engine combustion with low tailpipe emissions.
The temperature of the fuel can affect the flow of the injector. A fuel temperature increase will cause a reduction in mass flow. This is because fuel gets less dense as it heats up. This effect is usually small, but it can be more significant at very low duty cycles.
The presence of a sac in the injector is important to equalize the pressure of the fuel at nozzle hole inlets and produce good-quality sprays. However, increased temperatures may cause fuel left in the injector nozzle sac and orifice to evaporate and move into the cylinder. The lighter compounds will evaporate first, leaving behind heavier ones that can then create nozzle deposits. These deposits affect the spray and efficiency of the engine.
The end of injection has also been associated with bubbles forming in the sac of the injector, composed of fuel vapour and undissolved gas. This can lead to fuel dribble or nozzle emptying between injections, contributing to engine unburnt hydrocarbons.
Testing Fuel Injectors: Using a Battery to Check Performance
You may want to see also
Explore related products
Fuel injection is the introduction of fuel in an internal combustion engine
Fuel injection is the introduction of fuel into an internal combustion engine, most commonly automotive engines, by means of a fuel injector. The fuel injector is a device that performs the final stage in the delivery of fuel into the engine. It is effectively a spray nozzle that injects pressurised fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body.
The term "fuel injection" is vague and comprises various distinct systems with fundamentally different functional principles. The only thing all fuel injection systems have in common is the absence of carburetion. There are two main functional principles of mixture formation systems for internal combustion engines: internal and external. A fuel injection system that uses external mixture formation is called a manifold injection system, which can be multi-point or single-point injection. Internal mixture formation systems can be separated into several different varieties of direct and indirect injection, the most common being the common-rail injection, a variety of direct injection.
Direct injection means that the fuel is injected into the main combustion chamber of each cylinder. The air and fuel are mixed only inside the combustion chamber. Therefore, only air is sucked into the engine during the intake stroke. The injection scheme is always intermittent (either sequential or cylinder-individual). This can be done either with a blast of air or hydraulically, with the latter method being more common in automotive engines. Typically, hydraulic direct injection systems spray fuel into the air inside the cylinder or combustion chamber.
Fuel injection has been the primary means of introducing fuel into the engine cylinder in modern cars since the 1950s. All cars sold in the United States have fuel injection systems, and the demand for fuel injectors is expected to decline as electric vehicles (EVs) gain traction in the automotive market. However, this transition will not happen overnight, and internal combustion engines will likely remain relevant for years to come.
Adjusting Fuel Injectors: Using ISTA for Precision Tuning
You may want to see also
Frequently asked questions
A fuel injector is a device that introduces fuel into an internal combustion engine by spraying pressurised fuel into it.
A fuel injector is a spray nozzle that performs the final stage in the delivery of fuel into the engine. The injector is located in the combustion chamber, inlet manifold, or throttle body.
No, heat and fuel injectors are not the same. However, the flow of a fuel injector can be affected by temperature.
Heat and mass transfer effects in the nozzle of a fuel injector are important to understand as they can induce fuel dribble or nozzle emptying between injections, contributing to unburnt hydrocarbons.
As fuel temperature increases, the mass flow will reduce as the fuel gets less dense.
