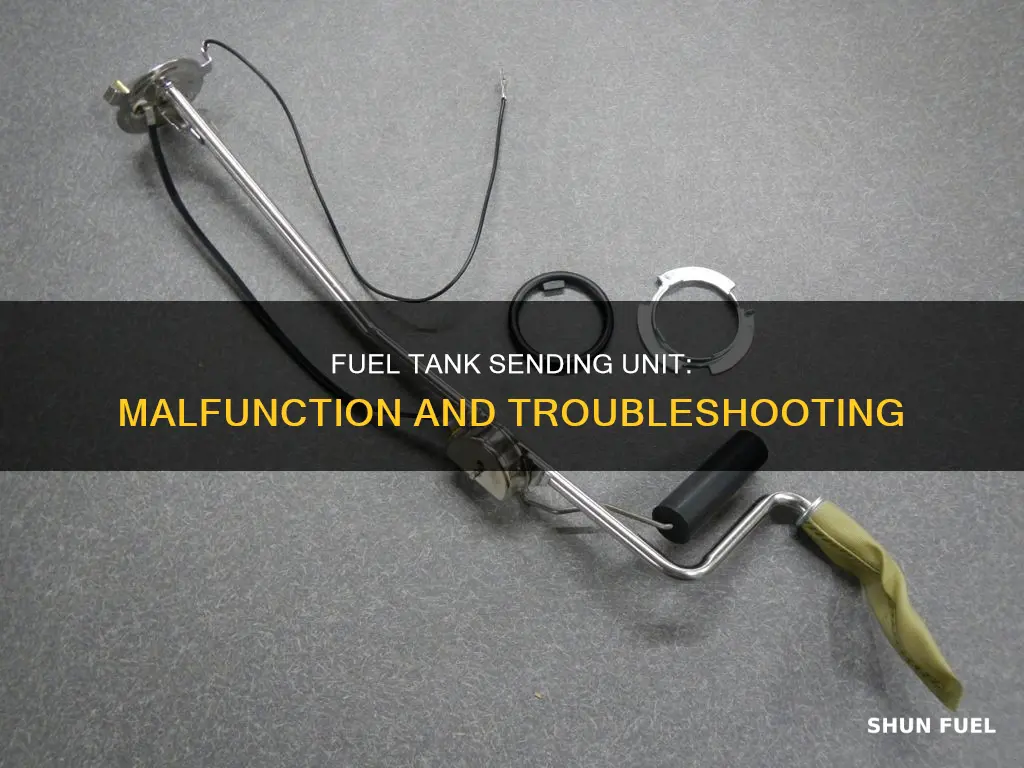

A fuel sending unit, also known as a fuel gauge sender or a gas gauge sensor, is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the gas tank and send this information to the fuel gauge on the dashboard. A faulty fuel sending unit will result in an inaccurate fuel gauge, which can cause the vehicle to run out of fuel unexpectedly. This article will discuss the signs of a malfunctioning fuel sending unit and how to diagnose and fix it.
Explore related products
What You'll Learn
- A faulty fuel gauge sender can cause the gauge to get stuck on empty
- A malfunctioning unit may cause the engine to stall due to insufficient fuel supply
- A fuel gauge stuck on full is usually caused by a malfunctioning variable resistor
- The fuel sending unit is made up of a metal rod/arm, float, and a resistor
- A faulty fuel sending unit can cause the fuel gauge needle to move erratically
A faulty fuel gauge sender can cause the gauge to get stuck on empty
A fuel sender unit, also known as a fuel gauge sender or a gas gauge sensor, is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the gas tank and send this information to the fuel gauge on the dashboard. This allows the driver to keep track of how much fuel is left and avoid running out unexpectedly.
The fuel sender unit is made up of three components: a float, a metal rod/arm, and a variable resistor. The float is made of buoyant materials so that it floats on the surface of the fuel inside the tank. As the fuel level drops, the float also lowers, and this movement is transmitted to the metal rod/arm, which is connected to the float. The metal rod/arm then moves a wiper inside the variable resistor, which sends an electric current to the fuel gauge, causing the display to change according to the fuel level.
A faulty fuel gauge sender can cause the fuel gauge to behave erratically or get stuck on empty or full. When the float breaks or becomes separated from the arm, it can cause the fuel gauge to malfunction and get stuck on empty. A faulty resistor can also restrict the signal completely, resulting in an empty reading on the gauge. In addition, corroded wires, especially in the case of a fuel sending unit located on the fuel pump, can interrupt the voltage supply to the fuel gauge, leading to inaccurate readings.
To diagnose a faulty fuel gauge sender, it is recommended to perform tests before replacing any parts. One possible solution is to reset the fuel gauge by disconnecting the battery for a short time. However, this may not always work, and other functions, such as radio presets and seat memory, will also be reset. If the problem persists, it is best to consult a professional mechanic for further assistance.
It is important to note that a malfunctioning fuel sender unit can have significant consequences. An inaccurate fuel gauge reading can lead to unexpected engine stalls due to insufficient fuel supply. Therefore, it is advisable to address any potential issues with the fuel sender unit promptly to ensure the vehicle's proper functioning and avoid unforeseen breakdowns.
Replacing Stihl 025 Fuel Tank Vent: Step-by-Step Guide
You may want to see also
Explore related products
A malfunctioning unit may cause the engine to stall due to insufficient fuel supply
A fuel sender unit, also known as a fuel gauge sender or a gas gauge sensor, is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the gas tank and send this information to the fuel gauge on the dashboard. This allows drivers to keep track of their fuel levels and avoid running out unexpectedly. The fuel pump delivers fuel from the tank to the engine, while the sender unit measures and sends signals about the amount of fuel in the tank to the gauge.
A malfunctioning fuel sender unit can lead to inaccurate fuel gauge readings. For instance, the gauge may constantly show a full tank, even when the vehicle is low on fuel. Conversely, it might indicate an empty tank when there is still ample fuel remaining. Additionally, a faulty sender unit can cause the fuel gauge to fluctuate erratically, making it challenging to determine the precise fuel level.
Beyond these issues, a malfunctioning fuel sender unit can have more serious implications. In some cases, it may cause the engine to stall unexpectedly due to insufficient fuel supply. This occurs when the sender unit fails to accurately detect the fuel level in the tank, resulting in an inadequate amount of fuel being supplied for proper combustion. Therefore, it is crucial to address any potential problems with the sender unit to prevent unexpected engine stalls and ensure the vehicle's overall performance.
To verify if the fuel sending unit is faulty, you may need a multimeter and access to the fuel tank. However, as a preliminary step, you can simply disconnect and reconnect the sending unit and observe the gauge's response. If you disconnect the sending unit and cycle the key, the gauge should move past the full reading. This is because most sending units have low resistance when full and high resistance when empty.
It is important to note that a malfunctioning fuel gauge does not always indicate a faulty sending unit. Issues with the gauge itself, such as a faulty variable resistor, can also lead to inaccurate readings. Therefore, it is recommended to diagnose and address any potential problems within the fuel system before assuming that a simple gauge replacement will resolve the issue.
Removing the Fuel Tank from a 95 GTX: A Step-by-Step Guide
You may want to see also
Explore related products
A fuel gauge stuck on full is usually caused by a malfunctioning variable resistor
A fuel gauge that is stuck on full is usually indicative of a malfunctioning variable resistor. This is a common issue that arises due to the constant motion of the wiper in the variable resistor, which can wear down the resistive material strip over time, creating an open circuit. This results in the fuel gauge receiving a constant full voltage signal, causing it to remain stuck on full.
The variable resistor is a crucial component of the fuel sending unit, which is responsible for measuring the fuel level in the tank and relaying this information to the fuel gauge. It consists of a float, a metal rod or arm, and the variable resistor. These components work together to ensure the driver is aware of the fuel level and can refuel when necessary.
When diagnosing a faulty fuel gauge, it is important to first consult the owner's manual for modern vehicles. This often includes a self-test procedure, such as turning on headlights and holding down the odometer button, which can help identify issues with the instrument panel gauges. If the issue persists, the next step is to check the condition of the fuse for the gauges or instrument panel. A blown fuse can cause erratic behaviour in gauges and replacing it may resolve the issue.
If the problem lies specifically with the fuel gauge, there are several potential causes. One possibility is that the float in the fuel tank has become corroded or absorbed fuel, causing it to leak and no longer float accurately. This can result in incorrect fuel level readings. Additionally, there could be an issue with the variable resistor itself. An empty reading should typically occur when the resistor creates maximum resistance or prevents current flow. However, in some cases, the fuel sending unit may stop sending current at certain positions, leading to inaccurate gauge readings.
In summary, a fuel gauge stuck on full is often due to a malfunctioning variable resistor within the fuel sending unit. This can be a result of wear and tear on the resistive material strip. However, other factors such as a faulty float or issues with the variable resistor's functionality may also contribute to inaccurate fuel gauge readings. To resolve these issues, it is recommended to consult a mechanic or refer to vehicle-specific repair manuals for detailed instructions.
Opening the Fuel Tank of Your Dodge Charger
You may want to see also
Explore related products
The fuel sending unit is made up of a metal rod/arm, float, and a resistor
A fuel sending unit, also known as a fuel gauge sender or a gas gauge sensor, is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the gas tank and send this information to the fuel gauge on the dashboard. This allows the driver to keep track of how much fuel is left and avoid running out unexpectedly.
The fuel sending unit is made up of three components: a float, a metal rod/arm, and a variable resistor. These components work together to measure the vehicle's fuel level and relay the information to the gas gauge. The float, made of a buoyant composite or foam, floats on top of the fuel in the tank and moves up and down according to the fuel level.
The float is connected to the metal rod/arm, which pivots in relation to the float's movement. This, in turn, causes the wiper inside the variable resistor to move. The variable resistor is an electrical device that resists the flow of electricity. The wiper moves along a strip of resistive material connected to a ground on one end, and the amount of electric current passing through the variable resistor depends on the wiper's position.
As the float rises and falls with the fuel level, the metal rod/arm pivots, moving the wiper inside the variable resistor. This changes the amount of resistance in the circuit, which in turn varies the strength of the electric current sent to the fuel gauge. The fuel gauge then displays the fuel level accordingly, showing a full tank when the float is highest and an empty tank when it is lowest.
Cleaning Diesel for Fuel Tank Sealing: The Ultimate Guide
You may want to see also
Explore related products
A faulty fuel sending unit can cause the fuel gauge needle to move erratically
A fuel sending unit is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the gas tank and send this information to the fuel gauge on the vehicle's dashboard. This allows the driver to keep track of how much fuel is left and avoid running out unexpectedly. The fuel sending unit is constantly in motion when a vehicle uses fuel, causing the wiper in the variable resistor to move constantly.
There are several other signs that indicate a faulty fuel sending unit. One of them is that the fuel gauge is stuck on full or empty. The fuel gauge may display full at all times due to a malfunctioning variable resistor sending a constant full voltage to the fuel gauge. The fuel gauge may also display empty when the tank is full due to the float separating from the arm, causing the fuel sending unit to stop completely. Additionally, there could be issues with the variable resistor or the wiring from the fuel sending unit to the fuel gauge.
It is important to diagnose and address any issues with the fuel sending unit promptly. Regular maintenance and inspection are crucial to ensuring that the vehicle's components are working correctly. By addressing any problems early on, you can prevent future issues and save yourself from costly repairs.
Efficiently Removing Fuel Vapor from Your Tank
You may want to see also
Frequently asked questions
If your fuel gauge is erratic, or stuck on empty or full, this could indicate a problem with the fuel sending unit.
The fuel tank sending unit measures the level of fuel in the tank and sends this information to the fuel gauge on your dashboard.
The use of aggressive fuels or additives in the tank can corrode the contacts on the fuel sending unit, causing dead spots or a loss of signal. Poor wiring connections can also cause inaccurate readings.
You will need to replace the unit. First, consult your vehicle's repair manual for the proper steps to remove the unit. Then, compare the old unit with a replacement unit to ensure compatibility, and fit the new unit.
Yes, you can check your fuel levels by learning the capacity of your vehicle's fuel tank and keeping track of the miles you've driven since your last fuel top-up. However, it's best to get your fuel sending unit repaired as soon as possible.
