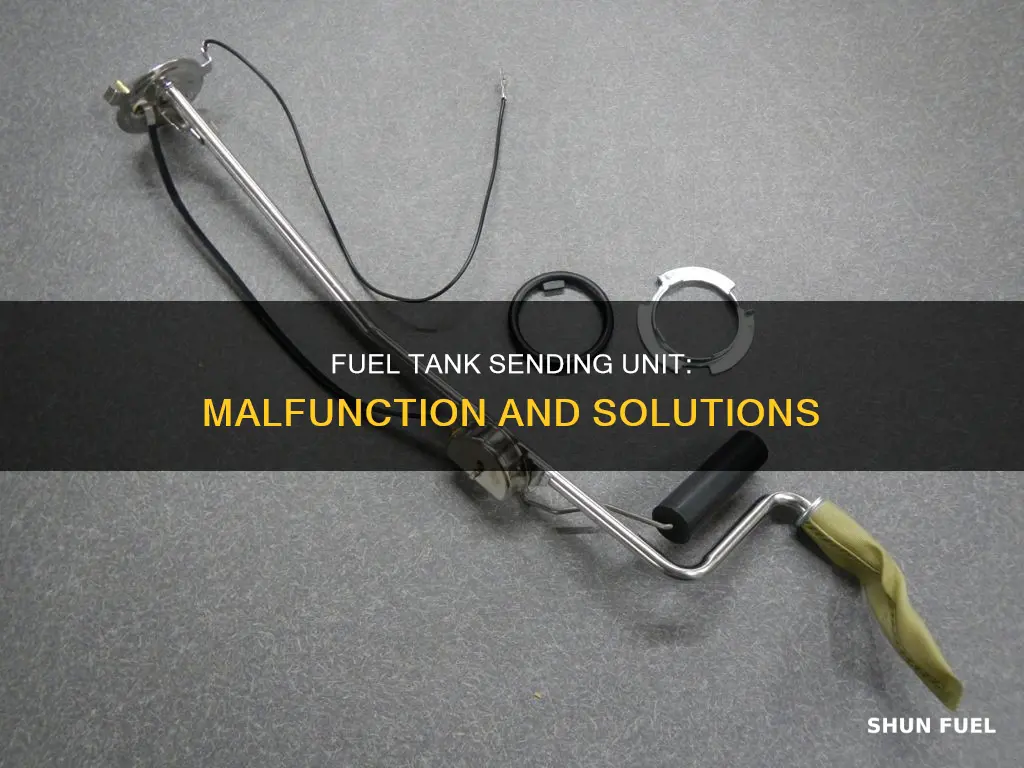

A fuel sending unit is an essential component of a vehicle's fuel system. It is responsible for measuring the level of fuel in the tank and sending this information to the fuel gauge on the dashboard. When the fuel sending unit malfunctions, it can lead to inaccurate fuel gauge readings, causing uncertainty about the actual fuel level. This can result in unexpected breakdowns or running out of fuel. Some common symptoms of a faulty fuel sending unit include erratic fuel gauge behaviour, inconsistent readings, and the gauge getting stuck on empty or full. It is important to diagnose and address these issues promptly to ensure the proper operation of the vehicle and avoid potential breakdowns due to fuel shortages.
| Characteristics | Values |
|---|---|
| Function | Measures the fuel level in the tank |
| Components | Float, metal rod/arm, variable resistor |
| Float | Made of buoyant composite or foam; floats on top of the fuel supply |
| Metal rod/arm | Connected to a contact inside the variable resistor |
| Variable resistor | Electrical device that resists the flow of electricity |
| Fuel gauge reading | Inaccurate, stuck on empty or full, erratic |
| Engine | May stall unexpectedly due to insufficient fuel supply |
| Fuel filter | May be clogged with dirt |
| Fuel injector | May malfunction |
| Fuel pump | May fail |
| Fuel gauge | May malfunction |
Explore related products
What You'll Learn
Inaccurate fuel gauge readings
An inaccurate fuel gauge reading can be a frustrating and stressful experience, leaving you unsure about when to refuel and anxious about the possibility of running out of gas. There are several reasons why your fuel gauge may be malfunctioning.
The most common cause of incorrect fuel gauge readings is a faulty fuel sending unit. The fuel sending unit, also known as the fuel gauge sender or gas gauge sensor, is responsible for measuring the level of fuel in the tank and transmitting this information to the fuel gauge on your dashboard. A faulty sending unit can result in the fuel gauge getting stuck on empty or full, displaying fluctuating readings, or behaving erratically. For example, the gauge may constantly show full even when the tank is low on gas, or it may read empty when there is still plenty of fuel remaining.
The fuel sending unit consists of three main components: the float, the metal rod or arm, and the variable resistor. The float, made of buoyant composite or foam, floats on top of the fuel and moves up or down according to the fuel level. The metal rod pivots in relation to the float, causing the wiper inside the variable resistor to move. The variable resistor then adjusts the amount of resistance voltage encounters, and the resulting electric current is sent to the fuel gauge, which displays the fuel level accordingly.
Problems with the fuel sending unit can include a broken or detached float, a malfunctioning variable resistor, or issues with the wiring such as loose connections or corrosion. These issues can lead to incorrect fuel gauge readings. Additionally, the constant friction between the sending unit and the variable resistor as the vehicle is driven can wear off the contacts, leading to failure over time.
While less common, there are other potential causes of inaccurate fuel gauge readings. These include problems with the internal circuit, such as a defective, shorted, or open circuit. Instrument cluster failure, which includes issues with the dashboard indicators, is another possible but less likely cause.
If you are experiencing issues with your fuel gauge, it is important to have it checked and repaired as soon as possible. A mechanic can diagnose the issue and determine the best course of action.
Draining Your Tank: Removing Bad Fuel
You may want to see also
Explore related products
Fluctuating fuel gauge readings
A fuel sender unit, also known as a fuel gauge sender or a gas gauge sensor, is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the gas tank and send this information to the fuel gauge on the dashboard. This allows drivers to keep track of their fuel levels and avoid running out unexpectedly.
A faulty fuel sending unit can result in inaccurate fuel gauge readings. One symptom of a malfunctioning fuel sending unit is fluctuating fuel gauge readings. This means that the needle moves erratically and does not provide a stable indication of the fuel level. This can be frustrating and unreliable, as you won't know whether you're close to running out of fuel or if there's enough left in the tank.
There are several potential causes for fluctuating fuel gauge readings. One possibility is a problem with the variable resistor, which is an electrical device that resists the flow of electricity. The variable resistor is connected to a float that floats on top of the fuel supply and moves up and down according to the fuel level. The amount of current passing through the variable resistor varies depending on the height of the float. If the variable resistor is faulty, it may send incorrect signals to the fuel gauge, causing the needle to fluctuate.
Another potential cause of fluctuating fuel gauge readings is a mechanical failure in the fuel sending unit. The float arm may 'stick' at certain levels, causing the fuel gauge to fluctuate between empty and full. This issue may resolve itself as the vehicle moves, with the float arm falling back into place. Additionally, the electrical connections between the fuel sending unit and the fuel gauge can become loose or corroded over time, leading to intermittent readings and needle fluctuations.
It is important to diagnose and address any potential issues with the fuel sending unit to ensure accurate fuel gauge readings and avoid unexpected fuel-related problems. In some cases, a malfunctioning fuel sending unit may cause the engine to stall due to insufficient fuel supply.
Connecting a Fuel Transfer Tank to Your Truck's Fuel Tank
You may want to see also
Explore related products
Engine stalling
A fuel sender unit, also known as a fuel gauge sender or a gas gauge sensor, is an essential component of a vehicle's fuel system. Its primary function is to measure the level of fuel in the gas tank and send this information to the fuel gauge on the dashboard. This allows the driver to keep track of how much fuel is left and avoid running out unexpectedly.
The fuel sender unit is located in the gas tank and measures the fuel level using a float, a metal rod or arm, and a variable resistor. The float floats on top of the fuel in the tank, made of buoyant composite or foam. It is connected to the metal rod or arm, which pivots in relation to the float. This, in turn, moves the wiper inside the variable resistor. The wiper moves along a strip of resistive material connected to a ground on one end, and the strength of the electric current from the resistor is determined by the wiper's position relative to the ground. This electric current is then sent to the fuel gauge, which displays the fuel level accordingly.
A faulty fuel sender unit can cause the fuel gauge to give inaccurate readings. Common symptoms of a faulty fuel sender unit include the fuel gauge getting stuck on empty or full, fluctuating readings, or erratic behaviour. In some cases, a malfunctioning fuel sender unit may even cause the engine to stall unexpectedly due to an insufficient supply of gasoline. This occurs when the sender unit does not accurately detect the amount of fuel in the tank, leading to an inadequate amount of gasoline being supplied for proper combustion.
To verify if the fuel sender unit is faulty, a multimeter and access to the fuel tank are required. However, as a preliminary step, one can simply disconnect and reconnect the sending unit and observe the gauge's behaviour. Most sending units have low resistance when full and high resistance when empty, so if the sending unit is disconnected and the key is cycled, the gauge should go past full.
It is important to note that a malfunctioning fuel gauge may not always be due to a faulty fuel sender unit. In some cases, it could be an issue with the variable resistor or other components within the vehicle's fuel system. Therefore, proper diagnosis is crucial before assuming that a simple gauge replacement will solve the problem.
Chainsaw Fuel Additive: Car Killer or Myth?
You may want to see also
Explore related products
Broken or separated float
A broken or separated float is one of the most common reasons for a faulty fuel gauge reading. The float is a component of the fuel sending unit, which is responsible for measuring the fuel level in the tank and communicating this information to the fuel gauge on the vehicle dashboard.
The float is typically made of a buoyant composite or foam and floats on top of the fuel supply at all times. It is attached to a metal rod or arm, which pivots in relation to the float's movement. This metal rod operates a variable resistor, which is connected by electrical wiring to the fuel gauge. As the float moves up and down according to the fuel level, the metal rod pivots, causing a wiper inside the variable resistor to move along a strip of resistive material. The position of the wiper determines the strength of the electric current sent to the fuel gauge, which then displays the fuel level accordingly.
When the float breaks or separates from the arm, it can cause the fuel gauge to malfunction and become stuck on empty. This occurs because the separation of the float from the arm causes the other components in the fuel sending unit to stop functioning. An empty reading is typically caused when the resistor creates the maximum amount of resistance or does not allow any current to flow.
To verify if the fuel sending unit is faulty, you can use a multimeter to measure the resistance. Most sending units have low resistance when full and high resistance when empty, so by disconnecting the sending unit and cycling the key, you can observe the gauge's response.
VW Tiguan Fuel Tank: How Big Is It?
You may want to see also
Explore related products
Poor wire connections
To diagnose a poor wire connection issue, you can refer to the vehicle's repair manual and check the voltage of the fuel gauge wire using a multimeter. If the voltage is lower than expected, it could indicate a problem with the wiring. Inspect all wires for damage or corrosion, and ensure that connections are secure.
In some cases, a poor wire connection may cause the fuel gauge to behave erratically, with the needle moving unpredictably. This can be frustrating for drivers, as they cannot accurately gauge their fuel level. A faulty wire connection can also result in the fuel gauge getting stuck on empty or full, regardless of the actual fuel level in the tank.
It is important to address poor wire connections promptly to avoid further issues. Regular maintenance and inspection of the fuel sender unit and its wiring can help prevent unexpected problems and ensure the vehicle's fuel system is functioning optimally. By replacing damaged or corroded wires and ensuring proper connections, you can maintain the accuracy of the fuel gauge and avoid the inconvenience of unexpected fuel shortages or unnecessary refuelling stops.
Ford F-150 Fuel Tanks: Dual or Single?
You may want to see also
Frequently asked questions
The most common sign of a faulty fuel sending unit is an inaccurate fuel gauge reading. This could mean that your gauge is constantly showing full, even when your tank is low on gas, or it could be stuck on empty when there's still fuel remaining. Another sign is fluctuating or erratic readings on the fuel gauge.
A fuel tank sending unit, also known as a fuel gauge sender or gas gauge sensor, measures the level of fuel in the tank and sends this information to the fuel gauge on your dashboard. This allows you to monitor your fuel levels and know when it's time to refuel.
If you suspect that your fuel tank sending unit is malfunctioning, it's important to get it checked and repaired as soon as possible. You can refer to your vehicle's repair manual for instructions on how to remove and inspect the unit. In some cases, you may need to disconnect and reconnect the sending unit or even replace it entirely.
