Fuel sensors are devices that measure the level of fuel in a vehicle's tank. They are also used in stationary units such as fuel tanks at gas stations. There are several types of fuel sensors, including floating fuel sensors, capacitive fuel sensors, ultrasonic fuel sensors, and Hall effect fuel sensors. These sensors provide real-time data on fuel levels, which can be used to optimise fuel efficiency and performance. In addition to fuel level sensors, there are also fuel tank pressure (FTP) sensors that monitor pressure to detect leaks and faulty gas caps.
| Characteristics | Values |
|---|---|
| Purpose | To measure the fuel level in a vehicle's tank |

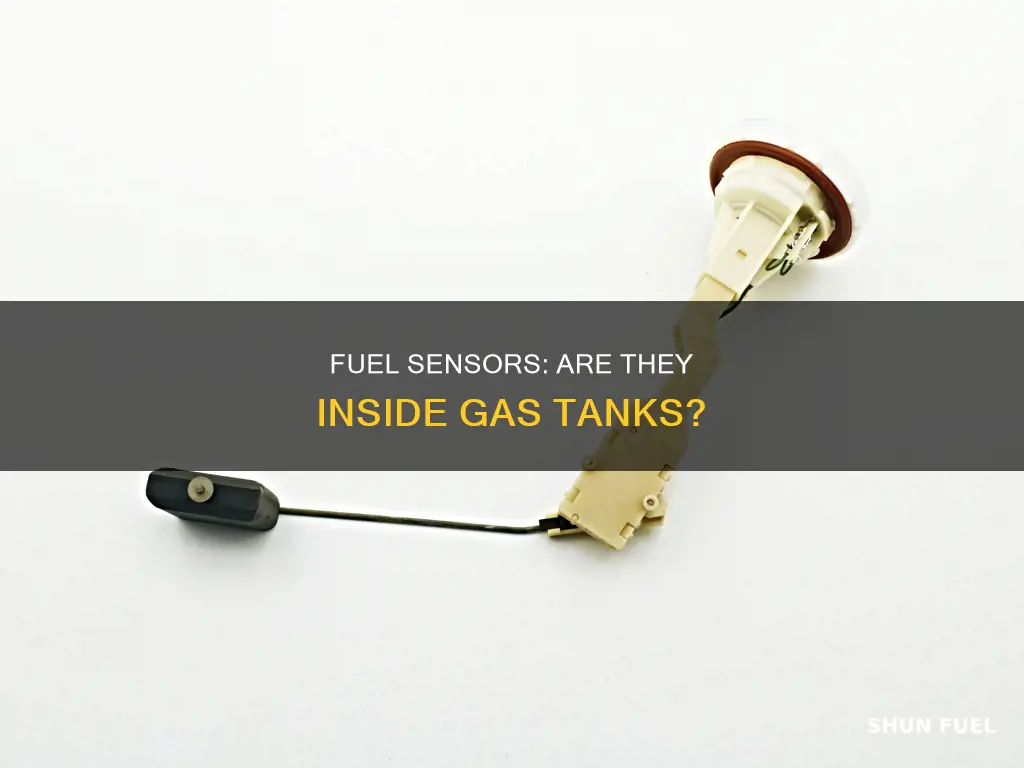

| Functionality | The fuel level is measured by a floating fuel sensor, which is connected to a potentiometer or a variable resistor that moves as the fuel level changes |
| Installation | Fuel sensors are installed inside the fuel tank |
| Data | The data is shared with telematics software, which presents the data to users in a digestible format |
| Accuracy | Floating fuel sensors offer an approximate reading with a relative error ranging from 10-20%. Capacitive or ultrasonic fuel sensors have a lower relative error of 1-2%. |
| Compatibility | Ultrasonic fuel sensors are used for vehicles running on gas. Resistive fuel sensors are used in cars, motorcycles, and small boats. Hall-based sensors are used in industrial fuel systems. |
| Cost | Ultrasonic fuel sensors are expensive. |
| Pressure Monitoring | Fuel tank pressure (FTP) sensors monitor pressure to detect evaporative leaks and loose or faulty gas caps. |
Explore related products
What You'll Learn
- Fuel sensors are devices that measure fuel levels in a vehicle's tank
- The floating fuel sensor is pre-installed in vehicles and provides an approximate reading
- Capacitive and ultrasonic fuel sensors are used in fleet management systems and are known for their precision
- The fuel tank pressure (FTP) sensor monitors pressure to detect leaks and loose or faulty gas caps
- Hall-based fuel sensors detect changes in the magnetic field and offer accurate, non-contact fuel measurement
Fuel sensors are devices that measure fuel levels in a vehicle's tank
There are several types of fuel sensors, including floating fuel sensors, capacitive fuel sensors, and ultrasonic fuel sensors. Floating fuel sensors are typically pre-installed in vehicles and provide a gauge of the fuel level on the dashboard. However, they only offer an approximate reading and are not highly accurate, with a relative error ranging from 10-20%.
Capacitive and ultrasonic fuel sensors, on the other hand, are known for their precision, with a relative error of only 1-2%. These sensors are often used in fleet management systems. The capacitive fuel sensor consists of two tubes that do not make physical contact but are electrified. When placed in a vehicle's tank, they are filled with fuel, and the fuel acts as a dielectric for the electric capacitor. As the fuel level changes, so does the electrical capacitance, and the sensor measures the height of the fuel column accordingly.
Ultrasonic fuel sensors use sound waves to measure the distance between the sensor and the fuel surface. These sensors are commonly used in automobiles, boats, and industrial appliances and are especially useful for irregular fuel tanks. However, they can be hindered by factors such as foam, dirt, and water accumulation, which can distort the ultrasonic beam and cause inaccurate readings.
Another type of fuel sensor is the Hall effect fuel sensor, which detects changes in the magnetic field, offering accurate and non-contact fuel measurement. These sensors are commonly used in industrial fuel systems and automotive vehicles.
Fuel Tank Maintenance: What You Need to Know
You may want to see also
Explore related products
The floating fuel sensor is pre-installed in vehicles and provides an approximate reading
Fuel sensors are devices that provide accurate measurements of the fuel level in a vehicle's tank. They are used in a variety of vehicles, including cars, locomotives, and ships. One type of fuel sensor is the floating fuel sensor, which is pre-installed in vehicles during manufacturing.
The floating fuel sensor provides an approximate reading of the fuel level, which is displayed on the dashboard. While it offers a gauge of the fuel level, it is important to note that these sensors are not highly accurate, with a relative error ranging from 10-20%. The sensor operates using a potentiometer connected to a float, which measures the fuel level by detecting changes in resistance as the fuel level and float position change.
In contrast, capacitive and ultrasonic fuel sensors are known for their precision, with a significantly lower relative error of only 1-2%. These sensors are often used in fleet management systems for more accurate fuel level measurements. Capacitive fuel sensors consist of two tubes that do not make physical contact and are electrified, forming an electric capacitor. As the fuel fills the space between the tubes, the electrical capacitance changes, and the sensor measures the height of the fuel column by determining the time it takes to charge the capacitor.
Ultrasonic fuel sensors, on the other hand, transmit an ultrasonic signal to measure the fuel level. These sensors are only used for vehicles running on gas due to the limitations of the technology. The accuracy of ultrasonic sensors can be affected by the shape of the tank, as well as dirt and water accumulation at the bottom of the tank, which can distort the ultrasonic beam and cause false fluctuations in the fuel level readings.
Overall, while the floating fuel sensor provides a convenient way to gauge fuel levels in vehicles, it is important to be aware of its limitations in terms of accuracy. For more precise measurements, capacitive or ultrasonic fuel sensors are preferred in fleet management systems.
Adventure-Ready: Can-Am LinQ Fuel Tank Options
You may want to see also
Explore related products
Capacitive and ultrasonic fuel sensors are used in fleet management systems and are known for their precision
Fuel sensors are devices designed to measure the level of fuel in a vehicle's tank. They are used in a variety of vehicles, including cars, trucks, locomotives, and ships. There are several types of fuel sensors, including floating fuel sensors, which are typically pre-installed in vehicles, and capacitive and ultrasonic fuel sensors, which are known for their precision.
Capacitive fuel sensors are often chosen for cargo trucks that move frequently. They consist of two tubes that do not make physical contact with each other. One tube is inserted into the other, serving as capacitor plates, and both are connected to the sensor on one end and electrified. When placed into a vehicle's tank, the tubes are filled with fuel, and the fuel acts as a dielectric for the electric capacitor. As the amount of fuel in the tubes changes, the electrical capacitance also changes, and the sensor measures the height of the fuel column in the tank.
Ultrasonic fuel sensors, on the other hand, are widely used in modern fuel management systems. They are typically used for vehicles that do not move much, such as those in the construction industry. This type of sensor is externally attached to the bottom of the fuel tank and uses ultrasonic impulses to measure the height of the fuel column. The signal travels from the bottom of the tank to the fuel surface and back, and the reflected signal is received by the transmitter. The time it takes for the signal to travel helps determine the height of the fuel column.
Both capacitive and ultrasonic fuel sensors offer high accuracy and precision in measuring fuel levels. They have a relative error of only 1-2%, compared to floating fuel sensors, which have a relative error of 10-20%. This accuracy is particularly important for fleet management systems, where fuel efficiency and consumption monitoring are crucial for profitability.
In summary, capacitive and ultrasonic fuel sensors are favoured in fleet management systems due to their precision and accuracy in measuring fuel levels. They provide valuable data that helps fleet operators optimise fuel efficiency, monitor fuel consumption, and make informed decisions to stay profitable, especially in the face of rising fuel prices.
Fuel Oil Lifespan: How Long Does It Last?
You may want to see also
Explore related products
The fuel tank pressure (FTP) sensor monitors pressure to detect leaks and loose or faulty gas caps
Fuel sensors are devices designed to make accurate measurements of the fuel level in a vehicle's tank. There are several types of fuel sensors, including floating fuel sensors, capacitive fuel sensors, and ultrasonic fuel sensors. These sensors work by measuring the height of the fuel column, the electrical capacitance between fuel-filled tubes, or by sending and receiving an ultrasonic beam.
The fuel tank pressure (FTP) sensor is a specific type of fuel sensor that is part of the evaporative emissions control system (EVAP). The FTP sensor monitors pressure within the fuel tank to detect evaporative leaks and loose or faulty gas caps. This process helps to maintain fuel efficiency, reduce emissions, and optimise engine performance. When the FTP sensor detects a leak or a loose gas cap, it sends a signal to the vehicle's powertrain control module (PCM), which then logs diagnostic trouble codes (DTCs) and activates the check engine light. This alerts the driver to potential issues and prevents further damage.
The FTP sensor is typically located on top of the fuel pump module, which is mounted on or inside the fuel tank. While a vehicle may still run with a faulty FTP sensor, it is not recommended to drive for extended periods as it can lead to increased emissions and potential engine performance issues. Common symptoms associated with a faulty FTP sensor include an illuminated check engine light, engine stalling, and loss of power. The average price of replacing an FTP sensor is between $256 and $295, with the labour fee ranging from $139 to $175.
To replace an FTP sensor, one must first lower the fuel tank to access the sensor. While it is possible to replace the sensor yourself, it is recommended to consult a professional to lessen the chances of damage or malfunction. The process of detecting leaks with an FTP sensor involves monitoring the rate at which the vacuum increases in the EVAP system and then determining the purge volume flow rate. This information is used to detect leaks and ensure that fuel vapors are contained within the system.
Using Sea Foam: How Often is Too Often?
You may want to see also
Explore related products
Hall-based fuel sensors detect changes in the magnetic field and offer accurate, non-contact fuel measurement
Fuel sensors are devices that measure the fuel level in a vehicle's tank. They are used in both stationary units, such as fuel tanks at gas stations, and in vehicles like cars, ships, and locomotives. One of the most common types of fuel sensors is the floating fuel sensor, which comes pre-installed in vehicles and provides a gauge of the fuel level on the dashboard. However, these sensors only offer an approximate reading and are not highly accurate, with a relative error ranging from 10-20%.
To address the limitations of floating fuel sensors, Hall-based fuel sensors have been developed to provide more accurate and reliable fuel level measurements. Hall-based fuel sensors, also known as Hall Effect fuel sensors, detect changes in the magnetic field and offer accurate, non-contact fuel measurement. They are named after physicist Edwin Hall and are based on the Hall Effect principle, which states that a voltage is produced that is proportional to one axial component of the magnetic field vector B.
The Hall Effect sensor incorporates one or more Hall elements that respond to both static and changing magnetic fields. When used in fuel level sensing, the Hall sensor detects the position of a floating element in the fuel tank. It translates the physical position or orientation of the mechanical indicator needle into an electrical signal that can be used by electronic indicators or controls. This allows the sensor to provide accurate fuel level readings without physically contacting the fuel.
The non-contact nature of Hall-based fuel sensors offers several advantages. Firstly, it eliminates the need for mechanical connections, reducing potential sources of error and wear over time. Secondly, Hall-based sensors are compatible with asymmetric fuel tank shapes, making them versatile for different vehicle designs. Additionally, they are known for their high reliability and accuracy, with a significantly lower relative error compared to floating fuel sensors.
While Hall-based fuel sensors offer improved accuracy and versatility, they also have some limitations. One of the main drawbacks is their higher cost compared to other types of sensors. Additionally, they have limited compatibility with most fuel types, making them more suitable for specific applications, such as industrial fuel systems where compatibility with corrosive fuels is required. Despite these limitations, Hall-based fuel sensors play a crucial role in enhancing vehicle and consignment safety, especially in commercial fleets where optimising operations and fuel efficiency is of utmost importance.
Connecting a Fuel Transfer Tank to Your Truck's Fuel Tank
You may want to see also
Frequently asked questions
A fuel sensor is a device that measures the level of fuel in a vehicle's tank.
There are various types of fuel sensors, each with a unique mechanism. Some common types are:
- Floating fuel sensor: A float is connected to a potentiometer or a variable resistor that moves as the fuel level changes, resulting in a change in voltage.
- Ultrasonic fuel sensor: This sensor uses ultrasonic beams to measure the fuel level.
- Capacitive fuel sensor: This sensor uses two tubes that do not make physical contact. The tubes are electrified and inserted into the vehicle's tank. As the fuel fills the space between the tubes, the electrical capacitance changes, and the sensor measures the height of the fuel column.
Fuel sensors provide accurate, real-time measurements of fuel levels, helping to optimise operations and reduce costs in commercial vehicles. They can also detect evaporative leaks and loose or faulty gas caps in the EVAP system, preventing fuel vapour leaks and maintaining engine performance.
The fuel sensor is typically installed inside the fuel tank of a vehicle. For example, in cars, it is often located on top of the fuel pump module, either mounted on top or inside the fuel tank.
The accuracy of fuel sensors varies depending on the type. Floating fuel sensors have a relative error ranging from 10-20%, while capacitive and ultrasonic fuel sensors used in fleet management systems have a lower relative error of 1-2%.
