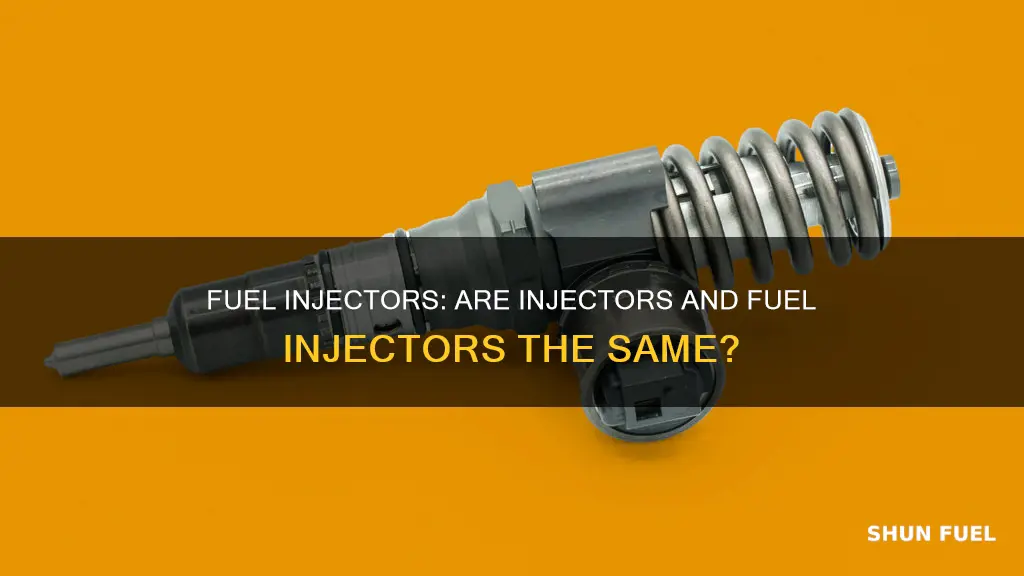

Fuel injectors are a critical component of fuel-injected engines, which have been installed in every new highway-legal car and light truck sold in the United States since the mid-1990s. A fuel injector is a device that atomizes and injects fuel into an internal combustion engine. The injector atomizes the fuel and forces it directly into the engine's combustion chamber, providing maximum power while minimising fuel consumption and reducing pollution. The injector is located in the combustion chamber, inlet manifold, or throttle body. Fuel injectors can be mechanical or electronic, and they help to ensure that fuel is delivered efficiently and effectively.
| Characteristics | Values |
|---|---|
| Definition | A fuel injector is a device for atomizing and injecting fuel into an internal combustion engine. |
| Function | The injector atomizes the fuel and forces it directly into the combustion chamber at the precise point in the combustion cycle. |
| Types | There are two main types of injector: mechanical and electronic. |
| Parts | A fuel injector comprises a solenoid, a nozzle, and an injector body. |
| Location | The fuel injector is usually located near the intake manifold. |
| Maintenance | Fuel injectors can last the life of a car but may need to be replaced as part of preventive maintenance. |
| Faults | Warning signs of a faulty fuel injector include engine misfires, reduced fuel efficiency, and fuel leaks. |
Explore related products
What You'll Learn
Injectors are a critical component of fuel-injected engines
The fuel injection process helps provide maximum power while minimising fuel consumption and reducing pollution. Fuel injectors help reduce emissions by producing a finer fuel droplet spray that burns more efficiently. The injector is a precision-machined device with an inlet and an outlet. The inlet draws fuel from the fuel tank, while the outlet sprays fuel into the combustion chamber. The injector body is responsible for converting the electrical signal from the solenoid into pressure to push the fuel through the nozzle.
The amount of fuel supplied to the engine is determined by the length of time the fuel injector stays open, known as the pulse width, which is controlled by the engine control unit (ECU). The ECU uses data from various sensors, such as the mass airflow sensor and oxygen sensor, to fine-tune fuel consumption and delivery, ensuring the correct air-to-fuel ratio. This closed-loop control was not feasible with carburetors, which is why fuel injectors gradually replaced them.
Fuel injectors play a crucial role in the overall performance of a vehicle. A malfunctioning injector can cause reduced fuel efficiency, engine misfires, and even engine breakdown. Therefore, regular maintenance and monitoring of the fuel injectors are essential to ensure optimal performance and prevent potential issues.
Fuel Injectors: 13B Mazda Rotary Engine's Power Secrets
You may want to see also
Explore related products
Injectors are controlled by the engine control unit
Injectors are electronically controlled valves that deliver atomized fuel into the engine's combustion chamber. They are an essential component of the vehicle's overall performance, ensuring maximum power, minimised fuel consumption, and reduced emissions. The injectors are connected to the fuel rail, which carries fuel from the tank to the injectors.
The engine control unit (ECU) plays a crucial role in managing the injectors' operations. The ECU is responsible for monitoring various input sensors, such as the mass airflow sensor, oxygen sensor, and throttle position sensor, to fine-tune fuel consumption and delivery. It adjusts the air-to-fuel ratio in real time, ensuring optimal engine performance and meeting stricter emissions requirements.
The ECU controls the timing and metering of the injectors, determining when and how much fuel is injected into the engine. This precision is achieved through electronic control of the injector's internal operations, allowing for accurate timing and fuel metering, improved injector control, and enhanced fuel economy. The ECU's ability to manage the injectors' timing and metering contributes to achieving maximum horsepower, minimised emissions, and efficient fuel consumption.
The ECU's role extends beyond the injectors, as it also controls ignition timing and various other engine functions. It is the "brain" of the engine, ensuring all electronic components work harmoniously. The ECU's capability to process sensor data and adjust fuel injection accordingly enables a more responsive and efficient engine, enhancing the overall driving experience and meeting modern demands for improved power, quieter operations, and cleaner emissions.
In summary, injectors are indeed controlled by the engine control unit (ECU). The ECU manages the timing and metering of the injectors, ensuring the precise delivery of fuel into the engine's combustion chamber. By monitoring sensors and adjusting the air-to-fuel ratio, the ECU optimises engine performance, fuel efficiency, and emissions reduction. The ECU's control over the injectors is a key factor in achieving the desired balance of power, fuel economy, and environmental considerations in modern vehicles.
Fuel Injector O-Rings: Installing New Rings in Audi A4s
You may want to see also
Explore related products
Injectors are connected to the fuel rail
Injectors are an essential component of the fuel delivery system in modern internal combustion engines, particularly those equipped with fuel injection. The fuel injector is a device that introduces fuel into an internal combustion engine. All compression-ignition engines (e.g. diesel engines) and many spark-ignition engines (i.e. petrol engines) use fuel injection.
The injectors are connected to the fuel rail, which is a metal pipe or rail that delivers pressurised fuel to the injectors. The fuel rail receives fuel from the fuel pump and maintains the required pressure to ensure proper fuel delivery to the injectors. The fuel rail is typically located on top of the engine or along the intake manifold. It is important that the fuel has the necessary pressure at the start of the injection and that there are minimal pressure fluctuations between individual injections. The pressure in the fuel rail is adjusted as necessary by a high-pressure pump.
The injectors are connected to the fuel rail via injector ports or fittings, which allow fuel to flow from the rail into the injectors. The fuel rail also includes a connection point for a fuel return line in some fuel injection systems, such as return-style fuel systems. This line allows excess fuel not used by the engine to be returned to the fuel tank, helping to maintain consistent fuel pressure and prevent fuel overheating.
The fuel injectors, connected to the fuel rail, carry fuel from the fuel tank to the injectors. The fuel injectors read data from sensors to determine how much fuel needs to be injected into the engine. The amount of fuel supplied to the engine is determined by the amount of time the fuel injector stays open, which is called the pulse width and is controlled by the engine control unit (ECU).
Fuel Injector Maintenance: Signs of a Clogged System
You may want to see also
Explore related products
Injectors can be mechanical or electronic
Injectors are devices that introduce fuel into an internal combustion engine. They are an essential component of fuel injection systems, which are used in most modern engines, including diesel and petrol engines. Injectors can be mechanical or electronic, with each type offering its own advantages and applications.
Mechanical fuel injection (MFI) is a system that relies on physical linkages to control the fuel supply to the engine. It was developed in the early days of automotive racing and is still used today in various racing formats such as drag racing, circle track racing, and top-speed events. MFI can handle a wide range of fuels, including gas, ethanol blends, methanol, and nitro blends. The system uses a mechanical linkage to connect the butterflies to the barrel valve, allowing more air into the engine when the butterflies are opened, which in turn opens the barrel valve and provides more fuel. Additional components, such as an idle control circuit and multiple nozzles, can be added to modulate the air-fuel mixture and improve performance.
On the other hand, electronic fuel injection (EFI) uses electronic controls to modulate the duty cycle of fuel injection based on factors like throttle position. It provides more accurate fuel metering, quicker response, and improved control over the air-fuel mixture. EFI systems employ an electronic engine control unit (ECU) that utilizes input from various sensors to fine-tune fuel consumption and delivery, ensuring the correct air-fuel ratio. This closed-loop control system allows for stricter emissions requirements to be met, which was not feasible with purely mechanical systems.
The electronically controlled unit injector (EUI), also known as a mechanical-electronic unit injector (MEUI), combines aspects of both mechanical and electronic systems. It utilizes a camshaft-driven delivery of pressurized fuel, while the timing of its internal operations is controlled by the engine control unit. This combination allows for benefits such as increased horsepower, reduced emissions, and improved fuel economy.
In summary, injectors can be mechanical, electronic, or a combination of both, with each type offering distinct advantages and applications. Mechanical systems are known for their simplicity and versatility in handling various fuels, while electronic systems provide more precise control over fuel delivery, resulting in improved performance and reduced emissions.
Removing Fuel Injector in Miata NB: Step-by-Step Guide
You may want to see also
Explore related products
Injectors may need to be replaced if they are leaking or malfunctioning
Fuel injectors are electronically controlled valves that spray pressurised fuel into the engine's combustion chamber. They are responsible for delivering fuel to the engine, a process known as fuel injection.
Over time, fuel injectors may need to be replaced if they are leaking or malfunctioning. A leaking injector will cause the rail to lose pressure while the vehicle is stationary, resulting in a longer crank time. This is because the rail will need more time to build up the necessary pressure.
There are several other warning signs that indicate a fuel injector needs to be replaced. A faulty injector can cause the engine to stall or fail to start. It can also lead to reduced fuel efficiency, with the car consuming more fuel than usual. Additionally, a malfunctioning injector can cause engine misfires and a strong fuel smell from the exhaust.
If you suspect that your fuel injector is not functioning properly, there are a few diagnostic tests that can be performed. One way to check for leaks or malfunctions is to use an ohmmeter or a scan tool that can disable injectors for isolation. Another effective method is to measure the pressure loss in the fuel rail when each injector is energised for a set period. This can be done using an electronic injector pulse tester.
Cleaning LS Fuel Injectors: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A fuel injector is a device that atomizes and injects fuel into an internal combustion engine. The injector atomizes the fuel and forces it directly into the combustion chamber at the precise point in the combustion cycle.
Fuel injectors are electronically controlled valves. They are supplied with pressurised fuel by the fuel pump in your car and are capable of opening and closing many times per second. When the injector is energised, an electromagnet moves a plunger that opens the valve, allowing the pressurised fuel to squirt out through a tiny nozzle. The nozzle is designed to atomise the fuel, creating a fine mist that can burn easily.
There are two main types of fuel injectors: mechanical and electronic. Mechanical fuel injectors control the fuel speed, quantity, timing, and pressure mechanically with the use of springs and plungers. Electronic fuel injectors are controlled electronically when it comes to fuel quantity, pressure, and timing.
There are several warning signs that indicate a fuel injector needs to be replaced, such as engine misfires, reduced fuel efficiency, and fuel leaks. A malfunctioning fuel injector may also produce a loud knocking or rattling sound from the engine, and the vehicle may struggle to start or stall.
