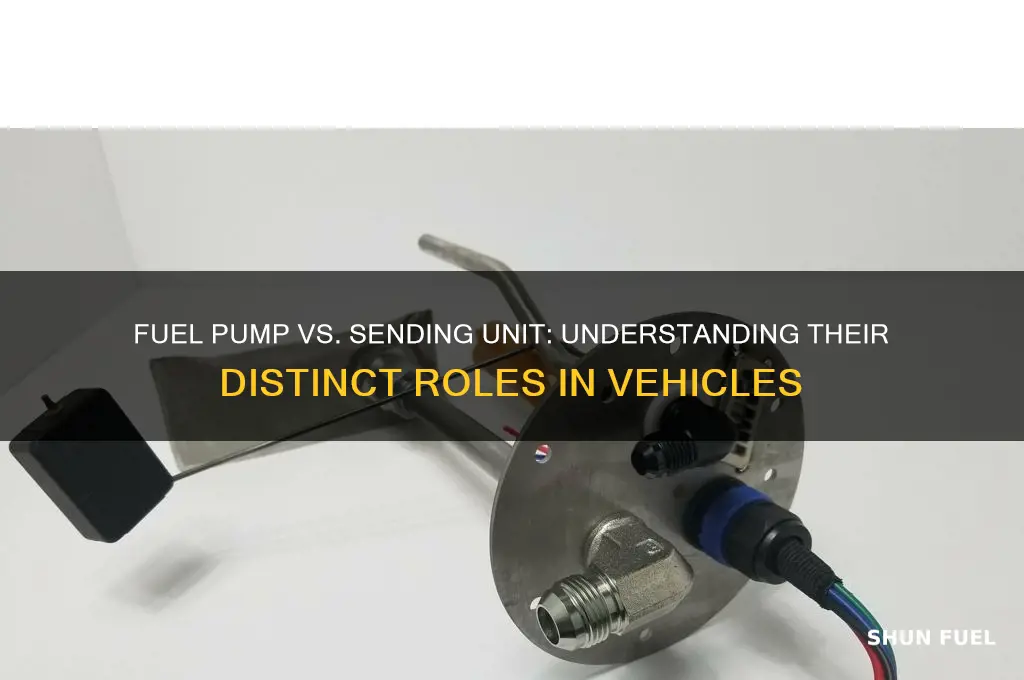

The terms fuel pump and fuel sending unit are often mentioned in discussions about a vehicle's fuel system, but they serve distinct functions. A fuel pump is responsible for delivering fuel from the tank to the engine, ensuring the engine receives the necessary fuel for combustion. On the other hand, a fuel sending unit is a component that measures the amount of fuel in the tank and relays this information to the fuel gauge on the dashboard, allowing the driver to monitor fuel levels. While both are crucial for the proper operation of a vehicle's fuel system, they are not the same and perform different roles in maintaining efficient fuel management.
| Characteristics | Values |
|---|---|
| Function | Fuel Pump: Delivers fuel from the tank to the engine. |
| Fuel Sending Unit: Measures and reports the fuel level to the gauge. | |
| Location | Fuel Pump: Typically inside the fuel tank (in-tank) or near the engine. |
| Fuel Sending Unit: Usually integrated with the fuel pump inside the tank. | |
| Components | Fuel Pump: Electric motor, impeller, and fuel lines. |
| Fuel Sending Unit: Float, arm, resistor, and electrical contacts. | |
| Purpose | Fuel Pump: Ensures consistent fuel supply for combustion. |
| Fuel Sending Unit: Provides accurate fuel level readings to the driver. | |
| Failure Symptoms | Fuel Pump: Engine stalling, difficulty starting, or no fuel delivery. |
| Fuel Sending Unit: Incorrect fuel gauge readings or erratic behavior. | |
| Replacement | Fuel Pump: Often replaced as a standalone unit or with the sending unit. |
| Fuel Sending Unit: Can be replaced individually or with the fuel pump. | |
| Integration | Often combined in a single module (fuel pump and sending unit assembly). |
| Cost | Fuel Pump: Generally more expensive due to its mechanical complexity. |
| Fuel Sending Unit: Less expensive, as it’s primarily an electrical component. | |
| Maintenance | Fuel Pump: Requires periodic inspection for wear or clogging. |
| Fuel Sending Unit: Rarely needs maintenance unless the float or resistor fails. |
Explore related products
What You'll Learn
- Fuel Pump Functionality: Delivers fuel from tank to engine under pressure for combustion
- Fuel Sender Role: Measures and reports fuel level to the vehicle’s gauge
- Location Differences: Pump is in-tank or inline; sender is always in the tank
- Component Integration: Some units combine pump and sender in a single module
- Failure Symptoms: Pump failure causes no start; sender failure misreads fuel level
Fuel Pump Functionality: Delivers fuel from tank to engine under pressure for combustion
A fuel pump is a critical component in modern vehicles, tasked with delivering fuel from the tank to the engine under precise pressure to facilitate combustion. Unlike the fuel sending unit, which primarily measures and reports the fuel level to the dashboard gauge, the fuel pump’s role is purely mechanical and operational. It ensures a consistent flow of fuel, typically at pressures ranging from 30 to 80 psi, depending on the engine’s requirements. This pressurized delivery is essential for atomizing fuel in the combustion chamber, enabling efficient ignition and power generation. Without the fuel pump, the engine would starve for fuel, leading to stalling or failure to start.
The functionality of a fuel pump is rooted in its design and placement. In most vehicles, the pump is located inside the fuel tank, submerged in fuel to prevent overheating and ensure a steady supply. It operates via an electric motor that drives a turbine or impeller, creating suction to draw fuel from the tank and push it through the fuel lines. This in-tank design also helps maintain fuel pressure stability, reducing the risk of vapor lock—a condition where fuel vaporizes in the lines, disrupting flow. Understanding this mechanism highlights why the fuel pump is distinct from the sending unit, which serves a purely informational purpose.
To diagnose fuel pump issues, listen for symptoms like sputtering, loss of power, or difficulty starting, especially under load. A failing pump may deliver insufficient pressure, causing poor engine performance. Testing involves checking fuel pressure with a gauge at the fuel rail; if pressure falls below the manufacturer’s specifications (e.g., 55 psi for a typical EFI system), the pump may need replacement. Regular maintenance, such as replacing the fuel filter every 30,000 miles, can extend the pump’s lifespan by preventing clogs and contamination. Always consult the vehicle’s manual for specific pressure values and service intervals.
While the fuel pump and sending unit are both housed in the fuel tank, their functions are entirely separate. The sending unit’s sole purpose is to relay fuel level data to the driver, whereas the pump’s role is to ensure fuel reaches the engine in a usable form. This distinction is crucial for troubleshooting: a faulty sending unit will result in an inaccurate fuel gauge, but a failing pump will directly affect drivability. For DIY enthusiasts, understanding this difference can save time and prevent misdiagnosis, ensuring the correct component is addressed when issues arise.
In summary, the fuel pump’s functionality is indispensable for vehicle operation, delivering fuel under pressure to support combustion. Its mechanical role contrasts sharply with the fuel sending unit’s informational function, making them distinct yet complementary components. By recognizing their unique purposes and symptoms of failure, drivers can maintain their vehicles more effectively, ensuring reliability and performance on the road.
Removing Fuel Pump Through Bed of 2004 Silverado: Step-by-Step Guide
You may want to see also
Explore related products
Fuel Sender Role: Measures and reports fuel level to the vehicle’s gauge
The fuel sender unit, often overshadowed by its counterpart, the fuel pump, plays a pivotal role in ensuring drivers are aware of their vehicle's fuel status. This component is the unsung hero that bridges the gap between the fuel tank and the dashboard gauge, providing real-time data on fuel levels. Its primary function is to measure the amount of fuel in the tank and communicate this information to the vehicle's fuel gauge, allowing drivers to monitor their fuel consumption and plan refuels accordingly.
Understanding the Mechanism
At its core, the fuel sender unit consists of a float connected to a variable resistor. As the fuel level changes, the float moves up or down, altering the resistance in the circuit. This change in resistance is translated into a signal that the fuel gauge interprets, displaying the corresponding fuel level to the driver. For instance, when the tank is full, the float is at its highest point, sending a signal that maximizes the gauge reading. Conversely, an empty tank positions the float at its lowest, indicating minimal resistance and a near-empty gauge.
Practical Implications and Maintenance
A malfunctioning fuel sender unit can lead to inaccurate fuel readings, which may result in unexpected fuel depletion or overfilling. Regular maintenance, such as checking for corrosion or damage, is crucial. For vehicles older than 10 years, it’s advisable to inspect the sender unit during routine service intervals. If the gauge fluctuates erratically or remains static despite fuel additions, it’s a telltale sign of a faulty sender unit. Replacing this component typically costs between $200 and $500, depending on the vehicle make and labor rates.
Comparative Analysis with the Fuel Pump
While the fuel pump is responsible for delivering fuel from the tank to the engine, the fuel sender unit focuses solely on measurement and reporting. Unlike the pump, which operates under high pressure and is critical for engine performance, the sender unit’s role is informational. However, both components are integral to the fuel system’s functionality. For example, a failing sender unit won’t prevent the car from running but can lead to misjudgments about fuel needs, whereas a faulty pump will cause immediate drivability issues.
Enhancing Driver Awareness
The fuel sender unit’s accuracy is essential for modern vehicles equipped with advanced driver-assistance systems (ADAS) or range estimators. These systems rely on precise fuel level data to provide accurate predictions. For electric vehicles (EVs), while the concept of a fuel sender unit doesn’t apply, similar sensors measure battery levels, highlighting the universal need for such monitoring mechanisms. Drivers can maximize the sender unit’s lifespan by avoiding frequent low fuel levels, as this reduces the risk of debris accumulation that can interfere with float movement.
In summary, the fuel sender unit’s role is distinct yet complementary to the fuel pump’s function. By accurately measuring and reporting fuel levels, it empowers drivers with critical information, ensuring safer and more efficient journeys.
Fixing a Defective Fuel Pump: Step-by-Step Repair Guide
You may want to see also
Explore related products
Location Differences: Pump is in-tank or inline; sender is always in the tank
The fuel pump and fuel sending unit, though often discussed together, occupy distinct locations within a vehicle's fuel system. The fuel pump, responsible for delivering fuel from the tank to the engine, can be either in-tank or inline. In-tank pumps, as the name suggests, are submerged in the fuel tank, offering advantages like better cooling and reduced noise. Inline pumps, on the other hand, are mounted outside the tank, typically along the fuel line, and are common in older vehicles or specific designs. This placement variation directly impacts accessibility for maintenance and the overall efficiency of the fuel delivery system.
Contrastingly, the fuel sending unit, which measures and reports the fuel level to the gauge, is always located inside the fuel tank. This consistent placement is essential for accurate readings, as the sender relies on direct contact with the fuel surface to function. Unlike the pump, the sender’s position is non-negotiable, making it a critical component integrated into the tank’s structure. This fixed location also means that issues with the sender often require tank removal or specialized tools for repair, adding complexity to diagnostics and maintenance.
Understanding these location differences is crucial for troubleshooting and repairs. For instance, if the fuel gauge reads inaccurately, the sender’s in-tank position immediately narrows the focus to internal tank issues. Conversely, a loss of fuel pressure could stem from either an in-tank or inline pump, depending on the vehicle’s design. Mechanics and DIY enthusiasts alike must consider these placement specifics to avoid misdiagnosis and unnecessary part replacements.
From a design perspective, the in-tank fuel pump’s proximity to the sender often integrates both components into a single module, streamlining installation and reducing potential failure points. However, this integration can also complicate repairs, as replacing one component may require servicing the entire assembly. Inline pumps, while easier to access, lack this integration, making them simpler to replace but potentially less efficient due to their external location.
In practical terms, vehicle owners should familiarize themselves with their fuel system’s layout. For example, in-tank pumps in modern vehicles often last 100,000 miles or more but require tank removal for replacement, a labor-intensive process. Inline pumps, though easier to access, may wear out sooner due to exposure to heat and vibration. Knowing whether your vehicle has an in-tank or inline pump can save time and money when addressing fuel delivery issues. Similarly, recognizing the sender’s fixed in-tank location helps in pinpointing gauge-related problems without unnecessary guesswork.
Who Buys Used Landcruiser Fuel Pumps? A Comprehensive Guide
You may want to see also
Explore related products
Component Integration: Some units combine pump and sender in a single module
In modern vehicles, the integration of the fuel pump and fuel sender into a single module is a common engineering solution. This design combines the pump, which delivers fuel from the tank to the engine, with the sender, which measures the fuel level. By merging these components, manufacturers streamline installation, reduce the risk of leaks, and simplify maintenance. This integrated unit typically mounts directly inside the fuel tank, minimizing external connections and potential failure points.
Consider the practical benefits of this integration. For mechanics, replacing a single module is faster and less labor-intensive than servicing separate pump and sender units. For vehicle owners, this means lower repair costs and reduced downtime. Additionally, the compact design saves space within the fuel tank, allowing for more efficient use of the vehicle’s underbody area. However, it’s crucial to note that if the module fails, both functions are compromised, necessitating a complete replacement rather than a partial repair.
From a comparative standpoint, integrated units often outperform their standalone counterparts in terms of reliability. Since the pump and sender share a sealed housing, they are less susceptible to contamination or damage from external factors like debris or moisture. For instance, in vehicles operating in harsh conditions—such as off-road trucks or fleet vehicles—this integration ensures consistent performance. Yet, the trade-off lies in cost: integrated modules are generally more expensive to replace than individual components, though the long-term savings in labor and potential issues often justify the investment.
When diagnosing issues with an integrated fuel pump and sender module, start by checking the fuel gauge and engine performance. If the gauge reads inaccurately or the engine stalls, the module may be faulty. Use a multimeter to test the sender’s resistance range—typically 0 to 90 ohms for a full to empty tank—and verify pump operation by listening for the whirring sound during ignition. If both components fail the test, replacement is the recommended course of action. Always consult the vehicle’s manual for specific diagnostic procedures and safety precautions, such as relieving fuel system pressure before removal.
In summary, the integration of the fuel pump and sender into a single module offers significant advantages in efficiency, reliability, and ease of maintenance. While the upfront cost of replacement may be higher, the long-term benefits in performance and reduced labor make it a worthwhile design choice. Understanding this integration not only aids in troubleshooting but also highlights the evolution of automotive engineering toward more streamlined and durable systems.
Does Gas Cool the Fuel Pump? Unraveling the Myth and Facts
You may want to see also
Explore related products
Failure Symptoms: Pump failure causes no start; sender failure misreads fuel level
A vehicle's fuel system is a delicate balance of components, each with a distinct role. While the fuel pump and fuel sending unit are both integral to this system, their functions and failure symptoms differ significantly. Understanding these differences is crucial for diagnosing issues and ensuring your vehicle runs smoothly.
Identifying the Culprit: No Start Scenario
When your car refuses to start, the fuel pump is often the prime suspect. This component is responsible for delivering fuel from the tank to the engine. If the pump fails, the engine is starved of fuel, resulting in a no-start condition. Common signs of pump failure include a whining noise from the fuel tank area, engine sputtering, or a complete lack of response when turning the ignition. In such cases, a fuel pressure test can confirm the pump's inability to generate the required pressure, typically measured in PSI (pounds per square inch), which varies depending on the vehicle's make and model.
The Sender's Silent Misdirection
In contrast, a failing fuel sending unit doesn't prevent the car from starting but leads to a different set of problems. This component's primary role is to measure the fuel level in the tank and relay this information to the fuel gauge on your dashboard. When it malfunctions, the gauge may display an inaccurate fuel level, leaving you unaware of the actual amount of fuel remaining. For instance, you might believe you have a quarter tank of fuel when, in reality, you're running on fumes. This misreading can be intermittent or consistent, making it a subtle yet potentially dangerous issue.
Diagnosis and Resolution
Diagnosing these issues requires a systematic approach. For pump failure, a simple test is to listen for the pump's hum when turning the ignition to the 'on' position. If it's inaudible, the pump might be at fault. For sending unit issues, cross-referencing the gauge reading with the actual fuel level by manually checking the tank is a practical method. Modern vehicles often have diagnostic trouble codes (DTCs) that can be read using an OBD-II scanner, providing specific insights into fuel system malfunctions.
Prevention and Maintenance
Regular maintenance can help prevent these failures. Fuel pumps typically last around 100,000 miles, but this varies based on driving conditions and fuel quality. Using high-quality fuel and ensuring the fuel tank is not regularly run close to empty can extend the pump's life. For sending units, keeping the fuel tank clean and free of debris is essential, as contamination can lead to inaccurate readings.
In summary, while both components are vital, their failures manifest differently. Pump failure is immediate and noticeable, while sender failure is more subtle, impacting your awareness of fuel levels. Recognizing these symptoms promptly can save you from unexpected breakdowns and ensure your vehicle's reliability.
Does Seafoam Really Improve Fuel Pump Performance? A Detailed Analysis
You may want to see also
Frequently asked questions
No, they are not the same. A fuel pump is responsible for delivering fuel from the tank to the engine, while a fuel sending unit measures the amount of fuel in the tank and sends this information to the fuel gauge.
Yes, a fuel pump can function independently of a fuel sending unit. However, without a working sending unit, the fuel gauge will not accurately display the fuel level in the tank.
Often, they are located together inside the fuel tank. The fuel pump draws fuel from the tank, and the sending unit is attached to the same assembly to measure the fuel level.
No, a faulty fuel sending unit typically does not cause the fuel pump to fail. However, both components are part of the fuel system, and issues with one may indicate a need to inspect the other for potential problems.
