A fuel injector is a device that supplies fuel to an engine. A relay is a device that receives and passes on an electric current to a car component, such as a fuel pump or fuel injector. A fuel pump relay is a necessary component for a combustion engine to function, as it ensures the engine gets the fuel it needs to run. Therefore, a fuel injector is not a type of relay, but a fuel pump relay may power a fuel injector.
| Characteristics | Values |
|---|---|
| Purpose | Fuel injectors are a type of injector that deliver fuel into an engine's cylinders. A relay is an electronic component that controls the flow of electricity to another component. |
| Function | Fuel injectors deliver fuel at a high pressure and in a fine spray. A relay receives and passes on voltage to another component. |
| Location | Fuel injectors are usually located near the engine's cylinders. A relay is typically found in the fuse box in the engine bay or near the steering column. |
| Impact of Removal | Removing a fuel injector will prevent the engine from running. Removing a relay will prevent the component it controls from functioning, which can cause issues with starting the vehicle. |
Explore related products
What You'll Learn
Fuel injectors are not powered by a relay
The fuel pump relay is necessary for the combustion engine to function, as it ensures that the engine receives fuel. It is typically found in the fuse box in the engine bay, which is often a long black box containing various fuses and relays. However, its location can vary depending on the car model.
While the fuel pump relay is crucial for the fuel pump's operation, it is not directly responsible for powering the fuel injectors. The fuel injection relay powers up the majority of the car, including the fuel pump and other essential systems. It carries a heavier current to protect internal PCM circuits and reduce the load on components like the ignition switch.
In contrast, fuel injectors are powered by a different source. In some cases, they may be powered by a mechanical pump, as seen in the example of a Lexus RX350 with direct and port injection. The mechanical pump pulls enough fuel through the low-pressure pump to maintain idling. However, this setup may not provide sufficient power for driving conditions.
It is important to note that issues with the fuel pump relay can cause the fuel pump to malfunction, leading to startup problems and engine stalls. Therefore, while fuel injectors are not directly powered by the fuel injection relay, they can be indirectly affected by its performance.
Recycling Auto Fuel Injectors: What You Need to Know
You may want to see also
Explore related products
A fuel pump relay is an electronic component
The fuel pump relay is usually controlled by the ignition or the power control module. When the ignition is turned on, the relay receives a signal from the ignition system, which triggers its activation. This allows electrical power to flow to the fuel pump, which then pressurizes the fuel system in preparation for combustion. The fuel pump relay can also be activated for a few seconds when the ignition is turned on, allowing the fuel system to build pressure before starting the engine. Once the engine is running, the relay stays closed to keep the pump flowing and the fuel pump relay shuts off.
The fuel pump relay is a necessary component for the combustion engine model to function. It is an affordable replacement, and its use can save vehicle owners from costly repairs associated with damaged fuel pumps due to relay failure. Modern electronic relays can adapt to various driving conditions by adjusting power delivery based on real-time data from the ECM. This adaptability contributes to optimal engine performance across different scenarios.

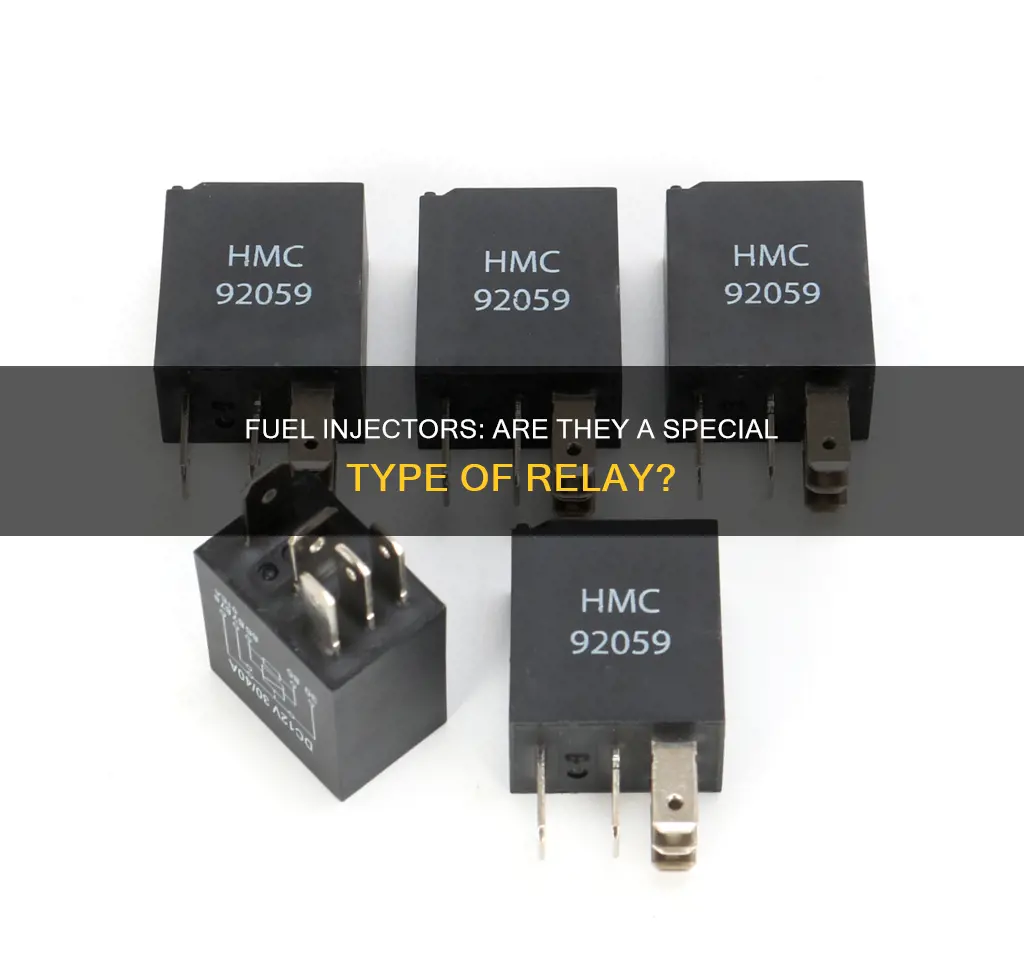

The fuel pump relay is typically a small, rectangular, square-shaped component with multiple electronic connection pins or terminals. In modern vehicles, the fuel pump relay uses semiconductor devices to control the electrical flow. They are more efficient, durable, and responsive than mechanical relays. However, in older vehicles, mechanical fuel pump relays are used, which rely on physical mechanisms to control the electrical flow.
Understanding the Fuel Injector Function in a 1998 Silverado 3500
You may want to see also
Explore related products
The relay passes voltage to the fuel pump
A fuel injector is not the same as a fuel pump relay. A fuel pump relay is an electrical switch that controls the flow of power to the fuel pump. It is an electromagnetic switch that uses a low current to control a higher current circuit.
The fuel pump relay is a crucial component in the ignition process and overall engine functionality. When the ignition key is turned, the relay receives a signal from the ignition system, which triggers its activation. This allows electrical power to flow to the fuel pump, which then pressurizes the fuel system in preparation for combustion.
The fuel pump relay is activated long enough to supply the current required to turn on the fuel pump. The key is to produce a small amount of voltage but consistently to the fuel pump. Once the engine is running, the fuel pump relay shuts off, and the electricity for the fuel pump is supplied by the oil pressure-sending unit.
A faulty fuel pump relay can cause several issues, including an engine that suddenly stalls or refuses to start. A failing fuel pump relay can also cause a sudden loss of power while driving or slowing down. In some cases, the vehicle may continue to run normally for some time, but an inspection and repair are highly recommended to prevent being stranded due to a sudden halt.
To test a fuel pump relay, a multimeter can be used to measure voltage and resistance. The relay should be located in the power distribution box, and any signs of damage, such as burnt pins or cracks, should be inspected. A good relay should show a resistance between 60 to 80 ohms; readings significantly higher or lower may indicate a faulty relay.
Fuel Injector Cleaner: Is It Safe for a Prius?
You may want to see also
Explore related products
A faulty relay can cause engine stalling
A fuel injector is not the same as a relay, but a faulty relay can cause issues with the fuel pump and ignition system, which in turn can cause engine stalling.
A relay is used to carry a heavier current without resorting to excessive heavy wiring. It is a small but important electrical component in a vehicle. A fuel injection relay is used to protect internal PCM circuits. It splits the big loads (like injectors, fuel pumps and PCM power) off of the PCM itself.
A faulty relay can cause the vehicle to stall while operating. If the relay shorts, burns out, or fails, it will cut off power to the fuel pump and ignition system, causing the vehicle to stall due to fuel and spark being cut off. This can also cause the vehicle to not start.
A failing fuel pump relay can cause the engine to suddenly stall. While the vehicle is running, the fuel pump relay suddenly cuts off power to the fuel pump, causing the engine to stall.
A faulty ignition relay can also cause the engine to stall. If the relay has an internal short, it may keep power fed to the ignition and fuel system, even when the ignition cylinder is in another position, or the key is removed. This will cause the fuel pump and ignition components to remain powered on, drawing current, and eventually draining the battery.
Fuel Injector Cleaning: How Much Solution Is Needed?
You may want to see also
Explore related products
Removing the fuel pump relay prevents theft
A fuel injector is not the same as a fuel pump relay. A fuel pump relay is an electronic component found on all vehicles with an internal combustion engine. It supplies a consistent voltage to the fuel pump when the ignition is turned on.
Removing the fuel pump relay can be an effective way to prevent theft, as it will make it impossible to start the car. However, there are a few drawbacks to this method. Firstly, you will need to remove and replace the relay every time you park and want to start your car, respectively. Secondly, doing so prevents the EVAP system from operating correctly while the car is parked.
If you are looking for an anti-theft method that does not involve removing the relay every time, consider installing a hidden fuel pump kill switch. This will prevent the car from starting and can be easily accessed. Ensure that you use the appropriate wire gauge and a quality switch.
Another option is to interrupt the starter solenoid wire, creating a "no crank" situation. However, it is important to note that there are other ways in which thieves can still steal your car even without a fuel pump relay. For example, they can use a repeater to bridge the gap between your key and car, allowing it to be started from a few hundred feet away. They can also connect two wires to the vehicle network to inject the "unlock" and "ok to start" messages.
It is recommended to test removing the fuel pump relay at home first, as there is a possibility that your car may throw some errors due to electrical interruption of the fuel system.
Fuel Injectors: 6-Cylinder Engines and Their Unique Needs
You may want to see also
Frequently asked questions
A fuel injector is a device that delivers fuel to an engine's combustion chamber.
A relay is a device that receives and passes on an electric current.
No, a fuel injector is not a type of relay. A fuel injector delivers fuel, while a relay delivers an electric current.
A fuel injection relay is an electronic component found on vehicles with internal combustion engines. It supplies power to the fuel pump when the ignition is turned on.
Yes, you can remove the fuel pump relay. However, doing so may not be effective as a theft deterrent because the vehicle will continue to run as long as there is fuel in the lines.
