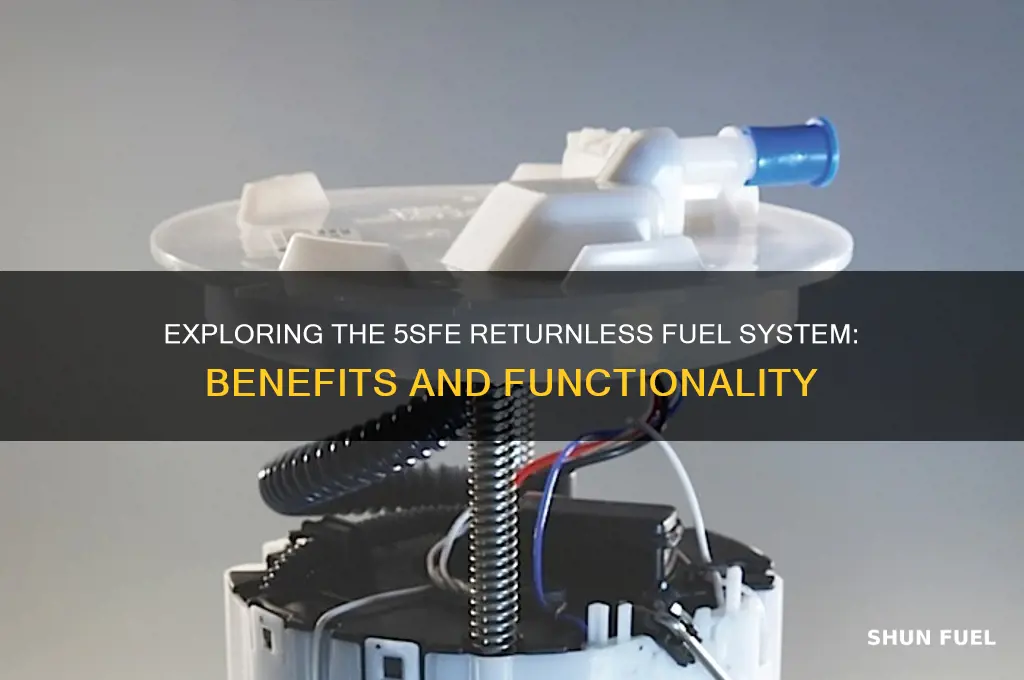

The 5SFE returnless fuel system is a notable innovation in automotive fuel delivery technology, designed to optimize efficiency and reduce emissions in vehicles equipped with the 5SFE engine. Unlike traditional fuel systems that return excess fuel to the tank, this returnless design ensures that fuel is delivered directly from the tank to the engine without recirculation, minimizing fuel pressure fluctuations and improving overall performance. This system is particularly associated with Toyota’s 5SFE engine, a 2.2-liter inline-four cylinder engine commonly found in models like the Camry and RAV4. By eliminating the return line, the system reduces fuel vaporization, enhances cold-start capabilities, and contributes to better fuel economy, making it a significant advancement in modern engine technology.
| Characteristics | Values |
|---|---|
| Engine Compatibility | Toyota 5S-FE engine |
| Fuel System Type | Returnless |
| Fuel Pressure Regulator | Located near the fuel injectors |
| Fuel Pump | In-tank, electric |
| Fuel Pressure | Typically around 40-60 PSI (varies depending on application) |
| Fuel Injectors | High-impedance, flow rate varies depending on application |
| Fuel Rail | Single, with a pressure sensor |
| Fuel Filter | In-tank or inline, depending on the specific setup |
| Fuel Tank | Standard Toyota fuel tank with an in-tank pump |
| Advantages | Improved fuel efficiency, reduced emissions, more precise fuel delivery |
| Disadvantages | Can be more complex to diagnose and repair, may require specialized tools for maintenance |
| Common Applications | Toyota Camry (1997-2001), Toyota RAV4 (1996-2000), Toyota Sienna (1998-2003) |
| Note | The 5S-FE returnless fuel system is a specific design used in certain Toyota vehicles, and its characteristics may vary slightly depending on the year, make, and model of the vehicle. |
Explore related products
What You'll Learn
5SFE Returnless Fuel System Overview
The 5SFE returnless fuel system, a hallmark of Toyota's 3rd-generation 2.2L engine, eliminates the traditional fuel return line by precisely regulating pressure within the fuel rail. This design reduces fuel vaporization in the engine bay, lowering emissions and improving efficiency. Unlike conventional systems that return excess fuel to the tank, the 5SFE uses a high-pressure pump and a pressure regulator to maintain optimal fuel pressure, ensuring only the necessary amount reaches the injectors. This closed-loop system not only simplifies the fuel delivery mechanism but also enhances reliability by reducing potential leak points.
To diagnose issues in a 5SFE returnless fuel system, start by checking the fuel pressure regulator for leaks or clogs, as this component is critical to maintaining system integrity. A faulty regulator can cause erratic fuel pressure, leading to poor engine performance or stalling. Use a fuel pressure gauge to verify pressure levels against manufacturer specifications (typically 40–60 psi). Additionally, inspect the fuel pump for proper operation, as a weak pump can result in insufficient pressure, especially under load. Regularly replacing the fuel filter every 30,000 miles ensures debris doesn’t compromise the system’s efficiency.
One of the standout advantages of the 5SFE returnless fuel system is its contribution to reduced evaporative emissions. By minimizing fuel vapor release into the atmosphere, it aligns with stringent environmental regulations. This system also improves cold-start performance, as the fuel remains under constant pressure, ensuring immediate delivery to the injectors. However, its complexity can make troubleshooting more challenging compared to traditional systems. Mechanics should familiarize themselves with the unique diagnostic codes (e.g., P0171 for lean condition) associated with this system to pinpoint issues accurately.
For enthusiasts looking to modify a vehicle equipped with the 5SFE returnless fuel system, upgrading the fuel pump and regulator to handle higher flow rates is essential when increasing engine performance. Aftermarket high-pressure pumps rated for 60–80 psi can support turbo or supercharger installations. Pairing these upgrades with larger injectors ensures the system can meet the demands of a tuned engine. However, avoid bypassing the pressure regulator, as this can lead to excessive pressure, causing injector failure or fuel rail damage. Always consult a professional when modifying fuel systems to ensure safety and compliance.
In summary, the 5SFE returnless fuel system represents a forward-thinking approach to fuel delivery, balancing efficiency, emissions control, and reliability. Its design simplifies the fuel system while addressing modern environmental concerns. Whether maintaining, diagnosing, or modifying this system, understanding its unique characteristics is key to maximizing its potential. With proper care and informed upgrades, the 5SFE returnless fuel system can serve as a robust foundation for both stock and performance-oriented applications.
