Wiring a fuel gauge is a crucial task for anyone looking to maintain or upgrade their vehicle's fuel system, ensuring accurate readings of the fuel level in the tank. The process involves connecting the gauge to the fuel sender unit, which measures the fuel level and sends the information to the gauge via a wiring harness. Proper wiring requires understanding the gauge's electrical requirements, such as voltage and resistance, as well as identifying the correct wires for power, ground, and sender connections. Additionally, compatibility between the gauge and sender unit is essential to avoid inaccurate readings or damage to the components. Following a step-by-step guide and using the right tools can simplify the process, making it accessible even for those with basic automotive knowledge.
| Characteristics | Values |
|---|---|
| Gauge Type | Analog or Digital (ensure compatibility with sender unit) |
| Sender Unit Resistance Range | Typically 0-90 ohms (empty to full tank) |
| Power Source | 12V DC from vehicle battery or ignition switch |
| Ground Connection | Securely grounded to vehicle chassis |
| Wiring Colors | Varies by manufacturer; commonly red (power), black (ground), and gauge wire |
| Gauge Wire Connection | Connects sender unit to gauge (usually a single wire) |
| Resistor Requirements | May require a load resistor for LED or digital gauges |
| Compatibility | Ensure gauge and sender unit are compatible in ohm range and type |
| Installation Location | Dashboard or instrument cluster with proper mounting |
| Testing Procedure | Test gauge functionality before and after installation |
| Safety Precautions | Disconnect battery before wiring to avoid short circuits |
| Common Issues | Incorrect sender unit range, loose connections, or faulty gauge |
| Tools Required | Wire strippers, crimp connectors, multimeter, screwdriver |
| Wiring Diagram | Refer to vehicle-specific or gauge manufacturer's diagram |
| Tank Grounding | Ensure fuel tank is properly grounded to avoid inaccurate readings |
Explore related products
What You'll Learn
- Gather Tools and Materials: Wire strippers, crimpers, connectors, gauge sender, and wiring diagram
- Disconnect Battery: Ensure safety by disconnecting the battery before starting any wiring work
- Install Gauge Sender: Mount the sender unit in the fuel tank securely
- Connect Wiring Harness: Attach wires to the gauge, sender, and power source correctly
- Test Fuel Gauge: Verify accuracy by filling the tank and checking gauge readings
Gather Tools and Materials: Wire strippers, crimpers, connectors, gauge sender, and wiring diagram
Before diving into the wiring process, it's crucial to assemble the right tools and materials. This step is often overlooked, but it’s the foundation of a successful installation. Wire strippers are essential for removing insulation from wires without damaging the conductive core. Opt for a model with adjustable settings to accommodate different wire gauges, typically ranging from 10 to 22 AWG. Crimpers are equally vital for securing connectors to wires, ensuring a reliable electrical connection. Choose a ratcheting crimper for consistent pressure and a professional finish. Connectors, such as butt connectors or spade terminals, must match the wire gauge and the gauge sender’s requirements. Speaking of the gauge sender, verify its compatibility with your fuel tank and gauge, as mismatched components can lead to inaccurate readings. Lastly, a wiring diagram specific to your vehicle or gauge model is indispensable. It serves as a roadmap, preventing costly mistakes and ensuring safety.
Consider the analytical aspect: each tool and material serves a distinct purpose in the wiring process. Wire strippers and crimpers, for instance, are not interchangeable. Using the wrong tool can compromise the connection, leading to intermittent gauge function or failure. Similarly, the gauge sender’s resistance range must align with the gauge’s specifications, typically 0–90 ohms for full-empty readings. A wiring diagram acts as a safeguard, translating complex electrical systems into actionable steps. Without it, even experienced installers risk miswiring, which can drain the battery or damage components.
From a practical standpoint, here’s a step-by-step guide to gathering your materials. Start by checking your vehicle’s manual or the gauge manufacturer’s website for the wiring diagram. Purchase wire strippers with a cutting capacity of at least 12 AWG, as thicker wires may be present in older vehicles. For crimpers, ensure they include dies for insulated and non-insulated terminals. When selecting connectors, buy a variety pack to accommodate different wire sizes and connection types. Finally, test the gauge sender before installation by measuring its resistance with a multimeter; it should correspond to the tank’s empty and full levels.
A persuasive argument for investing in quality tools is their long-term value. While budget options may seem appealing, they often lack durability and precision. For example, a high-quality wire stripper with self-adjusting mechanisms reduces the risk of nicking wires, a common cause of shorts. Similarly, a ratcheting crimper ensures uniform pressure, minimizing the chance of loose connections. These tools not only streamline the current project but also prove invaluable for future electrical tasks, making them a wise investment for DIY enthusiasts and professionals alike.
In conclusion, gathering the right tools and materials is a critical yet often underestimated phase of wiring a fuel gauge. Each item—wire strippers, crimpers, connectors, gauge sender, and wiring diagram—plays a unique role in ensuring accuracy, safety, and longevity. By prioritizing quality and compatibility, you set the stage for a seamless installation and reliable performance. Treat this step as the backbone of your project, and the rest will fall into place.
Are Fuel Cells Efficient? Exploring Energy Output and Environmental Impact
You may want to see also
Explore related products
Disconnect Battery: Ensure safety by disconnecting the battery before starting any wiring work
Before touching any electrical component in your vehicle, disconnecting the battery is a critical safety measure. This simple step prevents accidental short circuits, which can lead to sparks, fires, or damage to sensitive electronic systems. Modern vehicles are equipped with complex wiring networks, and even a small mistake can have costly consequences. By removing the negative terminal of the battery, you effectively break the circuit, ensuring no power flows through the system while you work.
The process of disconnecting the battery is straightforward but requires attention to detail. Start by locating the battery, typically found under the hood or in the trunk, depending on your vehicle’s make and model. Use a wrench or socket to loosen the nut on the negative terminal (marked with a "-" symbol). Once loosened, carefully pull the cable away from the terminal, ensuring it doesn’t come into contact with any metal surfaces. For added safety, wrap the disconnected cable in electrical tape or secure it away from the battery to prevent accidental reconnection.
While this step may seem minor, its importance cannot be overstated. Electrical systems in vehicles operate at high voltages, and even a brief short circuit can cause irreversible damage. For instance, a spark near fuel lines or the fuel tank could lead to a catastrophic fire. Additionally, many modern vehicles have computer-controlled systems that are sensitive to power fluctuations. Disconnecting the battery protects these components from voltage spikes during wiring work, such as installing a fuel gauge.
A common misconception is that turning off the ignition eliminates the risk. However, residual charge can remain in the system, especially in vehicles with capacitors or backup power supplies. By physically disconnecting the battery, you eliminate this risk entirely. This practice is not only a safety precaution but also a standard procedure recommended by automotive professionals and outlined in most vehicle repair manuals.
In summary, disconnecting the battery is a non-negotiable step when wiring a fuel gauge or performing any electrical work on your vehicle. It takes less than a minute but provides invaluable protection against accidents and damage. Always prioritize safety by following this simple yet essential procedure, ensuring a smooth and risk-free installation process.
Does Jet Fuel Burn Steel? Debunking Myths and Scientific Facts
You may want to see also
Explore related products
Install Gauge Sender: Mount the sender unit in the fuel tank securely
Mounting the sender unit in the fuel tank is a critical step in wiring a fuel gauge, as it directly influences the accuracy and reliability of fuel level readings. The sender unit, typically a float mechanism connected to a variable resistor, must be securely installed to ensure it moves freely with the fuel level while maintaining a stable electrical connection. Begin by locating the sender unit’s mounting point on the fuel tank, often a threaded opening or a dedicated bracket. Ensure the tank is empty or nearly empty to avoid spills and simplify the process. Use a gasket or sealing compound to create a fuel-tight seal, preventing leaks that could compromise safety or damage the tank.
When installing the sender unit, consider the tank’s design and material. For metal tanks, a grounding strap may be necessary to ensure proper electrical continuity. For plastic tanks, verify compatibility with the sender unit’s materials to avoid corrosion or degradation over time. Tighten the sender unit securely but avoid over-tightening, as this can warp the tank’s mounting surface or damage the sender’s threads. Double-check the float’s movement by manually testing its range of motion to ensure it isn’t obstructed by tank features or debris.
A common mistake is neglecting to calibrate the sender unit’s resistance range to match the gauge. Most senders operate between 0 and 90 ohms, with 0 ohms indicating a full tank and 90 ohms indicating empty. Verify these values using a multimeter at both extremes of the float’s travel. If the sender’s resistance doesn’t align with the gauge’s specifications, adjust the float arm’s length or replace the sender to ensure accurate readings.
For added durability, apply a corrosion inhibitor to the sender unit’s electrical contacts, especially in harsh environments. If the tank is exposed to moisture or road salt, consider using dielectric grease to protect connections. Periodically inspect the sender unit during routine maintenance, checking for signs of wear, corrosion, or fuel leaks. Proper installation and maintenance of the sender unit not only ensure accurate fuel readings but also extend the life of the entire fuel gauge system.
Does Mileage Rate Cover Fuel Costs? Understanding Expense Inclusions
You may want to see also
Explore related products
Connect Wiring Harness: Attach wires to the gauge, sender, and power source correctly

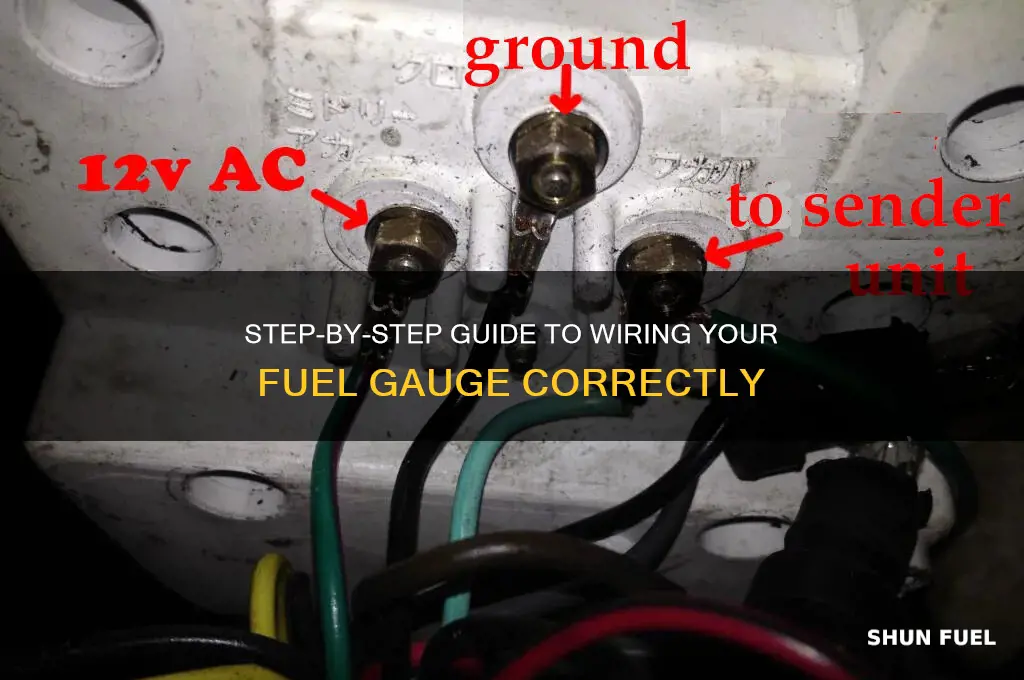

Wiring a fuel gauge correctly hinges on precise connections between the gauge, sender, and power source. Each component relies on the wiring harness to transmit accurate fuel level readings. Start by identifying the wires: typically, a power wire (often red), a ground wire (black), and a sender wire (variable color). The sender wire connects to the fuel sender unit, which measures the fuel level in the tank. The gauge wire links to the fuel gauge on the dashboard, displaying the reading. Ensure the power source wire is connected to a switched 12-volt supply, allowing the gauge to function only when the ignition is on.
Attaching the wires requires attention to polarity and compatibility. Use a multimeter to verify voltage at the power source before connecting. Strip the wire ends cleanly and securely attach them using crimp connectors or solder for a reliable connection. Insulate exposed wires with heat shrink tubing to prevent shorts. Double-check the sender unit’s resistance range, as it must match the gauge’s specifications for accurate readings. For example, a 240-ohm sender works with most standard gauges, but always consult the manufacturer’s manual for exact values.
A common mistake is reversing the sender and ground wires, leading to an inaccurate or non-functional gauge. To avoid this, label wires during disassembly or refer to a wiring diagram specific to your vehicle or gauge model. If working on an older vehicle, inspect the wiring harness for corrosion or damage, replacing it if necessary. Modern gauges often include LED displays or digital readouts, which may require additional wiring for illumination or data transmission.
Testing the connections is crucial before finalizing the installation. Turn the ignition on and observe the gauge’s response. If it reads full or empty regardless of the fuel level, recheck the sender wire connection. Fluctuating readings may indicate a faulty sender unit or poor ground connection. Address these issues immediately to ensure safety and reliability. Proper wiring not only ensures functionality but also prolongs the life of the gauge and sender unit.
In conclusion, connecting the wiring harness demands precision, compatibility, and thorough testing. By following these steps and adhering to manufacturer guidelines, you can achieve a reliable fuel gauge system. Remember, a well-wired gauge is more than a convenience—it’s a critical component for monitoring your vehicle’s fuel levels accurately.
Does FuelScoop Refill All Fuel Types? A Comprehensive Guide
You may want to see also
Explore related products
Test Fuel Gauge: Verify accuracy by filling the tank and checking gauge readings
Testing your fuel gauge's accuracy is a critical step in ensuring your vehicle’s reliability. Begin by filling the fuel tank to its maximum capacity, noting the exact volume added. Modern vehicles typically hold between 12 to 16 gallons, but consult your owner’s manual for precise specifications. Immediately after refueling, observe the gauge reading—it should indicate a full tank. If it doesn’t, this discrepancy signals a potential issue with the gauge, sender unit, or wiring.
Next, drive the vehicle until the tank is approximately half full, monitoring the gauge’s response. A properly functioning gauge will reflect this change accurately. For example, if you’ve consumed 6 gallons from a 12-gallon tank, the needle should rest at the halfway mark. Inconsistent readings, such as sudden drops or stalls, suggest calibration problems or a faulty sender unit.
To further validate accuracy, repeat the process at the quarter-tank mark. This stage is particularly important, as many gauges exhibit errors near empty. If the needle hovers above or below the expected position, the sender unit’s float arm or resistor may be worn. In older vehicles, this component often requires replacement after 100,000 miles, while newer models may last longer due to improved materials.
Practical tips include using a fuel log to track consumption and cross-referencing it with gauge readings. For instance, if you’ve driven 200 miles on a 30 mpg vehicle, you’ve used approximately 6.67 gallons. The gauge should align with this calculation. Additionally, avoid testing immediately after aggressive driving, as fuel slosh can temporarily skew readings.
In conclusion, systematic testing at full, half, and quarter-tank levels provides a comprehensive assessment of your fuel gauge’s accuracy. Discrepancies at any stage warrant inspection of the sender unit, wiring, or gauge itself. Regular verification not only prevents unexpected fuel depletion but also ensures your vehicle operates within safe parameters.
Understanding Instantaneous Fuel Economy: Real-Time Efficiency Explained Simply
You may want to see also
Frequently asked questions
The type of fuel gauge sender depends on your vehicle's fuel tank and gauge system. Most modern vehicles use a variable resistor sender, while older models may use a float and rheostat system. Always check your vehicle’s manual or consult a wiring diagram for compatibility.
Connect the sender’s ground wire to the vehicle’s chassis or a clean metal surface. The positive wire from the sender should be connected to the fuel gauge’s sender terminal, usually marked “S.” Ensure the gauge is grounded properly and the power source is connected to the “I” (ignition) terminal.
Inaccurate readings can result from a faulty sender unit, incorrect wiring, or a mismatched gauge and sender resistance range. Verify the sender’s resistance at full and empty tank levels matches the gauge’s specifications. Also, check for loose connections or damaged wires.
