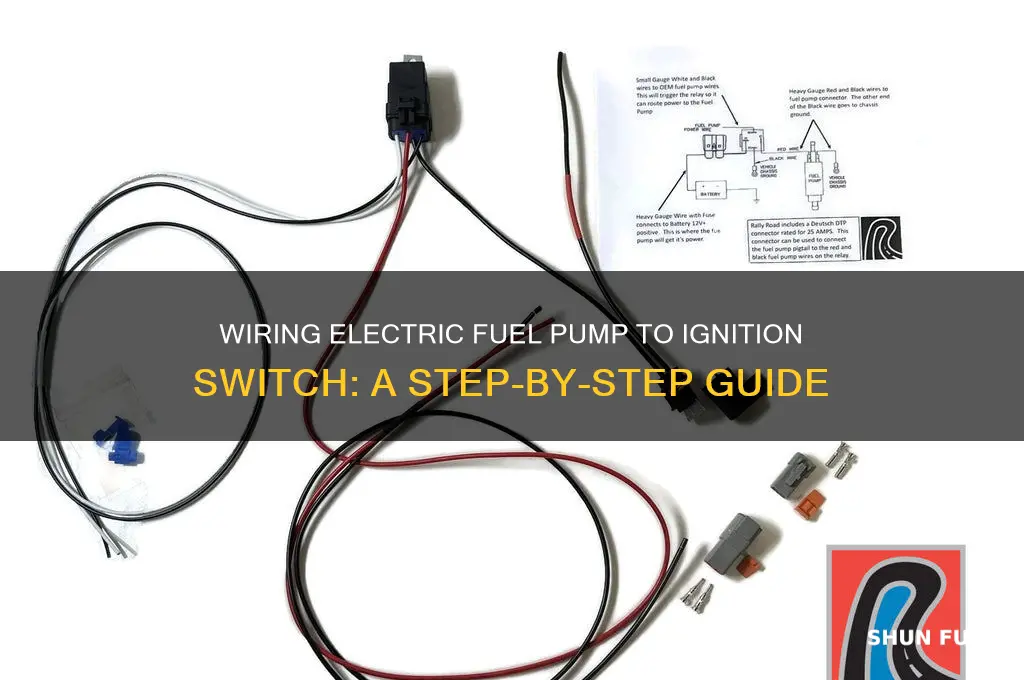

Wiring an electric fuel pump to an ignition switch is a critical task for ensuring your vehicle’s fuel system operates safely and efficiently. This process involves connecting the fuel pump’s power supply directly to the ignition switch, allowing the pump to activate only when the engine is running. Proper wiring not only prevents the pump from running continuously, which can drain the battery and overwork the pump, but also ensures fuel is delivered to the engine only when needed. The steps typically include identifying the correct wires, using a relay to manage the high current, and grounding the circuit properly. Careful attention to the vehicle’s wiring diagram and safety precautions is essential to avoid electrical issues or potential hazards.
| Characteristics | Values |
|---|---|
| Power Source | 12V DC from vehicle battery |
| Wiring Gauge | 10-14 AWG (depending on current draw and length of wire) |
| Fuse Rating | 10-20A (matched to fuel pump current draw) |
| Relay Use | Recommended for high-current fuel pumps to protect ignition switch |
| Ignition Switch Connection | Connect to the "Accessory" or "Run" circuit of the ignition switch |
| Ground Connection | Securely grounded to vehicle chassis |
| Wiring Configuration | Positive wire from fuel pump to relay, relay to fuse, and fuse to battery |
| Safety Features | Inline fuse, relay, and proper grounding |
| Testing Procedure | Test fuel pump operation with ignition in "On" position |
| Compatibility | Ensure fuel pump amperage matches relay and fuse ratings |
| Additional Components | Wiring connectors, heat shrink tubing, and electrical tape |
| Installation Time | 1-3 hours (depending on experience and vehicle complexity) |
| Tools Required | Wire strippers, crimping tool, multimeter, and screwdriver |
| Safety Precautions | Disconnect battery before wiring, avoid sparks near fuel lines |
| Troubleshooting Tips | Check for blown fuses, loose connections, or faulty relay |
Explore related products
What You'll Learn
Gather Tools and Materials
Before you begin wiring an electric fuel pump to an ignition switch, it’s critical to assemble the right tools and materials. This ensures efficiency, safety, and a professional finish. Start by gathering a wire stripper/cutter, electrical tape, crimp connectors, a soldering iron with solder, heat shrink tubing, a multimeter, and a wiring diagram specific to your vehicle. These tools are non-negotiable, as they allow you to handle wires precisely, test connections, and protect against shorts or corrosion. Skipping any of these could lead to faulty wiring or even dangerous malfunctions.
Next, focus on the materials. You’ll need 14-16 gauge stranded copper wire, rated for automotive use, to handle the current demands of the fuel pump. Avoid solid core wire, as it’s prone to breakage in the engine bay’s vibrating environment. Additionally, procure a relay (typically 30-40 amps) to protect the ignition switch from high current draw. A fuse holder with an appropriately rated fuse (e.g., 15-20 amps) is essential to safeguard the circuit. Lastly, don’t overlook the importance of a wiring loom or split tubing to organize and protect wires from heat and abrasion.
Consider the environment your wiring will endure. The engine bay is harsh, with extreme temperatures, moisture, and chemicals. Opt for high-temperature wire rated for at least 200°F (93°C) and use dielectric grease on connections to repel moisture. If your vehicle operates in particularly wet conditions, invest in waterproof connectors and heat shrink tubing with adhesive lining for added protection. These small upgrades can prevent corrosion and extend the life of your wiring system.
Finally, plan for troubleshooting. A multimeter is indispensable for testing continuity, voltage, and resistance. Keep a spare relay and fuse on hand, as these are common failure points. If you’re unsure about wire compatibility or current ratings, consult your vehicle’s manual or a trusted mechanic. Overlooking these details can turn a straightforward project into a frustrating ordeal, so take the time to prepare thoroughly. With the right tools and materials, wiring an electric fuel pump to an ignition switch becomes a manageable task rather than a daunting challenge.
Signs Your Fuel Pump is Failing: Diagnosis and Solutions
You may want to see also
Explore related products
Locate Ignition Switch Wiring
The ignition switch is the heart of your vehicle's electrical system, controlling power distribution to various components, including the fuel pump. Locating its wiring is crucial for safely integrating an electric fuel pump into your vehicle's circuitry. Start by consulting your vehicle’s service manual or wiring diagram, which provides a detailed layout of the ignition switch’s connections. Typically, the ignition switch has multiple terminals labeled with numbers or letters, each corresponding to a specific function. For instance, the "ACC" (accessory) position powers secondary systems, while the "ON" position activates primary systems like the fuel pump. Identifying the correct terminal ensures the fuel pump operates only when the ignition is engaged, preventing unnecessary drain on the battery.
Analyzing the ignition switch’s wiring requires understanding its role in the vehicle’s electrical hierarchy. The switch acts as a gateway, routing power from the battery to essential systems based on its position. In most vehicles, the ignition switch is located on the steering column or near the dashboard. Once located, trace the wires connected to it, focusing on those leading to the fuse box or relay panel. A common approach is to use a multimeter to test for continuity between the switch terminals and the fuel pump relay. This ensures the wiring path is intact and capable of handling the pump’s amperage, typically ranging from 5 to 20 amps depending on the model.
Persuasively, locating the ignition switch wiring is not just about functionality but also safety. Incorrectly wired fuel pumps can lead to electrical fires or erratic operation. For example, connecting the pump directly to the battery bypasses safety features like the ignition switch and fuses, increasing the risk of overheating or short circuits. Instead, tap into the ignition switch’s "ON" terminal, ensuring the pump activates only when the engine is running. This approach aligns with industry standards and reduces the likelihood of accidents, especially in older vehicles where wiring insulation may have degraded over time.
Comparatively, modern vehicles often integrate the ignition switch with the engine control module (ECM), complicating the wiring process. In such cases, using a relay to isolate the fuel pump’s high-current draw from the switch is advisable. This setup mimics factory configurations, where the ignition switch triggers a relay that powers the pump. For DIY enthusiasts, aftermarket relay kits offer a plug-and-play solution, simplifying the process without requiring advanced electrical knowledge. However, always verify compatibility with your vehicle’s system to avoid voiding warranties or causing damage.
Descriptively, the ignition switch wiring is often color-coded, though standards vary by manufacturer. Common colors include red for constant power, yellow for switched power, and black for ground. In older vehicles, wires may be labeled with stripes or text indicating their function. For instance, a wire marked "IGN" or "SW" typically connects to the ignition switch’s "ON" terminal. When in doubt, use a test light or multimeter to confirm voltage at each terminal during different switch positions. This hands-on approach ensures accuracy and builds confidence in your wiring project.
In conclusion, locating ignition switch wiring is a blend of research, analysis, and practical testing. By referencing diagrams, understanding the switch’s role, prioritizing safety, and adapting to your vehicle’s specifics, you can successfully wire an electric fuel pump. This process not only enhances your vehicle’s performance but also reinforces your understanding of automotive electrical systems. Always double-check connections and consult professionals if unsure, ensuring a reliable and safe installation.
Locating the Fuel Pump on a 1999 Nissan Altima: A Guide
You may want to see also
Explore related products
Connect Pump to Switch
Connecting the electric fuel pump to the ignition switch is a critical step in ensuring your vehicle’s fuel system operates reliably. The ignition switch acts as the control point, activating the pump only when the engine is running or being started. To establish this connection, you’ll need to route a 12-volt power wire from the fuel pump’s positive terminal to the ignition switch’s accessory or "on" terminal. This ensures the pump receives power only when the key is turned, preventing unnecessary battery drain and potential safety hazards. Always use a relay in this circuit to handle the high current draw of the pump, protecting the ignition switch from damage.
The wiring process begins with identifying the correct terminals on both the ignition switch and the fuel pump. Most ignition switches have multiple terminals labeled for specific functions, such as "ACC" (accessory), "ON," and "START." The "ON" terminal is typically the best choice for connecting the fuel pump, as it provides power whenever the ignition is active. On the fuel pump side, the positive terminal is usually marked with a "+" symbol. Use a wire gauge suitable for the pump’s amperage draw—typically 14 to 12 AWG for most automotive fuel pumps. Strip the wire ends, connect them securely, and insulate with heat shrink tubing or electrical tape to prevent shorts.
A common mistake in this process is bypassing the relay, which can overload the ignition switch and lead to failure. The relay acts as a switch controlled by the ignition circuit, allowing the high-current pump circuit to operate independently. To install the relay, connect the ignition switch’s "ON" terminal to the relay’s control pin (usually pin 86). The pump’s positive wire should connect to the relay’s high-current output pin (usually pin 87). Ground the relay’s pin 85 to the chassis, and connect pin 30 to a fused 12-volt power source, such as the battery or a dedicated fuse block. This setup ensures the pump operates safely and efficiently.
For added safety, incorporate an inline fuse between the battery and the relay. A 15 to 20-amp fuse is typically sufficient for most electric fuel pumps, but always refer to the pump’s specifications. This fuse protects the wiring harness from damage in case of a short circuit. Additionally, consider installing a fuel pump kill switch in the driver’s compartment for emergency shutdown capabilities. This switch can be wired in series with the relay’s control circuit, allowing you to cut power to the pump instantly if needed.
In summary, connecting the electric fuel pump to the ignition switch requires careful planning and execution. By using a relay, proper wire gauge, and a fused power source, you ensure the system operates safely and reliably. Always double-check connections and test the circuit before driving to confirm the pump activates only when the ignition is on. This approach not only protects your vehicle’s electrical system but also enhances overall safety and performance.
Intermittent Fuel Pump Issues: Causes, Symptoms, and Troubleshooting Tips
You may want to see also
Explore related products
Install Relay for Safety
Directly powering an electric fuel pump from the ignition switch is a recipe for disaster. The high current draw of the pump can overload the switch, leading to melting wires, electrical fires, or even complete ignition failure. This is where a relay becomes your safety net.
Relays act as high-capacity switches, allowing a small current from the ignition switch to control a much larger current flowing to the fuel pump. Think of it as using a light switch to control a powerful industrial machine – the switch itself doesn't bear the brunt of the load.
Choosing the Right Relay: Select a relay rated for at least 30 amps continuous duty, ensuring it can handle the fuel pump's maximum current draw. SPST (Single Pole, Single Throw) relays are commonly used for this application.
Wiring the Relay:
- Power Source: Connect the relay's power terminal (usually marked "30") to a fused 12-volt power source, ideally directly from the battery. This ensures the pump receives power even when the ignition is off for a few seconds during cranking.
- Ignition Control: Connect the relay's control terminal (usually marked "85") to the ignition switch's "accessory" or "run" position. This provides the signal to activate the relay when the key is turned.
- Fuel Pump Connection: Connect the relay's output terminal (usually marked "87") to the fuel pump's positive terminal.
- Ground: Ensure both the relay and fuel pump have secure ground connections.
Additional Safety Measures:
- Fuse Protection: Install a fuse inline with the relay's power source. Choose a fuse rating slightly lower than the relay's rating (e.g., a 25-amp fuse for a 30-amp relay) to protect against short circuits.
- Relay Location: Mount the relay in a cool, dry location away from heat sources and moving parts.
By incorporating a relay into your fuel pump wiring, you significantly reduce the risk of electrical failures and potential hazards. It's a small investment that pays off in safety and peace of mind.
Can a Factory Foxbody Fuel Pump Deliver 58 PSI? Find Out!
You may want to see also
Explore related products
Test Fuel Pump Operation
Testing fuel pump operation is a critical step after wiring it to the ignition switch, ensuring the system functions as intended before relying on it for vehicle operation. Begin by verifying the pump’s power supply: turn the ignition key to the "on" position (without starting the engine) and listen for the pump’s hum, which should last 2–3 seconds as it primes the fuel system. If no sound is heard, check the fuse, relay, and wiring connections for continuity using a multimeter. A common mistake is overlooking a blown fuse, which can mimic a faulty pump.
Next, measure the pump’s voltage directly at its terminals with the ignition on. It should read within 90–100% of your battery voltage (e.g., 12V for a 12V system). If voltage is present but the pump doesn’t activate, the pump itself may be defective. For a more precise test, disconnect the fuel line at the engine and place the outlet into a container, then crank the engine for 2–3 seconds to check fuel flow. Adequate flow (typically 0.5–1 gallon per minute for most passenger vehicles) confirms proper operation.
A comparative test can further validate the pump’s performance. Compare the fuel pressure at the rail using a gauge to the manufacturer’s specifications, which usually range from 30–60 PSI depending on the system. If pressure is low, inspect the fuel filter for clogs or the pump for wear. Alternatively, use a noid light to test the pump’s relay signal, ensuring it flashes when the ignition is on—a steady light or no light indicates a relay or wiring issue.
Finally, consider a load test under operating conditions. Start the engine and monitor fuel pressure while revving to 2000 RPM. Pressure should remain stable within spec; a drop indicates insufficient pump capacity or a failing component. This dynamic test is particularly useful for diagnosing intermittent issues. Always prioritize safety by working in a well-ventilated area, avoiding open flames, and relieving fuel system pressure before disconnecting lines.
In summary, testing fuel pump operation requires a systematic approach: verify power, check voltage, measure flow, compare pressure, and assess performance under load. Each step isolates potential issues, ensuring the pump is wired correctly and functions reliably. Skipping these tests risks engine damage or failure, making them indispensable in the wiring process.
Can a Faulty 2004 Chevy Fuel Pump Cause Gas Leaks?
You may want to see also
Frequently asked questions
Connect the fuel pump’s power wire to the ignition switch’s accessory (ACC) or "on" terminal using a relay. This ensures the pump only operates when the ignition is on.
Yes, a relay is recommended to prevent overloading the ignition switch. It allows the switch to control the relay, which then powers the fuel pump.
Use the wire that provides power only when the ignition is in the "on" or "run" position, typically the accessory (ACC) or "on" terminal.
It’s not recommended, as the ignition switch may not handle the high current draw of the fuel pump, leading to damage or failure.
Wire the fuel pump through a relay controlled by the ignition switch’s "on" terminal. When the ignition is off, the relay cuts power to the pump.
