Wiring a Bosch 044 fuel pump correctly is essential for ensuring reliable fuel delivery and optimal engine performance. This high-performance fuel pump is commonly used in racing and high-horsepower applications due to its robust design and ability to handle increased fuel demands. To wire the pump, you’ll need to connect it to a 12-volt power source, typically through a relay to protect the pump and ensure it only operates when the ignition is on. The pump’s ground should be securely connected to the vehicle’s chassis, and an inline fuse is recommended to safeguard against electrical faults. Additionally, integrating a fuel pump controller or using a dedicated fuel pump wiring kit can simplify the process and enhance safety. Proper wiring not only ensures the pump functions efficiently but also prevents potential issues like overheating or electrical damage.
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire, connectors, crimping tool, heat shrink, pump, relay, fuse, terminals
- Locate Power Source: Identify 12V constant power source, ground point, and ignition switch connection
- Install Relay & Fuse: Connect relay to power, ground, and pump; add inline fuse for safety
- Wire Pump to Relay: Run power from relay to pump, ensure proper polarity and secure connections
- Test & Secure Wiring: Verify pump operation, insulate wires, and secure all connections to prevent damage
Gather Tools & Materials: Wire, connectors, crimping tool, heat shrink, pump, relay, fuse, terminals
Before you embark on wiring a Bosch 044 fuel pump, it’s critical to assemble the right tools and materials. This isn’t just about having everything on hand—it’s about ensuring safety, reliability, and efficiency. Start with high-quality wire rated for automotive use, typically 10-12 gauge, to handle the pump’s current draw without overheating. Pair this with weatherproof connectors, such as Deutsch or AMP seals, to protect against moisture and vibration, common culprits of fuel system failures. A professional-grade crimping tool is non-negotiable; improper crimps can lead to loose connections, arcing, or even fires. Heat shrink tubing, sized to match your wire gauge, will insulate and seal crimped terminals, adding an extra layer of protection.
Next, consider the Bosch 044 pump itself, ensuring it’s compatible with your vehicle’s fuel system and flow requirements. A relay, rated for at least 40 amps, is essential to handle the pump’s load without overburdening the switch. Pair this with a fuse—typically 30-40 amps—to safeguard against short circuits. Terminals, such as ring or spade connectors, must match the pump’s wiring harness and relay specifications. Skimping on these components or using mismatched parts can lead to inefficiency, damage, or failure under load.
The crimping tool deserves special attention. Opt for a ratcheting crimper with interchangeable dies to ensure consistent, secure connections. Test each crimp by gently tugging the wire; if it pulls free, the crimp is inadequate. Heat shrink tubing should be applied over crimped terminals and heated evenly with a heat gun or lighter until it conforms tightly. This step is often overlooked but is vital for preventing corrosion and ensuring longevity in harsh underhood environments.
Comparing DIY solutions to professional kits reveals a stark difference in quality and safety. While pre-assembled kits may save time, they often lack customization for specific setups. By sourcing individual components, you can tailor the wiring to your vehicle’s needs, ensuring optimal performance. For example, using a relay with a built-in diode protects against voltage spikes when the pump is turned off, a feature rarely found in generic kits.
Finally, treat this gathering phase as a checklist, not a suggestion. Missing a single component—like the fuse—can render the entire setup unsafe. Organize your workspace with all materials within reach before starting. This methodical approach not only streamlines the installation but also minimizes the risk of errors. Remember, wiring a fuel pump isn’t just about functionality; it’s about building a system that’s as safe as it is efficient.
Why Mechanical Fuel Pumps Spit Fuel: Common Causes Explained
You may want to see also
Explore related products
Locate Power Source: Identify 12V constant power source, ground point, and ignition switch connection
The Bosch 0 44 fuel pump demands precise wiring to ensure reliable performance. Locating the correct power sources is the foundation of this process. You'll need to identify three critical points: a 12V constant power source, a solid ground point, and the ignition switch connection. These elements work in harmony to deliver the necessary power and control for the fuel pump's operation.
Understanding the Power Trio
Think of these three connections as the lifeblood of your fuel pump. The 12V constant power source provides the continuous energy needed to keep the pump primed, even when the engine is off. This is crucial for maintaining fuel pressure and ensuring easy starts. The ground point acts as the return path for the electrical current, completing the circuit and allowing the pump to function. Finally, the ignition switch connection provides the signal to activate the pump when you turn the key, ensuring fuel delivery only when needed.
Locating the Sources
Your vehicle's wiring harness is a complex network, but finding these points is achievable with some detective work. The 12V constant power source is often found at the fuse box, typically labeled as "BAT" or "Battery." This connection provides uninterrupted power directly from the battery. Ground points are usually bare metal surfaces on the chassis or engine block, offering a direct path to the vehicle's electrical ground. The ignition switch connection can be traced from the back of your ignition switch, often a dedicated wire leading to the fuel pump relay or fuse.
Tools and Tips
A multimeter is your best friend for this task. Use it to verify voltage at the 12V constant power source and ensure a solid ground connection. Double-check your vehicle's wiring diagram for specific wire colors and locations, as these can vary greatly between makes and models. Remember, safety first: always disconnect the battery before working on any electrical components.
Consequences of Misconnection
Incorrectly identifying these power sources can lead to serious issues. A missing ground connection can cause the pump to malfunction or not work at all. Connecting to the wrong 12V source might result in the pump running constantly, draining your battery. An improper ignition switch connection could prevent the pump from activating when needed, leading to starting difficulties or engine stalls.
Does AutoZone Test Fuel Pumps? A Comprehensive Guide for Car Owners
You may want to see also
Explore related products

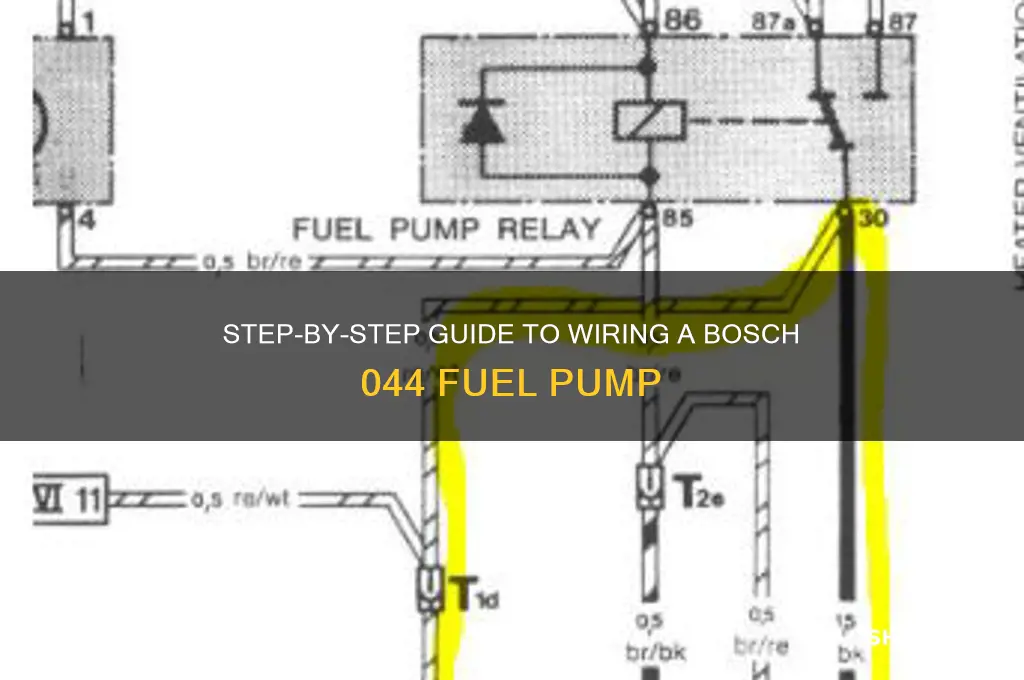

Install Relay & Fuse: Connect relay to power, ground, and pump; add inline fuse for safety
Installing a relay and fuse is a critical step in wiring a Bosch 044 fuel pump, ensuring both functionality and safety. The relay acts as a switch, allowing the pump to draw high current without overloading the vehicle’s wiring, while the inline fuse protects against shorts or overloads. Begin by selecting a relay rated for the pump’s amperage, typically 20–30 amps for the Bosch 044. Connect the relay’s power terminal (usually pin 87) to the pump’s positive wire, and the ground terminal (pin 85) to a clean chassis ground. The relay’s control terminal (pin 86) should be wired to a switched 12V source, such as the fuel pump relay output or an ignition-switched circuit, ensuring the pump operates only when the engine is running.
The inline fuse is equally vital, acting as the first line of defense against electrical faults. Install a fuse holder with a 20–30 amp fuse between the battery’s positive terminal and the relay’s power input (pin 30). This placement ensures the fuse protects the entire circuit, including the relay and pump. Use high-quality, automotive-grade wire (10–12 AWG) for all connections to handle the pump’s current draw efficiently. Avoid running wires near hot components or sharp edges, and secure them with zip ties or clamps to prevent movement or damage.
A common mistake is bypassing the relay, which can lead to overheating or failure of the pump’s wiring. The relay isolates the pump’s high-current draw from the control circuit, preventing voltage drop and ensuring consistent performance. Similarly, omitting the inline fuse is a safety hazard, leaving the system vulnerable to shorts or overloads. Always test the circuit before finalizing connections: turn the ignition on and verify the pump primes (a brief hum), then check for proper fuse and relay operation.
For added reliability, consider using a waterproof fuse holder and relay, especially in off-road or high-moisture environments. Label wires clearly during installation to simplify troubleshooting later. If using a standalone fuel pump controller, integrate the relay into its wiring harness, ensuring compatibility with the controller’s output. This step-by-step approach not only safeguards your Bosch 044 fuel pump but also ensures a professional, long-lasting installation.
Locating the Fuel Pump in a 2007 Hyundai Accent: A Guide
You may want to see also
Explore related products
Wire Pump to Relay: Run power from relay to pump, ensure proper polarity and secure connections
Connecting a Bosch 044 fuel pump to a relay requires precision to ensure reliable operation and safety. The relay acts as a switch, allowing the pump to draw high current without overloading the vehicle’s wiring. Begin by running a 10-12 gauge power wire from the relay’s output terminal (typically marked as "87") directly to the pump’s positive terminal. This wire must be rated for the pump’s amperage, which can exceed 20 amps under load. Always verify the pump’s specifications to match the wire gauge appropriately.
Polarity is non-negotiable in this setup. The Bosch 044 pump operates on a positive ground system, meaning the positive terminal must be connected to the power source, while the negative terminal grounds to the chassis or battery. Reversing polarity can damage the pump or cause erratic performance. Use a multimeter to confirm polarity before finalizing connections. Color-coding wires (red for positive, black for negative) can prevent confusion during installation.
Securing connections is as critical as the wiring itself. Loose or corroded terminals lead to voltage drops, overheating, or intermittent pump operation. Crimp or solder connections for maximum reliability, and insulate them with heat shrink tubing to protect against moisture and vibration. For added durability, use waterproof connectors rated for automotive environments. Regularly inspect these connections, especially in high-vibration applications like racing or off-roading, to ensure longevity.
Finally, integrate a fuse between the power source and the relay to protect the circuit. A 20-30 amp fuse, depending on the pump’s draw, safeguards against short circuits or overloads. Place the fuse as close to the power source as possible, typically within 18 inches of the battery. This setup not only complies with safety standards but also simplifies troubleshooting by isolating potential faults. By meticulously wiring the pump to the relay, you ensure a robust, efficient fuel delivery system tailored to high-performance demands.
Locate the Fuel Pump Fuse in Your 2002 Chevy S10
You may want to see also
Explore related products
Test & Secure Wiring: Verify pump operation, insulate wires, and secure all connections to prevent damage
Once the Bosch 0 44 fuel pump is wired, testing and securing the connections is critical to ensure reliability and safety. Begin by verifying pump operation. Connect the battery and turn the ignition to the "on" position. Listen for the pump’s priming cycle—a distinct humming sound that lasts 2–3 seconds. If the pump doesn’t engage, check for loose connections, reversed polarity, or a faulty relay. Use a multimeter to confirm power is reaching the pump (12V at the positive terminal when activated). Testing under load, such as during engine cranking, can further validate performance, though this should be done cautiously to avoid dry cranking.
Insulating wires is the next step to protect against heat, moisture, and abrasion. Use high-temperature automotive wire loom or heat-shrink tubing to cover exposed wires, particularly near the engine bay where temperatures exceed 200°F. Pay special attention to areas where wires bend or pass through metal edges. For added protection, apply dielectric grease to terminal connections to prevent corrosion. Avoid over-tightening terminals, as this can strip threads or damage wires, but ensure connections are firm enough to avoid vibration-induced loosening.
Securing connections is equally vital to prevent damage from movement or environmental factors. Zip-tie wire bundles to nearby chassis components, ensuring they’re routed away from moving parts like the steering column or exhaust. For high-vibration areas, use adhesive-lined heat shrink or rubber grommets to dampen movement. If the pump is mounted externally, shield it from debris and water with a protective cover. Regularly inspect connections during routine maintenance, especially after off-road use or exposure to harsh weather, to catch issues before they escalate.
A comparative analysis of wiring methods reveals that while soldering connections provides a stronger bond, crimping with high-quality connectors is more practical for most DIY installations. Soldering requires precision and can damage wires if overheated, whereas crimping, when done with the correct tool and insulated terminals, offers sufficient durability. Regardless of method, always test continuity before finalizing the installation. By combining thorough testing, proper insulation, and strategic securing, you ensure the Bosch 0 44 fuel pump operates efficiently and safely, minimizing the risk of failures that could lead to fuel delivery issues or electrical fires.
Locating the Fuel Pump on a 2009 Dodge Challenger
You may want to see also
Frequently asked questions
Use 10-12 AWG wire for the power and ground connections to ensure sufficient current handling and minimize voltage drop.
Connect the pump’s positive terminal to a 30-amp fuse, then to the relay’s 87 terminal. Power the relay’s 85 terminal from a switched ignition source and the 86 terminal to ground.
Ground the pump directly to the chassis near the pump’s location to ensure a clean ground path and minimize electrical interference.
While you can wire it directly to the battery with a relay and fuse, using a fuel pump controller is recommended for adjustable voltage and better performance, especially in high-performance applications.
