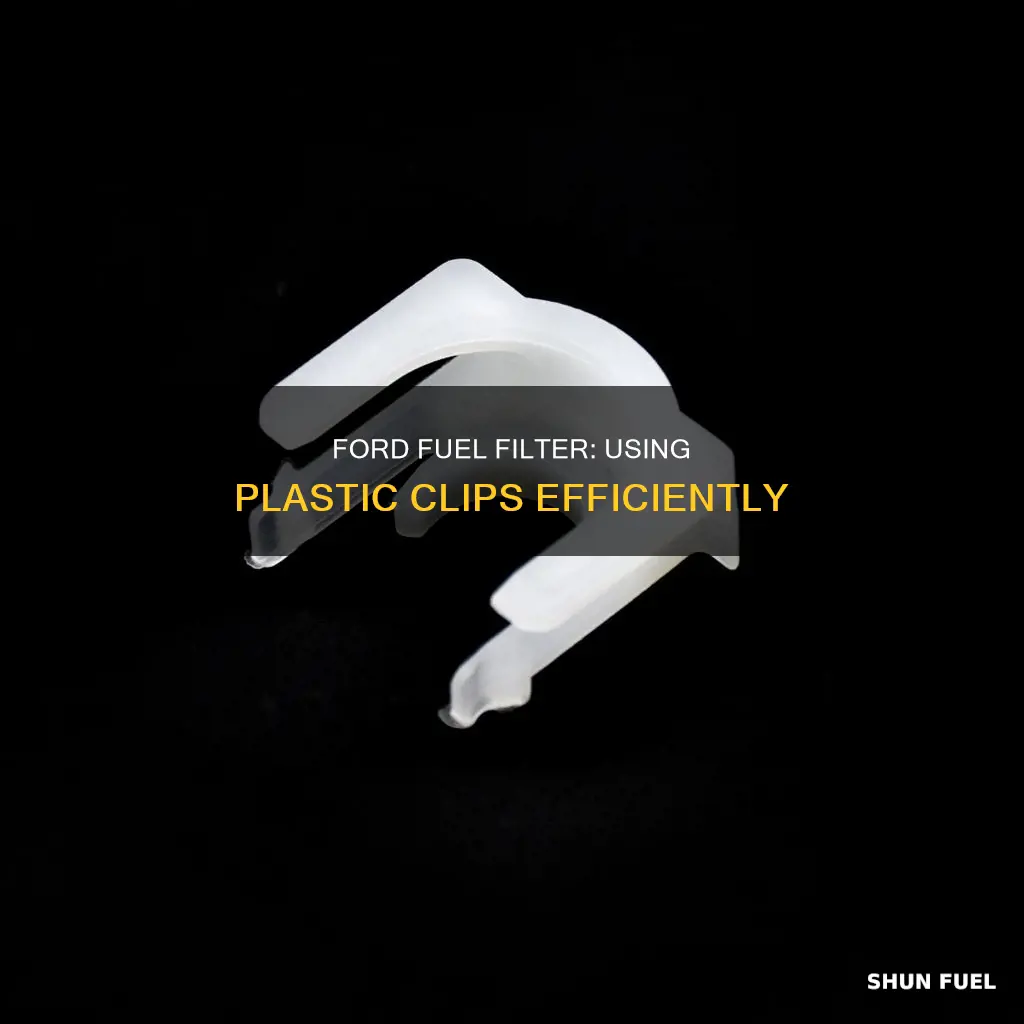

Ford fuel filters come with plastic clips that can be used to pop the old filter off. Some people have expressed confusion about how these clips function. The plastic clips are used to secure the fuel line, and they need to be replaced every time the fuel filter is changed. To remove the plastic clips, you can squeeze the two sides of the coupling and push the tabs away from the coupling, causing the plastic tab/sleeve to slide out. You can also use a screwdriver to help remove them.
Explore related products
What You'll Learn
Using a screwdriver to remove plastic clips
To remove plastic clips from a Ford fuel filter using a screwdriver, you can follow these steps:
First, locate the plastic tabs on the side of the plastic coupling. Using your fingers, try squeezing both tabs simultaneously and then pushing them away from the coupling. This action will cause the plastic tab or sleeve to slide out. If the tabs are stubborn and difficult to move, you can use a small, fine flat-head screwdriver to help push them down and then twist and pull them out. You can also use the screwdriver to lift the tab to aid in its removal. It is recommended to use two hands for better leverage. Push the tips of the screwdriver in and gently pry downwards to dislodge the tab.
Another user has suggested a slightly different approach. They recommend pushing down on the safety clip first to clear any "fangs" or protrusions that may be present. Once the clip is pushed down, it should pop right off. This method may require some trial and error to find the correct angle and amount of force needed to pop the clip off without damaging the surrounding components.
It is important to note that some Ford fuel filters may have unique designs, and the specific method for removing the plastic clips may vary. Always refer to the vehicle's manual or seek advice from a qualified mechanic if you are unsure about the process or encounter any difficulties.
Overall, removing plastic clips from a Ford fuel filter using a screwdriver can be a straightforward task, but it requires careful handling to avoid breakage or damage to the fuel line.
Changing Fuel Filter: 1995 Pontiac Grand AM Guide
You may want to see also
Explore related products
Removing the fuse for the fuel pump
To remove the fuse for the fuel pump on a Ford vehicle, there are a few important steps to follow. Firstly, it is essential to understand that removing the fuse will disable the fuel pump, so it is crucial to have a safe and well-ventilated workspace. Begin by locating the fuse box, which is typically found near the engine bay or inside the vehicle, depending on the Ford model. Refer to your owner's manual if you're unsure of the fuse box's exact location. Once located, identify the fuse for the fuel pump, which may be labelled or colour-coded for easy recognition. Before proceeding, ensure you have the necessary tools, such as a fuse puller or needle-nose pliers, and protective gear, including safety goggles and gloves.
Now, you can start the removal process. Using the appropriate tool, carefully grip the fuse for the fuel pump and gently pull it straight out of the fuse box. Be cautious not to use excessive force, as it may damage the fuse box or the surrounding components. If the fuse is tightly secured, a gentle rocking motion side-to-side can help loosen it. Once removed, place the fuse in a safe location away from direct sunlight or moisture, as a damaged or contaminated fuse may lead to electrical issues. With the fuse removed, the fuel pump will be disabled, allowing you to safely work on other components related to the fuel system, such as the fuel filter or fuel lines.
It is worth noting that removing the fuse for the fuel pump will render the fuel system inoperable, so it is crucial only to perform this step if you intend to work on the fuel system or if you are experiencing fuel-related issues that require troubleshooting. Always refer to your vehicle's manual or seek professional guidance if you are unsure about the specific procedures or safety precautions required for your Ford model. Additionally, when handling fuel system components, exercise extreme caution, as they involve flammable liquids and pressurised lines, which can pose safety hazards if not handled correctly.
Reinstalling the fuse for the fuel pump is equally important, and it should be done once you have completed your work on the fuel system. Ensure that you insert the correct fuse into the appropriate slot in the fuse box. Gently push the fuse back into place until it is securely seated. You may hear a slight click or feel some resistance indicating that the fuse is properly installed. After reinstalling the fuse, you can proceed to activate the fuel pump by turning the ignition key to the "On" position or by following the specific instructions for your Ford model.
In summary, removing the fuse for the fuel pump on a Ford vehicle is a straightforward process that involves locating the fuse box, identifying the correct fuse, and carefully removing it using the appropriate tools. This process is essential when performing maintenance or repairs on the fuel system. Remember to exercise caution, refer to your vehicle's manual, and prioritise safety throughout the entire procedure. By following these steps, you can confidently disable and later reinstate the fuel pump functionality as needed.
Changing Fuel Filter on 2000 Buick Park Avenue: Step-by-Step Guide
You may want to see also
Explore related products
Using a special tool to release the clip
However, some people have expressed that a special tool is not necessary for this task. A flat-head screwdriver can be used to push and pry the plastic tabs, causing the plastic sleeve to slide out. If you encounter stubborn tabs, a small, fine flat-head screwdriver can provide extra leverage.
It is important to note that the plastic clips on the engine side of the fuel filter are more challenging to remove due to their unique spring design. To release the pressure and separate the spring, the tool must be clasped around the filter end and pushed into the space between the filter end and the line fitting. This process can be time-consuming and may require some force.
Volvo S60 D5: Replacing the Fuel Filter
You may want to see also
Explore related products
Plastic clips vs. metal clips
Plastic clips and metal clips are both used to secure fuel filters in Ford vehicles. However, there are some key differences between the two types of clips.
Plastic clips are typically used on older Ford models, such as the 1987 Ford F150, and are designed to be easily removable. They can often be popped off with a screwdriver, and new ones are installed along with a new filter to secure it in place. This makes changing the fuel filter a quick and easy process.
On the other hand, metal clips are found on newer Ford models, such as the 2004 F250. Metal clips are considered more durable and secure than plastic clips, but they may be more challenging to remove and install. In some cases, a special tool called a fuel line disconnect tool is required to release the metal clip and remove the fuel filter.
The design of the fuel filter clips can also vary between different Ford models. For example, the engine-side clips are known to be harder to work with due to their unique spring design. These clips require a tool to be clasped around the filter end and pushed into the space between the filter end and the line fitting to release the pressure and remove the line.
Some Ford owners have expressed confusion about the purpose of plastic clips, as they may not seem as secure as metal clips for holding the fuel line. However, plastic clips can be effective for quick and easy fuel filter changes, especially on older models.
In summary, both plastic and metal clips are used for securing fuel filters in Ford vehicles, with plastic clips being more common on older models and metal clips on newer ones. Each type of clip has its own advantages and considerations when it comes to installation, removal, and durability.
Fuel Filter Fixes: 1998 Dodge Durango
You may want to see also
Explore related products
Replacing plastic clips
Some Ford fuel filters come with plastic clips attached to one end of the fuel filter. These plastic clips are used to pop the old filter off. They can be popped off with a screwdriver and new ones can be reinstalled with the new filter to secure it.
If you are having trouble removing the plastic clips, there is a special tool available at most auto parts stores that can help. This tool slides between the line and the filter flange and releases the clip.
If you break a plastic clip, it is recommended to get a replacement clip rather than trying to cobble a solution with a zip tie, for example. Ford does not sell the clips separately, so you may need to go to a junkyard to find a replacement.
When removing the plastic clips, be careful not to pry too hard as they can break. It is also important to note that if the line comes off and sprays fuel, it can ignite, so be cautious when working with the fuel filter and plastic clips.
Fuel Water Separator Filters: How Long Do They Last?
You may want to see also
Frequently asked questions
Removing plastic clips from a Ford fuel filter can be challenging. You can try using your hands to squeeze the plastic tabs together and then push them away from the coupling. If that doesn't work, you can use a small flat-head screwdriver to help push the tabs down and then twist and pull out the clip. Be careful not to apply too much force as the plastic clips can break easily.
No, you don't need any special tools. A flat-head screwdriver should be sufficient to remove the plastic clips. However, there is a special tool available at auto parts stores that can make the job easier. This tool slides between the line and the filter flange to release the clip.
The plastic clips are used to secure the fuel filter in place. They are not integral to the attachment process, but they help hold the fuel line in place and need to be replaced every time you change the fuel filter.
It is not recommended to use alternatives such as zip ties as they may not securely hold the fuel filter in place. It is best to replace the broken clip with a new one to ensure the safety and proper functioning of your vehicle.
The plastic clips should be replaced every time you change the fuel filter. This ensures that the fuel filter is securely held in place and helps prevent fuel leaks.
