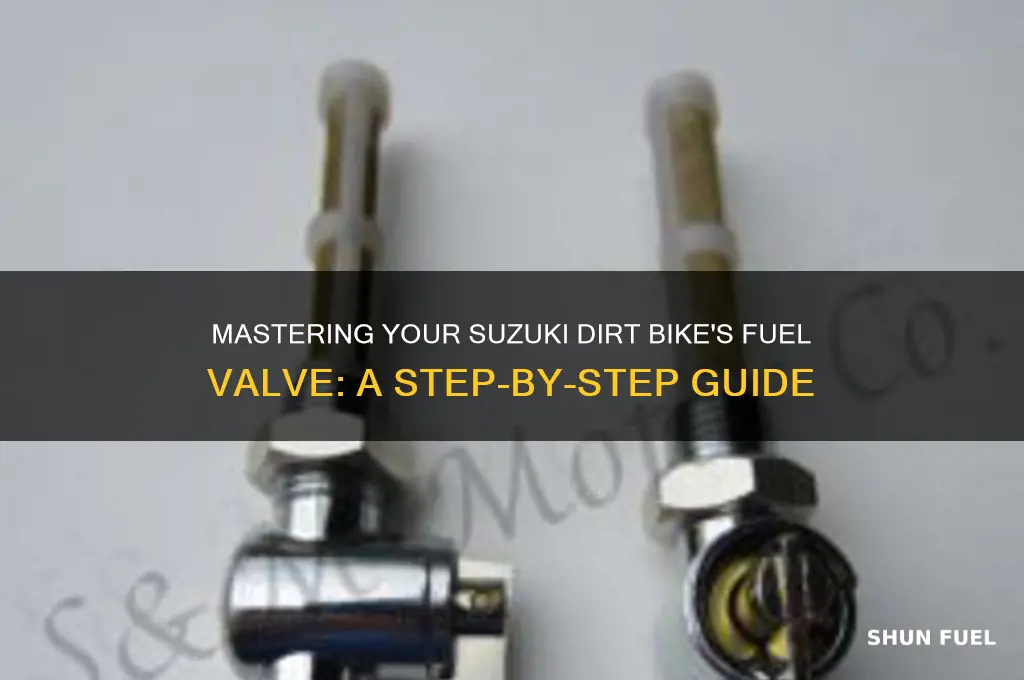

Understanding how to use the fuel valve on your Suzuki dirt bike is essential for optimal performance and maintenance. The fuel valve typically has three positions: ON, OFF, and RESERVE. When riding, keep the valve in the ON position to allow fuel to flow continuously from the tank to the carburetor or fuel injection system. If you run low on fuel, switch to the RESERVE position to access the remaining fuel in the tank, giving you enough time to refuel. Always turn the valve to the OFF position when storing the bike or performing maintenance to prevent fuel from leaking and to reduce the risk of fire. Familiarizing yourself with these settings ensures your Suzuki dirt bike runs smoothly and safely during every ride.
| Characteristics | Values |
|---|---|
| Fuel Valve Location | Typically found on the bottom of the fuel tank or near the carburetor. |
| Fuel Valve Positions | Usually has three positions: ON, OFF, and RESERVE. |
| ON Position | Allows fuel to flow continuously from the tank to the carburetor. |
| OFF Position | Stops fuel flow, used for storage or maintenance. |
| RESERVE Position | Accesses the remaining fuel in the tank when the main supply is low. |
| Operation | Turn the valve by hand or with a tool (if stuck) to switch positions. |
| Maintenance | Regularly check for leaks and ensure the valve moves freely. |
| Compatibility | Specific to Suzuki dirt bike models (e.g., RM, DR-Z series). |
| Material | Typically made of durable plastic or metal. |
| Troubleshooting | If stuck, clean or replace the valve; ensure proper fuel flow when ON. |
| Safety Tip | Always turn the valve to OFF when not riding to prevent fuel spills. |
Explore related products
What You'll Learn
- Understanding Fuel Valve Positions: Learn the on, off, and reserve settings for optimal fuel flow
- Turning the Fuel Valve On/Off: Properly rotate the valve to control fuel supply
- Using the Reserve Setting: Access remaining fuel when the main tank is empty
- Maintenance and Cleaning Tips: Keep the valve clean and free from debris for reliability
- Troubleshooting Common Issues: Fix leaks, stuck valves, or improper fuel delivery quickly
Understanding Fuel Valve Positions: Learn the on, off, and reserve settings for optimal fuel flow
The fuel valve on your Suzuki dirt bike is a critical component that controls the flow of fuel from the tank to the engine. Understanding its positions—on, off, and reserve—ensures optimal performance and prevents unexpected stalls during rides. Each setting serves a distinct purpose, and knowing when to use them can save you from mid-trail breakdowns or unnecessary fuel wastage.
Analytical Breakdown: The "on" position allows fuel to flow freely from the tank to the carburetor, ensuring a steady supply for continuous operation. This is the default setting for regular riding. The "off" position cuts off fuel flow entirely, ideal for storage, maintenance, or preventing fuel from draining into the carburetor when the bike is not in use. The "reserve" setting, often marked with an "R," taps into the last bit of fuel in the tank, providing a temporary solution when the main supply runs low. This setting is a lifeline during long rides but should be used sparingly to avoid running the tank completely dry, which can damage the fuel pump or carburetor.
Instructive Steps: To switch between positions, locate the fuel valve, typically found near the bottom of the fuel tank. Turn the valve clockwise or counterclockwise to align the indicator with the desired setting. When switching to "reserve," ensure you’re on a flat surface to allow the remaining fuel to settle at the tank’s lowest point. After engaging the reserve, plan to refuel as soon as possible, as this setting only provides enough fuel for a few miles. Always return the valve to the "off" position when storing the bike to prevent fuel evaporation and potential leaks.
Practical Tips: Regularly inspect the fuel valve for signs of wear or damage, such as cracks or stiffness, which can impair its function. If the valve feels sticky, apply a small amount of silicone-based lubricant to ensure smooth operation. For riders tackling long trails, monitor fuel levels closely and switch to reserve before the engine sputters, as running out of fuel mid-ride can be dangerous. Additionally, familiarize yourself with your bike’s fuel consumption rate to anticipate when you’ll need to switch to reserve.
Comparative Insight: Unlike modern fuel-injected bikes, carbureted Suzuki dirt bikes rely heavily on the fuel valve for precise fuel management. While fuel-injected systems automatically adjust fuel delivery, carbureted models require manual intervention to optimize flow. This makes understanding the fuel valve positions even more crucial for maintaining performance and reliability. By mastering these settings, you’ll ensure your bike runs smoothly, whether you’re tearing up trails or cruising through open terrain.
Maximize Savings: A Step-by-Step Guide to Using Fuel Rewards Apps
You may want to see also
Explore related products
Turning the Fuel Valve On/Off: Properly rotate the valve to control fuel supply
The fuel valve on a Suzuki dirt bike is a critical component that directly influences performance and safety. Located typically on the side of the fuel tank, it controls the flow of fuel to the engine. Understanding how to properly rotate this valve is essential for both starting the bike and preventing fuel-related issues during storage or maintenance.
To turn the fuel valve on, locate the knob or lever, often marked with "ON," "OFF," and sometimes "RESERVE." Rotate it clockwise to the "ON" position. This opens the valve, allowing fuel to flow from the tank to the carburetor or fuel injection system. Ensure the bike is on a level surface to avoid air pockets in the fuel lines. For optimal performance, especially after prolonged inactivity, prime the carburetor by pressing the primer bulb (if equipped) 3-5 times before starting.
Turning the fuel valve off is equally important, particularly when storing the bike or performing maintenance. Rotate the valve counterclockwise to the "OFF" position. This stops fuel flow, reducing the risk of leaks or carburetor flooding. If your bike has a "RESERVE" setting, use it sparingly—it’s designed for emergencies when the main fuel supply is depleted, not as a regular operating mode. Always switch to "OFF" when the bike is not in use to prevent fuel from stagnating in the lines.
A common mistake is over-rotating the valve, which can damage the internal mechanism. Apply gentle, firm pressure when turning, and stop immediately when you feel resistance or hear a click. If the valve feels stiff, avoid forcing it; instead, check for debris or corrosion around the knob. Regularly inspect the valve for signs of wear or leaks, and replace it if necessary to maintain reliability.
Proper fuel valve management is a small but vital skill for Suzuki dirt bike owners. By mastering the simple act of rotating the valve, you ensure consistent fuel delivery, extend the life of your bike’s components, and enhance safety during operation and storage. Treat the fuel valve with care, and it will serve you well through countless rides.
Diesel Fuel Pump for Gas: Compatibility, Risks, and Practical Considerations
You may want to see also
Explore related products
Using the Reserve Setting: Access remaining fuel when the main tank is empty
Every Suzuki dirt bike rider has faced the moment when the engine sputters and dies, signaling an empty main fuel tank. This is where the reserve setting becomes your lifeline. Typically, Suzuki dirt bikes come equipped with a fuel valve that includes a reserve option, allowing you to access the remaining fuel in the tank when the main supply is depleted. Understanding how to use this feature can mean the difference between pushing your bike home and riding it.
The reserve setting is straightforward to engage. Locate the fuel valve, usually positioned near the bottom of the fuel tank, and turn it to the "Reserve" position. This action opens a secondary fuel line, granting access to the last bit of fuel reserved for emergencies. It’s crucial to remember that the reserve fuel is limited—often enough for 5 to 10 miles, depending on your bike’s model and riding conditions. Use this setting sparingly and plan to refuel as soon as possible.
While the reserve setting is a handy feature, it’s not without its limitations. Riding on reserve for extended periods can strain the fuel pump and increase the risk of running the tank completely dry, which may lead to air entering the fuel system. To avoid this, monitor your fuel gauge closely and switch to reserve only when necessary. Additionally, always refill your tank promptly after using the reserve to prevent unnecessary wear on your bike’s components.
A practical tip for Suzuki dirt bike owners is to familiarize yourself with your bike’s fuel consumption rate. Knowing how far you can ride on a full tank helps you anticipate when to switch to reserve. For instance, if your bike averages 30 miles per gallon and has a 2-gallon tank, you’ll have about 60 miles of range before needing the reserve. Pair this knowledge with regular fuel checks, and you’ll master the art of using the reserve setting effectively, ensuring you’re never stranded mid-ride.
Premium Fuel vs. Regular: Does It Really Boost Performance?
You may want to see also
Explore related products
Maintenance and Cleaning Tips: Keep the valve clean and free from debris for reliability
A clogged fuel valve can spell disaster for your Suzuki dirt bike's performance. Dirt, debris, and even tiny particles of rust can accumulate over time, restricting fuel flow and leading to sputtering, stalling, or even complete engine failure.
Prevention is Key: Regular cleaning is the best defense. Aim to inspect and clean your fuel valve every 10-15 riding hours, or more frequently if you ride in dusty or muddy conditions.
Cleaning Process:
- Safety First: Ensure your bike is on a stable surface, the engine is cool, and the fuel tank is no more than half full.
- Access the Valve: Locate the fuel valve, typically found near the bottom of the fuel tank. Consult your Suzuki manual for the exact location on your model.
- Disassembly: Carefully disconnect the fuel line from the valve. Use a wrench or pliers if necessary, taking care not to damage the fittings.
- Cleaning Solution: Submerge the valve in a mixture of carburetor cleaner and clean gasoline (50/50 ratio) for 15-20 minutes. This will dissolve built-up grime and varnish.
- Brushing Action: Use a small, soft-bristled brush to gently scrub away any remaining debris from the valve body and internal components.
- Rinse and Dry: Thoroughly rinse the valve with clean gasoline and allow it to air dry completely before reassembly.
Reassembly and Testing: Reconnect the fuel line, ensuring a secure fit. Turn the valve to the "ON" position and listen for a steady flow of fuel. If the bike starts and runs smoothly, your cleaning was successful.
Understanding the Fuel Combustion Process in Modern Vehicles
You may want to see also
Explore related products
Troubleshooting Common Issues: Fix leaks, stuck valves, or improper fuel delivery quickly
A leaking fuel valve on your Suzuki dirt bike isn't just messy—it's a safety hazard. Fuel pooling around the engine or carburetor increases the risk of fire, especially during hot rides. To fix this, first identify the leak source. Common culprits include worn O-rings, cracked valve bodies, or loose fittings. Disassemble the valve, inspect each component, and replace damaged parts with OEM replacements. Reassemble with a thin layer of petroleum jelly on O-rings to ensure a tight seal, but avoid over-tightening to prevent warping.
Stuck fuel valves often result from dirt, debris, or old fuel residue clogging the mechanism. If your valve won’t turn or feels stiff, start by draining the fuel tank to avoid spills. Use a carburetor cleaner to dissolve gunk, then disassemble the valve and clean all internal parts with a soft brush. For stubborn cases, soak the valve in a parts cleaner for 30 minutes. Reassemble and lubricate the valve stem with silicone grease to ensure smooth operation. Regularly cleaning the valve during maintenance prevents this issue from recurring.
Improper fuel delivery can leave your bike sputtering or stalling mid-ride. This often stems from a misaligned valve position or a clogged fuel filter. Check the valve’s on/off/reserve settings—ensure it’s fully in the "on" position. If fuel flow is weak, inspect the fuel line for kinks or blockages. Replace the fuel filter annually, even if it looks clean, as sediment buildup is invisible. For persistent issues, test the fuel pump (if equipped) for adequate pressure, typically 2-3 psi for most dirt bikes.
Comparing preventative measures to reactive fixes highlights the value of routine maintenance. While replacing a cracked valve body costs $30-$50, regular cleaning and inspection take minutes and cost nothing. Similarly, a stuck valve might require a $15 carburetor cleaner, but neglecting it could lead to a $200 carburetor overhaul. By addressing leaks, stuck valves, and fuel delivery issues promptly, you not only save money but also ensure your Suzuki dirt bike runs reliably, ride after ride.
Aircon Power Source: Fuel, Battery, or Electricity Explained
You may want to see also
Frequently asked questions
The fuel valve is typically located on the bottom of the fuel tank, near the carburetor or fuel injection system. It is a small switch or knob that controls the flow of fuel.
To turn the fuel valve on, rotate it to the "ON" or "RUN" position, usually marked with an arrow or the letter "O." To turn it off, rotate it to the "OFF" position, marked with an "X" or "OFF."
The fuel valve controls the flow of fuel from the tank to the engine. It allows you to shut off fuel when the bike is not in use, during maintenance, or in case of emergencies to prevent fuel leaks or overflow.
Yes, the "RESERVE" position allows you to access the remaining fuel in the tank when the main supply is low. However, switch back to the "ON" position once you refuel to avoid running out of fuel again.
