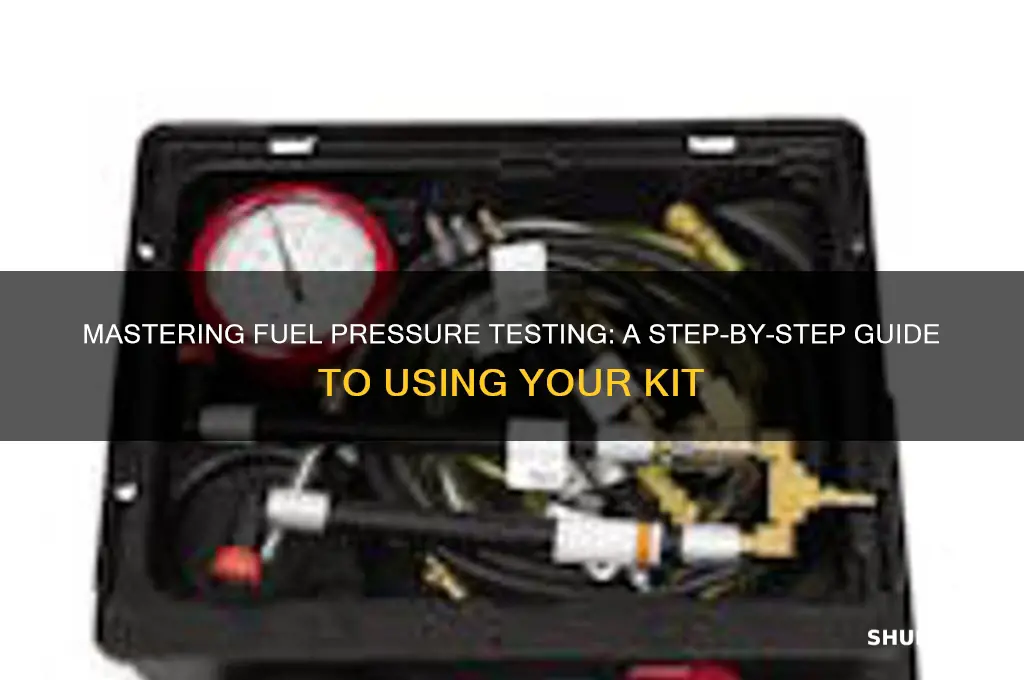

A fuel pressure tester kit is an essential tool for diagnosing and maintaining a vehicle's fuel system, ensuring optimal performance and efficiency. This kit allows mechanics and DIY enthusiasts to accurately measure the fuel pressure in the system, which is crucial for identifying issues such as clogged fuel filters, faulty fuel pumps, or leaks. To use the kit, start by locating the fuel rail Schrader valve, typically found near the engine, and connect the gauge and hose assembly to it. After relieving the fuel system pressure, attach the gauge and start the engine to read the pressure, comparing it to the manufacturer’s specifications. Proper use of a fuel pressure tester kit not only helps in pinpointing problems but also ensures the longevity and reliability of the vehicle’s fuel system.
| Characteristics | Values |
|---|---|
| Purpose | To measure fuel pressure in a vehicle's fuel system for diagnostic purposes. |
| Components Included | Gauge, hoses, adapters, Schrader valve tool, and instructions. |
| Compatibility | Works with most gasoline-powered vehicles (check specific adapters for compatibility). |
| Pressure Range | Typically measures 0–100 PSI (pounds per square inch), depending on the kit. |
| Connection Method | Connects to the fuel rail or Schrader valve in the fuel system. |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, and work in a well-ventilated area. |
| Steps to Use | 1. Locate fuel rail/Schrader valve. 2. Connect tester. 3. Start engine. 4. Read pressure. |
| Ideal Pressure Range | Varies by vehicle; consult manual (e.g., 30–60 PSI for most cars). |
| Troubleshooting | Low pressure: clogged filter/pump issue. High pressure: regulator failure. |
| Maintenance | Clean connections after use and store in a dry place. |
| Accuracy | Depends on kit quality; professional-grade kits offer higher accuracy. |
| Frequency of Use | Use during fuel system diagnostics or when symptoms like hard starting occur. |
| Additional Tools Required | Safety goggles, gloves, and a wrench for tight connections. |
| Environmental Considerations | Avoid spills; dispose of fuel safely and follow local regulations. |
| Cost | Ranges from $20 (basic) to $200 (professional-grade kits). |
| Warranty | Varies by manufacturer; typically 1–2 years for defects. |
Explore related products
What You'll Learn
Prepare the Tester Kit
Before engaging with a fuel pressure tester kit, it's crucial to ensure every component is ready for accurate and safe operation. Start by inspecting the kit for any signs of wear, damage, or contamination. The gauge should be free of cracks, and the hoses must not show any signs of brittleness or leaks. Even a small defect can compromise the test results or lead to hazardous situations. Always verify that the kit is compatible with your vehicle’s fuel system—gasoline, diesel, or ethanol blends require specific materials to prevent corrosion or degradation.
Next, assemble the tester kit according to the manufacturer’s instructions. Typically, this involves attaching the gauge to the hose and ensuring all connections are secure. For vehicles with Schrader valves, the adapter should fit snugly without requiring excessive force. If your kit includes a fuel line disconnect tool, use it to safely separate the fuel line, avoiding spills or damage. Always work in a well-ventilated area and wear safety goggles and nitrile gloves to protect against fuel exposure.
Calibration is a critical step often overlooked. If your tester kit includes a calibration screw, adjust the gauge to zero before connecting it to the fuel system. This ensures baseline accuracy. For digital testers, check the battery level and perform a self-test if the device supports it. Inaccurate readings can lead to misdiagnosis, wasting time and resources on unnecessary repairs.
Finally, prepare the vehicle for testing. Turn off the engine and relieve fuel system pressure by locating the appropriate valve or following the vehicle’s manual. For modern vehicles, consult the OBD-II port or diagnostic menu to ensure the fuel pump is disengaged. Failure to depressurize the system can result in fuel spraying or damage to the tester kit. Once prepared, you’re ready to connect the kit and proceed with testing, confident in both your safety and the reliability of your tools.
Harnessing Nature's Power: How Plants Fuel Our Energy Needs
You may want to see also
Explore related products
Connect to Fuel System
Connecting a fuel pressure tester kit to your vehicle’s fuel system requires precision and awareness of the system’s unique components. Begin by locating the fuel rail, typically found near the engine’s intake manifold. Most modern vehicles use Schrader valves (similar to tire valves) on the fuel rail for easy access. If your vehicle lacks a Schrader valve, you’ll need an adapter to connect the tester to the fuel line. Ensure the engine is off and the fuel pump is deactivated to prevent accidental pressurization during setup. This initial step is critical for safety and accuracy, as working on a pressurized system can lead to fuel spills or injuries.
Once the access point is identified, depress the Schrader valve or disconnect the fuel line as required. Attach the fuel pressure tester hose securely to the valve or adapter, ensuring a tight seal to prevent leaks. Some kits include quick-connect fittings, while others may require wrenches or pliers for a snug fit. If using an adapter, double-check compatibility with your vehicle’s fuel system to avoid damage. For example, diesel systems often operate at higher pressures than gasoline systems, so using the wrong tester or adapter can lead to failure or inaccurate readings. Always refer to your vehicle’s manual for specific instructions.
After connecting the tester, reactivate the fuel pump by turning the ignition to the "on" position (without starting the engine). Observe the gauge for an initial pressure reading, which should stabilize within 5–10 seconds. Compare this reading to the manufacturer’s specifications for your vehicle. For instance, a typical gasoline engine may require 40–60 PSI at idle, while diesel engines can range from 5,000 to 10,000 PSI. If the pressure is outside the acceptable range, inspect for clogged fuel filters, faulty pumps, or leaks in the system. This diagnostic step is invaluable for pinpointing fuel delivery issues.
Finally, disconnect the tester carefully, ensuring no fuel spills or residual pressure remains in the line. Wipe down the connection points and store the tester kit properly. If you’ve disconnected a fuel line, reattach it securely and check for leaks by restarting the engine. A systematic approach to connecting and using the fuel pressure tester not only ensures accurate results but also safeguards your vehicle and your safety. By mastering this step, you’ll gain confidence in diagnosing and resolving fuel system issues efficiently.
Exploring Promethium's Potential as a Viable Fuel Source
You may want to see also
Explore related products
Relieve Fuel Pressure
Before testing fuel pressure, relieving residual pressure in the system is a critical safety step. Failure to do so can result in fuel spray, spills, or even injury. Most modern vehicles with electronic fuel injection systems maintain pressure in the fuel lines even when the engine is off. This pressure can range from 30 to 80 psi, depending on the vehicle’s make and model. Relieving this pressure ensures a safe working environment and prevents damage to the fuel system components during testing.
To relieve fuel pressure, locate the fuel pressure relief valve or Schrader valve, typically found on the fuel rail or fuel pump module. If your vehicle lacks a dedicated relief valve, consult the repair manual for model-specific instructions. Once identified, depress the valve using a tool designed for this purpose, such as a fuel pressure tester kit or a small screwdriver with a cloth to catch any fuel release. Hold the valve open for 10–15 seconds to ensure all pressure is released. For vehicles with returnless fuel systems, disconnecting the fuel pump fuse or relay and running the engine until it stalls is an alternative method, though this should only be done if the valve method is unavailable.
A common mistake is assuming the fuel system is depressurized after turning off the ignition. In reality, pressure can remain for hours, especially in systems with a check valve. Always verify depressurization by attempting to reconnect the fuel line or testing with a pressure gauge. If pressure persists, repeat the relief process. For diesel vehicles, the procedure may differ due to higher fuel pressures and unique system designs, so refer to manufacturer guidelines.
Relieving fuel pressure is not just a precautionary measure—it’s a prerequisite for accurate testing. Residual pressure can skew readings, leading to misdiagnosis of fuel pump or injector issues. By ensuring the system is depressurized, you create a baseline for reliable testing. This step also protects sensitive components like fuel injectors and pressure regulators from damage during disconnection or inspection. Always wear safety goggles and nitrile gloves, and work in a well-ventilated area to minimize risks associated with fuel exposure.
Does Pennsylvania Utilize Winter Fuel Assistance Programs for Residents?
You may want to see also
Explore related products
Read Pressure Gauge
Interpreting the pressure gauge on a fuel pressure tester kit is a critical step in diagnosing fuel system issues. The gauge typically displays pressure in psi (pounds per square inch), with most fuel-injected engines operating between 30 and 60 psi. When you connect the tester and turn the ignition to the "on" position (without starting the engine), the gauge should stabilize within this range. If the reading is outside this window, it indicates a potential problem—low pressure may suggest a clogged fuel filter or weak pump, while high pressure could point to a faulty regulator. Always compare your reading to the manufacturer’s specifications for your specific vehicle, as tolerances vary.
Analyzing the gauge’s behavior under different conditions provides deeper insights. For instance, a pressure drop when the engine is running could signal a failing fuel pump or a leak in the system. Conversely, if the pressure holds steady but is still outside the optimal range, the issue may lie with the regulator or pressure lines. Note that some gauges have dual scales (psi and bar), so ensure you’re reading the correct unit. If the gauge fluctuates wildly, this could indicate air in the fuel lines or a malfunctioning pressure relief valve. Observing these patterns helps narrow down the root cause of the problem.
To ensure accurate readings, follow these practical tips: Allow the fuel system to depressurize before connecting the tester to avoid spills or injuries. Use a backflow preventer if your kit includes one, as it protects the gauge from fuel exposure. When reading the gauge, position yourself at eye level to minimize parallax errors, which can skew the measurement. If the gauge has a dampening feature, activate it to smooth out needle oscillations for a clearer reading. Finally, record the pressure at both idle and under load (if testing while running) to identify inconsistencies that might not be apparent at a single RPM.
Comparing the gauge’s performance across similar vehicles or systems can highlight anomalies. For example, if you’re testing a vehicle with symptoms of hard starting and the gauge reads 25 psi, but a known-good vehicle of the same model shows 45 psi, the discrepancy points to a fuel delivery issue. Similarly, if the gauge on one vehicle holds pressure after the ignition is turned off while another’s drops immediately, this suggests a faulty check valve in the failing system. Such comparative analysis transforms a single reading into actionable diagnostic data.
In conclusion, mastering the art of reading a pressure gauge involves more than just noting the number—it requires understanding context, observing behavior, and applying practical techniques. By combining these elements, you can transform raw data into meaningful insights, ensuring accurate diagnoses and effective repairs. Whether you’re a professional mechanic or a DIY enthusiast, this skill is indispensable for maintaining a healthy fuel system.
Hydrogen Fuel Cells: Revolutionizing Clean Energy for Modern Automobiles
You may want to see also
Explore related products
Disconnect and Store Kit
After testing fuel pressure, proper disconnection and storage of your kit is crucial for safety, longevity, and future accuracy. Start by relieving any residual pressure in the system. Depress the Schrader valve on the fuel rail with a rag to catch any fuel spray. This step is non-negotiable, as stored pressure can lead to dangerous leaks or damage to the gauge.
Once pressure is relieved, disconnect the gauge from the fuel rail. Follow the reverse order of your initial setup, ensuring each component is handled carefully. For example, if you used a hose and adapter, unscrew them methodically to avoid damaging threads.
Storage is just as critical as disconnection. Clean all components with a suitable solvent to remove fuel residue, which can degrade seals and hoses over time. Allow parts to air dry completely before storing. Invest in a dedicated case or organizer to keep components together and protected from dust, moisture, and physical damage. Store the kit in a cool, dry place, away from direct sunlight and extreme temperatures, which can warp plastic parts or affect gauge calibration.
Regularly inspect stored components for signs of wear, cracks, or leaks, especially before each use. Consider recalibrating the gauge annually or after any suspected impact to ensure accurate readings. Treating your fuel pressure tester kit with care during disconnection and storage will guarantee its reliability for years to come.
Alcohol as Fuel: Exploring Its Potential and Practical Applications
You may want to see also
Frequently asked questions
A fuel pressure tester kit is a diagnostic tool used to measure the fuel pressure in a vehicle's fuel system. It helps identify issues such as low pressure, leaks, or clogs, ensuring the fuel system operates correctly.
Locate the fuel rail Schrader valve (similar to a tire valve), remove the fuel system's protective cap, and attach the tester's gauge and hose securely. Follow your vehicle's manual for specific instructions.
Normal fuel pressure varies by vehicle but typically ranges between 30 to 60 PSI for most gasoline engines. Always refer to your vehicle's specifications for the exact range.
Yes, fuel pressure tester kits are available for both gasoline and diesel engines, but ensure you use the correct kit designed for your engine type, as diesel systems operate at much higher pressures.
