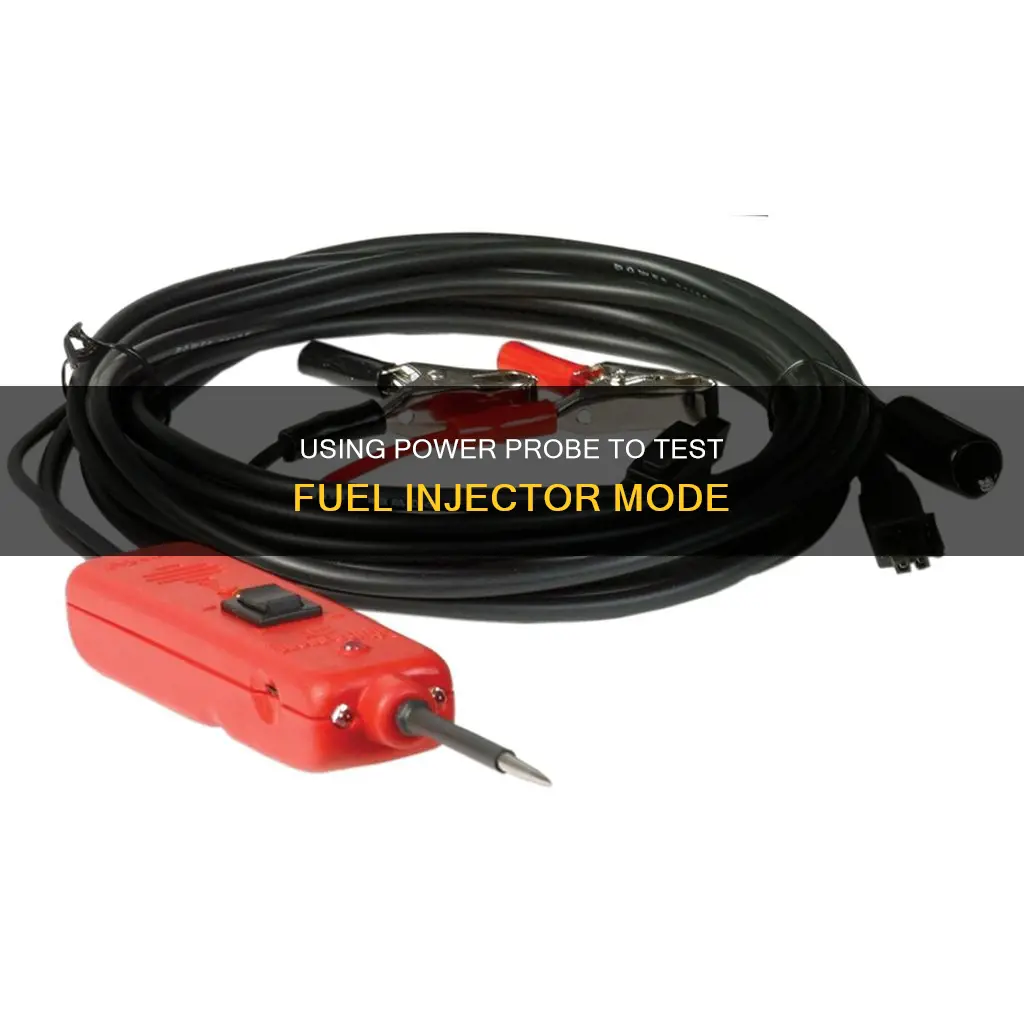

The Power Probe IV is a diagnostic circuit tester that can be used to test fuel injectors. It comes with a range of features, including a colour LCD display, multi-meter functions, and advanced diagnostic test modes. The Power Probe IV can be used to test the trigger signal from the PCM, the power circuit, and the operation of the injector itself. It can also be used to test the fuel injector valve and spray pattern. To test the valve, a 12-volt power source can be attached to the injector, and the user should be able to see the gauge fluctuate as the circuit is connected and disconnected. The spray pattern can be observed by attaching pressurized air to the injector inlet and a 12-volt power source to energize the injector.
| Characteristics | Values |
|---|---|
| Purpose | To test fuel injectors |
| Tool | Power Probe IV |
| Display | Easy-to-read colour LCD display |
| Functionality | Multi-meter functions, advanced diagnostic test modes |
| Use | Connect to car battery for access to diagnostic functions |
| Testing | Test positive and negative wiring, voltage wires, fuse boxes, motors, lights, relays, sensors, wires, communications circuits, computers |
| Safety | Safely measure up to 70 VAC |
| Additional | Water and dust resistant |
Explore related products
What You'll Learn
Using a Power Probe to test a fuel injector
The Power Probe IV is a diagnostic circuit tester that can be used to test a fuel injector. It comes with a range of features that make it a useful tool for automotive technicians, including an easy-to-read colour LCD display, powerful multi-meter functions, and advanced diagnostic test modes.
To test a fuel injector, the first step is to check the trigger (ground) signal from the PCM, the power circuit, and the operation of the injector itself. A test light or voltmeter can be used to test the injector signal from the computer. If using a voltmeter, check the resistance through the injector. As fuel may be present, take the usual fire precautions and wear protective gloves and eyewear.
With the key in the 'on' position, use a test light or voltmeter connected to the negative side of the battery. Gently probe both sides of the injector wiring connector; one of the wires should react by registering around 12 volts on the meter or illuminating the test light.
To test the valve and spray pattern of the injector, carefully attach a 12-volt power (power and ground) source to the injector. If the injector valve is working and not plugged, you should see the gauge fluctuate as you connect and disconnect the circuit. To check the spray pattern, the injector must be removed. Attach pressurized air to the injector inlet and a 12-volt power and ground source to energize the injector. Compressed air should be released from the outlet valve with traces of fuel. Observe the pattern; it should be robust. If the pattern is muted, the injector should be replaced.
