Regan Brown

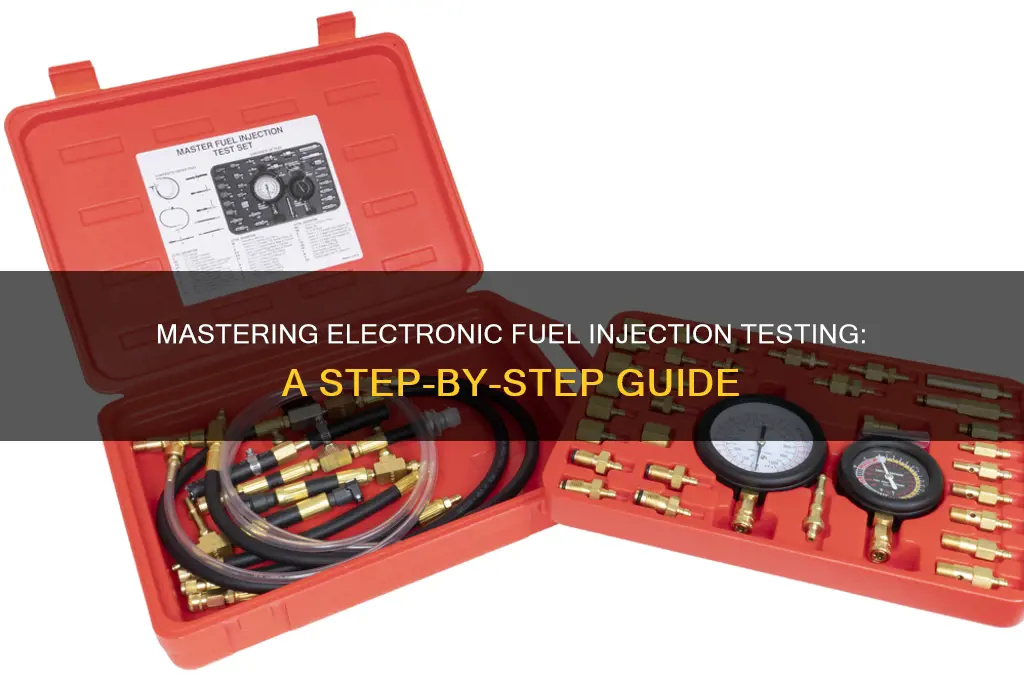

Electronic fuel injection (EFI) testers are essential tools for diagnosing and maintaining modern vehicle engines, offering precise insights into fuel system performance. These devices connect to the EFI system to measure fuel pressure, flow, and injector functionality, ensuring optimal engine operation. To use an EFI tester, start by locating the fuel rail Schrader valve or injector harness, then securely attach the tester according to the manufacturer’s instructions. Activate the fuel pump to simulate engine operation and observe the tester’s readings to identify issues like clogged injectors, leaks, or pressure irregularities. Regular use of an EFI tester can prevent costly repairs and maintain fuel efficiency, making it a valuable tool for both professionals and DIY enthusiasts.
Explore related products
What You'll Learn
Understanding EFI Tester Components
Electronic fuel injection (EFI) testers are indispensable tools for diagnosing and maintaining modern vehicle engines, but their effectiveness hinges on understanding the components that make them work. At the heart of any EFI tester is the pressure gauge, which measures fuel pressure in the system. This component is critical because it directly indicates whether the fuel pump is operating within the manufacturer’s specified range, typically between 30 and 60 PSI for most vehicles. Without accurate pressure readings, diagnosing issues like clogged fuel filters or failing pumps becomes guesswork.
Another essential component is the flow meter, which assesses the volume of fuel delivered to the engine. This is particularly useful for identifying restrictions in the fuel line or a malfunctioning fuel injector. For instance, a flow rate significantly below the expected 1.5 to 2.5 gallons per hour (GPH) at idle could signal a problem. Pairing the flow meter with a fuel pressure regulator tester allows technicians to simulate different engine loads and observe how the system responds, ensuring it can maintain optimal pressure under varying conditions.
The injector tester is a standout feature, enabling users to test individual fuel injectors for clogs, leaks, or inconsistent spray patterns. This component often includes a pulse width simulator, which mimics the electrical signals sent by the engine’s computer to the injectors. By connecting the injector to the tester and observing the spray pattern against a backlit screen, technicians can pinpoint faulty injectors without removing them from the vehicle. This saves time and reduces the risk of misdiagnosis.
Lastly, the diagnostic interface bridges the gap between the tester and the vehicle’s ECU (Engine Control Unit). This component reads error codes, monitors live data, and allows for adjustments to fuel maps or timing. Modern EFI testers often include Bluetooth or USB connectivity, enabling seamless integration with diagnostic software. For example, using a tester with OBD-II compatibility can reveal codes like P0171 (System Too Lean) or P0300 (Random Misfire), providing actionable insights into fuel system issues.
Understanding these components transforms an EFI tester from a mere tool into a precision instrument. By mastering the pressure gauge, flow meter, injector tester, and diagnostic interface, technicians can diagnose fuel system issues with confidence, ensuring vehicles run efficiently and reliably. Each component serves a unique purpose, and their combined functionality makes the EFI tester an invaluable asset in any automotive workshop.
Do Cruise Ships Use Diesel Fuel? Uncovering the Power Behind Ocean Liners
You may want to see also
Explore related products
Connecting Tester to Vehicle’s EFI System
Connecting an electronic fuel injection (EFI) tester to a vehicle’s EFI system requires precision and an understanding of the vehicle’s specific wiring harness. Most EFI testers come with universal connectors, but compatibility varies across makes and models. Start by identifying the diagnostic port, typically located near the driver’s side lower dashboard or under the hood. Consult the vehicle’s manual or the tester’s instructions to ensure the correct adapter is used. Incorrect connections can damage the ECU or skew readings, so double-check pin configurations before proceeding.
Once the correct adapter is identified, power off the vehicle and disconnect the battery to prevent electrical surges. Attach the tester’s main unit to the diagnostic port, ensuring a secure fit. Some testers require additional probes or clamps to monitor fuel pressure or voltage directly from the fuel rail or injector harness. For example, a fuel pressure tester might need a Schrader valve adapter, while a voltage tester may use alligator clips. Always follow the manufacturer’s guidelines for probe placement to avoid interference with the EFI system’s operation.
After physical connections are made, power on the vehicle and the tester simultaneously. Most EFI testers have a calibration phase where they sync with the vehicle’s ECU. This process can take up to 30 seconds, during which the tester may display a “waiting” or “initializing” message. If the tester fails to connect, verify all cables are firmly attached and the ignition is in the correct position (usually “ON” without starting the engine). Some vehicles may require cycling the key on and off to establish communication.
Interpreting the tester’s readings is critical for diagnosing EFI issues. Common parameters to monitor include fuel pressure (ideal range: 30–60 PSI for most vehicles), injector pulse width (typically 2–5 milliseconds), and voltage supply (12–14 volts). Abnormal readings, such as low fuel pressure or erratic injector pulses, indicate potential faults in the EFI system. For instance, a clogged fuel filter might cause pressure to drop below 40 PSI, while a faulty injector could show inconsistent pulse widths. Use the tester’s diagnostic codes or manual to correlate readings with specific issues.
Finally, disconnect the tester by reversing the connection process. Turn off the vehicle and tester, then carefully remove all probes and adapters. Reconnect the battery and ensure no wires are left exposed or tangled. Regularly cleaning the diagnostic port and tester connectors with electrical contact cleaner prevents corrosion and ensures reliable connections in future tests. Proper handling and storage of the tester prolong its lifespan and maintain accuracy, making it a valuable tool for both professional mechanics and DIY enthusiasts.
Mastering Cooking Gel Fuel: Safe and Efficient Usage Tips
You may want to see also
Explore related products
Interpreting Diagnostic Trouble Codes (DTCs)
Diagnostic Trouble Codes (DTCs) are the language of your vehicle's onboard diagnostics system, providing critical insights into what’s malfunctioning under the hood. When using an electronic fuel injection tester, interpreting these codes is the bridge between identifying a problem and resolving it. Each DTC is a five-character alphanumeric sequence, with the first letter indicating the system affected—P for powertrain, C for chassis, B for body, and U for network. For fuel injection issues, you’ll primarily focus on P-codes, which pinpoint problems like a faulty oxygen sensor (P0130-P0167) or a malfunctioning fuel injector (P0200-P0209). Understanding this structure is the first step to diagnosing efficiently.
Interpreting DTCs requires more than just reading the code; it demands context. For instance, a P0171 code indicates a lean air-fuel mixture, but this could stem from a vacuum leak, a clogged fuel filter, or a failing mass airflow sensor. Cross-referencing the code with symptoms—such as rough idling or reduced fuel efficiency—narrows down the root cause. Advanced testers often display live data, allowing you to monitor parameters like fuel pressure, engine RPM, and sensor voltages in real-time. This data, combined with the DTC, provides a clearer picture of the issue, ensuring you don’t replace parts unnecessarily.
Not all DTCs are created equal. Pending codes, for example, indicate intermittent issues that haven’t yet triggered the check engine light, while confirmed codes are persistent problems requiring immediate attention. Some codes are generic (standardized across manufacturers), while others are manufacturer-specific, often beginning with a P1. Tools like OBD-II scanners or electronic fuel injection testers decode these for you, but knowing the difference helps prioritize repairs. For instance, a generic P0300 code for random misfires might require a spark plug replacement, while a manufacturer-specific code could point to a proprietary sensor issue.
Practical tips can streamline the interpretation process. Always clear DTCs after repairs to confirm the issue is resolved—if the code reappears, the problem persists. Keep a log of codes and symptoms for recurring issues, as patterns can reveal underlying causes. For fuel injection systems, pay special attention to codes related to fuel pressure (P0087-P0093) or injector circuit malfunctions (P0200-P0209), as these directly impact engine performance. Lastly, consult the vehicle’s service manual or online databases for code definitions and troubleshooting steps specific to your make and model.
In conclusion, interpreting DTCs is both an art and a science. It requires a systematic approach, combining code knowledge with real-world diagnostics. By leveraging the capabilities of an electronic fuel injection tester and understanding the nuances of DTCs, you can diagnose and resolve fuel system issues with precision, saving time and money while keeping your vehicle running smoothly.
Exploring the Dominant Alternative Fuel: A Global Usage Analysis
You may want to see also
Explore related products
Testing Fuel Injector Performance
Fuel injectors are the heart of a vehicle's fuel system, delivering precise amounts of fuel to the engine for optimal combustion. Over time, they can become clogged, leak, or malfunction, leading to poor performance, reduced fuel efficiency, and even engine damage. Testing fuel injector performance is crucial for diagnosing these issues and ensuring your vehicle runs smoothly. An electronic fuel injection (EFI) tester is an invaluable tool for this task, offering a systematic approach to evaluate injector health.
To begin testing, connect the EFI tester to the fuel injector’s electrical connector, ensuring the engine is off and the fuel system is depressurized. Most testers allow you to simulate injector operation by sending a controlled electrical signal. Observe the injector’s spray pattern into a clean container. A healthy injector should produce a fine, consistent mist, while a faulty one may spray unevenly, dribble, or fail to spray altogether. Compare the results across all injectors to identify discrepancies, as even minor variations can indicate underlying problems.
One critical aspect of testing is measuring injector flow rate. Using the EFI tester, activate the injector for a set duration (e.g., 15 seconds) and measure the volume of fuel dispensed. A typical injector should deliver between 10 to 15 milliliters of fuel during this period, depending on the vehicle’s specifications. Significant deviations from this range suggest clogs, leaks, or internal wear. For example, a clogged injector may deliver only 5 milliliters, while a leaking one could exceed 20 milliliters.
Advanced EFI testers often include features like pressure testing and resistance measurement. Testing injector resistance with a multimeter (typically 12 to 16 ohms for most injectors) can reveal electrical issues. Pressure testing, on the other hand, evaluates the injector’s ability to withstand fuel system pressure. If an injector fails to maintain pressure or shows excessive resistance, it’s likely due for replacement. Always consult your vehicle’s manual for specific resistance and pressure values.
Finally, consider the environmental impact of testing. Fuel spills can harm both your workspace and the environment, so use a catch container and dispose of fuel properly. Additionally, wear safety gear, such as gloves and goggles, to protect against fuel exposure. By combining precision testing with safety precautions, you can effectively diagnose fuel injector issues and maintain your vehicle’s performance. Regular testing not only extends the life of your injectors but also ensures your engine operates at peak efficiency.
Boost Fuel Efficiency: Mastering Vacuum Gauge Use for Better Economy
You may want to see also
Explore related products
Adjusting Fuel Pressure and Flow Settings
Fuel pressure and flow are critical parameters in any electronic fuel injection (EFI) system, directly influencing engine performance, efficiency, and emissions. An electronic fuel injection tester allows you to measure and adjust these settings with precision, ensuring optimal operation. Begin by connecting the tester to the fuel rail pressure port and igniting the engine to establish a baseline reading. Most modern vehicles operate within a fuel pressure range of 30 to 60 psi, but consult your vehicle’s manual for specific values. Deviations from this range can lead to poor combustion, reduced power, or even engine damage.
Adjusting fuel pressure involves manipulating the fuel pressure regulator, typically located near the fuel rail. Loosen the locknut on the regulator and turn the adjustment screw clockwise to increase pressure or counterclockwise to decrease it. Each full turn of the screw typically changes pressure by 2–3 psi, so make small adjustments and retest with the EFI tester to avoid overshooting the target value. For example, if your baseline pressure reads 48 psi but the optimal value is 52 psi, turn the screw approximately one full turn clockwise, then verify the new reading. Always ensure the engine is idling during adjustments for accurate feedback.
Flow settings, often overlooked, are equally important for maintaining a consistent fuel supply. Use the EFI tester’s flow measurement feature to assess the volume of fuel delivered per unit time, typically measured in liters per hour (LPH) or gallons per hour (GPH). Ideal flow rates vary by engine size and load, but a common benchmark is 10–15 LPH at idle for a 2.0L engine. If flow is insufficient, inspect the fuel filter and pump for clogs or wear. Conversely, excessive flow may indicate a faulty pressure regulator or leaking injector. Adjustments here often require component replacement rather than calibration.
A comparative analysis of pressure and flow reveals their interdependence: pressure drives flow, but flow resistance can affect pressure. For instance, a clogged fuel filter restricts flow, causing pressure to rise upstream of the obstruction. Conversely, a leaking injector reduces pressure while increasing flow. When adjusting one parameter, always retest the other to ensure balance. This iterative process, facilitated by the EFI tester, ensures both metrics align with manufacturer specifications, optimizing engine performance.
In practice, adjusting fuel pressure and flow requires patience and attention to detail. Start with pressure adjustments, as they have a more immediate impact on engine behavior. Once pressure is stable, address flow issues by inspecting and replacing components as needed. Regular testing with an EFI tester, especially after modifications or repairs, ensures long-term reliability. For advanced users, logging pressure and flow data during different driving conditions can provide insights into system efficiency and potential areas for improvement. Mastery of these adjustments transforms the EFI tester from a diagnostic tool into a performance-tuning instrument.
Efficiently Clean Your Fuel Oil Furnace Chimney: A Step-by-Step Guide
You may want to see also
Frequently asked questions
An electronic fuel injection tester is a diagnostic tool used to test and troubleshoot fuel injection systems in vehicles. It measures fuel pressure, flow, and injector performance, helping identify issues like clogged injectors, fuel pump failures, or system leaks.
To connect the tester, first locate the fuel rail or injector harness. Attach the tester’s fuel pressure gauge to the fuel rail using the appropriate adapter. For injector testing, connect the tester’s leads to the injector harness or directly to the injectors, following the manufacturer’s instructions.
Start by disconnecting the fuel injector electrical connector. Connect the tester to the injector and activate the tester to pulse the injector. Observe the spray pattern, duration, and consistency. Compare results to the manufacturer’s specifications to determine if the injector is functioning correctly.
