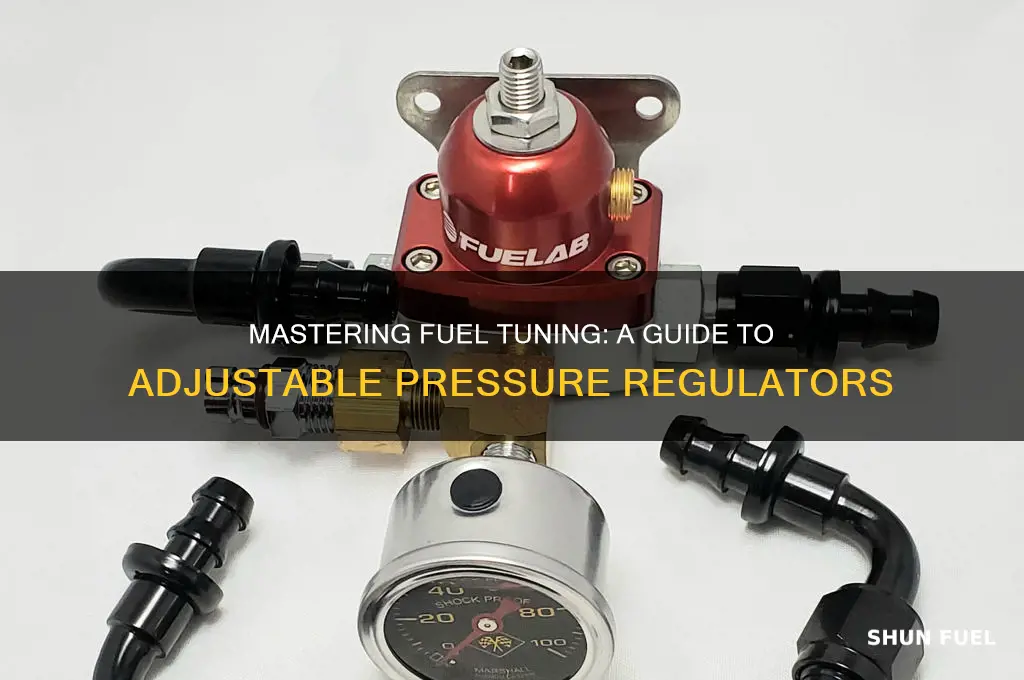

An adjustable fuel pressure regulator is a critical component in a vehicle's fuel system, allowing precise control of fuel pressure to optimize engine performance, especially in modified or high-performance setups. To use it effectively, start by mounting the regulator near the fuel rail for easy access and ensuring it’s compatible with your fuel system. Connect the fuel lines according to the manufacturer’s instructions, typically with the inlet port receiving fuel from the pump, the outlet port supplying fuel to the engine, and the return port sending excess fuel back to the tank. Adjust the pressure by turning the regulator’s screw or dial, referencing a fuel pressure gauge to achieve the desired PSI, which should align with your engine’s requirements. Always secure connections to prevent leaks, and test the system under various driving conditions to ensure stability and performance. Regularly monitor and fine-tune the pressure as needed to maintain optimal engine operation.
| Characteristics | Values |
|---|---|
| Purpose | To regulate and adjust fuel pressure in the fuel system for optimal engine performance. |
| Compatibility | Works with carbureted or fuel-injected engines. |
| Adjustment Range | Typically 1-100 PSI (varies by model). |
| Adjustment Mechanism | Screw or dial for precise pressure adjustments. |
| Installation Location | Between the fuel pump and fuel rail/carburetor. |
| Pressure Gauge | Often requires a separate fuel pressure gauge for accurate adjustments. |
| Fuel Type | Compatible with gasoline, diesel, or ethanol blends (check specs). |
| Material | Usually made of aluminum or stainless steel for durability. |
| Maintenance | Regularly check for leaks and ensure proper pressure settings. |
| Safety Precautions | Work with engine off and relieve fuel system pressure before adjusting. |
| Common Applications | Performance tuning, high-boost turbo/supercharged setups, racing. |
| Adjustment Steps | 1. Disconnect fuel pump. 2. Adjust regulator screw. 3. Reconnect and test. |
| Troubleshooting | Check for clogs, leaks, or incorrect pressure settings if issues arise. |
| Price Range | $50 - $300 (varies by brand and features). |
| Popular Brands | Aeromotive, Holley, Fuelab, DeatschWerks. |
Explore related products
What You'll Learn
- Understanding regulator components and their functions for proper adjustment and maintenance
- Setting base fuel pressure accurately to match engine requirements and performance goals
- Adjusting pressure under vacuum for consistent fuel delivery across varying engine loads
- Using a fuel pressure gauge to monitor and fine-tune pressure levels effectively
- Troubleshooting common issues like leaks, instability, or incorrect pressure readings
Understanding regulator components and their functions for proper adjustment and maintenance
An adjustable fuel pressure regulator is a precision instrument, and its effectiveness hinges on understanding its core components. The adjustment screw is the most visible and frequently manipulated part, allowing you to increase or decrease fuel pressure by altering the spring tension inside the regulator. The diaphragm acts as a barrier between the fuel pressure and the spring, translating pressure changes into mechanical movement. The spring provides the counterforce to the fuel pressure, and its tension directly influences the regulator’s setpoint. Lastly, the pressure port connects the regulator to the fuel system, allowing it to monitor and control the fuel pressure dynamically. Without a clear grasp of these components, adjustments can lead to inefficiency, engine damage, or even safety hazards.
Consider the diaphragm, for instance, which is often overlooked but critical. Made of durable yet flexible materials like nitrile or Viton, it must withstand constant exposure to fuel and pressure fluctuations. Over time, it can degrade, leading to leaks or inaccurate pressure regulation. Inspecting the diaphragm for cracks, swelling, or brittleness during maintenance is essential, especially in high-performance or aged vehicles. Replacing a worn diaphragm is a straightforward task but one that requires compatibility with the regulator’s make and model. Neglecting this component can render even the most precise adjustments ineffective.
Adjusting the regulator requires a systematic approach. Start by verifying the base pressure—the pressure when the engine is off—using a fuel pressure gauge. This should align with the manufacturer’s specifications, typically between 30 and 60 PSI for carbureted systems and 40 to 60 PSI for fuel-injected systems. Turn the adjustment screw clockwise to increase pressure and counterclockwise to decrease it, making incremental changes of no more than 1/8 turn at a time. After each adjustment, allow the system to stabilize for 30 seconds before rechecking the pressure. Over-tightening the screw can damage the internal components, while under-tightening may result in insufficient pressure.
Maintenance is equally critical to ensure longevity and reliability. Regularly clean the pressure port to prevent debris from obstructing fuel flow, which can cause erratic pressure readings. Lubricate the adjustment screw with a small amount of motor oil to prevent seizing, but avoid over-lubrication, as excess oil can contaminate the fuel. For regulators with interchangeable springs, ensure the spring rate matches the engine’s requirements—a stiffer spring for higher pressure and a softer spring for lower pressure. Always consult the regulator’s manual for specific spring rates and compatibility.
In high-performance applications, such as turbocharged or supercharged engines, the regulator’s role becomes even more critical. These engines demand precise fuel pressure control to match increased air intake, often requiring regulators with higher pressure capabilities. For example, a turbocharged engine might need a regulator set to 60–80 PSI to maintain optimal air-fuel ratios under boost. In such cases, upgrading to a regulator with a heavier-duty diaphragm and a more robust spring assembly can prevent failure under extreme conditions. Always pair adjustments with a wideband oxygen sensor to monitor air-fuel ratios and ensure the engine runs safely and efficiently.
