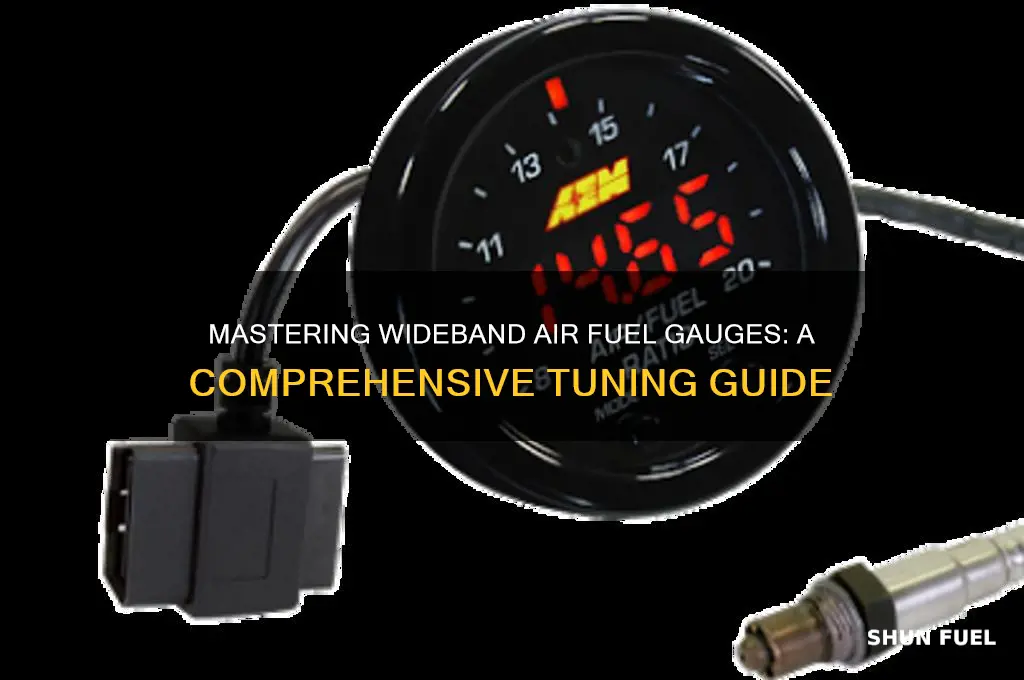

A wideband air fuel gauge is an essential tool for tuning and optimizing engine performance, providing precise measurements of the air-fuel ratio (AFR) in real-time. Unlike narrowband gauges, which offer limited accuracy, wideband gauges use advanced sensors to deliver a broader and more accurate AFR range, typically from 8:1 to 20:1. To use a wideband air fuel gauge effectively, start by installing the sensor in the exhaust system, ensuring it’s positioned correctly for optimal readings. Connect the gauge to the sensor and power it up, allowing it to calibrate and display the current AFR. During engine operation, monitor the gauge to identify deviations from the ideal AFR, which varies depending on the engine’s load and RPM. Adjustments can then be made to the fuel system or tuning software to achieve the desired ratio, improving performance, fuel efficiency, and emissions. Regular use of a wideband gauge is crucial for both dyno tuning and on-road adjustments, ensuring the engine operates at its peak potential.
| Characteristics | Values |
|---|---|
| Purpose | Measures air-fuel ratio (AFR) in real-time for optimal engine performance. |
| Installation Location | Exhaust system, post-catalytic converter (for accurate readings). |
| Power Source | 12V vehicle battery or dedicated power supply. |
| Sensor Type | Wideband O2 sensor (e.g., Bosch LSU 4.9). |
| Display Unit | Digital gauge or integrated into ECU/tuning software. |
| AFR Range | Typically 8:1 to 20:1 (stoichiometric ratio for gasoline is ~14.7:1). |
| Warm-Up Time | 1-3 minutes for accurate readings (sensor needs to reach operating temp). |
| Calibration | Periodic calibration using known AFR values (e.g., free air or propane). |
| Data Logging | Can log AFR data for tuning and analysis (via OBD-II or standalone units). |
| Compatibility | Works with gasoline, ethanol, and other fuels (adjustments may be needed). |
| Accuracy | ±0.1 AFR (high precision compared to narrowband sensors). |
| Response Time | <100ms (fast response for real-time tuning). |
| Common Applications | Performance tuning, fuel efficiency optimization, and engine diagnostics. |
| Maintenance | Regularly clean sensor and check wiring for damage. |
| Cost | $100-$500 (depending on brand and features). |
| Safety Precautions | Avoid exposure to extreme heat or chemicals during installation. |
Explore related products
What You'll Learn
- Understanding AFR Readings: Learn to interpret air/fuel ratio values for optimal engine performance
- Installing the Gauge: Properly mount and wire the wideband gauge in your vehicle
- Calibrating the Sensor: Ensure accurate readings by calibrating the wideband sensor regularly
- Tuning with Data: Use AFR data to adjust fuel maps and improve engine efficiency
- Troubleshooting Issues: Diagnose common problems like faulty sensors or inaccurate readings
Understanding AFR Readings: Learn to interpret air/fuel ratio values for optimal engine performance
Air/fuel ratio (AFR) readings are the heartbeat of engine tuning, revealing how efficiently your engine combusts fuel. A wideband air/fuel gauge measures this ratio in real-time, displaying values that range from rich (low numerical value, excess fuel) to lean (high numerical value, insufficient fuel). For gasoline engines, the stoichiometric AFR—the chemically ideal balance—is 14.7:1. Deviations from this ratio directly impact performance, emissions, and engine health. Understanding these values isn’t just about numbers; it’s about recognizing how they correlate to throttle response, fuel efficiency, and power output.
Interpreting AFR readings requires context. During idle, a slightly rich mixture (13.0–13.5:1) stabilizes the engine, while under load, values may drop to 11.5:1 or lower to maximize power. Conversely, cruising might show leaner readings (15.0–16.0:1) for efficiency. However, extremes are dangerous: prolonged rich conditions waste fuel and foul spark plugs, while lean mixtures risk detonation and engine damage. The goal is to maintain target AFRs for each driving condition, balancing power and longevity.
To effectively use a wideband gauge, log AFR data during different driving scenarios. For example, record values during acceleration, cruising, and deceleration. Analyze spikes or drops—a sudden lean reading under load could indicate a fuel delivery issue, while a rich spike at idle might suggest a vacuum leak. Tools like data logging software can overlay AFR with RPM, throttle position, and timing, providing a comprehensive view of engine behavior. This analytical approach transforms raw numbers into actionable insights.
Practical tips enhance accuracy and usability. Ensure the wideband sensor is properly installed and calibrated, as environmental factors like temperature affect readings. Use the gauge’s features, such as peak-hold or averaging, to simplify data interpretation. For tuners, adjusting fuel maps based on AFR feedback is critical—small changes (0.1–0.2 AFR points) can yield significant improvements. Regularly cross-reference AFR data with other sensors (e.g., O2 sensors) to validate accuracy and diagnose discrepancies.
Mastering AFR readings isn’t just about hitting target numbers; it’s about understanding the story they tell. A rich mixture under load might be intentional for turbo protection, while a lean cruise could optimize mileage. By combining technical knowledge with practical application, you’ll unlock the full potential of your wideband gauge, ensuring your engine performs at its peak while avoiding costly mistakes.
Twin Turbo Fuel Efficiency: Does It Consume More Gas?
You may want to see also
Explore related products
Installing the Gauge: Properly mount and wire the wideband gauge in your vehicle
Mounting a wideband air/fuel gauge begins with selecting the ideal location for visibility and accessibility. Avoid areas prone to excessive heat, moisture, or vibration, such as directly above the engine or near the windshield defroster vents. A common choice is the A-pillar, where the gauge remains within the driver’s peripheral vision without obstructing the road. Ensure the mounting surface is clean and flat, using a dashboard mount or custom bracket if necessary. Secure the gauge firmly to prevent rattling or detachment during aggressive driving.
Wiring the gauge requires precision and adherence to the manufacturer’s instructions. Start by connecting the power wire (typically red) to a switched 12V source, such as the fuse box or ignition-switched accessory circuit. This ensures the gauge powers on only when the vehicle is running, conserving battery life. Ground the black wire to a clean, unpainted metal surface on the chassis for a reliable electrical connection. The sensor’s wiring includes a signal wire (often white) and a heater wire (often yellow), both of which must be connected to the gauge’s corresponding terminals. Use heat-shrink tubing or electrical tape to insulate all connections and protect them from short circuits.
Routing the wiring harness demands careful planning to avoid interference with moving parts or hot surfaces. Secure the wires using zip ties or adhesive clips along the firewall, under the dashboard, and through the engine bay. For the sensor, position it in the exhaust stream, ideally 12–18 inches downstream from the exhaust manifold or catalytic converter. Ensure the sensor is installed with the bung pointing toward the flow of exhaust gases to prevent damage from debris or backpressure.
Calibration is the final step to ensure accurate readings. Most wideband gauges require an initial setup using a calibration screwdriver or menu settings. Follow the manufacturer’s procedure, which often involves adjusting the zero and free-air points. For example, AEM and Innovate Motorsports gauges typically use a two-point calibration process: one in free air (20.9:1) and another with a calibration gas (such as 4.0:1). Regularly recalibrate the gauge every 6–12 months or after sensor replacement to maintain precision.
Proper installation not only ensures functionality but also prolongs the gauge’s lifespan. A well-mounted and wired wideband gauge provides real-time air/fuel data critical for tuning, diagnostics, and performance optimization. By following these steps meticulously, you’ll achieve a clean, professional setup that integrates seamlessly into your vehicle’s interior and engine bay.
Harnessing Biomass Fuels: Sustainable Electricity Generation Explained
You may want to see also
Explore related products
Calibrating the Sensor: Ensure accurate readings by calibrating the wideband sensor regularly
Regular calibration of your wideband air/fuel gauge sensor is critical to maintaining precision in your engine's performance data. Over time, environmental factors, wear, and even fuel quality can cause the sensor to drift from its factory settings, leading to inaccurate readings. This drift can mislead you into making incorrect tuning decisions, potentially harming your engine or reducing efficiency. Calibration ensures that the sensor’s output aligns with the actual air/fuel ratio, providing reliable data for optimal performance.
To calibrate your wideband sensor, you’ll need a calibration gas with a known air/fuel ratio, typically a mixture of air and propane or butane. Most calibration gases are set to a stoichiometric ratio of 14.7:1, which is ideal for gasoline engines. Begin by connecting the calibration gas to the sensor’s input and allowing it to stabilize for a few minutes. Access the calibration menu on your gauge, which varies by manufacturer, and follow the prompts to adjust the sensor’s output to match the known ratio of the calibration gas. This process typically involves comparing the sensor’s reading to the gas’s known value and applying a correction factor.
While calibrating, pay attention to the sensor’s response time and stability. A sluggish or erratic response may indicate a failing sensor, even if the calibration appears successful. If the sensor fails to calibrate within the manufacturer’s specified tolerance, it’s likely time for a replacement. Calibration frequency depends on usage—for daily drivers, calibrate every 6–12 months, while high-performance or racing applications may require calibration before each session to account for extreme conditions.
A practical tip is to document each calibration session, noting the date, gas used, and any adjustments made. This record helps track the sensor’s performance over time and identifies trends that may signal degradation. Additionally, store your calibration gas in a cool, dry place to maintain its integrity, as exposure to heat or moisture can alter its composition. Proper calibration not only ensures accurate readings but also extends the sensor’s lifespan by catching issues early.
In conclusion, calibrating your wideband sensor is a straightforward yet essential task that safeguards the accuracy of your air/fuel gauge. By investing time in regular calibration, you’ll maintain confidence in your tuning decisions and protect your engine from the consequences of unreliable data. Treat calibration as a non-negotiable part of your maintenance routine, and your wideband gauge will remain a trusted tool in your performance arsenal.
Has Your Vehicle's Alternative Fuel Credit Been Utilized? Find Out Now
You may want to see also
Explore related products
Tuning with Data: Use AFR data to adjust fuel maps and improve engine efficiency
Accurate air-fuel ratio (AFR) data is the cornerstone of effective engine tuning. A wideband air-fuel gauge provides real-time feedback on the mixture entering the combustion chamber, allowing you to pinpoint inefficiencies and optimize performance. Unlike narrowband sensors, which offer a binary "rich" or "lean" reading, wideband gauges deliver a precise AFR value, typically ranging from 9:1 to 18:1. This granularity is crucial for fine-tuning fuel maps, especially in modified or high-performance engines where stock calibrations fall short.
To leverage AFR data for tuning, start by logging baseline readings across the entire RPM and load range. Use a data logging system to record AFR alongside parameters like throttle position, manifold pressure, and ignition timing. Analyze the logs for deviations from the target AFR, which varies depending on the engine’s operating conditions. For example, a naturally aspirated engine typically runs best at 14.7:1 under light load, while a turbocharged setup may require 11.5:1 to 12.5:1 under boost to prevent detonation. Identify areas where the AFR is excessively rich (wasting fuel) or dangerously lean (risking engine damage).
Once you’ve identified discrepancies, adjust the fuel map in your engine management system (EMS) to correct the AFR. Most EMS platforms allow you to modify fuel trim tables based on RPM and load. For instance, if the AFR is lean at 4,000 RPM and 50% throttle, increase the fuel multiplier in that cell by 2-3%. Conversely, reduce the multiplier for rich conditions. After each adjustment, retest and log the AFR to confirm the change. Iterative tuning is key—small, incremental adjustments yield more consistent results than large, sweeping changes.
Caution: Over-reliance on AFR data without considering other factors can lead to suboptimal results. For example, a rich AFR might indicate a fuel delivery issue rather than a need for map adjustments. Always cross-reference AFR data with other sensors, such as intake air temperature and fuel pressure, to diagnose root causes. Additionally, avoid chasing "perfect" AFR values at the expense of drivability. A slightly richer mixture may improve throttle response or reduce knock, even if it deviates from theoretical ideals.
The ultimate goal of AFR-based tuning is to maximize efficiency and power while ensuring reliability. By systematically adjusting fuel maps using wideband data, you can achieve a balanced mixture that optimizes combustion under all conditions. This not only enhances performance but also extends engine life by minimizing the risk of lean misfire or rich fouling. Whether you’re tuning a daily driver or a race car, AFR data is your most valuable tool for achieving precision and consistency.
Mastering Propane BBQ Pit Construction: A Step-by-Step Guide
You may want to see also
Explore related products
Troubleshooting Issues: Diagnose common problems like faulty sensors or inaccurate readings
A wideband air/fuel gauge is a precision tool, but even the best instruments can falter. When readings seem erratic or consistently off, suspect sensor degradation. Oxygen sensors, the heart of the system, have a finite lifespan, typically 30,000 to 50,000 miles. Age, contamination from leaded fuel or oil ash, and exposure to extreme temperatures accelerate their decline. If your gauge shows a constant rich or lean condition despite adjustments, or if it fails to respond to changes in engine load, a faulty sensor is the likely culprit.
Diagnosing sensor issues requires a systematic approach. Start by verifying the gauge’s functionality with a known calibration gas, such as a 4.0:1 air/fuel ratio mixture. If the gauge reads accurately, the problem lies elsewhere. Next, inspect the sensor’s wiring harness for damage or loose connections. Corroded pins or frayed wires can introduce noise or interrupt the signal. If the wiring is intact, test the sensor’s heater circuit. A malfunctioning heater will prevent the sensor from reaching operating temperature, leading to slow or inaccurate readings.
Inaccurate readings can also stem from improper installation or placement. The sensor must be mounted in a location with adequate exhaust flow, free from turbulence or restrictions. Ensure the bung is correctly threaded and sealed to prevent exhaust leaks, which can dilute the sample gas. For turbocharged or supercharged engines, avoid placing the sensor too close to the turbo, where temperatures exceed the sensor’s 1,600°F limit. Incorrect placement not only skews readings but can damage the sensor irreparably.
Environmental factors play a subtle but significant role in gauge performance. Water intrusion, often from pressure washing or deep water crossings, can short-circuit the sensor or control unit. Similarly, exposure to chemicals like brake cleaner or fuel can degrade the sensor’s protective coating. Always disconnect the gauge before cleaning the engine bay and use dielectric grease on connectors to prevent moisture ingress. If water damage is suspected, disassemble the sensor and control unit, clean with isopropyl alcohol, and allow to dry completely before reassembly.
Finally, software or calibration issues can mimic hardware failures. Ensure the gauge’s firmware is up to date, as manufacturers often release updates to improve accuracy or compatibility. If using a gauge with adjustable fuel tables, verify that the settings match your engine’s configuration. Overly aggressive tuning or incorrect fuel type (e.g., ethanol vs. gasoline) can lead to readings that appear faulty but are actually a result of mismatched parameters. Cross-reference the gauge’s readings with a secondary tool, like a narrowband O2 sensor or dyno data, to confirm discrepancies before replacing components.
Troubleshooting a wideband air/fuel gauge demands patience and methodical thinking. By isolating variables—sensor health, installation, environment, and software—you can pinpoint the root cause of inaccurate readings. Regular maintenance, such as annual sensor inspections and firmware updates, minimizes downtime and ensures the gauge remains a reliable diagnostic tool. Remember, a wideband gauge is only as good as its weakest link; address issues promptly to maintain its precision.
The Historical Journey of Oil: From Ancient Times to Modern Fuel
You may want to see also
Frequently asked questions
A wideband air fuel gauge is a device that measures the air-fuel ratio (AFR) of an engine in real-time, providing precise data across a wide range of ratios (typically 8:1 to 20:1). It is crucial for tuning because it helps optimize engine performance, fuel efficiency, and emissions by ensuring the AFR is within the ideal range for the engine's operating conditions.
Installation involves mounting the gauge in the cabin, connecting the sensor to the exhaust system, and wiring the gauge to the vehicle’s power source and sensor. Follow the manufacturer’s instructions for specific steps, ensuring the sensor is securely installed in the exhaust stream and all connections are tight and properly grounded.
The gauge displays the AFR as a numerical value. A reading of 14.7:1 indicates a stoichiometric mixture (ideal for gasoline engines under normal conditions). Rich mixtures (lower numbers, e.g., 12:1) mean more fuel, while lean mixtures (higher numbers, e.g., 16:1) mean more air. Adjustments to the engine’s tuning should be made based on the target AFR for the specific application (e.g., performance, economy, or racing).
