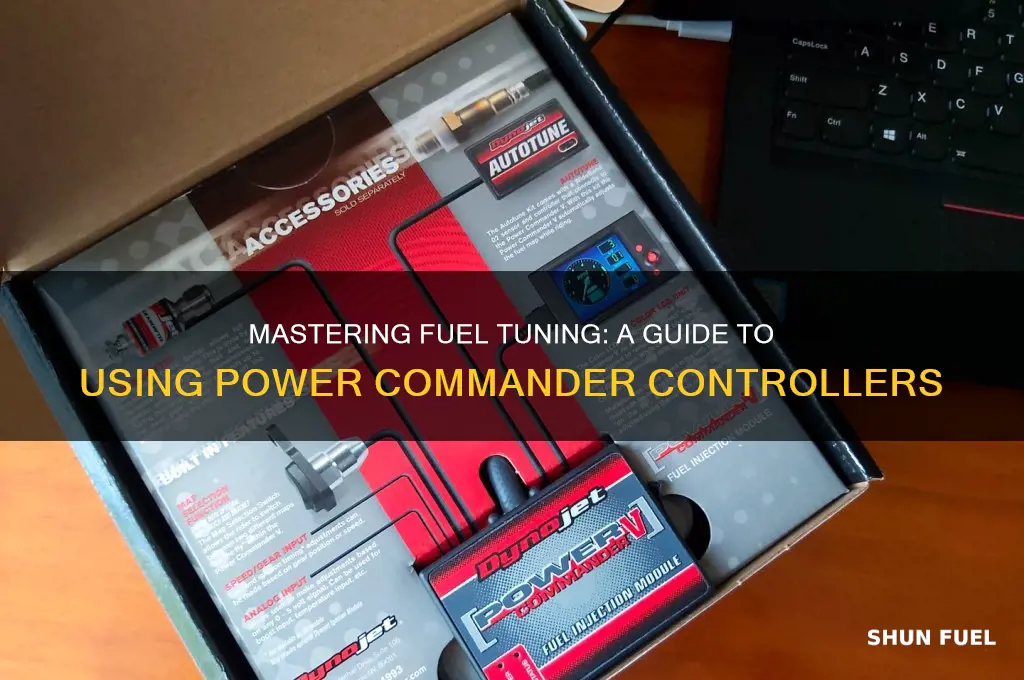

The Power Commander fuel controller is a vital tool for optimizing motorcycle performance, allowing riders to fine-tune their bike's fuel injection system for improved throttle response, power delivery, and fuel efficiency. By adjusting fuel and ignition maps, this device compensates for modifications like exhaust systems, air filters, or engine upgrades, ensuring the engine runs at its best. Whether you're a seasoned mechanic or a DIY enthusiast, understanding how to use a Power Commander involves connecting it to your bike's ECU, installing the software, and making precise adjustments based on your specific setup and riding conditions. Proper use not only enhances performance but also ensures longevity and reliability of your motorcycle.
Explore related products
What You'll Learn
- Installation Basics: Mounting the Power Commander, connecting to ECU, securing wires, and ensuring proper placement
- Mapping Essentials: Loading base maps, adjusting fuel tables, and tuning for specific modifications
- Data Logging: Using software to monitor AFR, RPM, and throttle position for precise tuning
- Troubleshooting Tips: Diagnosing common issues like poor idle, backfiring, or inconsistent power delivery
- Advanced Tuning: Fine-tuning for altitude, temperature, and specific performance goals like racing or touring
Installation Basics: Mounting the Power Commander, connecting to ECU, securing wires, and ensuring proper placement
Mounting the Power Commander is the first critical step in optimizing your motorcycle’s fuel delivery system. Choose a location that is both accessible and protected from extreme heat or moisture. Common spots include under the seat, near the battery, or alongside the airbox. Ensure the unit is securely fastened using zip ties or mounting brackets to prevent vibration-related damage. Avoid placing it directly on metal surfaces without insulation, as this can interfere with its operation. Proper placement not only ensures longevity but also simplifies future adjustments or troubleshooting.
Connecting the Power Commander to the ECU requires precision and care. Start by identifying the correct wiring harness for your motorcycle model, as compatibility is key. The Power Commander typically connects inline between the ECU and the bike’s stock wiring, intercepting and modifying the fuel injection signals. Use a wiring diagram specific to your bike to avoid mistakes. When splicing wires, ensure connections are clean and soldered, then covered with heat shrink tubing to prevent shorts. Double-check polarity before finalizing connections to avoid damaging the ECU or the Power Commander itself.
Securing wires is often overlooked but essential for a clean and safe installation. Bundle excess wiring neatly using zip ties or wire looms to prevent interference with moving parts or exposure to exhaust heat. Route wires away from high-temperature areas and sharp edges that could cause abrasion. For added protection, consider using braided sleeving or electrical tape. Proper wire management not only enhances the bike’s aesthetics but also reduces the risk of electrical failures or accidents during rides.
Ensuring proper placement of the Power Commander and its wiring is the final step in a successful installation. Test all connections before fully reassembling the bike to verify functionality. Check for any error codes or unusual behavior during startup. Once confirmed, reattach any removed panels or components, ensuring everything is securely fastened. A well-executed installation not only improves performance but also maintains the reliability and safety of your motorcycle. Take your time, follow the manufacturer’s guidelines, and don’t hesitate to seek professional help if needed.
