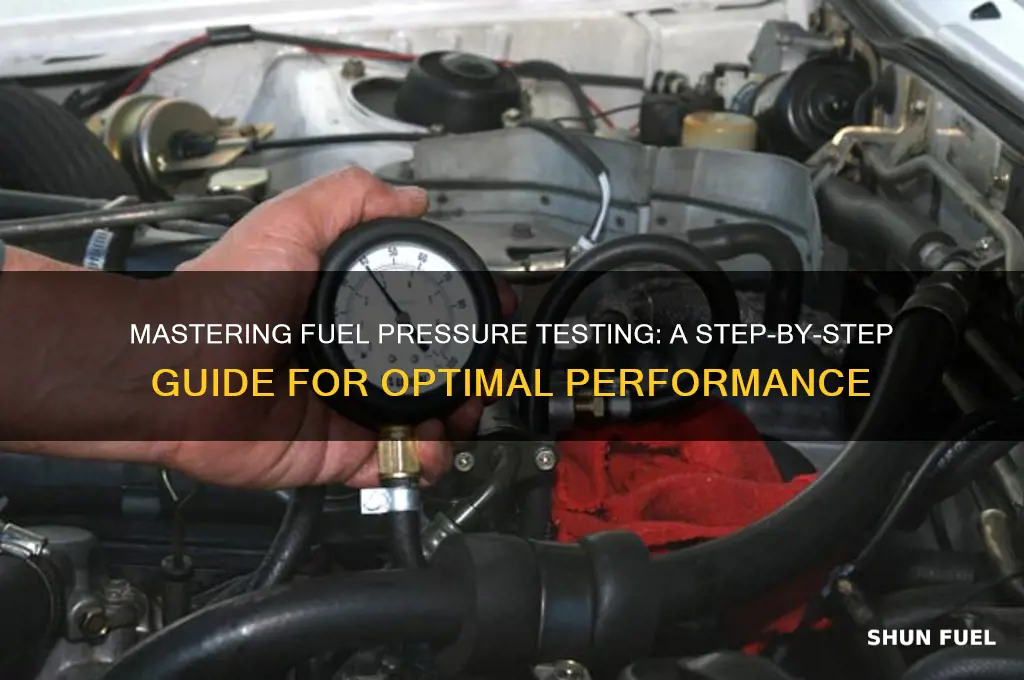

A fuel pressure test is a critical diagnostic procedure used to assess the performance and efficiency of a vehicle's fuel system. By measuring the pressure within the fuel lines, this test helps identify issues such as clogged fuel filters, faulty fuel pumps, or leaks, which can lead to poor engine performance, reduced fuel efficiency, or even engine failure. Using a fuel pressure gauge, technicians connect the tool to the fuel rail or Schrader valve, typically with the engine running, to obtain accurate readings. Understanding how to properly conduct this test ensures that potential problems are detected early, allowing for timely repairs and maintaining the overall health of the vehicle's fuel delivery system.
| Characteristics | Values |
|---|---|
| Purpose | To diagnose fuel system issues, ensure proper fuel delivery, and verify fuel pump performance. |
| Tools Required | Fuel pressure gauge, fuel pressure tester kit, wrenches, safety gloves, safety goggles. |
| Vehicle Compatibility | Applicable to most gasoline-powered vehicles with fuel injection systems. |
| Test Location | Fuel rail (for fuel-injected engines) or carburetor inlet (for older systems). |
| Pressure Specifications | Varies by vehicle; typically 30-60 PSI for most fuel-injected engines. Check vehicle manual. |
| Test Procedure | 1. Disconnect fuel pressure regulator vacuum hose (if applicable). 2. Attach fuel pressure gauge to fuel rail or test port. 3. Start engine and record pressure at idle and under load. 4. Compare readings to manufacturer specifications. |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, and ensure engine is cool before testing. |
| Common Issues Detected | Clogged fuel filter, weak fuel pump, leaking fuel pressure regulator, faulty fuel injectors. |
| Test Duration | Typically 10-15 minutes for a complete test. |
| Frequency of Testing | Recommended during routine maintenance or when fuel system issues are suspected. |
| Professional Assistance | Consult a mechanic if readings are inconsistent or if repairs are needed. |
| Environmental Impact | Ensure no fuel spills occur; dispose of fuel safely and in accordance with local regulations. |
| Cost of Testing | DIY kits range from $20-$100; professional testing may cost $50-$150. |
| Latest Advancements | Digital fuel pressure testers with real-time data logging and Bluetooth connectivity. |
Explore related products
What You'll Learn
- Gather Tools and Safety Gear: Assemble gauge, hoses, gloves, and safety glasses before starting the test
- Locate Fuel Pressure Port: Identify the test port on the fuel rail or fuel line
- Connect Gauge to System: Attach the pressure gauge securely to the fuel pressure port
- Run Engine and Record: Start the engine, note pressure at idle and under load
- Interpret Results and Adjust: Compare readings to specs, diagnose issues, and fix as needed
Gather Tools and Safety Gear: Assemble gauge, hoses, gloves, and safety glasses before starting the test
Before diving into a fuel pressure test, it's crucial to gather all necessary tools and safety gear. This preparatory step is often overlooked but can significantly impact the efficiency and safety of the procedure. Start by assembling a fuel pressure gauge, which is the primary tool for measuring the pressure in your vehicle's fuel system. Ensure the gauge is compatible with your vehicle's fuel type—gasoline or diesel—as using the wrong gauge can lead to inaccurate readings or damage. Alongside the gauge, you’ll need hoses that connect the gauge to the fuel system. These hoses should be in good condition, free from cracks or leaks, to prevent fuel spillage. Additionally, prepare gloves and safety glasses to protect yourself from fuel exposure, which can cause skin irritation or eye damage. Having everything ready before you begin not only saves time but also minimizes the risk of accidents during the test.
From an analytical perspective, the tools and safety gear you gather serve distinct purposes that align with the demands of a fuel pressure test. The gauge, for instance, must be calibrated to measure pressure within the specific range of your vehicle’s fuel system, typically between 30 and 70 psi for most gasoline engines. Hoses act as the conduit between the gauge and the fuel rail or Schrader valve, ensuring a secure connection that prevents leaks. Gloves and safety glasses are not just accessories but essential barriers against the hazardous nature of fuel, which can be flammable and toxic. By understanding the role of each item, you can appreciate why skipping this step could lead to incomplete diagnostics or personal injury. This analytical approach highlights the interconnectedness of tools and safety in achieving accurate and secure results.
Instructively, here’s a step-by-step guide to gathering your tools and safety gear: First, locate your fuel pressure gauge and inspect it for any signs of wear or damage. Ensure it’s rated for your vehicle’s fuel pressure range. Next, select hoses that are compatible with the gauge and fuel system, checking for cracks or brittleness. If you’re unsure about the hoses’ condition, replace them to avoid leaks. For safety gear, choose nitrile gloves, which are resistant to fuel and provide better dexterity than latex or leather gloves. Pair these with ANSI-rated safety glasses to protect your eyes from splashes. Organize all items in a clean, accessible area near your workspace to streamline the testing process. This methodical approach ensures you’re fully prepared before engaging with the fuel system.
Comparatively, gathering tools and safety gear for a fuel pressure test is akin to preparing for a surgical procedure—both require precision, foresight, and attention to detail. Just as a surgeon wouldn’t operate without sterilized instruments and protective gear, a mechanic shouldn’t perform a fuel pressure test without the right tools and safety measures. In both scenarios, the consequences of inadequate preparation can be severe, ranging from compromised results to physical harm. This comparison underscores the importance of treating this step with the same level of seriousness as any high-stakes task. By adopting a meticulous mindset, you elevate the quality and safety of your work.
Finally, a descriptive take on this process reveals the practical nuances that make it effective. Imagine laying out your workspace with the fuel pressure gauge at its center, its dial gleaming under the garage light, ready to capture precise readings. Beside it, the hoses coil neatly, their rubber surfaces smooth and intact, promising a leak-free connection. Nearby, a pair of nitrile gloves rests atop a workbench, their blue hue a stark contrast to the metallic tools, while safety glasses sit within arm’s reach, their lenses clear and unblemished. This visual setup not only ensures you’re prepared but also creates a sense of order that enhances focus and confidence. In this state, you’re not just gathering tools—you’re setting the stage for a successful and safe fuel pressure test.
Propane vs. Gas: Fuel Efficiency Comparison for Homeowners
You may want to see also
Explore related products
Locate Fuel Pressure Port: Identify the test port on the fuel rail or fuel line
The fuel pressure port is a critical access point for diagnosing engine performance issues, yet its location varies significantly across vehicle makes and models. Typically, it’s found on the fuel rail—a metal or composite tube that distributes fuel to the injectors—or directly on the fuel line. Identifying this port requires familiarity with your vehicle’s layout, often aided by consulting the owner’s manual or a repair guide specific to your model. Without precise location, even the most advanced pressure gauge becomes useless, underscoring the importance of this initial step in the testing process.
To locate the fuel pressure port, start by visually inspecting the engine bay with the hood open. Look for a small, threaded fitting on the fuel rail, often capped with a Schrader valve resembling a tire valve stem. In some vehicles, the port may be integrated into the fuel pressure regulator or located along the fuel line near the engine. If the port isn’t immediately visible, trace the fuel lines from the fuel filter or tank toward the injectors, as the port is usually positioned along this path. A flashlight and a mirror can aid in spotting it in tight or obscured areas.
Once identified, verify the port’s compatibility with your fuel pressure gauge. Most ports use a standard Schrader valve, but some high-performance or diesel systems may require adapters. Ensure the port is clean and free of debris before connecting the gauge, as contaminants can skew readings or damage the testing equipment. If the port appears damaged or corroded, address the issue before proceeding, as an unreliable connection can lead to inaccurate results or fuel leaks.
Practical tips for success include disconnecting the battery to prevent accidental fuel pump activation during testing and relieving fuel system pressure before attaching the gauge. For vehicles with returnless fuel systems, the port is often the only access point, making its identification even more critical. In contrast, systems with a return line may have multiple ports, so confirm which one corresponds to the pressure side of the system. This attention to detail ensures accurate diagnostics and avoids unnecessary complications during the test.
Sherman Tanks and Aircraft Fuel: Fact or Fiction Explained
You may want to see also
Explore related products
Connect Gauge to System: Attach the pressure gauge securely to the fuel pressure port
Attaching the pressure gauge to the fuel pressure port is a critical step in conducting a fuel pressure test, as it establishes the direct link between the gauge and the fuel system. This connection must be secure to ensure accurate readings and prevent fuel leaks, which can be both dangerous and messy. The fuel pressure port is typically located on the fuel rail or near the fuel filter, depending on the vehicle’s design. Before proceeding, consult the vehicle’s service manual to identify the exact location of the port and any specific requirements for your make and model.
To attach the gauge, start by ensuring the engine is off and the fuel system is depressurized. This is crucial for safety, as working on a pressurized fuel system can lead to injury or fire. Once the system is safe, remove the protective cap from the fuel pressure port, if present. Next, take the fuel pressure gauge and connect it to the port using the appropriate adapter. Most gauges come with a set of adapters to fit different port sizes, so select the one that matches your vehicle’s specifications. Thread the adapter onto the port by hand to avoid cross-threading, then tighten it securely with a wrench, being careful not to overtighten, as this can damage the port or cause leaks.
A common mistake when attaching the gauge is failing to use a suitable sealing mechanism, such as a rubber O-ring or Teflon tape, to ensure an airtight connection. Even a minor leak can compromise the test results and pose a safety risk. If your gauge or adapter includes an O-ring, inspect it for damage and replace it if necessary. For threaded connections, a single wrap of Teflon tape can provide an effective seal without restricting fuel flow. Once the gauge is attached, double-check the connection for tightness and ensure there are no visible signs of fuel seepage.
After securing the gauge, allow the system to pressurize by turning the ignition to the "on" position without starting the engine. Observe the gauge for an initial pressure reading, which should stabilize within a few seconds. Compare this reading to the manufacturer’s specifications for your vehicle, typically found in the service manual or online resources. A deviation from the expected range may indicate issues such as a clogged fuel filter, failing fuel pump, or leaking injector. If the gauge fails to register pressure, recheck the connection and ensure the gauge is functioning properly.
In summary, attaching the pressure gauge to the fuel pressure port requires precision, attention to detail, and adherence to safety protocols. By using the correct adapter, ensuring a tight seal, and verifying the connection, you can obtain reliable data to diagnose fuel system issues effectively. This step, though seemingly straightforward, is foundational to the accuracy and safety of the entire fuel pressure test process.
Does DTC Increase Fuel Consumption? Exploring the Impact on Efficiency
You may want to see also
Explore related products
Run Engine and Record: Start the engine, note pressure at idle and under load
The engine’s fuel pressure at idle and under load reveals critical insights into its health. At idle, optimal pressure typically ranges between 30 and 60 psi, depending on the vehicle’s make and model. Under load, such as during acceleration or climbing, pressure should remain stable, though slight fluctuations are normal. Deviations from these ranges—whether too high or too low—can indicate issues like a failing fuel pump, clogged filter, or leaky injector. This step in the fuel pressure test is diagnostic gold, isolating problems that static tests might miss.
To execute this phase effectively, start by connecting the fuel pressure gauge to the test port, usually located near the fuel rail. With the engine cold, turn the ignition to the "on" position (but don’t start it) to prime the system and note the initial pressure. Then, start the engine and let it stabilize at idle for 2–3 minutes. Record the pressure reading—this baseline is essential for comparison. Next, apply load by revving the engine to 2,000–2,500 RPM or driving the vehicle under moderate acceleration. Observe whether the pressure drops, spikes, or holds steady. A drop of more than 3–5 psi under load, for instance, could signal a weak fuel pump.
Comparing idle and load pressures offers a dynamic view of the fuel system’s performance. For example, a pressure drop under load often points to a fuel pump struggling to meet demand, while a spike might indicate a restricted return line. In diesel engines, pressure requirements differ—idle pressure may be as low as 20 psi, while under load it can reach 20,000 psi in common rail systems. Always consult the vehicle’s manual for specific pressure ranges, as tolerances vary widely across brands and models.
A practical tip: If you’re testing an older vehicle with a carburetor, the process differs slightly. Here, fuel pressure is lower (typically 2–6 psi), and the focus is on consistency rather than absolute values. For modern fuel-injected engines, use a digital gauge for precision, as analog gauges may lag in response. Additionally, ensure the engine is at operating temperature (around 190°F) for accurate results, as cold engines can skew readings.
In conclusion, running the engine and recording pressure at idle and under load is a cornerstone of fuel pressure testing. It transforms static data into actionable insights, pinpointing issues that affect performance, efficiency, and drivability. By mastering this step, you’ll diagnose fuel system problems with confidence, ensuring your vehicle runs smoothly and reliably.
Does Giving Fuel Use WePay? Exploring Payment Options for Fuel Donations
You may want to see also
Explore related products
Interpret Results and Adjust: Compare readings to specs, diagnose issues, and fix as needed
Once you’ve obtained fuel pressure readings, the real work begins: interpreting the data to diagnose and resolve issues. Start by comparing your readings to the manufacturer’s specifications, typically found in the vehicle’s service manual. For example, a Ford F-150 with a 5.0L V8 engine may specify a fuel pressure range of 30–60 PSI at idle. If your gauge reads 25 PSI, you’re clearly below spec, indicating a potential problem like a weak fuel pump, clogged filter, or faulty regulator. Conversely, a reading of 70 PSI suggests excessive pressure, which could damage injectors or cause hard starting.
Diagnosis requires a systematic approach. If pressure is low, inspect the fuel filter for clogs—a common culprit in older vehicles. Replace it if necessary, ensuring the new filter is compatible with your fuel system. Next, check the fuel pump’s electrical connections and relay for corrosion or damage. If these components are intact, the pump itself may be failing, requiring replacement. For high-pressure scenarios, examine the fuel pressure regulator. A leaking diaphragm or faulty vacuum hose can cause pressure to spike. Test the regulator by disconnecting the vacuum line and observing pressure changes; if it drops to spec, the regulator is likely at fault.
Adjustments should be made with precision. If the regulator is the issue, replace it with an OEM part to ensure compatibility. When dealing with fuel pump problems, consider the vehicle’s age and mileage—pumps typically last 100,000–150,000 miles, so a replacement may be due. For minor deviations from spec, verify the fuel pressure gauge’s accuracy by testing it on a known pressure source. Calibration errors can lead to misdiagnosis, wasting time and resources.
Practical tips can streamline the process. Always relieve fuel system pressure before disconnecting lines to avoid injury or spills. Use a catch pan to collect any fuel that escapes during testing. For vehicles with returnless fuel systems, focus on the pump and filter, as regulators are less common. Finally, document your findings and adjustments for future reference—this data can be invaluable for troubleshooting recurring issues or selling the vehicle.
In summary, interpreting fuel pressure test results demands attention to detail and a methodical approach. By comparing readings to specs, diagnosing systematically, and making precise adjustments, you can resolve fuel system issues efficiently. Remember, accuracy and safety are paramount—take your time, use the right tools, and consult reliable resources when in doubt.
Annual Jet Fuel Consumption: How Many Tons Are Used Yearly?
You may want to see also
Frequently asked questions
A fuel pressure test measures the pressure in a vehicle's fuel system to ensure it operates within the manufacturer's specifications. It’s important because incorrect fuel pressure can cause poor engine performance, misfires, or even engine damage.
To perform a fuel pressure test, locate the fuel pressure test port (often on the fuel rail), attach a fuel pressure gauge, and start the engine. Compare the reading to the vehicle’s specifications while checking for stability at idle and under load.
You’ll need a fuel pressure gauge, a fuel pressure test kit (if required for your vehicle), safety gloves, safety goggles, and a repair manual for your vehicle’s specific fuel pressure specifications.
Low fuel pressure can cause hard starting, stalling, and lack of power, while high fuel pressure can lead to rough idling, fuel leaks, and excessive fuel consumption.
Yes, a fuel pressure test is typically performed with the engine running to check both idle and operating pressures. Ensure the engine is at normal operating temperature for accurate results.
