Fuel injectors are components that use an electrical signal to deliver fuel to your engine. As they age or get dirty, they can start to malfunction. Testing fuel injectors can be done by a mechanic, but it can be costly. There are a few ways to test them yourself, such as using a fuel injector tester, which can be purchased online, or by building your own tester with parts you have. The basic principle involves putting a tube filled with cleaning fluid under pressure with an air compressor and activating the injector. Another method involves using a metal rod or screwdriver to transmit sound from the fuel injector to your ear. Additionally, you can test the wires coming out of the fuel injectors and use a multimeter to take a resistance reading.
Characteristics and Values of Using a Fuel Injector Tester
| Characteristics | Values |
|---|---|
| Fuel Injector Location | One per cylinder, typically a black plastic housing installed directly above the cylinder |
| Fuel Injector Tester Cost | $25 |
| Fuel Injector Tester Voltage | 12V |
| Fuel Injector Cleaning Fluid | Carburetor cleaner |
| Fuel Injector Cleaning Pressure | 40 psi |
| Fuel Injector Cleaning Duration | 30 minutes |
| Fuel Injector Resistance | 10-18 ohms |
| Fuel Injector Flow Test Pressure | 43.5 psi or 3 BAR |
| Fuel Injector Flow Test Duration | 15 seconds |
| Fuel Injector Dynamic Flow Test Duration | 30 seconds |
| Fuel Injector Pulse Widths | 3 ms, 6 ms, and 12 ms |
Explore related products
What You'll Learn
Using a multimeter to check for resistance readings
Firstly, turn the car on. Turn the key to the second "on" position, so you have battery power flowing, but the engine is not running. Next, set up your DVOM to measure ohms, and ensure it is set to the lowest range if it does not auto-range. You can then touch the negative lead of the DVOM to a ground source, which will be an unpainted piece of the car's frame under the hood. Some DVOMs have alligator clips, which can be useful here.
Now, place the positive lead on the wiring harness terminal. The wiring harness will have two terminals, and you should look for the one that is not connected to the ground and should read 0 volts. At this point, you should get a reading on your multimeter, which should be around 12 volts. If you get a lower reading, this indicates excess resistance in the wire somewhere.
Most fuel injectors should read between 10 and 18 ohms, although some sources state the range as 11-14 ohms. If your resistance readings are off, the faulty injector needs to be repaired or replaced. It is important to note that all injectors should have the same readings and be within the range suggested by the manufacturer.
Fuel Injector Pump: Signs of Wear and Malfunction
You may want to see also
Explore related products
Testing for leaks and flow rate
Leak Testing
Leak testing is crucial to identify any fuel leaks, which can lead to engine problems. Firstly, locate the fuel injectors on the engine manifold, usually positioned on top of the engine. When the engine is off and the fuel injectors are closed, they should not leak any fuel. Turn on the engine and let it idle for a few minutes. Use a flashlight or work light to inspect the fuel injectors for any visible leaks or drips. Pay attention to the smell of gasoline, as leaks can indicate faulty O-ring seals that may need replacement.

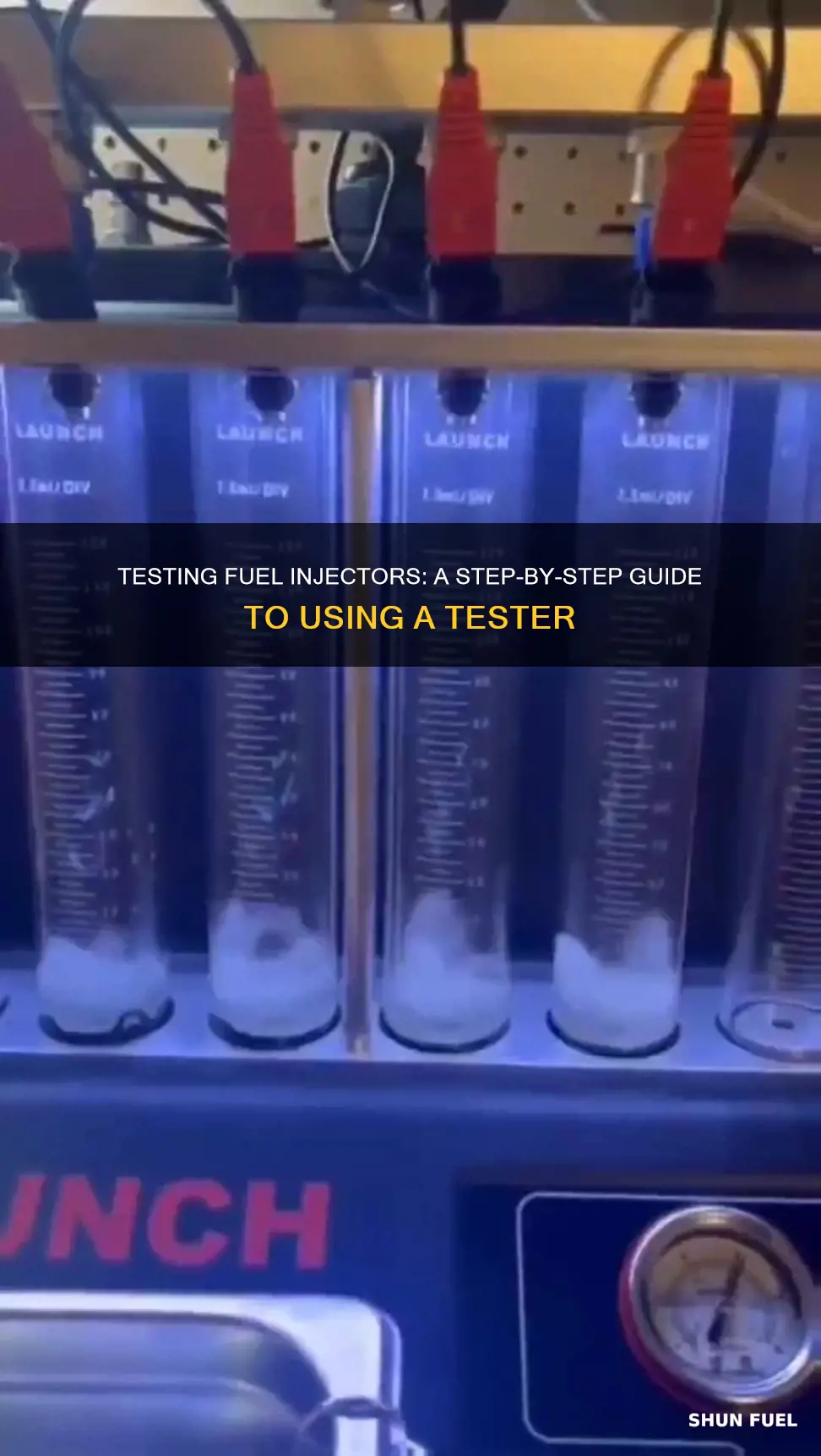

Flow Rate Testing
The flow rate test determines the volume of fuel each injector pumps out in cc/min at a specific fuel pressure, typically 43.5 psi or 3 bars. For optimal engine performance, the flow rate among all injectors in a set should be within 5% of each other. OEM injectors are designed to flow within 2% of each other. The flow rate test consists of two parts: the static flow test and the dynamic (pulsed) flow test.
Static Flow Test
During the static flow test, the injectors are held fully open (static) for 15 seconds at the specified fuel pressure of 43.5 psi or 3 bars. This test determines the flow rate of each injector at a constant pressure, providing a baseline measurement.
Dynamic (Pulsed) Flow Test
The dynamic (pulsed) flow test simulates real-world driving conditions, including idling, acceleration, deceleration, low speed, and high speed. In this test, the injectors are energised and run for 30 seconds at different duty cycles, with varying pulse widths. The pulse width refers to the time the injector is held open, measured in milliseconds. By testing at different pulse widths, technicians can ensure the injectors function correctly across a range of driving scenarios.
Post-Testing Procedures
After the flow tests, the results are recorded, and any injectors that fail the leak or flow tests are marked as defective. If necessary, a second round of cleaning may be performed, followed by re-testing. Finally, replacement of components such as filter baskets, O-rings, and pintle caps is carried out if required.
Fuel Injector Flush: How Long Does the Process Take?
You may want to see also
Explore related products
Ultrasonic cleaning
Fuel injectors are components that use an electrical signal to deliver fuel to your engine. Over time, they can become dirty and malfunction. This can be due to heat soak, which occurs when the engine is turned off and residual fuel is left on the injector, leaving a fine layer of lacquers, waxes, and varnishes. This layer is difficult to remove and can affect the performance of the injector.
To use an ultrasonic cleaner and tester, follow these steps:
- Purchase or build your own ultrasonic cleaner and tester. You can buy one online, such as the AUTOOL cleaner, or build your own using parts you have, as some people have done.
- Prepare the cleaning fluid. It is recommended to use professional injector ultrasonic cleaning fluid. If unavailable, medical alcohol with an alcohol content of more than 75% can be used, although the effect may not be as good.
- Place the fuel injectors in the cleaner. The AUTOOL cleaner, for example, can support up to 6 injectors at the same time.
- Turn on the machine and select the appropriate settings. The machine will use ultrasonic waves and the cleaning fluid to remove deposits and buildup from the injectors.
- Backflush the injectors. After cleaning, it is recommended to backflush the injectors to remove any remaining dirt or loose particulate.
- Test the injectors. After cleaning and backflushing, test the injectors to ensure they are functioning properly. This can be done by taking resistance readings with a multimeter and comparing them to the manufacturer's suggested range.
By following these steps and utilizing an ultrasonic cleaner and tester, you can effectively clean and maintain your fuel injectors, ensuring optimal performance and longevity.
Fuel Injector Harness Installation Guide for 2000 Alero
You may want to see also
Explore related products
Checking for dirt and particles
Dirt, gunk, and carbon buildup in fuel injectors can cause them to malfunction and, if left untreated, can eventually cause your vehicle to stop running. To check for dirt and particles in your fuel injectors, you can perform a simple listening test.
First, open the hood of your car and locate the fuel injectors. They are usually found on the intake manifold, connected to one another by a cylindrical fuel rail. Once you have located the injectors, place the tip of a long metal rod or screwdriver on one of the injectors. Hold the screwdriver or rod at an angle that allows you to bring your ear close to the handle. As the engine runs, listen for an audible clicking sound, which indicates that the injector is being activated. Repeat this process for each injector, comparing the sounds and noting any differences. If you notice a discrepancy in the sound of one injector, it may be dirty or clogged.
Another method to check for dirt and particles is to use a multimeter to test the resistance of the injectors. With the vehicle turned off, disconnect the electrical connector for the fuel injector. Use the multimeter to take a resistance reading, which should be between 10 and 18 ohms for most fuel injectors. Reconnect the injector and repeat the process for each injector, ensuring that all readings are within the range specified by the manufacturer. If any resistance readings deviate from the specified range, the injector may need to be repaired or replaced.
In addition to these tests, you can also visually inspect the injectors for any signs of dirt or particles. If you suspect that your fuel injectors are clogged or malfunctioning due to dirt and particles, it is recommended to clean them using an injector cleaner machine or a fuel injector cleaning solution.
Assembling the N70 Fuel Injector: A Step-by-Step Guide
You may want to see also
Explore related products
Using a test light to check for power issues
A test light is an inexpensive but effective tool for checking power issues in a fuel injector. It can be used to check for power and pulse signals coming from the computer on each dead injector.
First, hook the test-light clip to a bolt or bare metal bracket on the engine. Then, disconnect the electrical connector from the fuel injector that you need to test. Next, connect the terminals of the harness connector with the test light, one at a time. One of the terminals should make the test light turn on, indicating that the injector is receiving power from the computer. If the test light does not turn on, there is an issue with the power reaching the fuel injector. Check the power side of the circuit for a bad connection, a blown or short fuse, or a broken wire.
If the test light turns on, plug the harness connector back into the fuel injector and hook the test light clip to the positive side of the battery. With the key in the "on" position, have an assistant start or crank the engine. Now, back probe the opposite wire on the fuel injector connector (the pulse signal wire coming from the computer). The test light should flash, indicating that the injector is receiving the pulse signal from the computer to open and close the injector. If the test light does not flash, there may be an issue with the pulse signal or the injector itself.
It is important to note that a test light is just one tool for diagnosing fuel injector issues. Other methods, such as using a voltmeter or a digital multimeter, can also be used to check for power and resistance readings. Additionally, visual inspections of the fuel spray pattern and leak checks can provide valuable information about the fuel injector's performance.
Clean Fuel Injectors: DIY Guide for Chevy Cavalier
You may want to see also
Frequently asked questions
A fuel injector tester is a device that tests the functionality of a fuel injector. It can be bought online or built at home.
There are several ways to test a fuel injector. One way is to use a test light to check the wires coming out of the fuel injectors. Another way is to use a multimeter to take a resistance reading with the vehicle turned off. Additionally, a metal rod or screwdriver can be used to transmit sound from the fuel injector.
A fuel injector can be cleaned by using a cleaning fluid and pressurizing it with an air compressor. Ultrasonic cleaning can also be done, where the injectors are placed in an ultrasonic cleaning tank and electronically cycled on and off while being cleaned with detergents.
