An air fuel ratio gauge is an essential tool for optimizing engine performance and efficiency, particularly in vehicles with aftermarket modifications or those running on alternative fuels. This gauge measures the ratio of air to fuel in the engine’s combustion chamber, ensuring it remains within the ideal range for maximum power, fuel economy, and emissions control. To use an air fuel ratio gauge effectively, start by installing it in your vehicle, typically connecting it to the exhaust system via an oxygen sensor. Once installed, monitor the gauge’s readings, which are often displayed as a numerical value or a visual indicator, to ensure the ratio aligns with your engine’s requirements. Adjustments can be made through tuning the engine’s fuel map or carburetor settings to achieve the desired air-fuel mixture, whether for daily driving, racing, or other specific applications. Regularly referencing the gauge during operation helps maintain optimal performance and prevents issues like detonation, rich or lean running, and excessive emissions.
| Characteristics | Values |
|---|---|
| Purpose | Measure the ratio of air to fuel in an engine for optimal performance. |
| Ideal AFR Range | 14.7:1 (stoichiometric) for gasoline engines; varies for other fuels. |
| Gauge Type | Wideband AFR gauge (more accurate than narrowband). |
| Installation | Connect to the exhaust system using an oxygen sensor (O2 sensor). |
| Power Source | 12V DC from the vehicle's electrical system. |
| Display Units | AFR (Air/Fuel Ratio) or Lambda (λ, where λ=1 at stoichiometric). |
| Adjustment | Tune carburetor, fuel injection, or ECU based on gauge readings. |
| Real-Time Monitoring | Displays live AFR data for immediate adjustments. |
| Logging Capability | Some gauges allow data logging for analysis. |
| Compatibility | Works with gasoline, ethanol, and other fuel types (with calibration). |
| Calibration | May require calibration for specific fuels or sensor types. |
| Common Uses | Performance tuning, fuel efficiency optimization, and engine diagnostics. |
| Safety Precautions | Ensure proper installation to avoid exhaust leaks or electrical issues. |
| Maintenance | Regularly clean the O2 sensor and check connections for accuracy. |
| Cost Range | $50 to $500 depending on brand and features. |
| Popular Brands | AEM, Innovate Motorsports, PLX Devices, etc. |
Explore related products
What You'll Learn
Understanding AFR Basics
The air/fuel ratio (AFR) is a critical metric in any internal combustion engine, representing the mass ratio of air to fuel in the combustion chamber. For gasoline engines, the stoichiometric AFR—the chemically ideal balance for complete combustion—is approximately 14.7:1. This means 14.7 parts air to 1 part fuel by weight. Deviations from this ratio affect performance, emissions, and efficiency. Rich mixtures (lower AFR, e.g., 12:1) burn less efficiently, producing more power but increasing fuel consumption and emissions. Lean mixtures (higher AFR, e.g., 16:1) burn cleaner but risk engine damage from overheating or incomplete combustion. Understanding this balance is the foundation for using an AFR gauge effectively.
An AFR gauge, often paired with a wideband oxygen sensor, provides real-time data on the engine’s air/fuel mixture. Unlike narrowband sensors, which only indicate whether the mixture is rich or lean of stoichiometry, wideband sensors offer a precise numerical AFR reading. This granularity is essential for tuning engines, especially in high-performance or modified vehicles. For example, during acceleration, a tuner might target a slightly rich mixture (13:1) to prevent detonation, while cruising at steady speeds might call for a leaner mix (15:5) to maximize fuel efficiency. The gauge’s accuracy allows for fine adjustments that narrowband sensors cannot provide.
To interpret AFR data, consider the engine’s operating conditions. At idle, a slightly rich mixture (13.5:1) ensures smooth operation, while under load, such as towing or racing, a richer mix (11.5:1) may be necessary to prevent lean misfire. However, prolonged rich operation wastes fuel and increases emissions. Conversely, a lean mixture (16:1) during light cruising reduces fuel consumption but must be monitored to avoid overheating or damage. The AFR gauge acts as a diagnostic tool, revealing issues like vacuum leaks (causing lean conditions) or clogged fuel injectors (causing rich conditions). Regularly logging AFR data during different driving scenarios helps identify trends and optimize performance.
Practical use of an AFR gauge requires familiarity with its display and integration into the vehicle’s system. Most gauges show AFR as a numerical value or on a bar graph, with some offering lambda (λ) readings—a normalized scale where λ=1 represents stoichiometry. For instance, λ=0.85 corresponds to a rich AFR of 12.5:1, while λ=1.15 indicates a lean 16.9:1. Calibrating the gauge and ensuring the wideband sensor is properly installed are critical steps. Additionally, logging software can record AFR data alongside other parameters like RPM, throttle position, and coolant temperature, providing a comprehensive view of engine behavior. This data-driven approach transforms the AFR gauge from a mere indicator to a powerful tuning tool.
In summary, mastering AFR basics involves recognizing the stoichiometric ratio, understanding how deviations impact performance, and interpreting gauge readings in context. Whether tuning for power, efficiency, or emissions compliance, the AFR gauge offers actionable insights into the engine’s combustion process. By combining theoretical knowledge with practical application, users can harness this tool to optimize their vehicle’s performance while avoiding potential pitfalls like engine damage or poor fuel economy. The key lies in balancing precision and adaptability, ensuring the AFR remains within safe and efficient limits across all driving conditions.
Jet Engine Fuel Types: Are They All the Same?
You may want to see also
Explore related products
Installing the Gauge Properly
Proper installation of an air fuel ratio gauge is critical for accurate readings and optimal engine performance. Begin by selecting a gauge compatible with your vehicle’s O2 sensor type—wideband gauges are ideal for high-performance engines, while narrowband gauges suffice for stock setups. Ensure the gauge’s control unit is mounted in a cool, dry area, away from heat sources like the engine bay or exhaust, to prevent overheating and signal interference. Secure the wiring harness neatly, using zip ties or conduit, to avoid damage from moving parts or vibrations.
Next, connect the gauge to the O2 sensor’s signal wire, typically found near the exhaust manifold. Verify the sensor’s compatibility with the gauge’s operating voltage (usually 0-5V for wideband gauges). If your vehicle lacks a dedicated O2 sensor port, install a bung in the exhaust system, ensuring it’s positioned in a straight section for consistent readings. Use a high-temperature anti-seize compound on the bung threads to prevent seizing during removal or future maintenance.
Calibration is a non-negotiable step post-installation. Most wideband gauges require a free-air calibration, where the sensor is exposed to ambient air to establish a baseline reading. Follow the manufacturer’s instructions precisely, as miscalibration can lead to inaccurate AFR data. For example, AEM wideband gauges use a two-point calibration process, while Innovate Motorsports gauges often include automatic calibration features.

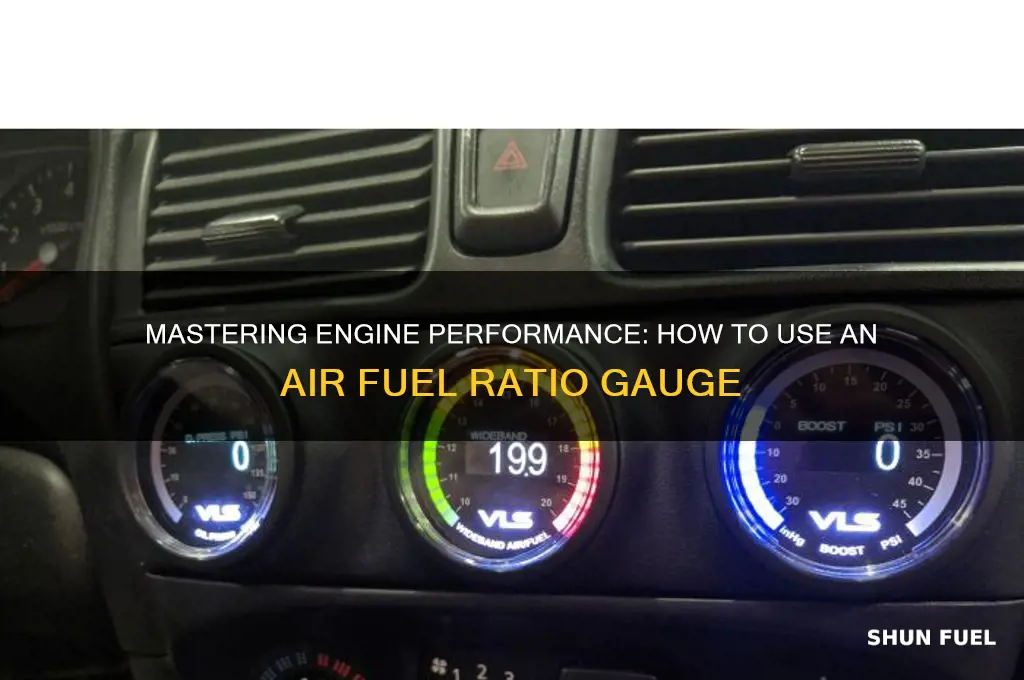

Finally, mount the gauge display in a visible location, such as the dashboard or A-pillar, ensuring it doesn’t obstruct the driver’s view. Use a dimmable display to reduce glare during nighttime driving. Test the gauge at idle and under load to confirm it responds accurately—a stoichiometric reading of 14.7:1 for gasoline engines is a good starting point. If readings fluctuate wildly, check for loose connections or sensor damage.
By following these steps, you’ll ensure your air fuel ratio gauge functions reliably, providing actionable data to fine-tune your engine’s performance. Remember, precision in installation translates directly to precision in tuning.
Using Fuel Cells to Generate Hydrogen: Possibilities and Practicalities
You may want to see also
Explore related products
Reading Gauge Display Accurately
The air/fuel ratio gauge is a precision instrument, and its display demands careful interpretation. A slight deviation from the stoichiometric ratio (14.7:1 for gasoline) can significantly impact engine performance and emissions. For instance, a reading of 13:1 indicates a richer mixture, while 16:1 suggests a leaner one. Understanding these nuances is crucial for tuning and troubleshooting.
To read the gauge accurately, start by ensuring the sensor is properly calibrated and the gauge is functioning within its specified range. Most wideband gauges display ratios from 8:1 to 20:1, but always verify the model-specific range. Observe the needle's position during different driving conditions: idle, cruising, and acceleration. A stable reading near the stoichiometric ratio under load indicates optimal combustion, while fluctuations may signal issues like a clogged fuel filter or faulty oxygen sensor.
Comparing the gauge's readings to known benchmarks can enhance accuracy. For example, during a wide-open throttle, a high-performance engine might target a ratio of 12.5:1 to 13:1 for maximum power, while fuel economy tuning may aim for 15:1 to 16:1. Cross-referencing these values with dyno data or manufacturer specifications can validate the gauge's precision and guide adjustments.
Practical tips include logging data over time to identify trends. Use a data logger or smartphone app to record readings during various driving scenarios. This longitudinal approach helps distinguish between transient anomalies and persistent issues. Additionally, always account for environmental factors like altitude and temperature, as they can affect air density and, consequently, the air/fuel ratio. For instance, at higher altitudes, a slightly richer mixture may be necessary to compensate for thinner air.
In conclusion, reading an air/fuel ratio gauge accurately requires a blend of technical understanding, observational skill, and contextual awareness. By mastering these aspects, users can optimize engine performance, improve fuel efficiency, and diagnose problems effectively. Treat the gauge not just as a tool but as a window into the engine's combustion process, where every fraction of a ratio tells a story.
Fuel Stabilizer: Essential or Optional for Long-Term Storage?
You may want to see also
Explore related products
Adjusting Fuel Mixture Correctly
Achieving the optimal air-fuel ratio is critical for engine performance, fuel efficiency, and emissions control. An air-fuel ratio gauge, often displaying readings in lambda or AFR (Air-Fuel Ratio), provides real-time data to fine-tune this balance. For gasoline engines, the stoichiometric ratio is 14.7:1 (air to fuel), but performance engines may target richer (lower lambda) or leaner (higher lambda) mixtures depending on load and RPM. Understanding these values is the first step in adjusting your fuel mixture correctly.
To adjust the fuel mixture, start by monitoring the gauge during steady driving conditions. A lambda reading of 1.0 indicates a stoichiometric mixture, while values below 1.0 (e.g., 0.85) suggest a richer mix, and values above 1.0 (e.g., 1.1) indicate a leaner mix. For example, during acceleration, a slightly richer mixture (lambda 0.85–0.90) improves power, while cruising may benefit from a leaner mix (lambda 1.05–1.10) for better fuel economy. Use the gauge to identify deviations from the target range and adjust the carburetor, fuel pressure regulator, or ECU settings accordingly.
One common mistake is over-adjusting the mixture based on short-term fluctuations. Instead, focus on sustained trends. For instance, if the gauge consistently reads lean under load, increase fuel delivery incrementally—adjusting a carburetor by ¼ turn or raising fuel pressure by 1–2 PSI at a time. Conversely, if the mixture is too rich, reduce fuel delivery gradually. Always allow the engine to stabilize after each adjustment before re-evaluating the gauge. This methodical approach prevents overcompensation and ensures precision.
Advanced users can leverage logging tools to correlate AFR readings with engine parameters like RPM, throttle position, and coolant temperature. For example, a turbocharger setup might require a richer mixture during boost (lambda 0.80–0.85) to prevent detonation, while a naturally aspirated engine may maintain a leaner mix across most operating ranges. By analyzing these patterns, you can create a fuel map that optimizes performance and reliability under various conditions.
Finally, safety and longevity should guide your adjustments. Running too lean can cause overheating and engine damage, while excessively rich mixtures waste fuel and foul spark plugs. Use the gauge as a diagnostic tool, not just a performance enhancer. Regularly check for vacuum leaks, clogged fuel filters, or faulty sensors, as these issues can skew AFR readings. With patience and attention to detail, adjusting the fuel mixture correctly transforms raw data into tangible improvements in power, efficiency, and drivability.
Proper Fuel Stabilizer Amount for Snowblower Storage and Maintenance
You may want to see also
Explore related products
Troubleshooting Common Gauge Issues
Air fuel ratio gauges are essential tools for optimizing engine performance, but they can sometimes present issues that require troubleshooting. One common problem is an inaccurate reading, which may stem from a faulty sensor or improper installation. To diagnose this, start by verifying the gauge’s wiring connections—loose or corroded wires can disrupt the signal. Next, check the oxygen sensor’s condition; a degraded sensor often leads to erratic readings. If the gauge still fails to display correctly, calibrate it according to the manufacturer’s instructions, ensuring it aligns with the sensor’s output voltage range.
Another frequent issue is the gauge failing to power on, which could indicate a power supply problem. Begin by testing the fuse associated with the gauge’s circuit; a blown fuse is a simple yet overlooked culprit. If the fuse is intact, inspect the gauge’s power and ground connections for continuity. In some cases, the gauge itself may be defective, requiring replacement. Always use a multimeter to confirm voltage at the gauge’s power input before assuming the unit is faulty.
Fluctuating readings are often misinterpreted as gauge malfunctions but can instead signal engine issues. For instance, a vacuum leak or inconsistent fuel delivery disrupts the air-fuel mixture, causing the gauge to oscillate. To isolate the problem, perform a visual inspection of the intake system for cracks or loose hoses. Additionally, log the gauge’s behavior during specific driving conditions—idle, acceleration, or cruising—to identify patterns. Addressing the root cause, such as repairing leaks or tuning the fuel system, typically resolves the fluctuation.
Lastly, compatibility issues between the gauge and the vehicle’s system can arise, particularly in older or modified cars. Ensure the gauge is designed to work with your vehicle’s oxygen sensor type (e.g., narrowband vs. wideband). Mismatched systems result in incorrect interpretations of the sensor’s signal. If compatibility is confirmed, update the gauge’s firmware or consult the manufacturer for specific troubleshooting steps. Proper research and preparation can prevent such issues, saving time and frustration in the long run.
Exploring Corn's Potential as a Renewable Fuel Source
You may want to see also
Frequently asked questions
An air fuel ratio gauge measures the ratio of air to fuel in an engine's combustion process. It is important because maintaining the correct air-fuel ratio (typically 14.7:1 for gasoline engines) ensures optimal engine performance, fuel efficiency, and reduces emissions.
Installation involves connecting the gauge to the vehicle’s O2 sensor or wideband sensor wiring, grounding the gauge, and powering it through the vehicle’s electrical system. Always follow the manufacturer’s instructions and consult a professional if unsure.
Readings below 14.7:1 indicate a rich mixture (excess fuel), while readings above 14.7:1 indicate a lean mixture (excess air). Adjustments to the engine’s tuning may be needed to achieve the ideal ratio for performance or fuel efficiency.
Yes, an air fuel ratio gauge is a valuable tool for engine tuning. It allows you to monitor and adjust the air-fuel mixture in real-time, ensuring optimal performance, especially during modifications like adding a turbocharger, supercharger, or changing fuel injectors.
