Unplugging a fuel injector plug can be a challenging task, especially with the variety of car models and fuel injector types available. The process often involves removing the fuel rail first to access the injectors and their electrical connectors. Some injector connectors have a metal or plastic clip that needs to be carefully pried or wedged to release the connector. It is important to be cautious during this process to avoid any damage to the engine. Some car models may have unique designs, so it is recommended to refer to the service manual or seek advice from experienced individuals.
How to unpin fuel injector plug
| Characteristics | Values |
|---|---|
| Tools | Small pick, 90-degree pick, thin-tipped flathead screwdriver |
| Steps | Remove the rail, wiggle the clips off, use a pick to loop under the clip and bring it to rest above the groove, slide the rest safety lock up, press down on the inner tab lock while pushing in on the connector, pull off the fuel rail, remove the injectors with the electrical connector still connected |
| Tips | New pigtails from Ballenger Motorsports have a better design, use a soldering iron, practice on a similar connector for the wiper cowl, clean the injectors rather than replacing them, be cautious when playing with the filter inside the valve |
Explore related products
![HiSport Fuel Injector Seal Kits Compatible with Ford Mercury Lincoln Jeep V8 5.4L 4.6L Include O-Rings, Pintle Caps, Seal Spacers and Filter Baskets Universal Repair Set Replaces 0280150962 [8 Set]](https://m.media-amazon.com/images/I/71r8hDT8hoS._AC_UY218_.jpg)
![HiSport Fuel Injector Seal Kits Rebuild Set Include O-rings, Pintle Caps, Seal Spacers, Filter Baskets with 1pcs Filter Removal Tool [8 Set]](https://m.media-amazon.com/images/I/71D2r04zhLL._AC_UY218_.jpg)
What You'll Learn
Removing the rail to unpin the plug
Removing the rail is a recommended step to unpin the fuel injector plug. This is because the fuel rail being in place on top of the injectors makes it almost impossible to get to the electrical connector/clip. Removing the rail gives you ample room to work and wiggle the clips off.
To remove the rail, you must first disconnect the electrical connectors. This can be done with a small pick. Working on one side, push out the end of the clip so that it rests on the side of the plug. Then, use the pick to loop under the clip and bring it to rest above the groove (the “inactive state”). Repeat this on the other side.
Alternatively, a thin-tipped flathead screwdriver can be used to get under the red lock and wedge between it and the connector body to pop it up. You can also slide the rest safety lock (the red piece) up, then press down on the inner tab lock while pushing in on the connector so that the lock fingers raise above the notch on the injector.
Once the electrical connectors are disconnected, you can remove the fuel rail and then the injectors.
Cleaning Fuel Injectors: Intake Manifold Off or On?
You may want to see also
Explore related products
Using a screwdriver to wedge under the lock
To unpin a fuel injector plug, one of the methods you can use is to wedge a screwdriver under the lock. This method is particularly useful if you are dealing with a rather stubborn red lock. Using a thin-tipped flathead screwdriver, you can carefully wedge the tool between the red lock and the connector body. This action will help to pop the lock up and release the injector plug.
It is important to note that the screwdriver you use should have a thin tip to effectively fit into the small space between the lock and the connector body. A small or flathead screwdriver can also be used to achieve the same result. This method can be a bit tricky, so it is important to be careful and apply the right amount of force to avoid damaging any other components.
If you are having difficulty wedging the screwdriver under the lock, you can try a different approach by drilling a small hole into the top of the lock. Once the hole is drilled, you can then twist in a screw eye and pull up on it to release the lock. This alternative method has proven to be effective for some people who have struggled with the traditional screwdriver method.
Additionally, there are a variety of tools that can be used to disconnect fuel injector electrical connectors. Some people have found success using a 90-degree pick, which can quickly and efficiently remove the connectors. Others have used curved or angled picks to reach and manipulate the clips. It is always important to exercise caution when working with any fuel injector to avoid damage or injury.
By following these steps and using the appropriate tools, you can successfully unpin a fuel injector plug using a screwdriver to wedge under the lock.
When Should You Get Your Fuel Injectors Cleaned?
You may want to see also
Explore related products
![HiSport Fuel Injector 101 Micron Baskets Filter [6mm x 3mm x12mm] Universal Repair Seal Kits [20 Pcs]](https://m.media-amazon.com/images/I/61cmuoRfZuS._AC_UY218_.jpg)
Using a pick to loop under the clip
Using a pick to unpin a fuel injector plug is a delicate process. Firstly, it is important to ensure that the fuel pump fuse is removed and the engine is cranked to drop the fuel pressure. This is a crucial safety step to prevent any accidental damage or injury.
Once safety measures are in place, the process of unpinning can begin. Using a pick, carefully work on one side of the fuel injector plug. Gently push out the end of the clip so that it rests on the side of the plug. This step requires precision and patience to avoid any breakage.
The next step is to use the pick to loop under the clip. This action will help bring the clip to rest above the groove, which is referred to as the "inactive state". It is important to be gentle and take your time during this step to avoid any damage to the clip or the surrounding components.
After successfully looping under the clip and reaching the "inactive state", repeat the entire process on the other side of the fuel injector plug. By working on one side at a time, you ensure a controlled and safe release of the clip.
Using a pick to unpin a fuel injector plug can be challenging, but with careful attention to detail and safety, it can be accomplished successfully. It is always recommended to refer to a professional mechanic or a detailed video guide for further clarification if needed.
STP High Mileage Fuel Injector: Does It Work?
You may want to see also
Explore related products
Pushing down on the wire to pop off the connector
To begin, locate the wire at the top of the connector. This wire is typically thin and can be pressed down with your thumb. Apply firm but controlled pressure to the wire, pushing it downwards. With a slight pop, you should feel the connector come loose. It will simply snap off, and you won't need to worry about the clip at all.
This technique is a quick and straightforward alternative to more intricate methods, such as using a small pick or a screwdriver to carefully pry and wedge the connector. It is essential to note that this method may not work for all types of fuel injectors, as some have different release mechanisms. However, for connectors with metal retaining clips, this approach can be a time-saver.
Additionally, it is worth mentioning that some users have reported success in removing the entire fuel rail first, which provides ample room to work on the connectors. This extra space can make it easier to wiggle the clips off without breaking the plastic. Overall, pushing down on the wire to pop off the connector is a handy trick to know when dealing with fuel injector plugs, saving you time and effort.
Fuel Injectors in Crown Victorias: What You Need to Know
You may want to see also
Explore related products

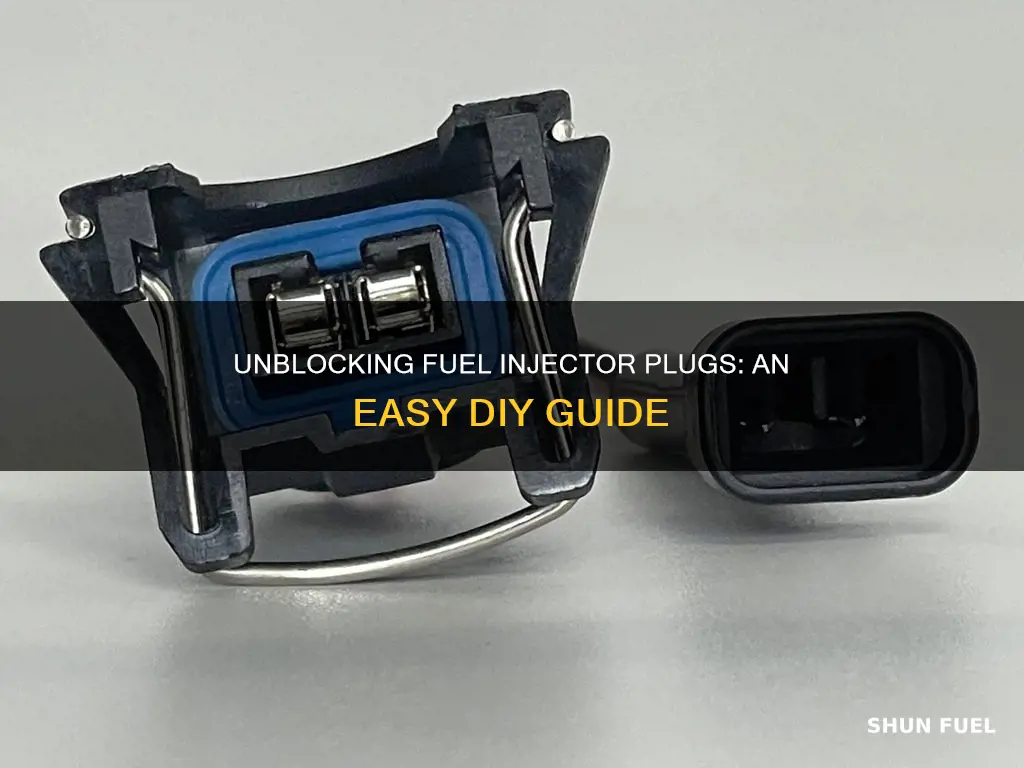

Removing the bail wire clip
First, it is important to understand the function of the bail wire clip. The bail wire clip, also known as a retaining clip or connector, is used to secure the fuel injector in place. It has a square or U-shape and fits around the outside of the fuel injector. By removing this clip, you will be able to access and remove the fuel injector for cleaning, replacement, or other maintenance tasks.
Next, gather the necessary tools. A thin, flat-head screwdriver or a small pick can be useful for prying and wedging under the clip. Some people also find a 90-degree pick helpful for this process. It is important to work carefully and gently to avoid breaking any plastic components or losing the clip due to spring tension.
Now, let's begin the process of removing the bail wire clip:
- Start by removing the fuel rail. This will give you more room to work on the fuel injector and access the clip.
- Locate the bail wire clip on the fuel injector. It should be a square or U-shaped wire around the outside of the injector.
- Using your screwdriver or pick, gently pry the bail wire clip back. You may need to wiggle it gently to loosen it. The clip does not need to be completely removed, just moved back enough to release the connector.
- Once the clip is loosened, you can remove the plastic connector from the injector. Be cautious, as the plastic may appear to be on the brink of breaking but it is actually quite flexible.
- With the connector removed, you now have access to the fuel injector for your desired maintenance tasks.
Remember to work carefully and patiently throughout this process to avoid any damage to the fuel injector or its components. Taking your time and using the appropriate tools will help ensure a successful outcome.
Using Two Bottles of Fuel Injector Cleaner: Safe or Not?
You may want to see also
Frequently asked questions
First, remove the rail and the injectors. Then, use a small pick to push out the end of the clip so that it rests on the side of the plug. Loop the pick under the clip and bring it to rest above the groove. Repeat on the other side.
You can use a small pick or a thin, flat-head screwdriver.
The easiest way is to first remove the rail and the injectors, which will give you ample room to work and wiggle the clips off.
Pry the bail wire clip back with a screwdriver. It does not need to come off completely, just off the injector connector. Then, take the plastic connector from the injector.
You can buy new pigtails that have a release button, which you can press to disconnect the connectors.
