A blocked gas tank fuel vent can cause significant problems for your car, and many people are unaware that this issue can even occur. The symptoms of a blocked fuel vent are similar to those of a clogged fuel filter, as both issues prevent fuel from reaching the engine. This can cause the engine to run poorly or even cut out. The blockage could be due to dirt, corrosion, or even a wasp nest. To fix this issue, you can try using compressed air or a length of tubing or heavy wire to clear the blockage. Alternatively, you may need to replace the canister assembly or the vent valve.
How to Unblock a Car's Gas Tank Fuel Vent
| Characteristics | Values |
|---|---|
| Symptoms of a blocked fuel tank vent | Loss of power, smell of fuel, popping in the exhaust, pressure in the tank, leaking fuel |
| Causes of blockage | Physical objects, e.g. wasps' nests, dirt, corrosion, rust, water/fuel overflow |
| Tools | Compressed air, plastic tubing, heavy wire, drain hose |
| Steps | 1. Verify blockage by blowing through the line. 2. Push plastic tubing or heavy wire through the vent pipe to check for physical blockage. 3. Drain and dry the tank. 4. Reconnect the fuel line and vent hose. 5. Retry blowing compressed air through the line. 6. Refill the tank. |
| Further steps if the problem persists | Replace the canister assembly, canister close valve, and vent valve. |
Explore related products
What You'll Learn
Using compressed air to unblock the line
Firstly, drain the tank and allow the interior to dry out. This is crucial, as any residual fuel could be dangerous when using compressed air. Once the tank is dry, reconnect the fuel line and the vent hose. Now, you can attempt to blow through the line with compressed air. A can of compressed air, similar to those used to blow out computer keyboards, should work. If you are using an air compressor, ensure it is rated for use with fuels and be cautious of any potential ignition sources.
If you are unable to access an air compressor, you can try using a home blower, such as the type used for blowing grass clippings. Remove the fuel cap, cover the fill hole with a towel, and place the blower tip on the vent. Running the blower for a few seconds should clear the line.
Another method is to use a vacuum cleaner, although this is not recommended due to the potential for static electricity and the lack of pressure compared to compressed air. If you do choose to use a vacuum cleaner, ensure it is rated for use with fuels and be extremely cautious of any potential ignition sources.
By following these steps and taking the necessary safety precautions, you can effectively use compressed air to unblock the fuel vent line in your car's gas tank.
Flex Fuel and Your Car: Is It Compatible?
You may want to see also
Explore related products
Checking for physical blockages

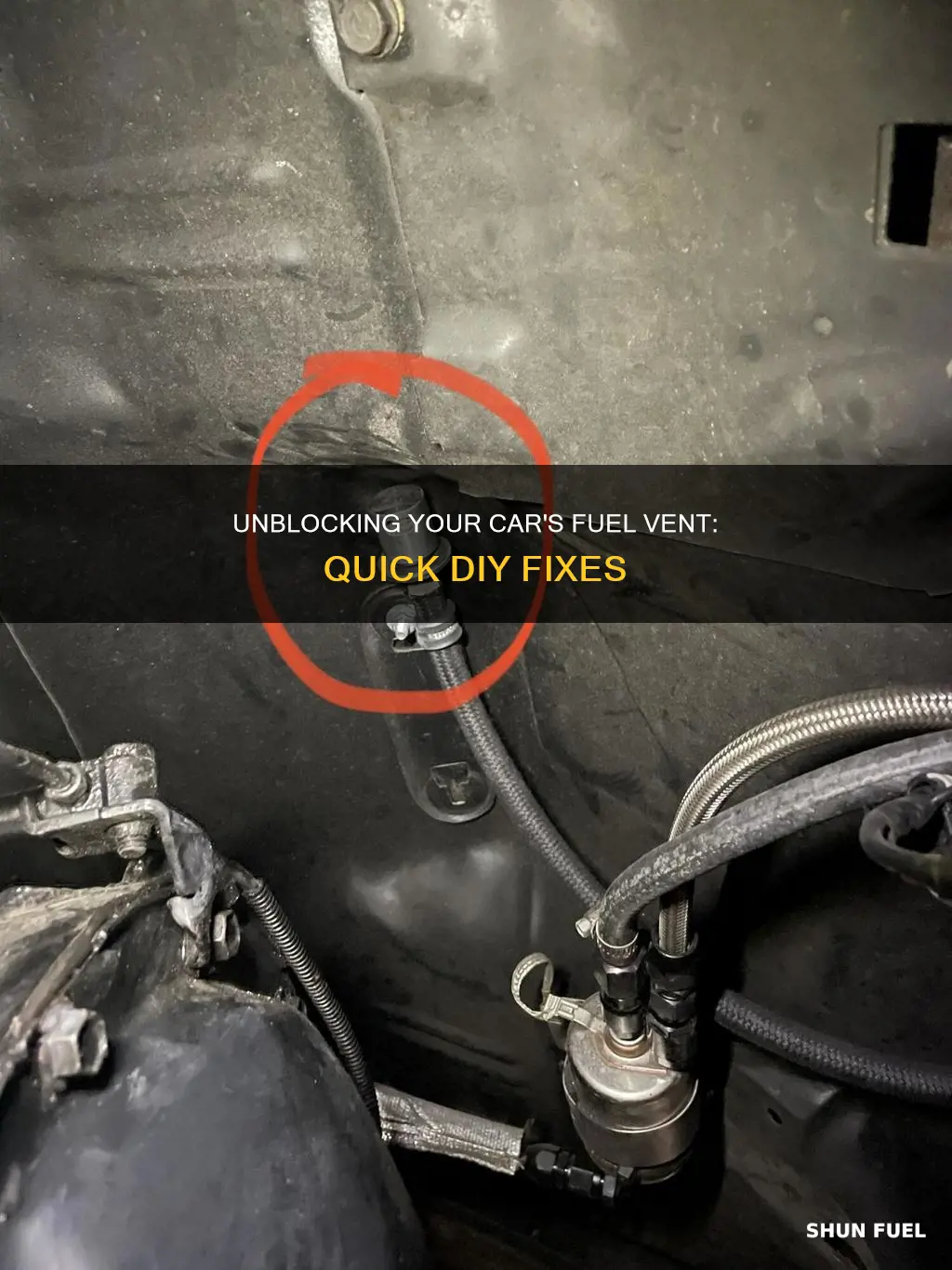

Locate the Fuel Tank Vent
The first step is to find the fuel tank vent, which is typically located underneath the car, near the charcoal canister, and close to the fuel tank. The vent cap is usually positioned at the top of the fuel tank.
Inspect for Visible Blockages
Carefully inspect the vent for any obvious signs of obstructions, such as dirt, leaves, debris, or even insects. A blocked fuel tank vent can lead to pressure issues and affect the engine's performance.
Clear Any Blockages
If you notice any blockages, it's important to clear them to restore proper airflow. Use compressed air to blow out the vent line and dislodge any debris or clogs. This method is effective in removing smaller blockages that may not be visible. Alternatively, you can try using a soft brush to clean the vent and remove any dirt or debris.
Check the Fuel Cap
The fuel cap can also contribute to pressure issues in the fuel tank if it is faulty or damaged. Inspect the fuel cap for any cracks or signs of wear and tear. Ensure that it is properly tightened and sealed. A loose or damaged fuel cap can lead to ventilation problems and mimic the symptoms of a blocked fuel tank vent.
Check the Fuel Filter
In addition to checking for physical blockages in the vent, it's important to inspect the fuel filter. A clogged fuel filter can cause similar symptoms to a blocked fuel tank vent. A dirty or clogged filter can impede the delivery of fuel and affect the engine's performance.
Test the Vent
After cleaning or clearing any blockages, it's important to test the vent to ensure it is functioning properly. Reconnect the vent hose and fuel line, then use compressed air to blow into the vent line again. If the blockage has been cleared, you should hear a gurgling sound, indicating that the vent is now unblocked.
Remember to exercise caution when working around your car's gas tank and fuel system. If you are unsure or uncomfortable performing these steps, it is advisable to seek assistance from a professional mechanic or a car-handy friend.
When to Start Your Car After Adding Fuel Injection
You may want to see also
Explore related products
Understanding the function of the fuel tank vent
The fuel tank vent is an essential component of a car's fuel system, serving multiple purposes to ensure the safe and efficient functioning of the vehicle. One of its primary functions is to regulate pressure and vacuum within the fuel tank. As fuel is constantly expanding and contracting due to temperature changes, the vent allows air to flow in and out of the tank, maintaining the necessary air-to-gas ratio for the vehicle's optimal performance.
There are two main types of fuel tank vents: passive vents and active vents. Passive vents are commonly found in small fuel tanks or those with minimal temperature or pressure fluctuations. They rely solely on atmospheric pressure differences to function and do not require an external power source. This makes them relatively low maintenance. Passive vents can be as simple as a hole in the tank or utilise mechanisms like a one-way valve or a flapper valve.
On the other hand, active vents employ a powered mechanism to control the airflow in and out of the tank. This type of vent is often used in vehicles where the fuel tank experiences significant changes in temperature or pressure. Active vents are more complex and may require maintenance or replacement over time.
Another critical function of the fuel tank vent is to prevent fuel spills, leaks, and potential explosions. By maintaining the appropriate level of vacuum in the tank, the vent helps to prevent fuel from being forced out due to pressure or temperature changes. This safety feature was not always present in older vehicles, which used vented gas caps that often resulted in fuel spillage.
Additionally, fuel tank vents can be categorised as unfiltered or filtered. Unfiltered vents are simple and allow unrestricted airflow, making them suitable for low-contamination environments or when treated fuel is used. Filtered vents, on the other hand, are designed for high-contamination environments, as they capture particles and contaminants using filtration media like paper or foam, ensuring the fuel system remains protected.
How High-Octane Fuel Affects Older Cars' Performance
You may want to see also
Explore related products
Replacing the vent valve
The fuel tank vent valve is an important component of your car's fuel system. It helps direct the flow of vapors and protect the carbon canisters from the fuel. The most common reason for a faulty fuel vent valve is corrosion due to its location underneath the car, exposing it to dirt and extreme temperatures. A broken vent valve will need to be replaced, and while it is a relatively cheap part, costing between $20 and $120, you will also need to pay a mechanic for the replacement, which can cost between $75 and $120.
If you are confident in your DIY abilities and want to replace the vent valve yourself, here is a general guide based on a successful case:
- Source a suitable replacement part. Most cars have specialized vent valves, so it is best to use a part meant for your specific vehicle. However, some universal fuel tank vent valves are available, such as the Doorman part# 911-001.
- Remove the old vent valve by cutting the ring with a razor knife.
- Take a rasp and expand the hole to the first rib on the base.
- Prepare the new vent valve by removing the tension ring and o-ring.
- Insert the new vent valve into the old base. Ensure that it is secure and properly aligned.
- Seal the new vent valve using a strong epoxy glue, such as 4000 PSI epoxy.
- Allow the epoxy to set, and then cut the nipple off the old vent valve.
- Insert the cut side of the nipple into the hose, leaving enough space for the locking clip.
Please note that this is a general guide, and the specific steps may vary depending on your car's make and model. Always refer to your car's repair manual or seek advice from a qualified mechanic if you are unsure about the process or encounter any difficulties.
The Evolution of Car Fuel: A Historical Perspective
You may want to see also
Explore related products
Recognising symptoms of a blocked fuel tank vent
Recognising the symptoms of a blocked fuel tank vent is important to keep your car running smoothly. A blocked fuel tank vent can cause a range of issues, from poor performance to engine damage. Here are some tell-tale signs to watch out for:
Performance Issues: One of the most common symptoms of a blocked fuel tank vent is a decrease in engine performance. You may experience stalling, difficulty starting the engine, or a sudden loss of acceleration while driving. The engine may also run rough or misfire, indicating a potential blockage in the fuel tank vent.
Fuel Odour: A blocked fuel tank vent can cause fuel vapours to build up, resulting in a strong fuel odour inside or outside the vehicle. This is a safety concern and should be addressed immediately. If you notice a persistent fuel smell, it's best to have your car inspected by a qualified mechanic.
Filling Difficulties: When the fuel tank vent is blocked, it can affect the pressure in the tank, making it challenging to fill. You may notice that it takes longer to fill your tank or that gasoline spills out of the filler neck during refuelling. This is a sign that the vent is not functioning properly and needs attention.
Check Engine Light: In some cases, a blocked fuel tank vent can trigger the "check engine" light on your dashboard. This light is part of your car's onboard diagnostics system, indicating an issue with the engine or emissions control system. If the check engine light illuminates, it's important to have your vehicle checked to identify the root cause.
Fuel Efficiency: A blocked fuel tank vent can impact your car's fuel efficiency. You may notice that you need to fill up your tank more frequently or that your fuel economy has decreased. This is because the blockage creates a vacuum, making it harder for the engine to draw fuel and forcing it to work harder.
It's important to note that some of these issues can be caused by other factors, such as a clogged fuel filter or a faulty fuel cap. Therefore, it's always recommended to have your vehicle inspected by a qualified mechanic who can accurately diagnose and address the problem.
Gasoline-Fueled Cars: A Century-Long Journey
You may want to see also
Frequently asked questions
If your car's gas tank fuel vent is blocked, you may experience symptoms such as a loss of power, a smell of fuel, popping in the exhaust, and a noticeable build-up of pressure in the tank.
A blocked fuel tank vent can prevent fuel from reaching the engine, leading to a range of issues, including a loss of power and potential damage to the tank due to excess pressure.
Blockages can occur for various reasons, such as dirt, corrosion, or even wasps building nests in the vent line.
You can try using compressed air or a length of small-gauge plastic tubing to clear any blockages. If the issue persists, you may need to replace the vent valve, which is usually a relatively inexpensive part.
Yes, it is important to regularly inspect and maintain your fuel tank vent to prevent blockages. Ensure the vent is mounted vertically and periodically check for any signs of corrosion or physical blockages, such as nests or debris.
