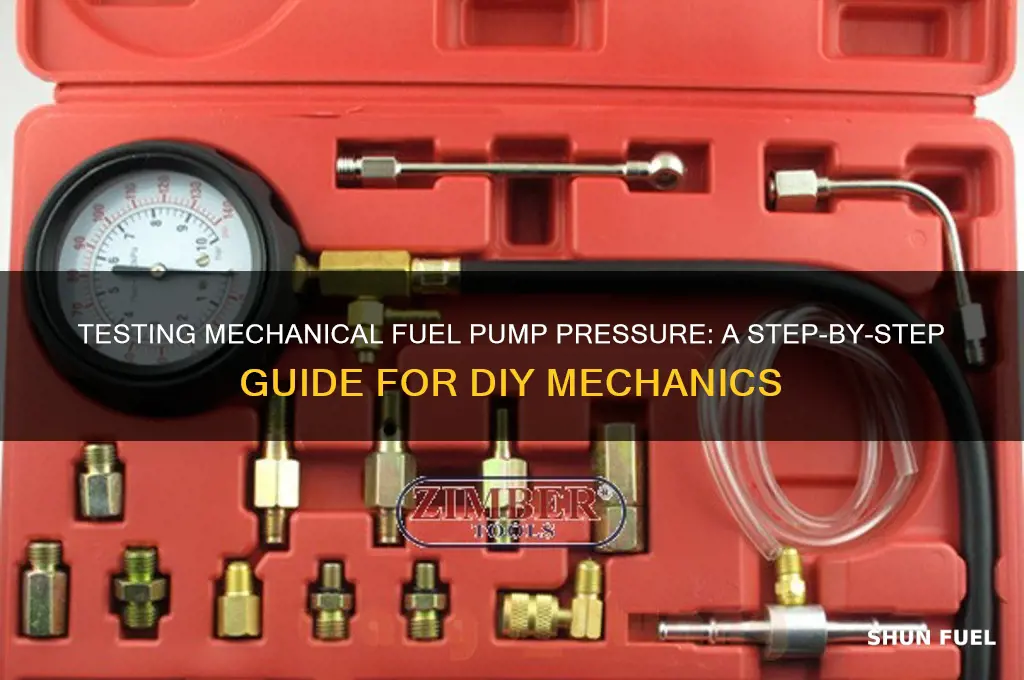

Testing mechanical fuel pump pressure is a critical step in diagnosing fuel system issues in vehicles, particularly in older models equipped with carbureted engines. The process involves using a fuel pressure gauge to measure the pump's output, ensuring it meets the manufacturer's specifications for optimal engine performance. To begin, disconnect the fuel line at the carburetor or fuel rail, attach the gauge, and then crank the engine to observe the pressure reading. It’s essential to check for consistent pressure during cranking and to verify that the pump maintains the required pressure under load. Proper testing not only identifies weak or failing pumps but also ensures the fuel system delivers the correct amount of fuel for efficient combustion. Always follow safety precautions, such as relieving fuel system pressure and working in a well-ventilated area, to avoid hazards during the testing process.
| Characteristics | Values |
|---|---|
| Tools Required | Fuel pressure gauge, wrench, screwdriver, safety gloves, safety goggles |
| Vehicle Preparation | Park on a flat surface, turn off the engine, disconnect the battery |
| Fuel Pump Location | Typically near the fuel tank or engine block (varies by vehicle) |
| Pressure Specification | Check vehicle manual or manufacturer's specs (e.g., 3-6 PSI for carb engines) |
| Testing Procedure | Connect gauge to fuel line, start engine, observe pressure reading |
| Normal Pressure Range | 3-6 PSI for carbureted engines, 35-60 PSI for fuel-injected engines |
| Common Issues | Low pressure (clogged filter, weak pump), high pressure (faulty regulator) |
| Safety Precautions | Work in a well-ventilated area, avoid sparks, handle fuel carefully |
| Post-Test Steps | Reconnect fuel lines, secure components, reattach battery |
| Frequency of Testing | Test annually or if symptoms like hard starting or stalling occur |
| Professional Assistance | Consult a mechanic if pressure is inconsistent or issues persist |
Explore related products
What You'll Learn
- Gather Tools and Safety Gear: Assemble pressure gauge, wrenches, gloves, safety goggles, and fuel-resistant gloves
- Locate Fuel Pump and Line: Identify pump and fuel line access point for pressure testing setup
- Connect Pressure Gauge: Attach gauge securely to fuel line using appropriate adapters and fittings
- Run Engine and Record: Start engine, stabilize RPM, and note pressure readings at idle and load
- Compare Results to Specs: Verify readings against manufacturer’s specifications for accurate diagnosis
Gather Tools and Safety Gear: Assemble pressure gauge, wrenches, gloves, safety goggles, and fuel-resistant gloves
Before testing mechanical fuel pump pressure, ensure you have the right tools and safety gear to perform the task accurately and safely. A pressure gauge specifically designed for fuel systems is essential, as it provides precise readings within the typical range of 3 to 10 psi for most mechanical fuel pumps. Pair this with an appropriate set of wrenches to disconnect fuel lines securely, avoiding damage to fittings or seals. Safety goggles are non-negotiable, as fuel can spray unexpectedly under pressure, posing a risk to your eyes. Fuel-resistant gloves, made from materials like nitrile, protect your skin from prolonged exposure to gasoline, which can cause irritation or absorption through the skin. Regular gloves may degrade upon contact with fuel, rendering them ineffective.
The analytical approach reveals that each tool serves a dual purpose: functionality and safety. For instance, the pressure gauge not only measures fuel pump performance but also helps diagnose issues like clogs or leaks. Wrenches, when used correctly, prevent accidental damage to the fuel system, which could lead to costly repairs. Safety goggles and fuel-resistant gloves are not just precautionary—they are critical in mitigating the risks associated with handling flammable and toxic substances. Skipping these items could result in injuries or exposure to hazardous materials, emphasizing their indispensable role in the process.
From a comparative perspective, using the wrong tools or omitting safety gear can lead to disastrous outcomes. For example, standard latex gloves dissolve quickly when exposed to gasoline, leaving your hands unprotected. Similarly, a generic pressure gauge may not be calibrated for fuel systems, leading to inaccurate readings and misdiagnosis. Investing in high-quality, purpose-specific tools and gear not only ensures a successful test but also protects your health and vehicle. Consider this: the cost of proper equipment pales in comparison to the potential expenses of a fuel system mishap or a trip to the emergency room.
Instructively, begin by laying out all tools and safety gear in a clean, well-ventilated area before starting the test. Attach the pressure gauge to the fuel line using the appropriate wrench, ensuring a tight seal to prevent leaks. Wear safety goggles and fuel-resistant gloves throughout the process, even during setup and teardown. If working on an older vehicle, inspect fuel lines for cracks or brittleness before disconnecting them, as aged components may fail under pressure. Always have a fire extinguisher nearby when working with fuel systems, and avoid open flames or sparks.
Descriptively, imagine the scene: a well-organized workspace with a pressure gauge gleaming under the light, wrenches arranged by size, and safety goggles resting atop fuel-resistant gloves. The air smells faintly of gasoline, a reminder of the task at hand. As you connect the gauge, the gloves provide a tactile barrier, reassuring you against the fuel’s harsh chemicals. The goggles shield your eyes, allowing you to focus on the gauge’s needle as it responds to the pump’s pressure. This setup transforms a potentially hazardous task into a controlled, methodical process, where every tool plays its part in achieving accuracy and safety.
Why Your Hose Before the Fuel Pump is Completely Dry: Causes Explained
You may want to see also
Explore related products
Locate Fuel Pump and Line: Identify pump and fuel line access point for pressure testing setup
The first step in testing mechanical fuel pump pressure is pinpointing the pump's location and identifying the fuel line access point. This varies by vehicle make and model, so consult your repair manual or online resources for specific guidance. Generally, mechanical fuel pumps are mounted on the engine block near the carburetor or fuel injection system, often driven by a camshaft lobe. The fuel line access point is typically a Schrader valve or test port located along the fuel line, designed to accept a pressure gauge for accurate readings.
Analyzing the layout of your engine bay is crucial for efficient testing. Look for the fuel pump's distinctive cylindrical shape and mounting bracket, often near the carburetor or throttle body. Trace the fuel line from the pump to the engine, noting any bends, clamps, or connections that might obstruct access. If the pump or line is difficult to reach, consider using extensions or adapters to facilitate gauge attachment. Remember, proper identification of these components ensures a safe and accurate pressure test.
To locate the fuel pump and line access point, start by disconnecting the battery and relieving fuel system pressure. This is typically done by loosening the fuel line at the carburetor or fuel rail, but always follow manufacturer guidelines. Once pressure is relieved, inspect the pump and line for signs of wear, corrosion, or leaks. Use a flashlight and mirror to navigate tight spaces, and consider taking reference photos for future maintenance. Accurate identification of these components not only streamlines testing but also helps diagnose potential issues before they escalate.
A practical tip for identifying the fuel line access point is to look for a Schrader valve similar to those found on car tires. This valve is often located near the fuel pump or along the fuel line, providing a convenient connection for your pressure gauge. If your vehicle lacks a dedicated test port, you may need to install an adapter or tee fitting into the fuel line. Ensure all connections are secure and leak-free before proceeding with the pressure test. Proper setup minimizes the risk of fuel spills or inaccurate readings, ensuring reliable results.
In conclusion, locating the fuel pump and line access point is a critical step in testing mechanical fuel pump pressure. By consulting your vehicle’s manual, analyzing the engine bay layout, and using practical identification techniques, you can ensure a smooth and accurate testing process. Always prioritize safety by relieving fuel system pressure and verifying connections before proceeding. With the right approach, this step sets the foundation for diagnosing and resolving fuel system issues effectively.
LT4 Swap Fuel Pump Guide: Choosing the Right Pump for Performance
You may want to see also
Explore related products
Connect Pressure Gauge: Attach gauge securely to fuel line using appropriate adapters and fittings
Attaching a pressure gauge to the fuel line is a critical step in testing mechanical fuel pump pressure, as it provides a direct measurement of the system's performance. Begin by selecting a gauge compatible with your fuel type—gasoline, diesel, or ethanol blends—to ensure accuracy and safety. The gauge should have a pressure range that exceeds the expected operating pressure of your fuel pump, typically between 3 to 10 psi for most passenger vehicles. Ensure the gauge is rated for the fuel’s chemical properties to prevent damage or inaccurate readings.
Next, identify the appropriate connection point on the fuel line. For carbureted engines, this is often near the fuel pump outlet, while fuel-injected systems may require tapping into the fuel rail or using a test port. Use adapters and fittings that match the fuel line’s thread size and material, such as brass or steel, to avoid leaks or contamination. Teflon tape or thread sealant can be applied sparingly to ensure a tight seal, but avoid over-tightening to prevent damage to the fittings or fuel line.
When attaching the gauge, follow a systematic approach: first, relieve fuel system pressure by disconnecting the fuel line or using a pressure relief valve. Then, connect the gauge inline, ensuring all fittings are securely tightened. Double-check for leaks by inspecting connections and, if possible, applying a soapy water solution to detect bubbles. Once the gauge is attached, start the engine and observe the pressure reading, comparing it to the manufacturer’s specifications for your vehicle.
A common mistake is using incompatible adapters or failing to secure fittings properly, which can lead to fuel leaks or inaccurate readings. For example, using a gasoline gauge on a diesel system may result in gauge failure due to the higher pressure and different fuel properties. Always consult your vehicle’s manual or a trusted repair guide to confirm the correct procedure and components.
Finally, after testing, disconnect the gauge carefully to avoid fuel spillage. Reattach the original fuel line components, ensuring all connections are secure. Properly store the gauge and adapters for future use, as regular pressure testing can help diagnose fuel delivery issues early, preventing engine performance problems or damage. This step, though seemingly straightforward, is foundational to obtaining reliable data and maintaining a safe testing environment.
Step-by-Step Guide to Installing a Fuel Transfer Pump Efficiently
You may want to see also
Explore related products
Run Engine and Record: Start engine, stabilize RPM, and note pressure readings at idle and load
To accurately assess mechanical fuel pump performance, the engine must operate under controlled conditions. Begin by starting the engine and allowing it to reach its normal operating temperature, typically around 190°F to 200°F (88°C to 93°C). This ensures the fuel system components are functioning as they would during regular driving. Once the engine is warmed up, stabilize the RPM at idle, usually between 500 to 800 RPM, depending on the vehicle’s specifications. Use a tachometer to monitor the RPM and adjust the throttle as needed to maintain consistency. At this stage, connect a fuel pressure gauge to the fuel line, ensuring it’s securely attached to prevent leaks. Record the pressure reading at idle, which should align with the manufacturer’s specifications, often ranging from 3 to 7 PSI for carbureted engines or 9 to 12 PSI for fuel-injected systems.
Next, introduce a load to the engine to simulate real-world driving conditions. This can be done by engaging the air conditioning, turning on headlights, or applying a load tester. Alternatively, if the vehicle is on a dynamometer, gradually increase the load while maintaining a steady RPM, typically around 2,000 to 2,500 RPM. Observe the fuel pressure gauge during this process, noting any fluctuations or deviations from the idle reading. A healthy mechanical fuel pump should maintain pressure within the specified range under load, with minimal drop-off. For example, a fuel-injected engine might see a slight decrease from 12 PSI at idle to 10 PSI under load, which is acceptable. Significant drops, such as below 8 PSI, could indicate a failing pump or clogged fuel filter.
Analyzing the pressure readings at idle and under load provides critical insights into the fuel pump’s efficiency and overall system health. Compare the recorded values against the vehicle’s service manual to determine if they fall within the acceptable range. If the pressure is too low at idle, it may suggest a weak pump, while excessive pressure could point to a faulty regulator. Under load, a substantial drop in pressure often indicates restricted fuel flow, possibly due to a clogged filter or failing pump diaphragm. For instance, a 1985 Chevrolet pickup with a carbureted engine showing 5 PSI at idle and dropping to 2 PSI under load would likely require pump replacement or fuel system cleaning.
Practical tips can enhance the accuracy and safety of this test. Always work in a well-ventilated area and avoid open flames or sparks when handling fuel. Use a high-quality fuel pressure gauge with a range suitable for your vehicle’s system, and ensure all connections are tight to prevent leaks. If testing an older vehicle, consider the age and condition of the fuel lines, as brittle or cracked lines can skew results. For vehicles with return-style fuel systems, test pressure at both the inlet and outlet sides of the pump to identify specific issues. Finally, if the readings are inconsistent or out of range, retest after replacing the fuel filter to rule out this common culprit before condemning the pump.
In conclusion, running the engine and recording fuel pressure at idle and under load is a straightforward yet powerful diagnostic technique. It not only verifies the mechanical fuel pump’s functionality but also highlights potential issues in the broader fuel system. By following these steps and interpreting the results with precision, you can make informed decisions about maintenance or repairs, ensuring optimal engine performance and reliability.
Kia Soul Fuel Pump Reset Button: Fact or Fiction?
You may want to see also
Explore related products
Compare Results to Specs: Verify readings against manufacturer’s specifications for accurate diagnosis
After testing your mechanical fuel pump pressure, the critical next step is comparing the readings to the manufacturer's specifications. This isn't just a formality; it's the linchpin of accurate diagnosis. Every vehicle has a specific fuel pressure range designed for optimal engine performance. Deviations, even slight ones, can indicate problems ranging from clogged fuel filters to a failing pump.
Think of it like checking your blood pressure. A reading outside the healthy range doesn't automatically mean a heart attack, but it's a crucial indicator that warrants further investigation.
Manufacturers provide fuel pressure specifications in the vehicle's service manual or online resources. These specs are typically given in PSI (pounds per square inch) and often include a range (e.g., 45-55 PSI) rather than a single value. This range accounts for variations in operating conditions like engine load and temperature.
When comparing your test results, ensure you're referencing the correct specifications for your specific engine model and year. Using the wrong specs can lead to misdiagnosis and potentially costly repairs.
Let's say your fuel pressure test yields a reading of 40 PSI, and the manufacturer specifies a range of 45-55 PSI. This reading falls below the minimum threshold, suggesting a potential issue. Possible culprits could include a weak fuel pump, a clogged fuel filter restricting flow, or a leak in the fuel line.
Further diagnosis would be necessary to pinpoint the exact cause.
It's important to remember that fuel pressure is just one piece of the diagnostic puzzle. Other factors like fuel volume, engine vacuum, and ignition system performance also play a role. However, comparing your fuel pressure readings to the manufacturer's specifications provides a crucial starting point for identifying potential fuel delivery problems. By understanding these specs and interpreting your test results accurately, you can make informed decisions about the necessary repairs and ensure your vehicle runs smoothly.
Understanding OEM Fuel Pumps: Function, Benefits, and Importance Explained
You may want to see also
Frequently asked questions
You will need a fuel pressure gauge, a wrench or socket set to disconnect fuel lines, safety gloves, safety goggles, and a container to catch any spilled fuel.
Relieve the fuel system pressure first by locating the Schrader valve (if equipped) and pressing it with a tool. Then, use a wrench or socket to carefully disconnect the fuel line at the pump or filter, ensuring no fuel spills.
The typical pressure range for a mechanical fuel pump is between 3 to 10 psi (pounds per square inch), depending on the vehicle’s specifications. Always refer to the manufacturer’s guidelines for accurate values.
Compare the gauge reading to the manufacturer’s specifications. If the pressure is too low, it may indicate a weak pump or clogged fuel lines. If it’s too high, the pump regulator or check valve could be faulty. Ensure the engine is running at the specified RPM during the test.
