Testing whether your fuel pump is receiving power is a crucial step in diagnosing fuel system issues. Start by locating the fuel pump relay and fuse in your vehicle’s fuse box, typically found under the hood or near the driver’s side dashboard. Use a multimeter to check for voltage at the fuel pump connector by placing the red lead on the power wire and the black lead on the ground wire with the ignition on. If voltage is present, the issue may lie with the fuel pump itself; if not, inspect the relay, fuse, and wiring for faults. Additionally, you can use a test light or listen for the fuel pump’s hum when turning the key to the on position, as most pumps activate for a few seconds during this stage. Always consult your vehicle’s manual for specific locations and procedures to ensure accurate testing.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, test light, or 12V test lamp |
| Safety Precautions | Disconnect battery, work in a well-ventilated area, avoid sparks |
| Locate Fuel Pump Connector | Find the fuel pump wiring harness, usually near the fuel tank |
| Test for Power at the Connector | Check for 12V at the fuel pump connector with ignition on |
| Test Ground Connection | Ensure the ground wire has continuity to the vehicle chassis |
| Listen for Fuel Pump Operation | Turn ignition to "ON" and listen for the fuel pump hum (if applicable) |
| Check Fuel Pump Relay | Test the relay for proper operation using a multimeter |
| Test Fuel Pump Fuse | Inspect the fuse for continuity or replace if blown |
| Use a Noid Light | Connect a Noid light to the fuel pump connector to check for pulses |
| Measure Voltage Drop | Check for voltage drop across the fuel pump circuit under load |
| Consult Wiring Diagram | Refer to the vehicle’s wiring diagram for specific pinouts and connections |
| Professional Diagnosis | If unsure, consult a mechanic for advanced diagnostics |
Explore related products
What You'll Learn
- Check Fuses and Relays: Inspect fuse box for blown fuses and test fuel pump relay functionality
- Test Voltage at Pump: Use multimeter to measure voltage at fuel pump connector while cranking engine
- Inspect Wiring Harness: Look for damaged or corroded wires leading to the fuel pump
- Activate Pump Manually: Bypass relay to manually activate the fuel pump and listen for operation
- Use Scan Tool: Connect a scan tool to check for fuel pump control module errors
Check Fuses and Relays: Inspect fuse box for blown fuses and test fuel pump relay functionality
A blown fuse or faulty relay can be the silent culprit behind a fuel pump that’s not receiving power. Before diving into complex diagnostics, start with the fuse box—your vehicle’s electrical nerve center. Locate the fuse box, typically found under the dashboard or in the engine bay, and consult your owner’s manual to identify the fuse and relay associated with the fuel pump. This step is critical because a blown fuse or malfunctioning relay will cut power to the pump, regardless of its condition.
Begin by visually inspecting the fuse. A blown fuse often shows a broken or melted wire inside the transparent casing. If the fuse appears intact, use a multimeter to test for continuity. Set the multimeter to the continuity setting, touch the probes to both ends of the fuse, and listen for a beep. No beep? The fuse is blown and needs replacement. Always replace fuses with the correct amperage rating, as specified in your manual, to avoid electrical damage.
Next, test the fuel pump relay. Relays act as switches, controlling power flow to the pump. To test it, swap the fuel pump relay with another identical relay in the fuse box (e.g., the horn relay). If the fuel pump activates after starting the engine, the original relay is faulty. Alternatively, use a multimeter to check for voltage at the relay’s terminals when the ignition is on. If voltage is present but the pump doesn’t engage, the relay is likely defective.
While testing, be mindful of safety precautions. Work with the ignition off when handling fuses and relays to prevent electrical shocks or short circuits. Keep a spare fuse and relay on hand, as these components are inexpensive and commonly available at auto parts stores. Addressing fuse and relay issues first can save time and money, ensuring you don’t unnecessarily replace the fuel pump or delve into more complex diagnostics.
In summary, checking fuses and relays is a straightforward yet often overlooked step in diagnosing fuel pump power issues. By systematically inspecting the fuse box and testing the relay, you can quickly identify and resolve common electrical faults. This approach not only saves time but also empowers you to tackle vehicle issues with confidence and precision.
Toyota Tundra 2008 Fuel Pump Location: A Quick Guide
You may want to see also
Explore related products
Test Voltage at Pump: Use multimeter to measure voltage at fuel pump connector while cranking engine

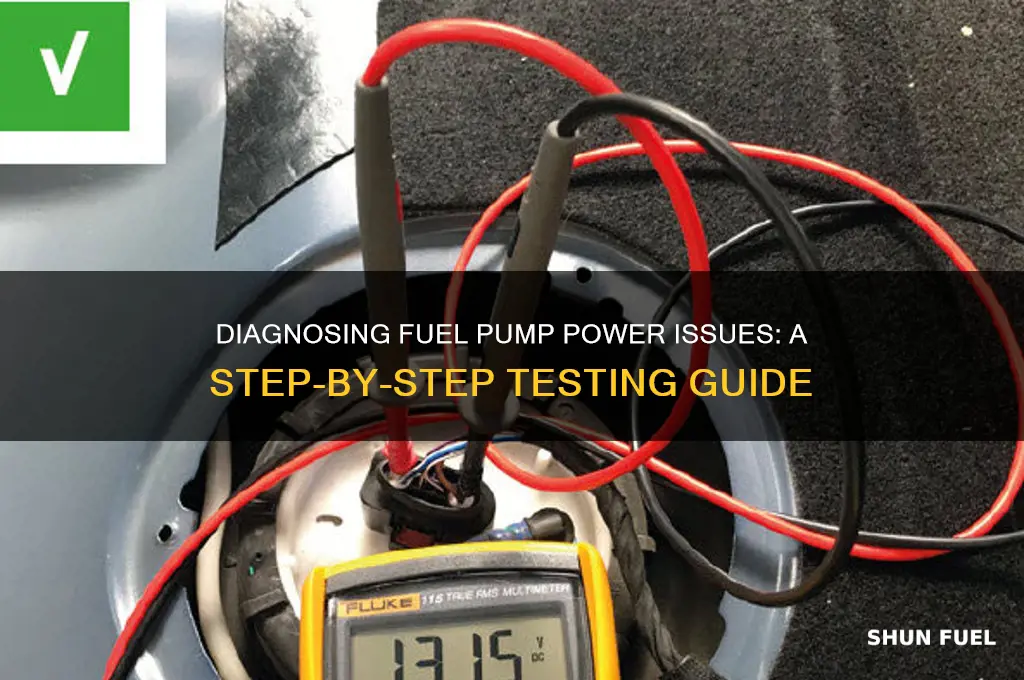

One of the most direct ways to determine if your fuel pump is receiving power is to test the voltage at the pump connector while cranking the engine. This method requires a multimeter, a tool that measures electrical voltage, current, and resistance. By connecting the multimeter to the fuel pump’s wiring harness, you can verify whether the pump is getting the necessary electrical supply to operate. This test is particularly useful when diagnosing a no-start condition or poor engine performance, as it isolates the electrical aspect of the fuel pump’s functionality.
To perform this test, start by locating the fuel pump connector, typically found near the fuel tank or along the fuel line. Ensure the vehicle is off and the ignition is in the "off" position to avoid electrical hazards. Set your multimeter to the DC voltage setting, usually marked with a "V" and a dashed line, and select a range higher than your vehicle’s battery voltage (typically 12V or 24V). Connect the multimeter’s red lead to the wire supplying power to the fuel pump and the black lead to a good ground, such as the vehicle’s chassis. Have an assistant crank the engine while you observe the multimeter reading. A healthy fuel pump circuit should show voltage close to the battery voltage during cranking.
If the multimeter reads 0 volts, the issue likely lies in the wiring or the fuel pump relay, indicating a break in the circuit. However, if the voltage is present but significantly lower than expected, it could suggest high resistance in the circuit, often caused by corroded connectors or damaged wires. In contrast, if the voltage is correct but the fuel pump still doesn’t operate, the pump itself may be faulty. This step-by-step approach helps narrow down the root cause of the problem efficiently.
A practical tip is to consult your vehicle’s service manual to identify the correct wires for testing, as fuel pump connectors vary across makes and models. Additionally, ensure the multimeter leads are securely connected to avoid inaccurate readings. This test not only confirms power delivery but also highlights potential issues in the electrical system that might otherwise go unnoticed. By mastering this technique, you can save time and avoid unnecessary part replacements in your troubleshooting process.
Are Aftermarket Fuel Pumps Reliable? Pros, Cons, and Expert Insights
You may want to see also
Explore related products
Inspect Wiring Harness: Look for damaged or corroded wires leading to the fuel pump
A faulty fuel pump can leave you stranded, but before replacing it, ensure it's actually the culprit. One critical step is inspecting the wiring harness that delivers power to the pump. Damaged or corroded wires can disrupt the electrical flow, mimicking pump failure.
Visual inspection is your first line of defense. Carefully trace the wiring harness from the fuel pump to the fuse box and battery. Look for any signs of wear and tear, such as frayed insulation, exposed copper strands, or cracks in the wiring. Pay close attention to areas where the harness bends or rubs against other components, as these are prone to damage.
Corrosion, often caused by moisture and road salt, can also impede electrical conductivity. Inspect connectors and terminals for greenish or whitish deposits, indicating corrosion. Gently clean these areas with a wire brush and dielectric grease to improve contact. Remember, even minor corrosion can significantly reduce power delivery.
If you suspect damage but can't visually confirm it, a multimeter becomes your diagnostic tool. Set it to measure resistance (ohms) and connect the probes to the wiring harness at both ends. A reading significantly higher than the expected resistance (consult your vehicle's manual for specifications) indicates a potential break or high resistance in the wire.
While inspecting the wiring harness may seem tedious, it's a crucial step in diagnosing fuel pump issues. By identifying and addressing damaged or corroded wires, you can save yourself the cost and hassle of replacing a perfectly functional pump. Remember, a thorough inspection can prevent unnecessary repairs and ensure your vehicle's fuel system operates reliably.
How a Failing Fuel Pump Impacts Engine Performance and Efficiency
You may want to see also
Explore related products
Activate Pump Manually: Bypass relay to manually activate the fuel pump and listen for operation
One effective method to determine if your fuel pump is receiving power is to manually activate it by bypassing the relay. This technique allows you to isolate the pump’s operation from the vehicle’s electrical system, ensuring that the issue isn’t with the relay or wiring. Start by locating the fuel pump relay in your fuse box; it’s often labeled and can be identified using your vehicle’s manual. Swap the fuel pump relay with a similar one (e.g., the horn relay) to temporarily bypass the original circuit. Turn the ignition to the "on" position but do not start the engine. If the pump activates, you’ll hear a faint humming or whirring sound from the fuel tank, confirming it’s receiving power.
This method is particularly useful when diagnosing a no-start condition caused by a suspected fuel delivery issue. By bypassing the relay, you eliminate it as a potential culprit, narrowing down the problem to either the pump itself or the wiring leading to it. However, exercise caution: prolonged operation of the pump without fuel flowing can cause it to overheat and sustain damage. Limit the activation time to 5–10 seconds per test. Additionally, ensure the fuel tank is at least partially filled to prevent the pump from running dry, which can also lead to damage.
For a more controlled test, use a jumper wire to manually activate the pump directly at the relay socket. Connect one end of the wire to the battery’s positive terminal and the other to the relay socket’s power pin (typically pin 87). Have an assistant turn the ignition on while you listen for the pump’s operation. If the pump runs, the issue likely lies with the relay or its wiring. If it doesn’t, the problem could be the pump itself, a blown fuse, or a faulty ground connection. Always double-check your vehicle’s wiring diagram to ensure you’re applying power to the correct pin.
While this technique is straightforward, it’s not without risks. Mishandling high-current circuits can lead to electrical shorts or damage to components. Always disconnect the battery before working on the relay or wiring, and use insulated tools to avoid accidental grounding. If you’re unsure about any step, consult a professional or refer to a detailed repair manual for your specific vehicle. This method, when executed correctly, provides a clear indication of whether the fuel pump is receiving power, guiding you toward the next steps in your diagnosis.
Finding Your Fuel Pump Access Panel: A Quick Location Guide
You may want to see also
Explore related products
Use Scan Tool: Connect a scan tool to check for fuel pump control module errors
A scan tool is an indispensable diagnostic device for modern vehicles, offering a direct line of communication with the onboard computer system. When troubleshooting fuel pump power issues, connecting a scan tool can reveal critical insights into the fuel pump control module's performance. This method is particularly useful for vehicles equipped with electronic fuel injection systems, where the control module plays a pivotal role in regulating fuel pump operation. By accessing the vehicle's diagnostic trouble codes (DTCs), technicians can identify errors related to the fuel pump control module, such as faulty relays, wiring issues, or sensor malfunctions.
To begin the diagnostic process, locate the vehicle's OBD-II (On-Board Diagnostics) port, typically found beneath the dashboard on the driver's side. Insert the scan tool's connector into the port, ensuring a secure fit. Power on the scan tool and allow it to establish communication with the vehicle's computer system. Navigate to the "Live Data" or "Sensor Data" section, where you can monitor real-time parameters related to the fuel pump, including voltage, current, and duty cycle. Compare these readings to the manufacturer's specifications to identify discrepancies that may indicate a power issue.
One of the key advantages of using a scan tool is its ability to retrieve and clear diagnostic trouble codes. In the context of fuel pump power testing, focus on codes related to the fuel pump control module, such as P0230 (Fuel Pump Primary Circuit Malfunction) or P0232 (Fuel Pump Secondary Circuit Malfunction). These codes provide valuable clues about the nature of the problem, guiding further diagnostic steps. For instance, a code indicating a faulty fuel pump relay may necessitate testing the relay's continuity or replacing it altogether.
When interpreting scan tool data, consider the vehicle's age, mileage, and maintenance history. Older vehicles or those with high mileage may exhibit wear-related issues, such as corroded wiring or failing sensors, which can affect fuel pump power. In these cases, a scan tool can help pinpoint the specific component at fault, streamlining the repair process. Additionally, some scan tools offer advanced features like waveform analysis or oscilloscope functions, enabling technicians to visualize voltage and current patterns for a more comprehensive diagnosis.
In conclusion, employing a scan tool to check for fuel pump control module errors is a systematic and efficient approach to diagnosing power-related issues. By combining real-time data monitoring, trouble code analysis, and vehicle-specific considerations, technicians can accurately identify the root cause of fuel pump power problems. This method not only saves time and effort but also minimizes the risk of misdiagnosis, ensuring a more effective and lasting repair. As vehicle technology continues to evolve, the scan tool remains an essential tool in every technician's arsenal, providing unparalleled access to critical diagnostic information.
Identifying Fuel Pumps on 1960s Fiat 850: A Comprehensive Guide
You may want to see also
Frequently asked questions
You can test if your fuel pump is getting power by using a multimeter to check for voltage at the fuel pump connector. With the key in the "on" position, place the multimeter probes on the connector's power and ground wires. If there's voltage, the pump is receiving power.
Symptoms of a fuel pump not getting power include no engine start, sputtering or stalling, and a lack of fuel pressure. You may also notice that the fuel pump relay is not clicking when the key is turned on.
Yes, you can perform a basic test by listening for the fuel pump's hum when the key is turned on. If you don't hear the pump, it may not be getting power. However, for a more accurate diagnosis, using a multimeter or a test light to check for voltage at the pump connector is recommended.
