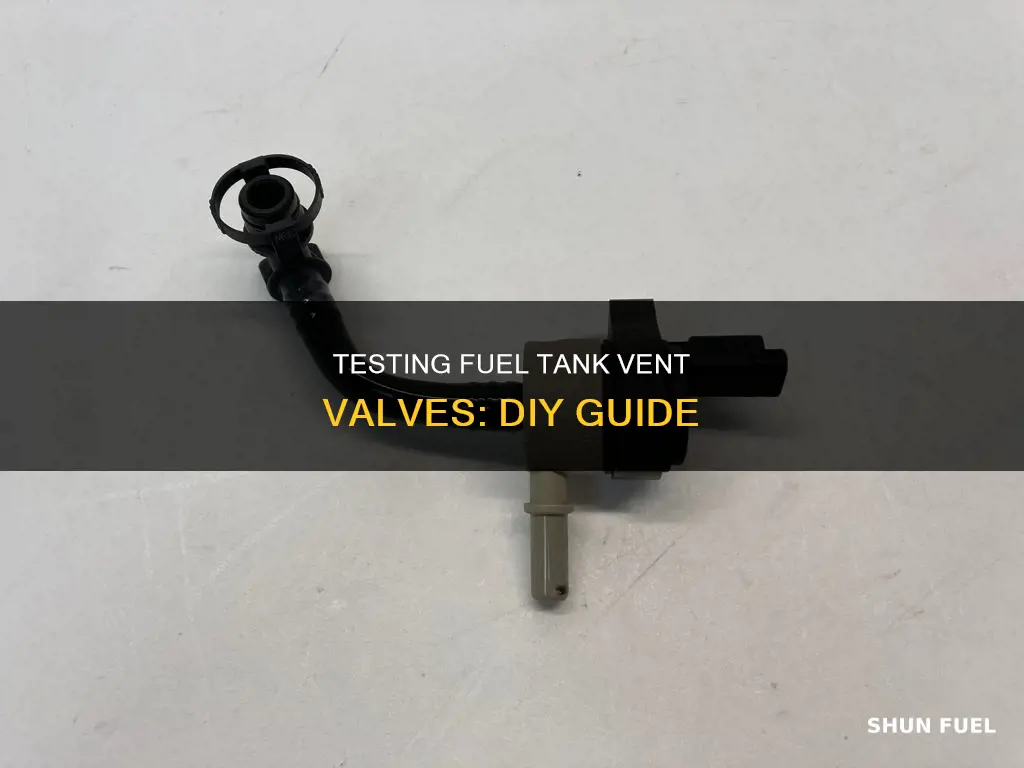

Testing a fuel tank vent valve is important to ensure that your vehicle's fuel tank is functioning properly. The vent valve, often located underneath the vehicle near the fuel tank, plays a crucial role in regulating pressure and vacuum in the tank. Gasoline expands and shrinks in volume due to temperature changes, and the vent valve allows the tank to breathe by relieving pressure and vacuum. A faulty vent valve can lead to fuel becoming trapped in the line, causing pressure buildup and potential damage to the tank. To test the vent valve, one can check for obstructions in the vent line, ensure proper mounting of the vent, inspect for corrosion or dirt buildup, and test the power and ground at the electric connector. Additionally, signs of a malfunctioning vent valve include a stuck-open valve, an EVAP system leak, or a triggered Check Engine light with specific error codes. Regular testing and maintenance of the fuel tank vent valve are essential to ensure the safe and efficient operation of your vehicle's fuel system.
| Characteristics | Values |
|---|---|
| Location | Underneath the vehicle, close to or at the charcoal canister near the fuel tank |
| Common problems | Sticking open, failing, clogging due to dirt and dust |
| Testing | Test the power and ground at the vent valve electric connector |
| Vacuum | A bad vent valve will not hold a vacuum when activated or won't activate at all |
| Mounting | The vent should be mounted vertically. Mounting at an angle may cause the vent to shut off |
| Fuel | Fuel becomes trapped in the line, causing the tank to build pressure or a vacuum. This can lead to gas and/or odor coming from the vent line and potentially damaging the tank |
| Replacement cost | $150-$320 for the part and labor |
Explore related products
What You'll Learn
Check for blockages in the vent line
To check for blockages in the vent line, you must first locate the air vent line. Then, put a compressor into it and shoot some air into it. If the vent line is unblocked, you should hear a gurgling sound. If there is no sound, the line is blocked.
Next, take the canister vent line off the gas tank and blow through it. If the line is short, you will quickly know if there is a blockage. You can also use compressed air to check for blockages. Many compressors come with long plastic tubing that can be used to blow out any clogs.
You can also try to run the vehicle until the issue occurs, then pull over to a safe and quiet area, shut down the engine, and open the gas cap while listening for a vacuum sound. If you hear air sucking into the tank, this could indicate a blockage in the vent.
It is important to note that if you are running a vent line, it should be higher than the highest point on the tank, including the fuel filler neck. The vent line should also not have any dips where fuel or condensation can get trapped. If fuel becomes trapped in the line, your tank will build pressure or a vacuum, which can cause damage to your tank.
Fuel Tank Fiasco: Water Intrusion Mystery
You may want to see also
Explore related products
Ensure the vent is mounted vertically
Ensuring that the vent is mounted vertically is crucial for the proper functioning of the fuel tank vent valve. Here are several reasons why this vertical orientation is important:
Firstly, the vent line should be positioned higher than the highest point on the tank, including the fuel filler neck. This elevation ensures that fuel cannot splash out through the vent when the vehicle is in motion, such as when accelerating or turning a corner. Mounting the vent at the highest point prevents fuel from escaping and potentially causing a hazardous situation.
Secondly, mounting the vent vertically prevents the vent from shutting off prematurely. If the vent is angled or mounted horizontally, it may remain closed, leading to improper venting of the tank. Specifically, the vent valve should be installed with the hose barb facing downward and the aluminium cylinder on top. This orientation ensures the vent remains open and functional.
Additionally, when installing the vent line, it is crucial to avoid creating any dips or traps in the line. A dip in the line can cause fuel or condensation to accumulate, leading to potential blockages. A straight and vertical vent line prevents the trapping of fuel or vapours, ensuring the venting system operates effectively.
Furthermore, the vertical orientation of the vent also helps to maintain the proper flow of air and fuel vapours. As fuel is added to the tank, air is displaced and needs to escape. Similarly, when fuel is drawn from the tank, air must be allowed back in to avoid a vacuum. A vertical vent line and vent valve facilitate this exchange, ensuring the tank breathes efficiently and preventing pressure or vacuum buildup.
In summary, ensuring the vent is mounted vertically is essential for several reasons. It prevents fuel from escaping through the vent, avoids premature vent shutdown, eliminates potential blockages from fuel or condensation buildup, and facilitates the necessary exchange of air and fuel vapours to maintain the tank's proper ventilation and pressure balance.
School Bus Fuel Tank Capacities: How Large?
You may want to see also
Explore related products
Test power and ground at the electric connector
To test power and ground at the electric connector of a fuel tank vent valve, you will need to locate the vent valve and its electrical connector. Here is a step-by-step guide:
- Locate the Fuel Tank Vent Valve: The fuel tank vent valve is typically located underneath the vehicle, close to or at the charcoal canister near the fuel tank. In some cars, it may be attached to the canister, while in others, it may be installed separately near it.
- Understand the Vent Valve Operation: The vent valve controls the flow of outside air in and out of the charcoal canister. It is part of the Evaporative Emission Control (EVAP) system, which prevents fuel vapors from the fuel tank from escaping into the atmosphere.
- Prepare the Necessary Tools: You will need a multimeter or a voltmeter to test the power and ground at the electrical connector. These tools allow you to measure voltage and current.
- Access the Electric Connector: With the necessary tools in hand, locate the electric connector on the vent valve. It should be accessible without removing any major components.
- Test the Power and Ground: Now, you will perform the voltage test. Set your multimeter or voltmeter to the appropriate voltage setting, typically in the range of 12-24 volts. Touch the positive probe of your tester to the positive wire at the connector, and the negative probe to the negative wire. Take note of the voltage reading. A reading of zero volts may indicate a lack of power, while a reading lower than expected (e.g., 8 volts) could be a sign of low fuel pressure.
- Compare Results: Compare the voltage reading with the specifications for your vehicle. You can usually find this information in the service manual or vehicle repair guides specific to your car make and model.
- Interpret the Results: If the voltage reading is within the specified range, the power and ground connection at the electric connector is likely functioning correctly. If the voltage is outside the expected range, there may be an issue with the electrical system, such as a faulty wire or connector.
Remember to exercise caution when working on any vehicle, especially when dealing with electrical components. Always refer to your vehicle's repair manual for specific procedures and safety precautions.
Fuel Tank Breather: Understanding Its Function and Mechanism
You may want to see also
Explore related products
Check for leaks in the EVAP system
The EVAP system, or Evaporative Emission Control System, is an essential part of a car's emission control system. Its primary function is to capture and store fuel vapors that would otherwise escape into the atmosphere, thereby reducing air pollution. If there is a leak in the EVAP system, it can cause a host of issues, such as decreased fuel efficiency and increased emissions. Therefore, it is important to regularly check for leaks in the EVAP system and address any issues promptly.
There are several methods to check for leaks in the EVAP system. One common method is to use a scan tool or a diagnostic code reader to help diagnose the issue. This tool can identify any error codes that the EVAP system has generated, which can indicate the presence of a leak. For example, a code such as P0442 or P0455 may indicate a problem with the EVAP system, specifically a leak. These codes can help narrow down the potential sources of the leak and guide further diagnostics.
Another method to check for leaks is to perform a smoke test. This involves using a smoke machine to generate smoke and introducing it into the EVAP system. By observing where the smoke exits the system, one can identify the location of the leak. This method is particularly useful for finding small leaks that may be difficult to detect otherwise. Visual inspections can also be useful for identifying larger leaks, as they are often easy to spot.
Additionally, it is important to check the gas tank and filler neck for leaks. This can be done by ensuring the gas tank is not full before performing diagnostics, as a full tank may mask leaks in these areas. It is also crucial to verify that the gas cap is secure and tight, as a loose gas cap is a common cause of EVAP system leaks and can often be a simple fix.
Furthermore, isolating and testing individual components of the EVAP system can help pinpoint leaks. This process may take extra time, but it is an effective way to locate and resolve issues. It is important to consult the specific manufacturer definitions and service information for the vehicle in question, as different makes and models may have unique testing procedures and error codes.
The Ki-61: Self-Sealing Fuel Tanks?
You may want to see also
Explore related products
$69.99 $79.99
Observe the Check Engine light
The Check Engine Light (CEL) is a warning system in your vehicle that illuminates when there is an issue with the engine or emissions system. When the CEL is on, it indicates that there may be a problem with the fuel tank vent valve. This light can be triggered by various issues, but if there is a problem with the vent valve, scanning the EVAP system will reveal an error code related to the problem.
Error codes such as P0441 or P0455 specifically indicate issues with the fuel tank vent valve. To check for these codes, connect an OBD-II scanner to the vehicle and review any error codes that appear. These error codes can provide valuable information about the nature of the problem and help identify the faulty component.
If the CEL is illuminated and error codes indicate a problem with the fuel tank vent valve, further inspection is necessary. A physical inspection of the valve and its neighbouring components can reveal issues such as cracks or wear. A smoke test can also be performed to identify leakages in the EVAP system.
After repairing or replacing the faulty fuel tank vent valve, it is important to reset the error codes using an OBD-II scanner. This will help turn off the CEL and ensure that the issue has been resolved. It is recommended to seek assistance from professional technicians who can utilise diagnostic equipment to accurately identify and address any problems.
Unlocking Your Q5's Fuel Tank: Easy Steps
You may want to see also
Frequently asked questions
The fuel tank vent valve is usually located at the top of the tank. It can be found by following the fuel lines back from the tank.
The vent valve allows the fuel tank to breathe, relieving vacuum and pressure. It also prevents fuel vapors from escaping into the atmosphere and stops fuel from siphoning out of the tank.
A common problem is when the valve sticks open or fails, creating an EVAP system leak and triggering the \"Check Engine\" light. A partially closed vent valve due to dirt and grime can also cause issues.
You can test the power and ground at the vent valve electric connector. A bad vent valve may not hold a vacuum when activated or may not activate at all.
Replacing the vent valve is generally not very expensive, ranging from $150 to $320 for parts and labor. It is also recommended to check the fuel lines for any obstructions and ensure the vent is mounted vertically to avoid issues.
