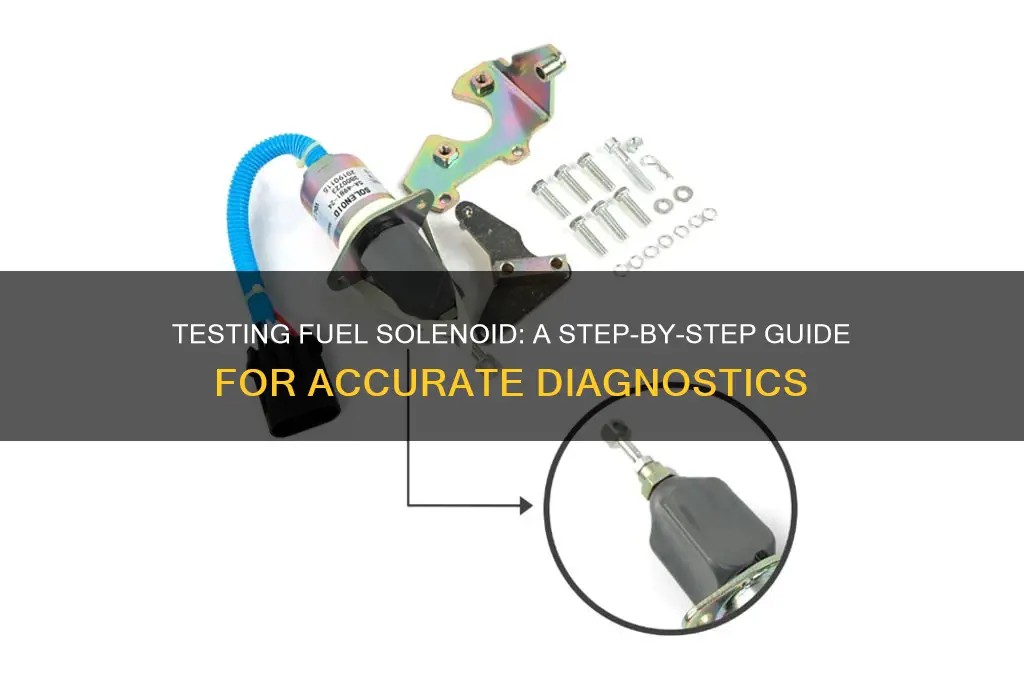

Testing a fuel solenoid is a critical step in diagnosing fuel system issues in vehicles. The fuel solenoid, also known as a fuel injector solenoid, controls the flow of fuel from the tank to the engine by opening and closing a valve in response to electrical signals from the engine control unit (ECU). To test a fuel solenoid, start by ensuring the vehicle is safely parked and the engine is off. Disconnect the solenoid’s electrical connector and use a multimeter to check for continuity across its terminals, ensuring it matches the manufacturer’s specifications. Next, apply a direct 12-volt power source to the solenoid to verify it clicks or activates, indicating proper mechanical function. If the solenoid fails either test, it likely needs replacement. Additionally, checking fuel pressure and using a noid light to confirm the ECU is sending the correct signal can help isolate whether the issue lies with the solenoid or the electrical circuit. Proper testing ensures accurate diagnosis and prevents unnecessary part replacements.
| Characteristics | Values |
|---|---|
| Purpose of Testing | To diagnose fuel delivery issues, check solenoid functionality, and ensure proper fuel flow. |
| Tools Required | Multimeter, 12V test light, screwdriver, jumper wires, safety gloves, safety goggles. |
| Safety Precautions | Disconnect battery, work in a well-ventilated area, avoid sparks near fuel. |
| Location of Fuel Solenoid | Typically near the fuel tank or fuel rail, consult vehicle manual for exact location. |
| Visual Inspection | Check for corrosion, damage, or loose connections before testing. |
| Electrical Test (Continuity) | Use a multimeter to test resistance across solenoid terminals; compare with specs. |
| Power Supply Test | Apply 12V power directly to solenoid terminals to check for clicking sound or movement. |
| Voltage Drop Test | Measure voltage drop across solenoid while activated; should match battery voltage. |
| Current Draw Test | Measure current draw with a multimeter; compare with manufacturer specifications. |
| Activation Test | Use a jumper wire to bypass relay and apply power directly to solenoid. |
| Fuel Pressure Test | Use a fuel pressure gauge to check pressure before and after solenoid activation. |
| Symptoms of Faulty Solenoid | No-start condition, hard starting, stalling, or erratic fuel pressure. |
| Common Causes of Failure | Worn contacts, internal shorts, corrosion, or mechanical failure. |
| Replacement Considerations | Replace solenoid if tests confirm failure; ensure compatibility with vehicle. |
| Post-Replacement Testing | Re-test fuel pressure and solenoid functionality after installation. |
| Professional Assistance | Consult a mechanic if unsure about testing or diagnosis. |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, safety gear, and fuel system diagram before starting the testing process
- Visual Inspection: Check for damage, corrosion, or leaks on the fuel solenoid and connections
- Electrical Testing: Use a multimeter to verify voltage and resistance across solenoid terminals
- Functional Test: Activate the solenoid and listen for clicking or observe fuel flow response
- Post-Test Analysis: Compare results with specifications to diagnose faults or confirm functionality
Pre-Test Preparation: Gather tools, safety gear, and fuel system diagram before starting the testing process
Before testing a fuel solenoid, proper preparation is critical to ensure accuracy, safety, and efficiency. Start by gathering the essential tools: a multimeter to measure voltage and resistance, a set of wrenches or sockets to access the solenoid, and a screwdriver for any panel removals. Additionally, a clean container for fuel spillage and a rag for cleanup are practical additions. These tools not only streamline the process but also minimize the risk of damage to components or injury to yourself.
Safety gear is non-negotiable when working with fuel systems. Wear nitrile gloves to protect your skin from fuel exposure, and safety goggles to shield your eyes from potential splashes. A fire extinguisher should be within arm’s reach, as fuel is highly flammable. Ensure the work area is well-ventilated to disperse fumes, and avoid open flames or sparks. These precautions transform a hazardous task into a manageable one, safeguarding both you and your vehicle.
A fuel system diagram is your roadmap to understanding the solenoid’s role and location. Obtain a diagram specific to your vehicle’s make and model, either from the owner’s manual or a reliable online source. Study it to identify the solenoid’s position, its electrical connections, and its relationship to other components like the fuel pump and injectors. This knowledge prevents misdiagnosis and ensures you test the correct part, saving time and frustration.
Finally, prepare your workspace to facilitate a smooth testing process. Park the vehicle on a flat, stable surface and engage the parking brake. Disconnect the battery to eliminate electrical hazards, and allow the engine to cool if it was recently running. Lay out your tools and safety gear in an organized manner, ensuring everything is within easy reach. This level of preparation not only enhances efficiency but also reinforces a professional approach to automotive troubleshooting.
Is Game Fuel Gfuel? Unraveling the Energy Drink Myth
You may want to see also
Explore related products
Visual Inspection: Check for damage, corrosion, or leaks on the fuel solenoid and connections
A thorough visual inspection is the first step in diagnosing fuel solenoid issues. Begin by locating the solenoid, typically found near the fuel injectors or fuel rail, and ensure the engine is cool to avoid burns. Using a bright flashlight, examine the solenoid’s body for cracks, dents, or warping, which could indicate physical damage compromising its function. Pay close attention to the electrical connector and wiring harness for frayed wires, melted insulation, or loose connections that might disrupt the electrical signal. Even minor damage here can lead to intermittent fuel delivery problems.
Corrosion is a silent saboteur of fuel system components. Look for white, green, or brown deposits on the solenoid’s terminals or mating surfaces, which can hinder electrical conductivity. In humid environments, corrosion accelerates, so inspect more rigorously if the vehicle operates in such conditions. Use a magnifying glass if necessary to spot early signs of oxidation. If corrosion is present, gently clean the terminals with a wire brush and dielectric grease to restore connectivity, but avoid over-tightening connections, as this can strip threads or damage the solenoid.
Leaks are critical to identify, as they pose both performance and safety risks. Inspect the solenoid’s inlet and outlet ports for fuel residue, wetness, or staining, which suggest seepage. Even a small leak can lead to fuel starvation or, worse, a fire hazard. Trace the fuel lines connected to the solenoid for cracks, swelling, or brittle rubber, which often indicate aging or exposure to contaminants. If a leak is suspected, replace the solenoid immediately, as temporary fixes are unreliable in high-pressure fuel systems.
While visual inspection is non-invasive, it’s not foolproof. Damage, corrosion, or leaks are often symptomatic of underlying issues, such as poor maintenance or incompatible fuel additives. For instance, ethanol-blended fuels can degrade rubber components faster, leading to leaks. Pair this inspection with a review of the vehicle’s maintenance history and recent fuel usage to identify contributing factors. If the solenoid appears pristine but symptoms persist, proceed to electrical or pressure tests to isolate the problem.
In summary, a meticulous visual inspection serves as the foundation for fuel solenoid diagnostics. It’s cost-effective, quick, and can reveal issues that more complex tests might miss. However, it’s just one piece of the puzzle. Combine it with other testing methods for a comprehensive assessment, ensuring the solenoid’s reliability and the vehicle’s overall performance. Treat this step as both a diagnostic tool and a preventive measure, catching potential failures before they escalate.
Best Fuel Options for Coleman QuickLite Stoves: A Comprehensive Guide
You may want to see also
Explore related products
Electrical Testing: Use a multimeter to verify voltage and resistance across solenoid terminals
A multimeter is your go-to tool for diagnosing fuel solenoid issues. By measuring voltage and resistance across the solenoid terminals, you can pinpoint electrical faults that might be preventing it from functioning properly. This methodical approach eliminates guesswork, ensuring you address the root cause rather than replacing parts unnecessarily.
Before testing, ensure the vehicle is turned off and the ignition is in the "off" position. Safety first—working with live electrical systems can be hazardous. Disconnect the solenoid’s wiring harness to access the terminals freely.
Voltage Testing: Set your multimeter to the DC voltage range, typically 20V or higher, depending on your vehicle’s system. Connect the multimeter’s positive lead (red) to the solenoid’s power terminal and the negative lead (black) to the ground terminal. Turn the ignition to the "on" position but do not start the engine. A healthy solenoid should read battery voltage (usually 12V). If no voltage is detected, the issue likely lies in the wiring or the control circuit.
Resistance Testing: Switch the multimeter to the resistance (ohms) setting. Place the leads across the solenoid’s terminals. A typical fuel solenoid has a resistance range of 10 to 30 ohms, though this varies by model—consult your vehicle’s manual for specifics. If the reading is significantly higher or lower, the solenoid coil may be damaged. Infinite resistance indicates an open circuit, while zero resistance suggests a short.
Practical Tips: Always double-check your multimeter settings to avoid incorrect readings. If the solenoid is mounted in a hard-to-reach area, use extension leads for convenience. Keep a log of your readings for comparison with manufacturer specifications.
By systematically testing voltage and resistance, you can confidently diagnose whether the fuel solenoid is electrically sound or needs replacement. This precise approach saves time and money, making it an essential skill for any DIY mechanic or professional technician.
Understanding Dual Fuel: Benefits, Efficiency, and Cost Savings Explained
You may want to see also
Explore related products
Functional Test: Activate the solenoid and listen for clicking or observe fuel flow response
A functional test is a straightforward yet effective method to assess the health of a fuel solenoid. By activating the solenoid and listening for a distinct clicking sound, you can quickly determine if it’s receiving power and operating mechanically. This audible feedback is a primary indicator of the solenoid’s ability to engage, which is critical for fuel delivery in vehicles or machinery. If the click is absent, it suggests an electrical issue, such as a blown fuse, faulty relay, or damaged wiring, narrowing down your diagnostic path.
Observing the fuel flow response provides a complementary layer of insight. With the solenoid activated, monitor the fuel pressure gauge or visually inspect the fuel line for flow. A healthy solenoid should allow fuel to pass through immediately after activation, maintaining consistent pressure. If flow is weak, intermittent, or nonexistent, the solenoid may be clogged, stuck, or failing internally. This test not only confirms the solenoid’s mechanical function but also its ability to regulate fuel delivery under load, ensuring the system operates as designed.
To perform this test effectively, ensure the fuel system is depressurized and the ignition is off before beginning. Use a multimeter to verify power is reaching the solenoid when activated, as this confirms the electrical circuit is intact. If the solenoid clicks but fuel flow is inadequate, inspect the fuel filter and lines for blockages. For vehicles, consult the manufacturer’s specifications for expected fuel pressure values during activation, as these vary by model. This dual approach—audible and visual—offers a comprehensive assessment without specialized tools.
While this test is accessible, it’s not foolproof. A clicking solenoid doesn’t guarantee long-term reliability, as internal wear may still cause failure under stress. Similarly, fuel flow issues could stem from other components, such as the fuel pump or injectors. Always cross-reference results with other diagnostic methods, like resistance testing or pressure checks, to pinpoint the root cause. This functional test serves as a quick, initial diagnostic, guiding further investigation rather than providing a definitive verdict.
In practice, this method is particularly useful for troubleshooting no-start conditions or poor engine performance. For instance, if a vehicle cranks but doesn’t start, activating the solenoid and listening for the click can rule out electrical faults in seconds. Pairing this with a fuel pressure gauge reading allows you to isolate whether the issue lies with the solenoid, fuel pump, or another component. By mastering this test, you gain a versatile tool applicable across various fuel systems, from automotive to industrial applications.
Mastering Chafing Fuel Refills: A Safe and Efficient Step-by-Step Guide
You may want to see also
Explore related products
Post-Test Analysis: Compare results with specifications to diagnose faults or confirm functionality
After testing your fuel solenoid, the real diagnostic work begins. Post-test analysis is where you bridge the gap between raw data and actionable insights. This critical step involves comparing your test results against manufacturer specifications to determine whether the solenoid is functioning correctly or if a fault exists.
Step 1: Gather Specifications
Start by consulting your vehicle’s service manual or the solenoid manufacturer’s documentation. Key specifications include operating voltage (typically 12V for most vehicles), resistance values (often 10–30 ohms), and expected current draw (around 1–2 amps). These values serve as your benchmark for comparison.
Step 2: Analyze Voltage and Resistance
If your multimeter reading shows a resistance outside the specified range, suspect a faulty solenoid. For instance, a reading of 50 ohms on a solenoid rated for 20 ohms indicates excessive resistance, likely due to internal damage or corrosion. Similarly, if the solenoid fails to draw power when voltage is applied, it may be shorted or disconnected.
Step 3: Evaluate Mechanical Response
Beyond electrical measurements, observe the solenoid’s physical behavior. A functional solenoid should produce an audible click and open the fuel valve when energized. If the click is absent or the valve remains closed, the solenoid’s plunger may be stuck or broken, even if electrical readings appear normal.
Caution: Context Matters
Always account for environmental factors during analysis. For example, cold temperatures can increase resistance temporarily, while a weak battery may supply insufficient voltage, skewing results. Retest under optimal conditions if external factors are suspected.
By systematically comparing test results to specifications, you can pinpoint faults with precision. A solenoid failing to meet electrical or mechanical benchmarks is a strong indicator for replacement. Conversely, consistent alignment with specifications confirms functionality, allowing you to rule out the solenoid as the source of fuel system issues. This analytical approach transforms raw data into decisive action, streamlining your diagnostic process.
Motorways vs. City Driving: Which is More Fuel Efficient?
You may want to see also
Frequently asked questions
A fuel solenoid is an electromagnetic valve that controls the flow of fuel in a vehicle's system. Testing it ensures proper fuel delivery, prevents engine stalling, and diagnoses issues like hard starting or no-start conditions.
Symptoms include difficulty starting the engine, engine stalling, reduced fuel pressure, or a check engine light. Unusual noises from the fuel tank area may also indicate a problem.
Disconnect the solenoid’s electrical connector, set the multimeter to resistance mode, and measure the resistance across the solenoid’s terminals. Compare the reading to the manufacturer’s specifications to determine if it’s functioning correctly.
Yes, you can test it by listening for a clicking sound when the ignition is turned on or by using a multimeter to check for continuity while the solenoid is still connected.
If the solenoid fails, inspect the wiring and connectors for damage. If they are intact, replace the solenoid with a new one to restore proper fuel system operation.
