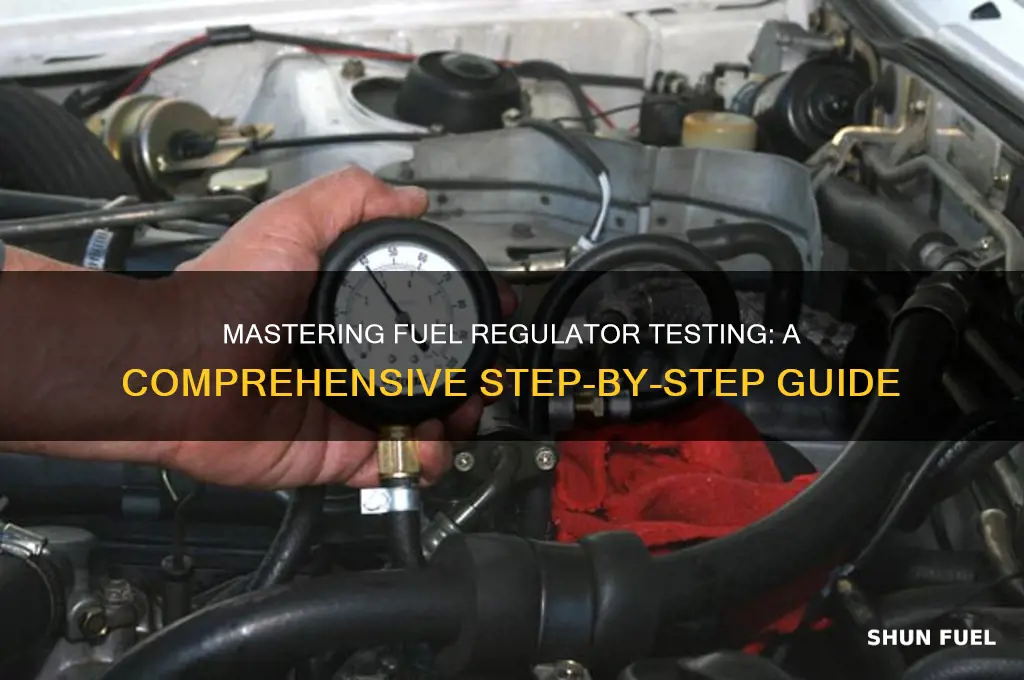

Testing a fuel regulator is a critical step in diagnosing and maintaining a vehicle's fuel system to ensure optimal performance and efficiency. The fuel regulator is responsible for maintaining the correct fuel pressure in the fuel rail, which is essential for proper engine operation. To test a fuel regulator, start by checking the fuel pressure using a gauge connected to the fuel rail, comparing the reading to the manufacturer's specifications. Next, inspect the vacuum hose connected to the regulator for any cracks or leaks, as a faulty hose can cause pressure inconsistencies. Additionally, perform a vacuum test by applying vacuum to the regulator and observing the pressure drop, ensuring it responds correctly. If the regulator fails any of these tests, it may need to be replaced to prevent issues such as poor fuel economy, rough idling, or engine misfires. Always consult the vehicle’s service manual for specific testing procedures and safety precautions.
| Characteristics | Values |
|---|---|
| Purpose of Test | To ensure the fuel regulator maintains correct fuel pressure for the engine. |
| Tools Required | Fuel pressure gauge, screwdriver, safety gloves, safety goggles. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, avoid open flames. |
| Test Steps | 1. Relieve fuel system pressure. 2. Connect fuel pressure gauge. 3. Start engine and check pressure. 4. Compare readings to manufacturer specs. |
| Normal Fuel Pressure Range | Typically 30-60 PSI (varies by vehicle; check manual). |
| Symptoms of Faulty Regulator | Poor engine performance, stalling, fuel leaks, black smoke from exhaust. |
| Test Frequency | Recommended during routine maintenance or when symptoms appear. |
| Replacement Cost | $50-$200 (parts), $100-$300 (labor), depending on vehicle and location. |
| DIY Difficulty Level | Moderate (requires basic mechanical skills and tools). |
| Professional Diagnosis | Recommended if unsure about test results or for complex systems. |
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, safety gear, and fuel pressure gauge for accurate regulator testing
- Pressure Check: Measure fuel pressure at idle and under load to verify regulator function
- Vacuum Testing: Apply vacuum to the regulator to check for consistent pressure maintenance
- Leak Inspection: Inspect regulator and lines for fuel leaks under pressure
- Post-Test Analysis: Compare results to specifications and diagnose regulator issues if discrepancies are found
Pre-Test Preparation: Gather tools, safety gear, and fuel pressure gauge for accurate regulator testing
Before testing a fuel regulator, proper preparation is critical to ensure accuracy, safety, and efficiency. Start by gathering the essential tools: a fuel pressure gauge, wrenches or sockets to access the regulator, and a screwdriver for any panel removals. The fuel pressure gauge is the linchpin of this process, as it provides precise readings to diagnose regulator performance. Opt for a gauge with a range that matches your vehicle’s fuel system specifications, typically between 0 to 100 psi for most gasoline engines. Ensure the gauge is compatible with your fuel type, as diesel systems may require different equipment.
Safety gear is non-negotiable when working with fuel systems. Fuel is highly flammable, and even a small leak can pose a fire hazard. Equip yourself with nitrile gloves to protect your skin from fuel exposure, safety goggles to shield your eyes from splashes, and a fire extinguisher rated for Class B fires (flammable liquids). Work in a well-ventilated area, away from open flames or sparks, and avoid using power tools that could ignite fumes. A grounded mat or anti-static wrist strap can further reduce the risk of static electricity igniting fuel vapors.
Once your tools and safety gear are assembled, familiarize yourself with your vehicle’s fuel system layout. Locate the fuel pressure test port, often found on the fuel rail or near the regulator itself. Refer to your vehicle’s service manual for exact placement, as designs vary across makes and models. If the test port is obscured by components, plan to remove panels or shields carefully, ensuring you don’t damage surrounding parts. Label or take photos of disconnected components to simplify reassembly later.
A common oversight in pre-test preparation is neglecting to relieve fuel system pressure before testing. This step is essential to prevent accidental fuel spray or pressure-related injuries. Start by disconnecting the fuel pump fuse or relay, then run the engine until it stalls. This depletes residual pressure in the system. Double-check by attaching the pressure gauge to the test port; if the reading drops to zero, you’re safe to proceed. Skipping this step can lead to inaccurate readings or dangerous fuel leaks during testing.
Finally, consider the environmental impact of your work. Place a drip pan under the test area to catch any spilled fuel, and dispose of it according to local regulations. If you’re working in a garage, ensure the floor is clean and free of debris to minimize slip hazards. By meticulously preparing your tools, safety gear, and workspace, you set the stage for a successful and hazard-free fuel regulator test. This attention to detail not only protects you but also ensures the diagnostic results are reliable and actionable.
Humanitarian Aid's Dual Edge: Conflict Fuel or Peace Catalyst?
You may want to see also
Explore related products
Pressure Check: Measure fuel pressure at idle and under load to verify regulator function
Fuel pressure testing is a critical diagnostic step to ensure your fuel regulator is functioning correctly. At idle, a healthy fuel system should maintain a consistent pressure, typically specified in your vehicle’s manual (e.g., 40–60 PSI for many modern cars). Connect a fuel pressure gauge to the Schrader valve on the fuel rail, start the engine, and observe the reading. If the pressure drops below the specified range or fluctuates, the regulator may be failing to maintain stability. This idle test isolates the regulator’s ability to control fuel delivery under minimal demand, providing a baseline for further analysis.
Under load, the fuel regulator’s performance becomes even more revealing. Accelerate the engine to around 2,000 RPM while monitoring the fuel pressure gauge. A properly functioning regulator will adjust to maintain pressure within the specified range, ensuring adequate fuel supply during increased demand. If the pressure drops significantly or fails to recover after acceleration, the regulator may be unable to handle the load, indicating wear or malfunction. This test mimics real-world driving conditions, making it a practical way to diagnose regulator issues that might not appear at idle.
To perform these tests accurately, ensure the fuel system is pressurized and the engine is at operating temperature. Use a high-quality gauge with a range suitable for your vehicle’s fuel system (e.g., 0–100 PSI for gasoline engines). If your vehicle has a return-style fuel system, also check for proper fuel return flow, as a clogged return line can falsely implicate the regulator. Always refer to the manufacturer’s specifications for exact pressure values and testing procedures, as these can vary widely by make and model.
A comparative analysis of idle and load pressure readings can pinpoint specific regulator issues. For instance, if pressure is stable at idle but drops under load, the regulator’s diaphragm or valve may be weakening under stress. Conversely, if pressure is low at both idle and load, the regulator might be stuck in a low-pressure position or the fuel pump could be underperforming. By isolating these scenarios, you can narrow down the root cause and avoid unnecessary part replacements.
In conclusion, the pressure check at idle and under load is a definitive method to verify fuel regulator function. It combines simplicity with precision, offering actionable data to diagnose regulator issues. Whether you’re a DIY mechanic or a professional, mastering this test ensures you can maintain optimal fuel system performance and address problems before they escalate. Always prioritize safety, working in a well-ventilated area and relieving fuel pressure before disconnecting any lines.
Can G2OLS Run on Mixed Fuel? Facts and Insights
You may want to see also
Explore related products
Vacuum Testing: Apply vacuum to the regulator to check for consistent pressure maintenance
A critical aspect of fuel regulator testing is its ability to maintain consistent pressure under varying conditions. Vacuum testing simulates real-world engine demands, revealing potential weaknesses in the regulator's performance. This method is particularly effective in identifying issues like internal diaphragm leaks or worn components that might not be apparent during static pressure tests.
By applying a controlled vacuum, you're essentially mimicking the suction created by the engine's intake system, forcing the regulator to respond as it would in operation.
To perform this test, you'll need a vacuum pump capable of generating a stable vacuum, typically in the range of 10 to 20 inches of mercury (inHg). Connect the pump to the regulator's vacuum port, ensuring a tight seal to prevent air leaks. Gradually increase the vacuum while monitoring the fuel pressure gauge. A healthy regulator should maintain a consistent pressure within the manufacturer's specified range, typically around 30 to 60 psi for most vehicles.
Observe the pressure gauge closely for any fluctuations or drops. Even minor deviations can indicate a problem. For instance, a sudden pressure drop might suggest a diaphragm rupture, while a gradual decline could point to a worn valve or seal. It's crucial to compare the observed pressure behavior against the vehicle's specifications, as different engines have varying fuel pressure requirements.
This testing method is especially valuable for diagnosing hard-to-find issues. For example, a regulator might pass a static pressure test but fail under vacuum, indicating a problem that only manifests under load. By simulating actual engine conditions, vacuum testing provides a more comprehensive assessment of the regulator's health, ensuring it can handle the demands of everyday driving.
In summary, vacuum testing is a powerful diagnostic tool for fuel regulators. Its ability to replicate real-world conditions makes it an essential step in any comprehensive testing procedure. By understanding the regulator's response to vacuum, technicians can accurately identify and address potential issues, ensuring optimal engine performance and fuel efficiency. This method, combined with other tests, provides a holistic view of the regulator's functionality, allowing for informed decisions on repair or replacement.
Are Esbit Fuel Tablets Toxic? Safety Concerns and Precautions
You may want to see also
Explore related products
$40.69 $42.84
Leak Inspection: Inspect regulator and lines for fuel leaks under pressure
Fuel leaks under pressure can be insidious, often revealing themselves only when the system is stressed. To effectively inspect the regulator and lines, start by ensuring the vehicle is on a level surface and the engine is off. Connect a fuel pressure gauge to the test port on the fuel rail, then pressurize the system by cycling the ignition key to the "on" position without starting the engine. Observe the gauge for pressure drops, which could indicate a leak. Simultaneously, visually inspect all fuel lines, fittings, and the regulator for wet spots or fuel drips. Use a spray bottle with soapy water to detect even minor leaks, as escaping fuel will cause bubbles to form.
Analyzing the results requires attention to detail. A steady pressure drop on the gauge suggests a leak in the regulator or lines, while intermittent drops may point to a faulty check valve. If bubbles appear near connections or the regulator diaphragm, tighten the fittings or replace the regulator immediately. However, avoid over-tightening, as this can damage components or create new leaks. For older vehicles (over 10 years), inspect rubber hoses for cracks or brittleness, as age accelerates material degradation. Always consult the vehicle’s service manual for torque specifications and recommended replacement intervals.
Persuasively, leak inspection is not just a maintenance task—it’s a safety imperative. Fuel leaks under pressure can lead to fires or explosions, especially in confined engine bays. Regular inspections, particularly after modifications or repairs, mitigate these risks. For high-performance or turbocharged engines, where fuel pressure exceeds 60 psi, leaks are more likely due to increased system stress. Invest in a quality fuel pressure gauge and inspect the system quarterly if you frequently drive in extreme conditions or use ethanol-blended fuels, which can accelerate component wear.
Comparatively, while electronic diagnostics can identify some fuel system issues, leak inspection remains a hands-on task. Unlike testing fuel pressure or flow, which relies on gauges and scanners, leak detection demands visual and tactile scrutiny. For instance, a pressure gauge might show normal readings, but a pinhole leak in a line could go unnoticed without a soapy water test. Similarly, while vacuum or smoke tests are effective for evaporative emissions systems, they are less practical for high-pressure fuel lines. Thus, combining pressure testing with visual inspection provides the most comprehensive assessment.
Descriptively, the process of leak inspection is a symphony of observation and precision. Picture the engine bay bathed in daylight, with the fuel system pressurized and the gauge needle steady. As you trace the lines with your eyes, the soapy water solution glistens under the light, ready to betray any escaping fuel. The hiss of a leak, the faint odor of gasoline, or the telltale bubbles rising from a fitting are all clues to follow. For DIY enthusiasts, this method is both accessible and rewarding, offering immediate feedback and the satisfaction of ensuring a safe, efficient fuel system. Always wear safety goggles and nitrile gloves, and work in a well-ventilated area to minimize risks.
Does Citronella Fuel Smell? Exploring the Aroma and Uses
You may want to see also
Explore related products
$18.99 $20.09
Post-Test Analysis: Compare results to specifications and diagnose regulator issues if discrepancies are found
After conducting a fuel pressure test, the critical next step is comparing the obtained readings to the vehicle’s specifications. These specifications, typically found in the service manual or manufacturer’s guidelines, outline the acceptable fuel pressure range for both idle and load conditions. For instance, a common passenger car might require 45–60 psi at idle, while a high-performance engine could demand 55–70 psi under load. Discrepancies between your test results and these values are red flags that warrant further investigation.
Analyzing the results requires attention to detail. If the fuel pressure is consistently below specifications, suspect a clogged fuel filter, weak fuel pump, or a faulty pressure regulator that’s failing to maintain pressure. Conversely, pressure readings above the specified range may indicate a stuck or malfunctioning regulator diaphragm, allowing excess fuel to bypass the system. For example, a regulator stuck open could result in a pressure reading of 75 psi at idle, far exceeding the typical 45–60 psi range, leading to rich fuel mixtures and potential engine damage.
Practical tips for diagnosis include checking for vacuum leaks in the regulator’s diaphragm, as leaks can cause erratic pressure fluctuations. Additionally, inspect the return line for fuel drips; a regulator that’s not restricting fuel flow properly will allow fuel to bypass the engine, often visible as a wet or dripping return line. If the regulator is suspected, a simple swap with a known-good unit can confirm the diagnosis before purchasing a replacement.
Caution must be exercised when interpreting results, as external factors like fuel temperature and system wear can influence readings. For instance, cold fuel is denser and may yield slightly higher pressure readings, while an aging fuel pump might struggle to maintain pressure under load. Always retest under consistent conditions to ensure accuracy. If discrepancies persist, consider the regulator’s age and operating environment—regulators typically last 100,000–150,000 miles but can fail prematurely in harsh conditions or due to contaminated fuel.
In conclusion, post-test analysis is a diagnostic crossroads where data meets decision. By systematically comparing results to specifications and ruling out external factors, you can pinpoint regulator issues with confidence. Whether it’s a simple adjustment, a component replacement, or a deeper system issue, this analytical step ensures your diagnosis is grounded in evidence, saving time and preventing misdiagnosis.
Maximize Mileage: Smart Tips for Efficient Fuel Burning Techniques
You may want to see also
Frequently asked questions
You will need a fuel pressure gauge, a multimeter (for electrical testing), a screwdriver, and possibly a wrench or pliers to disconnect fuel lines.
Attach a fuel pressure gauge to the fuel rail, start the engine, and observe the pressure. Compare the reading to the manufacturer’s specifications to ensure it’s within the correct range.
Yes, a faulty fuel regulator can cause issues like rough idling, stalling, or reduced power due to incorrect fuel pressure being delivered to the engine.
Disconnect the vacuum hose from the regulator, apply vacuum using a hand pump, and check for leaks. If the diaphragm is damaged, it will not hold vacuum, indicating a faulty regulator.
