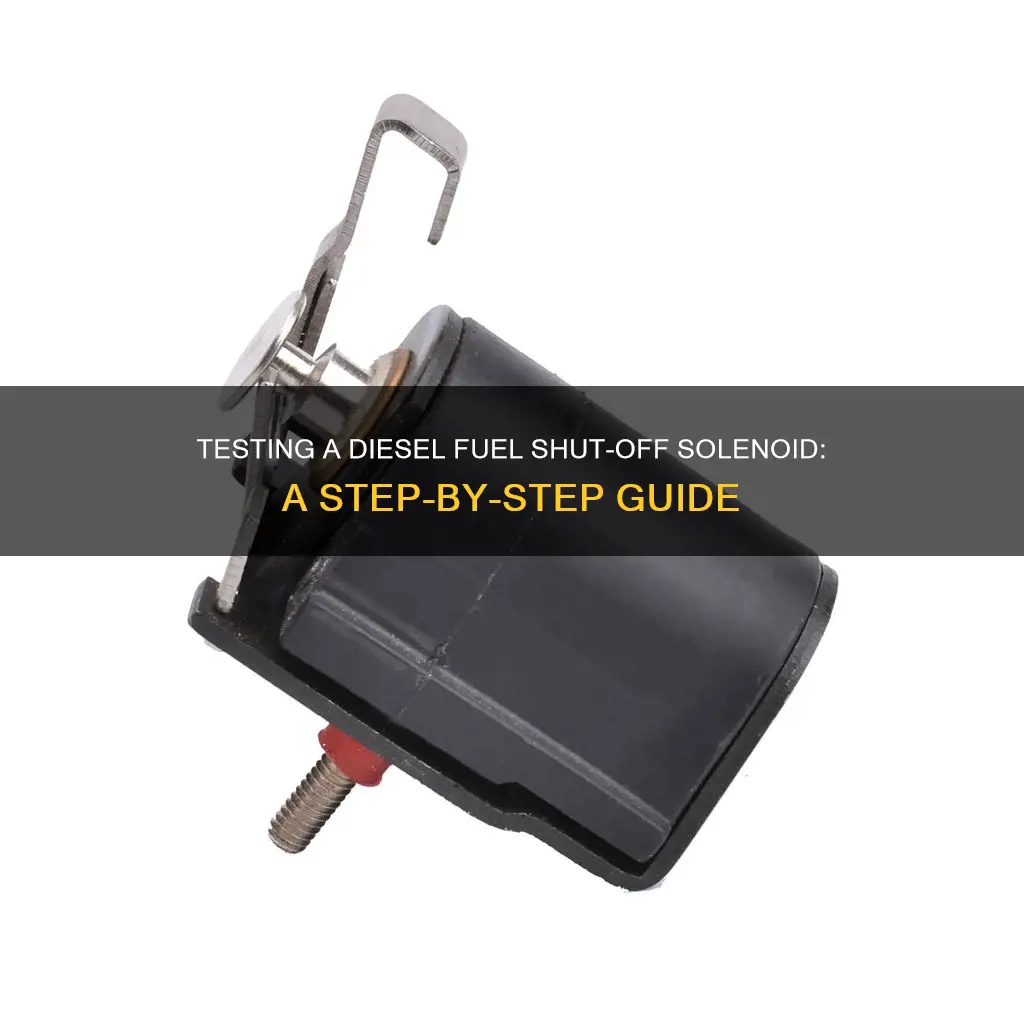

The diesel fuel shut-off solenoid is a crucial component in controlling the flow of fuel to the engine. When this component malfunctions, the engine may perform poorly, especially when the vehicle is loaded or travelling quickly. Before testing the solenoid, it is important to prioritise safety by ensuring the engine is turned off, the ignition key is removed, and the battery is disconnected. The next step is to check the wiring connections leading to the diesel shut-down solenoid. A multimeter or test lamp can be used to test the solenoid valve's suction and release functions. To do this, set the meter to the appropriate voltage range and connect the positive lead to the solenoid valve terminal and the negative lead to a ground source. With the ignition key in the ON position, measure the voltage across the solenoid valve terminals. A reading close to the vehicle's battery voltage indicates that the power to the solenoid is functioning correctly. To manually activate the solenoid, apply 12-volt power directly to its terminals using a separate power source. A distinct click indicates that the solenoid valve is engaging properly.
| Characteristics | Values |
|---|---|
| Engine performance | Poor performance under certain circumstances, e.g. when the vehicle is loaded or travelling quickly, could indicate a faulty solenoid. |
| Testing equipment | Multimeter or test lamp. |
| Safety precautions | Ensure the engine is off, the ignition key is out, and the battery is disconnected. |
| Testing procedure | Check wiring connections to the solenoid. Test resistance (continuity) from one end of one wire to the other. Check voltage across solenoid valve terminals. Manually activate the solenoid. Verify fuel flow. |
| Expected outcomes | A reading close to the vehicle's battery voltage indicates adequate power to the solenoid. A distinct click when 12V power is applied indicates the solenoid is engaging properly. Fuel flow should cease when the solenoid is activated. |
| Interpretation of results | If fuel flow continues, the solenoid is faulty and requires further inspection or replacement. If the solenoid is not engaging properly, check for a timer problem, ignition switch problem, or wiring issues. |
Explore related products
What You'll Learn
Check for engine performance anomalies
A diesel engine's performance can be significantly impacted by a malfunctioning fuel shut-off solenoid. Here are some key anomalies to look out for:
Engine Stalling
Engine stalling is a common issue with a faulty diesel fuel shut-off solenoid. This happens when the solenoid fails to maintain a consistent fuel flow, causing the engine to lose power and stop abruptly. Intermittent fuel supply can cause the engine to stall, and you may need to check fuel levels and the fuel filter to address this issue.
Difficult Engine Start
A failing solenoid may cause the engine to be completely impossible to start or difficult to start, especially in cold conditions. This is often due to the solenoid sticking or failing to open, preventing fuel flow to the engine.
Poor Acceleration
If the solenoid is not providing a steady fuel supply, the engine's acceleration and overall performance may suffer. You may experience sluggish or poor acceleration, which can be a sign of a malfunctioning solenoid.
Engine Shutdown
The engine may abruptly shut down during operation if the solenoid unexpectedly cuts off the fuel supply. This can be a sign of a faulty solenoid, and you may need to replace or temporarily bypass it to restore engine operation.
Erratic Engine Performance
A malfunctioning solenoid can cause erratic engine behaviour, including rough idling and unsteady RPMs. This is often due to inadequate or inconsistent fuel supply, leading to unpredictable engine revving.
Fuel Leakage
If the solenoid is damaged or cracked, it may cause fuel to leak, creating a fire hazard. Visible fuel leaks around the solenoid area indicate a problem, and you should inspect the valve for debris or damage to address the issue.
It is important to regularly diagnose and test the diesel fuel shut-off solenoid to prevent these engine performance issues and ensure the safe and efficient operation of your equipment.
Diesel Fuel: Mosquitoes' Deathly Nemesis?
You may want to see also
Explore related products
Prepare a multimeter
To prepare a multimeter to test a diesel fuel shut-off solenoid, you must first ensure the machinery is shut down and the negative battery terminal is disconnected for safety.
Then, set the multimeter to resistance mode (ohms) and connect the measurement leads to the two electrodes of the fuel shut-off solenoid. You should be able to read a certain resistance value, which can be checked against the owner's manual of the machinery for resistance values within the normal range.
If you are testing a 3-wire fuel shut-off solenoid, you must first identify the colours of each wire to ensure they are correctly connected to the test equipment. Connect the positive terminal of the multimeter to the red wire and the negative terminal to the black wire. You should be able to hear the solenoid valve sucking closed and the multimeter should show that current is passing through it.
If the multimeter does not show that current is passing through, the solenoid may be faulty and will need to be repaired or replaced.
Bleeding the Duramax Diesel Fuel System: A Comprehensive Guide
You may want to see also
Explore related products
Disconnect the battery
When testing a diesel fuel shut-off solenoid, it is important to disconnect the battery to prevent any accidental starting of the engine. This is a crucial safety step that must be performed before proceeding with any testing procedures.
To disconnect the battery, locate the battery terminal and carefully loosen the clamp that holds the battery cable in place. Once the clamp is loose, remove the cable from the battery terminal. Ensure that you disconnect the correct battery cable, typically the negative cable, as disconnecting the positive cable may not be sufficient to prevent accidental starting.
After disconnecting the battery, verify that the connection is secure and that there is no risk of the cable accidentally coming into contact with the battery terminal. This step is critical to ensure your safety during the testing process. It is recommended to move the cable away from the battery and cover the terminal with an insulating material or protective cap, if available.
Additionally, it is important to note that some modern vehicles may have a different battery configuration, such as multiple batteries or a different terminal arrangement. In such cases, refer to the vehicle's manual or seek guidance from a qualified mechanic to properly identify and disconnect the correct battery cable(s) to ensure safety.
By following these steps to disconnect the battery, you can safely proceed with testing the diesel fuel shut-off solenoid, ensuring that there is no power to the engine during the testing process. Remember to prioritize safety and consult reliable sources or professionals if you have any doubts or concerns.
Diesel Fuel Buying Guide: Choosing the Right Type
You may want to see also
Explore related products
Check wiring connections
Before testing a diesel fuel shut-off solenoid, it is important to check the wiring connections to ensure that they are secure and functioning. This is because the solenoid is an electromagnetic device that relies on the proper flow of electricity to function.
Firstly, you should turn off the engine and disconnect the power and fuel supply to ensure safe operation. Then, you can visually inspect the wiring for any signs of damage, such as loose or broken wires. If any issues are found, the wires should be reconnected or replaced.
For a more comprehensive check, a multimeter or test light can be used to test the wiring for continuity and correct voltage. To do this, set the multimeter to the appropriate voltage range and connect the positive lead to the solenoid valve terminal, and the negative lead to a ground source. With the ignition key in the "ON" position, measure the voltage across the solenoid valve terminals. A reading close to the vehicle's battery voltage indicates that the power to the solenoid is functioning correctly.
Additionally, you can test the individual wires of the solenoid to ensure they are functioning correctly. For a three-wire solenoid, the wires are typically coloured red, black, and white. Connect the positive terminal of the test device to the red wire, and the negative terminal to the black wire. The solenoid valve should make a sucking closed sound, and the test device should indicate that current is passing through. Then, disconnect the negative connection and connect it to the white wire. During this step, there should be no sound of suction, and the test device should not show any current passing through. This indicates that the solenoid is able to engage and release properly when receiving the appropriate signals.
Understanding Diesel Fuel Ignition: Pressure and Performance
You may want to see also
Explore related products
Test the solenoid valve
To test the solenoid valve, you must first ensure that the engine is turned off and that the key to the ignition is removed. Disconnect the battery to prevent accidental starting.
You can then test the solenoid valve in the following ways:
Using a Multimeter
Set the multimeter to the appropriate voltage range. Connect the positive lead to the solenoid valve terminal and the negative lead to a ground source. With the ignition key in the "ON" position, measure the voltage across the solenoid valve terminals. A reading close to the vehicle's battery voltage indicates that the power to the solenoid is functioning correctly.
Manually Activating the Solenoid
Locate the solenoid and apply 12-volt power directly to the solenoid's terminals by connecting a separate power source, such as a battery. If you hear a distinct click, this means the solenoid valve is engaging properly.
Testing Fuel Flow
Disconnect the fuel line from the solenoid valve and place it in a container. Re-energize the solenoid valve. If fuel continues to flow into the container, the solenoid valve is working correctly. However, if the fuel flow is weak, inconsistent, or non-existent, the solenoid valve is faulty and may need to be replaced.
Testing with a Test Light
Place a test light on the side that feeds the stop solenoid. With the key off, there should be no power. With the key on, there should be no power, and when you turn the key off, the wire should be powered for about 5 seconds.
Testing with a Voltmeter
Put a voltmeter on the solenoid wire and check if the voltage shows up when you turn off the key. If not, there may be an issue with the timer, ignition switch, or wiring.
Anacortes Diesel Fuel Prices: What's the Cost?
You may want to see also
Frequently asked questions
If your engine performs poorly, especially when the vehicle is loaded or travelling at speed, it could be a sign that the solenoid is faulty.
Ensure the engine is off, the ignition is turned off and the key is removed. Disconnect the battery to prevent accidental starting.
You can use a multimeter or test light. Set the meter to the correct voltage range and connect the positive lead to the solenoid valve terminal and the negative lead to a ground source. With the ignition on, measure the voltage. If it's close to the battery voltage, the power is OK.
You need to manually activate it. Locate the solenoid and apply 12V power directly to its terminals. If you hear a click, the valve is engaging properly.
