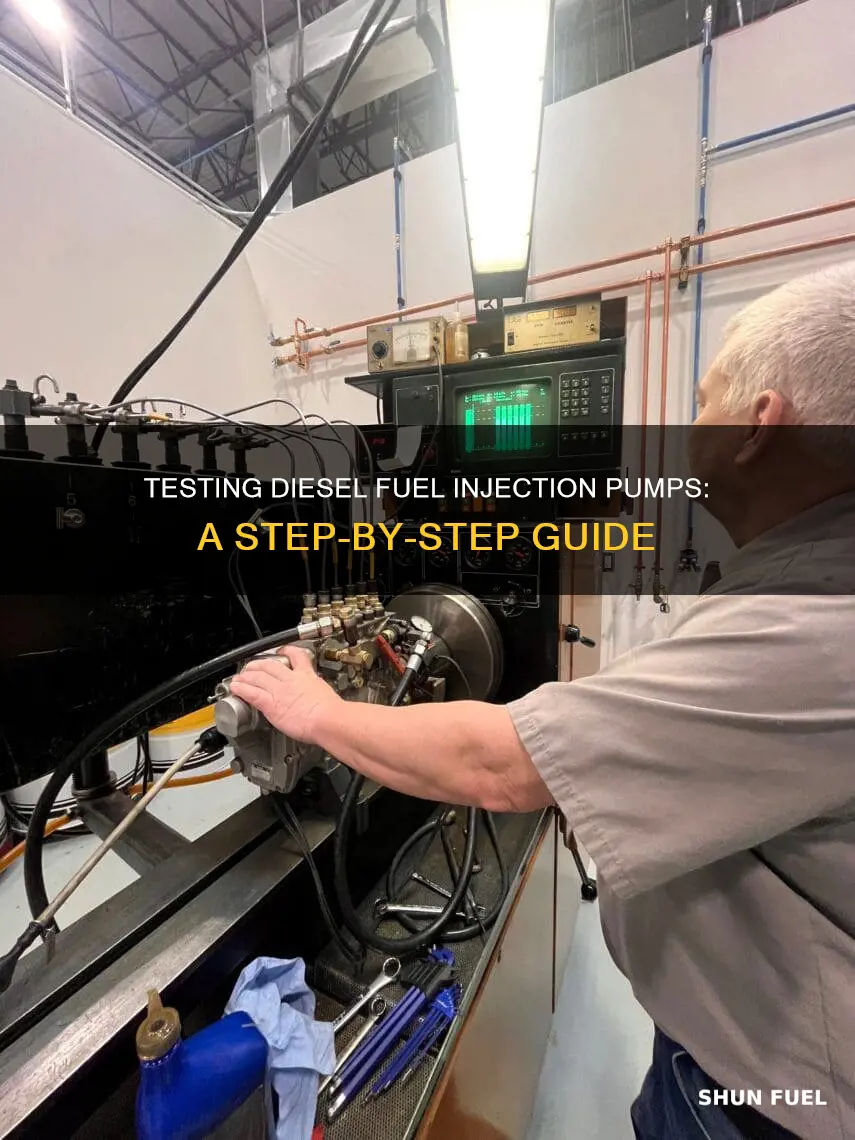

Testing a diesel fuel injection pump is a crucial aspect of vehicle maintenance, ensuring optimal performance and longevity. The injection pump is responsible for delivering fuel from the tank to the combustion chamber, where it combines with an oxidizer like air, powering the vehicle. Testing the pump involves understanding fuel delivery, pump calibration, and pressure measurement. It is a high-pressure procedure, with potential risks of injury and fire hazards, so applying safety measures and seeking professional services is recommended. Regular testing helps identify issues like clogged fuel filters, faulty pumps, or injector problems, preventing engine damage and improving fuel efficiency.
| Characteristics | Values |
|---|---|
| Function | Takes fuel from the tank and delivers it to the combustion chamber |
| Second Function | Provides combustion through highly-compressed air |
| Testing | Can be done professionally or at home with a tester |
| Testing Risks | Fuel is highly flammable and the pump operates at high pressure, which can be dangerous |
| Safety Measures | Wear safety glasses, ensure good ventilation, avoid smoking, and have fire safety equipment at hand |
| Fault Signs | Engine sputtering at top speeds, leaking injectors, sudden power changes when driving uphill or towing, low pressure, clogged fuel filter |
| Testing Process | Locate fuel rail, attach pressure gauge, start engine, compare pressure to specifications, repeat for all injectors, analyze results |
Explore related products
$27.04
$28.48 $29.98
What You'll Learn
Safety first: fire hazards and high-pressure environment
Safety must be the top priority when testing a diesel fuel injection pump. The procedure involves a high-pressure environment, and the fuel is highly flammable, presenting fire hazards and the risk of severe injury.
Before beginning the testing process, it is crucial to take the necessary safety precautions. Firstly, ensure you are working in a well-ventilated area, free from any potential sources of ignition, such as smoking, lighters, pilot lights, or incandescent light bulbs. These precautions are essential as diesel fuel is highly flammable, and any accidental ignition could lead to a fire.
Additionally, it is vital to recognize the dangers posed by the high-pressure environment. The pump generates an incredible pressure of around 15,000 psi, causing the fuel to exit the injector at approximately 3,000 psi. This highly pressurized fuel can easily penetrate clothing and skin, leading to severe injuries, including amputation and, in extreme cases, death. As a result, it is crucial to never place your hands or any body parts near the injector spray or suspected leak points during testing. Always follow safety protocols and use approved test nozzles or blanks to direct the fuel safely away from you.
Furthermore, when working with diesel fuel injection pumps, it is important to wear appropriate personal protective equipment (PPE). This includes safety glasses to protect your eyes from any fuel spray and gloves to safeguard your hands. It is also recommended to have essential fire safety equipment readily available in case of any accidental ignition.
By adhering to these safety measures and respecting the potential hazards, you can help ensure a safe testing environment when working with diesel fuel injection pumps.
Best Places to Buy Top-Quality Diesel Fuel
You may want to see also
Explore related products
Locate the fuel rail and attach a pressure gauge
Before you begin, it is important to be aware of the risks involved in testing a diesel fuel injection pump. You will be working in a high-pressure environment, with the pump developing incredible pressure at about 15,000 psi, meaning the fuel will leave the injector at approximately 3,000 psi. As a result, the fuel can easily cut through your clothing and skin if you come in the way, leading to severe medical conditions that can result in amputation or even death. Fire hazards are also a serious concern, as fuel is a highly flammable material. Therefore, it is recommended to have the necessary fire safety equipment and to work in a well-ventilated space without any incandescent light bulbs.
Now, to locate the fuel rail and attach a pressure gauge, follow these steps:
Firstly, locate the fuel rail by finding where the injectors are joined together. Typically, the fuel rail is located near or inside the fuel tank.
Once you have located the fuel rail, the next step is to attach the fuel pressure gauge. Connect the pressure gauge to the test port on the fuel rail. Ensure that you are wearing the necessary safety gear, including eye protection, and that you are working in a well-ventilated area, as mentioned previously.
If you are having difficulty locating the fuel rail or the test port, refer to your vehicle's manual or seek advice from a professional mechanic or a forum dedicated to automotive maintenance and repairs.
After attaching the pressure gauge, you can proceed to the next steps of testing the diesel fuel injection pump, which include starting the engine, reading the pressure, and diagnosing any issues based on the pressure gauge readings.
Best OEM Fuel Filters for Mercedes Sprinter 3500 Diesel
You may want to see also
Explore related products
Start the engine and compare pressure to specifications
Before starting the engine, it is important to take the necessary safety measures. Fuel is a highly flammable material, so it is important to have the essential fire safety equipment on hand. Testing a fuel injection pump can be dangerous due to the high-pressure environment. The pump develops incredible pressure at about 15,000 psi, and the fuel leaves the injector at approximately 3,000 psi. Therefore, it is important to wear protective clothing to prevent the fuel from cutting through your clothing and skin.
Once you have taken the necessary safety precautions, you can start the engine and compare the pressure to the specifications in your vehicle's manual. This can be done by locating the fuel rail where the injectors are joined and attaching a fuel pressure gauge to the fuel rail's test port.
After the engine is started, the pressure can be read from the gauge and compared to the specifications in the vehicle's manual. Abnormal readings, whether higher or lower pressure than the recommended level, can indicate issues with the fuel pump, fuel filter, or pressure regulator.
For example, a GM system typically has a standard pressure of 58 psi in the rail. When the engine is idling at 20 inHg of vacuum, the effective pressure will be approximately 10 psi, resulting in a pressure of 48 psi in the rail. Similarly, when the engine is making a 10 psi boost, the regulator will adjust and increase the rail pressure to 68 psi, resulting in an effective pressure of 58 psi.
By comparing the pressure readings to the specifications, you can identify any potential issues with the fuel injection pump and take appropriate action to maintain the optimal performance of your engine.
Diesel Fuel Costs in England: A Comprehensive Overview
You may want to see also
Explore related products
Diagnose issues: low pressure, clogged filter, faulty pump
Diesel fuel injection pumps are a crucial part of a diesel engine. They inject fuel into the intake manifold, allowing the engine to generate power. The pump is usually located near or inside the fuel tank. It takes fuel from the tank and delivers it to the combustion chamber, where it is kept under high pressure.
Diagnosing Low Pressure
Low pressure in the fuel injection system can be caused by a clogged filter. A clogged filter can cause the fuel pump motor to work harder, resulting in unusual sounds like whining or buzzing. It can also lead to engine misfiring and rough idling due to inadequate fuel supply.
Diagnosing a Clogged Filter
A clogged filter can be diagnosed by observing the symptoms mentioned above, such as unusual engine sounds, misfiring, and rough idling. Another indication is poor engine performance, including symptoms like sluggish throttle response and decreased power, especially at high speeds or when carrying heavy loads.
Diagnosing a Faulty Pump
A faulty diesel fuel injection pump can cause the engine not to start. Other warning signs include a sputtering sound when reaching top speeds, indicating potential misfiring due to insufficient fuel. This can lead to engine overheating, poor fuel efficiency, coolant leaks, and steam from the hood. It is also important to check for fuel leaks from the injector.
Safety Precautions
It is important to note that testing a diesel fuel injection pump can be dangerous due to the high-pressure environment. The fuel is under high pressure, and proper safety measures must be taken to avoid potential injury and fire hazards. Testing should be done in a well-ventilated area without any incandescent light bulbs, and smoking should be avoided. Additionally, errors in the system pressure can be detected via pressure sensors and stored in the control unit's error memory.
Troubleshooting Guide: F250 Diesel Fuel Pump
You may want to see also
Explore related products
Use a glow plug tester to check for leaks
To check for leaks in a diesel fuel injection pump using a glow plug tester, follow these steps:
Firstly, it is important to understand how glow plugs work. Glow plugs are an integral part of the combustion process in diesel engines. They heat the air inside the engine's combustion chambers, igniting the air-fuel mixture and enabling the engine to run. Now, to test them:
Before using a glow plug tester, consult the manufacturer's directions and the vehicle's manual to ensure you follow the correct procedure. Decide whether you will test the glow plug on or off the engine, as recommended by the tester manufacturer. Identify the voltage of your glow plug and ensure the tester and power supply are compatible.
Next, disconnect the power cable from the glow plugs to prevent powering all the glow plugs simultaneously, which may damage the tester and give inaccurate results. Then, connect the tester's ground supply lead to your power supply ground, and the tester's power supply lead to the 'high' output of the power supply.
Afterward, establish a connection between the tester's plug ground and the glow plug's ground, typically found on the threaded portion of the glow plug's main body. Finally, connect the tester's plug power lead to the glow plug's power terminal, usually a threaded rod at the top of the plug.
Turn on the glow plug tester if necessary and enable the output. Observe the results on the tester's display or gauge. Most testers will indicate a 'good' range, and some will display the current.
It is worth noting that glow plug testers can be time-consuming and may not detect issues beyond the glow plug itself. Therefore, a multimeter or clamp meter might be preferable for a comprehensive diagnosis.
Quickly Fix Bad Diesel Fuel: No Removal Needed
You may want to see also
Frequently asked questions
A diesel fuel injection pump is a crucial part of a diesel engine, injecting fuel into the intake manifold so the engine can generate power. Most internal combustion engines need a fuel injection pump to operate in their fuel delivery system.
Before attempting to test a diesel fuel injection pump, it is important to understand the risks involved. You will be working in a high-pressure environment, so safety measures must be applied. You should also ensure you are in a well-ventilated space, without any incandescent light bulbs, and that you are not smoking. There is a risk of fire, so ensure you have the necessary safety equipment.
Now, locate the fuel rail where the injectors are joined, and attach a fuel pressure gauge. Start the engine and compare the gauge reading to your vehicle’s manual specifications. Low pressure could indicate a faulty fuel pump, a clogged fuel filter, or an issue with the injectors.
If your engine makes a sputtering sound at top speeds, the injectors could be misfiring. This could be because the engine doesn't have enough fuel, which can lead to overheating, poor fuel efficiency, coolant leaks, and steam coming from the hood. A sudden lull behind the wheel could also indicate that the injectors aren't delivering enough fuel.
If you suspect your diesel fuel injection pump is faulty, consult a professional mechanic. They have the tools and expertise to handle complex issues.
Prepare an injector tester by following the manufacturer’s instructions. Connect the tester to the first injector and simulate fuel delivery for a set period. Measure the fuel output and repeat for all injectors. Compare the outputs—identical outputs indicate good injectors.
