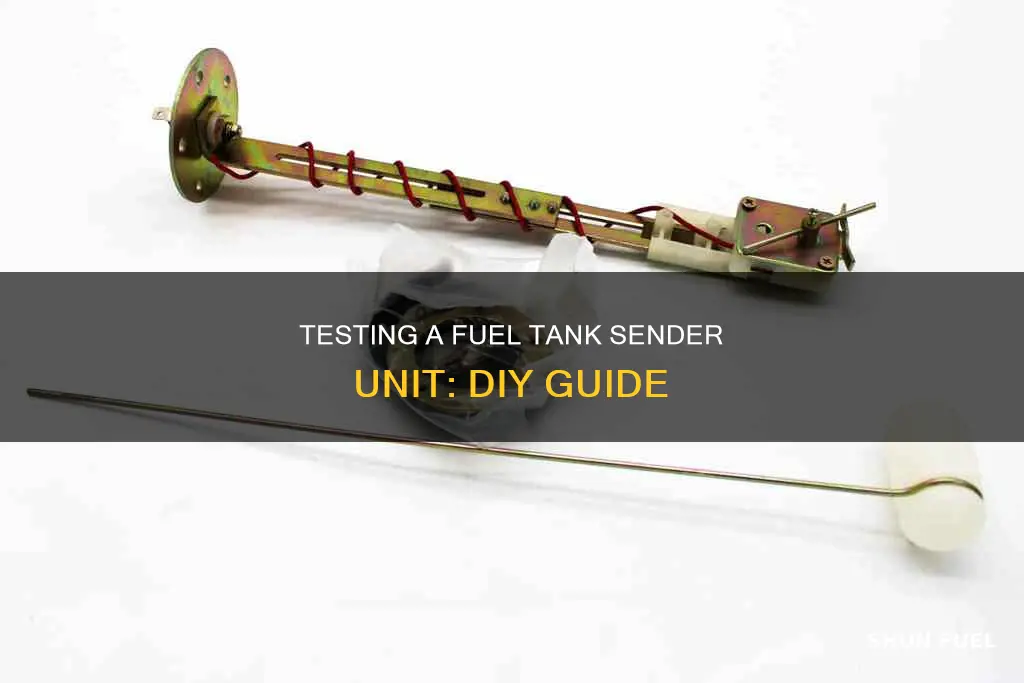

Testing a fuel tank sender unit is important for ensuring the safety of the vehicle and its passengers. A faulty sender unit can cause the fuel quantity indicator to fluctuate or consistently show a full or empty tank, leading to potential fuel exhaustion in critical situations. To test the unit, you can start by checking for physical damage, corrosion, or loose connections. You can then use a multimeter or ohmmeter to measure the resistance or voltage of the unit, comparing it to the standard values for empty and full tanks. If issues are found, the unit may need to be recalibrated or replaced.
Explore related products
What You'll Learn
Check for power, ground and voltage
To check the power, ground and voltage of a fuel sender unit, you can use a multimeter or ohmmeter. The sender draws power through the gauge connection, so you should check that the sending unit is receiving power from the gauge. The reading at the sending unit will be less than the input voltage at the gauge.
To check the ground, set the multimeter to measure ohms. Refer to your specific model's manual for instructions. Attach the black lead to the sender's flange or ground terminal, and the red lead to the centre stud of the sender. Check the multimeter for a resistance reading. If no value is displayed, adjust the lead positions until you get a reading. Ensure the multimeter is set correctly.
To check the output voltage, measure the voltage between the sending unit and the gauge. The voltage should be the same on both ends of the wire. If the voltage is different, there may be corrosion or poor wiring between the sending unit and the gauge.
If the ohms are correct but the gauge is not reflecting the correct fuel level, there is likely a wiring issue. If the ohms do not move or match the manufacturer's specifications, then the sending unit is likely faulty and will need to be replaced.
Fuel Tank Repairs: What's the Cost and Why?
You may want to see also
Explore related products
Inspect for damage, corrosion and loose connections
To test a fuel tank sender unit, it is important to inspect for damage, corrosion, and loose connections. This involves checking the wiring and connectors for any signs of degradation, ensuring that all connections are secure and that there is no debris or corrosion in the fuel tank.
Firstly, ensure that the area around the fuel sending unit is clean, dry, and free of corrosion or debris. This is important because any debris or corrosion could fall into the fuel tank and cause issues. Check the wiring for any signs of damage, such as corroded wires or loose connections. Verify that the wiring is not kinked, trapped, or broken, as this could lead to insulation damage and cause a short circuit.
Next, inspect the top of the fuel sending unit for any damage, corrosion, or debris. Ensure that it is seated correctly in the tank. If the top of the unit is dirty, clean the connectors to improve conductivity. Check that the ground connection is good. A proper ground connection is crucial for the safe operation of the fuel system.
Additionally, you can use a multimeter to verify that the fuel sending unit is receiving the proper voltage. Set the multimeter to 20 volts and, with the battery turned on, back-probe the input connector on the sending unit to check for voltage. Refer to the service manual for the correct voltage values. If the input voltage is lower than expected, inspect the wiring from the sending unit to the battery, as there may be a fault in this circuit.
Repairing Plastic Fuel Tank Dents: DIY Guide
You may want to see also
Explore related products
Verify resistance output
To verify the resistance output of a fuel tank sender unit, you will need to use a multimeter or ohmmeter. This will allow you to check the resistance and voltage of the fuel gauge wire.
Firstly, disconnect the wires at the tank sender and check the resistance. If the sender and gauge are American Standard, the sender wired to just one helm gauge, and the tank is empty, you should get a reading of 240 ohms. A full tank should read 33 ohms. You can also test for different estimated fuel levels by using the ohms reading to interpolate. For example, a reading of 103 ohms would indicate a half-full tank.
If you are using a multimeter, set it to the Ohms setting. You will need to check the service manual for the specific resistance or Ohms values for your fuel tank sender unit.
You can also test for continuity between the two posts on the fuel tank sender using a battery-powered probe. If the probe does not light up, this could indicate a dead sender.
It is important to note that the fuel tank should be clean, dry, and free of corrosion before conducting any tests. Additionally, make sure to consult the vehicle's repair manual for proper safety procedures and instructions.
Unlocking the Fuel Tank in Your Mini Cooper
You may want to see also
Explore related products
Observe fuel level sensor behaviour
To observe fuel level sensor behaviour, start by checking for any obvious issues. A faulty fuel level sensor may cause the fuel quantity indicator to oscillate or fluctuate during normal flight, so look out for erratic electrical signals to the fuel quantity system.
Next, you can check the fuel level sensor circuit. Use an OBD-II scanner or code reader to read the codes through the vehicle's OBD port. If there is an issue with the fuel level sensor circuit, you will receive specific OBD-II codes.
Now, disconnect the wires at the tank sender and check the resistance. If the sender and gauge are American Standard, the sender is wired to just one helm gauge, and you are using ohms as your unit of measurement, then the empty reading should be around 240 ohms, the half-level reading should be around 103 ohms, and the full reading should be around 33 ohms.
If you are using a 1983 model, the ohms reading should be 73 ohms when empty and 10 ohms when full. The change in the ohms reading should be smooth when you sweep the sending unit from full to empty or vice versa.
Finally, you can test the fuel level sensor by manipulating the float arm while measuring resistance. Remove the fuel sending unit from the tank and check the resistance performance using a multimeter set to the Ohms setting. Refer to the service manual for the specific resistance or Ohms values for your fuel tank sending unit.
Plumbing an Auxiliary Tank: Yamaha Filter Connection
You may want to see also
Explore related products
Compare with replacement unit
When you have the old fuel sending unit out of the tank, you can compare it with the replacement unit to ensure compatibility. If the replacement unit is compatible, you can fit it into the tank, making sure the gasket is properly aligned between the fuel sending unit and the tank. If you are replacing a fuel pump sending unit, transfer over the fuel line retainers. Install the fuel pump by guiding in the sending unit arm first. Reinstall the retaining ring if applicable. If the fuel sending unit uses screws, be sure to use the included washers to prevent leaks, and tighten in a star pattern.
The Difference Between Diesel and Fuel Oil Tanks
You may want to see also
Frequently asked questions
If your fuel gauge reads full or empty all the time, or the needle moves erratically, it could be the result of a faulty sender unit.
You can test the unit by pulling it out of the fuel tank and manipulating the float arm while measuring resistance. Before removing the unit, make sure the area is clean, dry, and free of corrosion.
You will need a digital volt meter (DVM) or a multimeter set to the Ohms setting.
