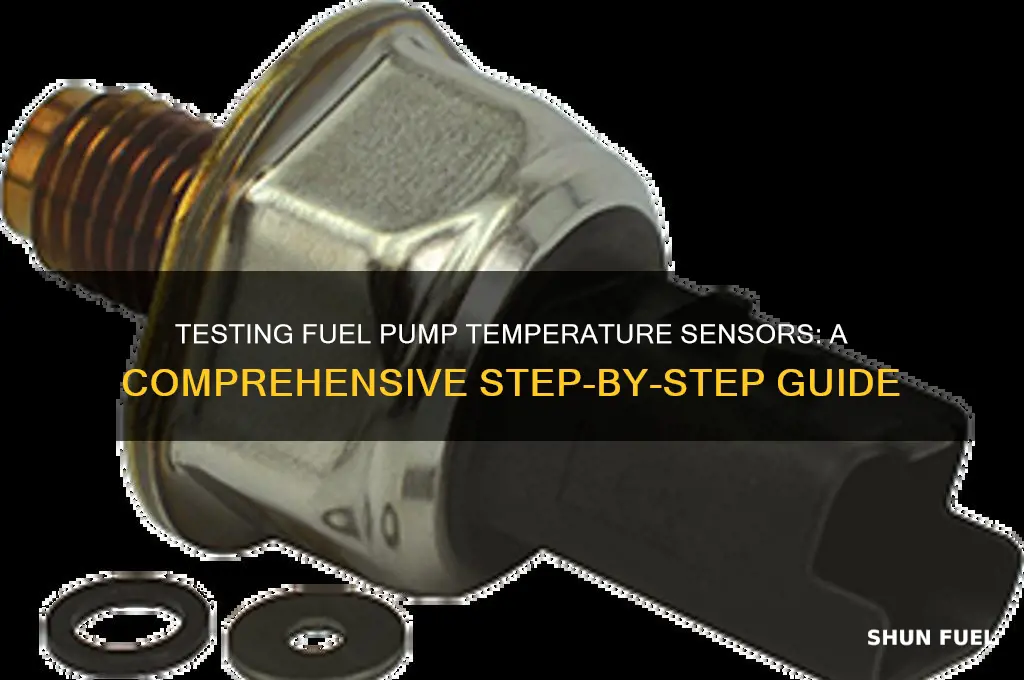

Testing a fuel pump temperature sensor is crucial for ensuring the proper functioning of a vehicle's fuel system, as it monitors the temperature of the fuel pump to prevent overheating and potential damage. To begin the test, locate the sensor, typically found near the fuel pump or within the fuel tank, and disconnect it from the wiring harness. Using a digital multimeter set to the resistance or ohms setting, measure the sensor's resistance at different temperature points, comparing the readings to the manufacturer's specifications. Additionally, simulate temperature changes by applying heat or cold to the sensor and observe the resistance fluctuations. If the sensor fails to meet the specified resistance values, it may need to be replaced to maintain optimal fuel system performance and vehicle reliability.
Explore related products
What You'll Learn
- Pre-Test Preparation: Gather tools, safety gear, and understand sensor location and function before starting
- Visual Inspection: Check for damage, corrosion, or loose connections on the sensor and wiring
- Resistance Testing: Measure sensor resistance at different temperatures using a multimeter for accuracy
- Voltage Check: Verify power supply voltage to the sensor using a voltmeter
- Simulated Heat Test: Apply controlled heat to observe sensor response and output changes
Pre-Test Preparation: Gather tools, safety gear, and understand sensor location and function before starting
Before testing a fuel pump temperature sensor, it's crucial to assemble the right tools and safety gear to ensure accuracy and prevent accidents. A digital multimeter, a tool essential for measuring voltage and resistance, should be at the top of your list. Additionally, you’ll need a wrench or socket set to access the sensor, and a repair manual specific to your vehicle to locate the sensor accurately. Safety gear, including nitrile gloves and safety goggles, is non-negotiable, as fuel systems involve flammable materials and potential chemical exposure. Skipping this step could lead to errors or injuries, turning a routine test into a hazardous task.
Understanding the sensor’s location and function is equally vital. Most fuel pump temperature sensors are integrated into the fuel pump module, often located inside the fuel tank. However, some vehicles may place the sensor externally, near the fuel lines. Refer to your vehicle’s manual or online diagrams to pinpoint its exact location. The sensor’s primary function is to monitor fuel temperature, which affects fuel pressure and engine performance. Without this knowledge, you risk misdiagnosing issues or damaging components during testing.
A comparative analysis of tools reveals that while a basic multimeter suffices for most tests, advanced models with temperature probes can provide direct readings, streamlining the process. However, these are optional and depend on your budget and expertise. For safety gear, nitrile gloves offer better chemical resistance than latex, and clear safety goggles ensure unobstructed vision during work. Investing in high-quality tools and gear not only enhances efficiency but also prolongs their lifespan, making them cost-effective in the long run.
Finally, pre-test preparation includes a mental walkthrough of the procedure. Familiarize yourself with the sensor’s resistance range, typically found in the vehicle manual, as this will help you interpret multimeter readings accurately. Plan the sequence of steps: disconnect the battery, relieve fuel system pressure, and access the sensor methodically. This mental rehearsal minimizes the risk of overlooking critical steps and ensures a systematic approach. By treating preparation as a structured process, you transform a potentially daunting task into a manageable, error-free procedure.
