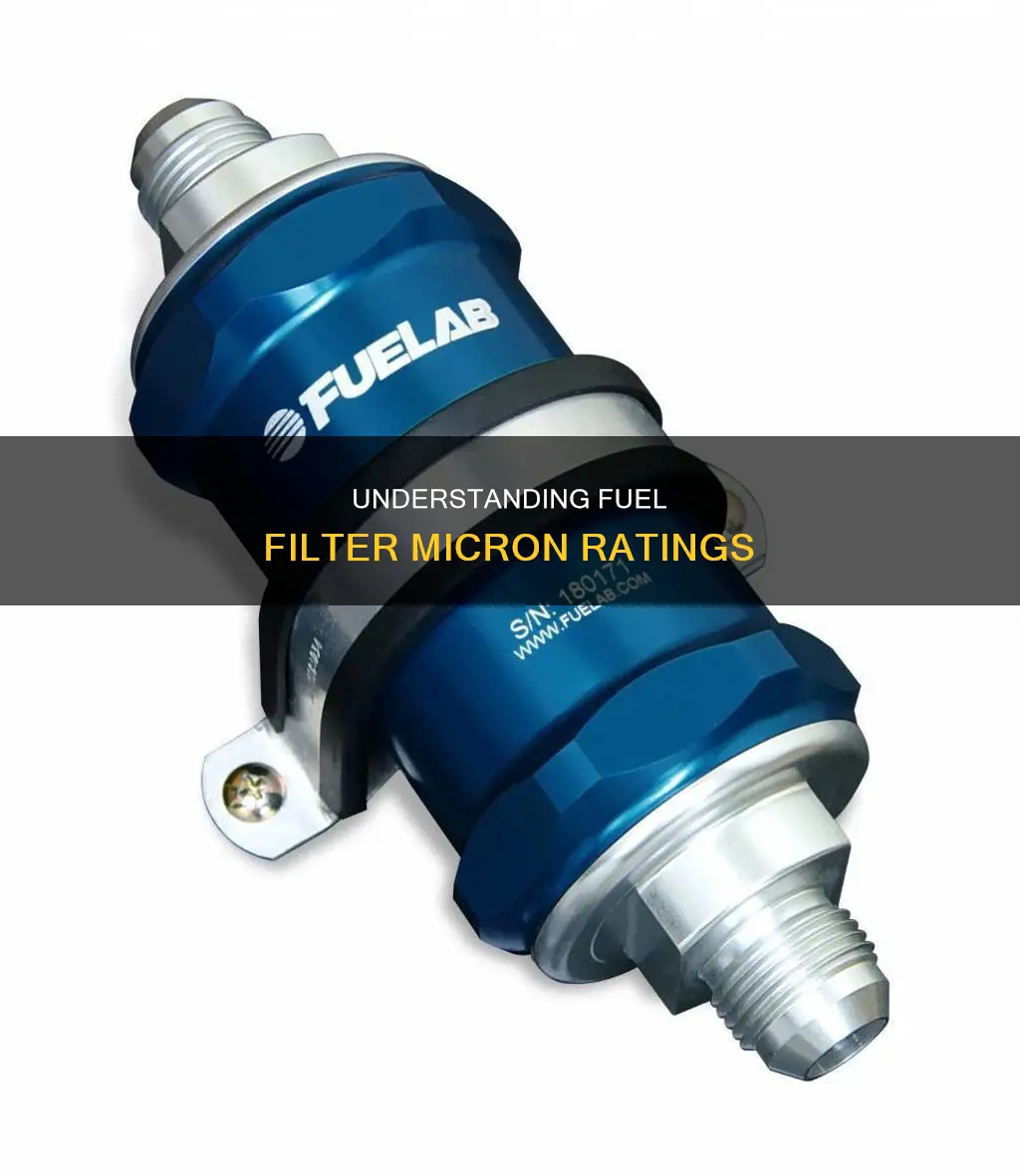

Fuel filters are rated for filtration by the average pore size of the filter element, or the micron rating. This indicates the size of the particulate that the filter is designed to capture. For example, a 10-micron fuel filter can theoretically capture particulates that are 10 microns or larger in size. The smaller a filter’s micron rating is, the greater its ability to trap contaminants. Micron ratings are usually expressed with an efficiency and a particle size, such as 90% at 20 microns. This means 90% of all particles 20 microns and larger will be trapped by the filter. Nominal micron ratings represent the percentage of particulates of a certain size that a filter manufacturer claims the filter can capture, while absolute micron ratings communicate what percentage of particulates of a specific size will be trapped by the filter media through laboratory testing.
| Characteristics | Values |
|---|---|
| Micron rating | 1, 2, 4, 5, 10, 30, 80, 100 |
| Fuel compatibility | Cellulose/paper filters: not methanol or fuels with more than 20% ethanol; Stainless-steel filters: all fuels; Micro Glass filters: post-pump only |
| Reusability | Stainless-steel filters: yes; Paper filters: no |
| Average pore size | 100 microns for pre-pump; 80 microns for newer pumps |
| Particulate size visible to the naked eye | 40 microns |
| Particulate size of a human hair | 70 microns |
| Particulate size of a red blood cell | 8 microns |
Explore related products
$51.99
What You'll Learn
- Micron ratings indicate a filter's ability to trap contaminants
- A lower micron rating means a greater ability to trap contaminants
- Nominal micron ratings indicate the percentage of particulates a filter can trap
- Absolute micron ratings are determined by laboratory testing
- Fuel filters are placed on dispensers to prevent harmful particulates from entering a vehicle's engine
Micron ratings indicate a filter's ability to trap contaminants
Micron ratings are a critical component of any filtration system, as they indicate the filter's ability to trap contaminants. A micron is a unit of measurement used to express particle size or filter pore size. One micron is equal to 1/25,000th of an inch, 0.00004 inches, or 0.0001 cm. To put that into perspective, the diameter of a human hair is around 70 microns, and a red blood cell measures approximately 8 microns.
A micron rating of a fluid filter is a generalised way of indicating the filter media's ability to trap particulates by the size of the particulates it is exposed to. For example, a 10-micron fuel filter can theoretically capture particulates that are 10 microns or larger, which is about the consistency of talcum powder.
There are two common ways to communicate a micron rating. The first is a “nominal” micron rating, which means that a filter can trap a given percentage of particulates of a certain size. For instance, a 10-micron filter with a nominal rating of 50% will trap half of all particulates that are 10 microns or larger. The second is an “absolute” micron rating, which specifies the percentage of particulates of a certain size that will be trapped by the filter media. For example, a 10-micron fuel filter with an absolute micron rating of 99% will capture all but 1% of the particulates 10 microns or larger that attempt to pass through it.
Micron ratings can vary, ranging from 1 micron to over 800 microns. Filters with lower micron ratings, such as 0.5 or 1 micron, are more effective at trapping fine contaminants like bacteria, cysts, and protozoa. These filters are ideal for removing harmful microbes and pathogens from drinking water. Filters with higher micron ratings, such as 25, 50, or 100 microns, focus on capturing larger particles and sediments. While they may not be able to trap smaller contaminants, they are less prone to clogging and are commonly used in industrial or agricultural settings.
In summary, micron ratings play a crucial role in determining a filter's ability to trap contaminants. Lower micron ratings offer superior protection against fine pollutants, while higher micron ratings excel at capturing larger particles. The specific micron rating chosen depends on the intended application, with different industries and settings requiring varying levels of filtration.
Understanding Corvette Fuel Filter Functionality
You may want to see also
Explore related products
A lower micron rating means a greater ability to trap contaminants
Micron ratings are a generalised way of indicating a filter's ability to trap particles of a certain size. A micron, or micrometer, is a unit of measurement equal to one-millionth of a metre or one twenty-five-thousandth of an inch. The human eye can see objects as small as 40 microns, while a human hair is 70 microns and a red blood cell is 8 microns wide.
In the context of fuel filters, a lower micron rating is important for trapping potentially harmful particles before they can enter a vehicle's engine. For instance, the Ford SD 6.0L diesel engine uses a stock fuel filter rated at 5 microns. Nominal filters, which are more affordable, are rated with a percentage, indicating the proportion of particles at or above the micron rating that will be trapped. For example, a 10-micron filter with a nominal rating of 50% will trap half of all particulates that are 10 microns or larger. Absolute filters, on the other hand, have a filter efficiency rating of 99.9% or above, ensuring that particles greater than the micron rating will not pass through.
When selecting a filter, it's important to consider the type of fuel and the specific contaminants that need to be trapped. For instance, paper filters should not be used with methanol or fuels containing more than 20% ethanol. Stainless steel filters, on the other hand, are compatible with all fuels and can be reused.
Dirty Fuel Filter: P2096 Code Culprit?
You may want to see also
Explore related products
$34.99
Nominal micron ratings indicate the percentage of particulates a filter can trap
Micron ratings are a generalised way of indicating the ability of a filter's media to trap particulates by the size of the particulates it is exposed to. Nominal micron ratings are one of the two popular ways of communicating a micron rating.
A nominal micron rating indicates the average particle size that the filter can effectively capture. In other words, it is the percentage of particulates of a certain size that a filter can trap. For example, a 10-micron filter with a nominal rating of 50% will trap half of all particulates that are 10 microns or larger. Nominal ratings are often used for filters where exact precision is not crucial, and some variation in filtration efficiency is acceptable.
Absolute micron ratings, on the other hand, specify the maximum particle size that the filter will reliably remove. An absolute rating ensures that no particles larger than the absolute rating will pass through the filter under standard operating conditions. For instance, a 10-micron fuel filter with an absolute micron rating of 99% will trap all but 1% of the particulates 10 microns or larger that attempt to pass through it.
It is important to note that, in most cases, neither efficiency alone nor particle size alone will convey any useful information. The specific micron rating for individual filters should be expressed with an efficiency and a particle size, such as 90% at 20 microns. As the particle size increases, so does the removal efficiency.
Micron ratings can range from 1 micron up to over 800 microns. One micron is equal to 1/25,000th of an inch, and the naked eye can see objects as small as 40 microns. To put that into perspective, the diameter of a human hair is 70 microns, and a red blood cell is 8 microns.
Ford Ranger Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Absolute micron ratings are determined by laboratory testing
Micron ratings are a generalised way of indicating a filter's ability to trap particulates by the size of the particles it is exposed to. For example, a 10-micron fuel filter can theoretically capture particles that are 10 microns or larger in size.
Micron ratings can be divided into nominal and absolute ratings. A nominal micron rating is the altered absolute micron rating after the filter becomes clogged with contaminants over a set amount of time. It is typically stated as a percentage, indicating the percentage of particles of a specific size retained on the filter's surface after an accumulation of filter-cake. For instance, a 10-micron filter with a nominal rating of 50% will trap half of all particulates that are 10 microns or larger.
Absolute micron ratings, on the other hand, provide a known value that gives operators and engineers a better understanding of the filter cloth's capabilities. They indicate the percentage of particles of a certain size that will be trapped by the filter media. For example, a filter rated at 1 micron can be expected to remove 85% of particles 1 micron or larger. Absolute ratings are determined by rigorous laboratory testing, where filters are challenged with a control liquid containing a specific number of particles of a particular size. The number of particles is measured upstream and downstream, and the beta ratio is calculated by dividing the upstream particles by the downstream measurement. This provides an accurate indication of the filter's effectiveness and efficiency.
Absolute micron ratings are more reliable than nominal ratings when determining the filter cloth's ability to be implemented into a filtration system. They are calculated by considering the 3D shape of the pore and the tortuous path, or the way in which particles have to approach the opening. This ensures that particles larger than the micron rating do not pass through. The use of specialised materials and stringent construction methods ensures that absolute filters perform to an extremely high standard, making them more expensive than nominal filters.
Fuel Filter Facts for the 2006 Trailblazer
You may want to see also
Explore related products
Fuel filters are placed on dispensers to prevent harmful particulates from entering a vehicle's engine
Fuel filters are an essential component of a vehicle's fuel system. They screen out foreign particles or liquids from the fuel, such as paint chips, dirt, and rust, which can cause significant damage to the engine and other operating systems if allowed to enter. These harmful contaminants can enter the fuel tank in various ways, such as when filling the tank or due to moisture in a steel tank.
To ensure these particulates do not enter a vehicle's engine, fuel filters are placed on dispensers, acting as a critical barrier. The micron rating of a fuel filter is a key indicator of its effectiveness. This rating signifies the filter's ability to trap particles of a certain size. For example, a 10-micron fuel filter can capture particles that are 10 microns or larger. It's important to note that neither efficiency nor particle size alone conveys sufficient information; instead, the micron rating should be expressed with both efficiency and particle size, such as "90% at 20 microns."
The specific micron rating chosen for a fuel filter depends on various factors, including the type of fuel and the engine's design. For instance, a 10-micron filter is commonly used with a 100-micron pre-filter for fuel-injected engines. On the other hand, a Ford SD 6.0L diesel engine uses a 5-micron filter. Additionally, the material of the filter element should be considered for fuel compatibility and reusability. Paper filters, also known as cellulose filters, are disposable and not suitable for methanol or fuels containing more than 20% ethanol. Stainless-steel filters, on the other hand, are compatible with all fuel types and can generally be reused.
It is important to maintain and replace fuel filters at regular intervals as recommended by the auto manufacturer. This ensures the optimal performance and longevity of the vehicle, as well as the protection of its engine and fuel system from harmful debris and contaminants.
Chevy Spark Fuel Filter: What You Need to Know
You may want to see also
Frequently asked questions
The micron rating of a fuel filter is usually indicated on the product description. This is a generalised way of indicating the ability of the filter to trap particulates by the size of the particulate it is exposed to.
One micron is equal to 1/25,000th of an inch. The naked eye can see objects as small as 40 microns, and the diameter of a human hair is 70 microns.
A nominal micron rating represents the percentage of particulates of a certain size that a filter manufacturer claims the filter can capture. For example, a 10-micron filter with a 50% nominal rating will trap half of all particulates that are 10 microns or larger.
An absolute micron rating is a laboratory-tested percentage of particulates of a specific size that will be trapped by the filter media. For example, a 10-micron filter with a 99% absolute rating will trap all but 1% of particulates 10 microns or larger.
The micron rating of your fuel filter will depend on your vehicle and fuel type. Most fuel filters range between 2 and 30 microns. High-performance OEM vehicles will have a fuel system with a 5-10 micron filter post-pump and pre-fuel rail. For pre-filters, 100 microns is great, but some newer pumps will require finer filters, such as 80 microns.
