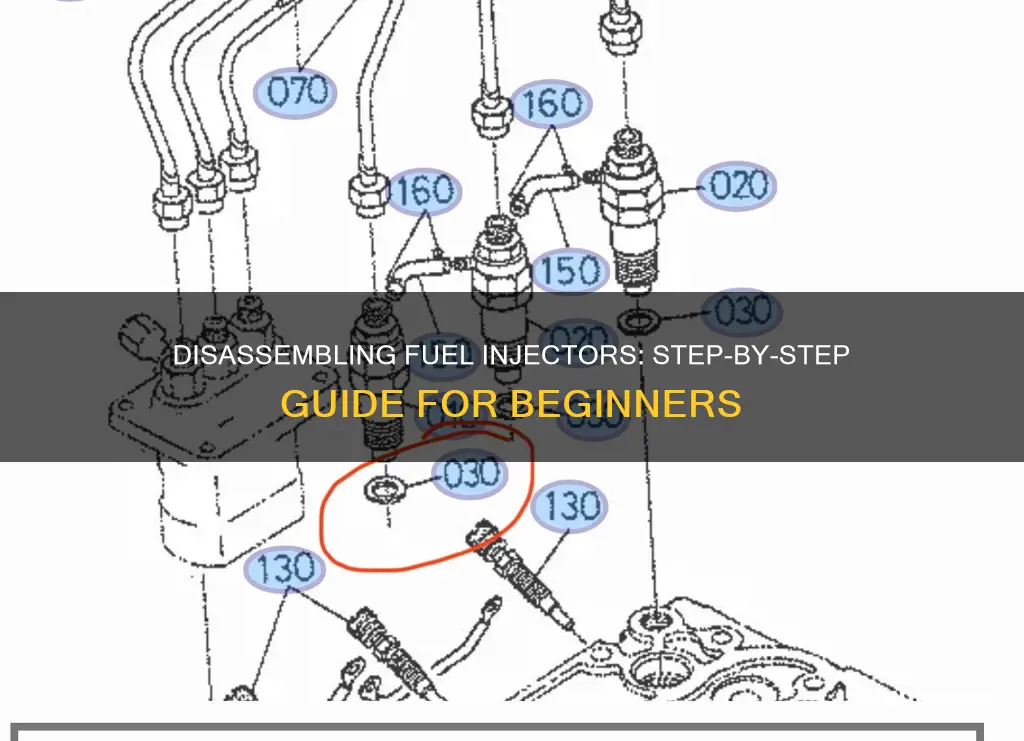

Taking apart a fuel injector can be a challenging task, especially for beginners. It is important to understand the basic functioning of a fuel injector before attempting to disassemble it. Fuel injectors are responsible for supplying fuel at a specific pressure, which causes the needle to rise and open the spray nozzles for injection. After injection, the pressure weakens, and the spring returns the needle to its original position, closing the nozzles. While some people may attempt to take apart fuel injectors out of curiosity or for cleaning, it is important to note that certain types of injectors cannot be disassembled without causing damage. In such cases, alternative cleaning methods or replacement may be more suitable options.
Characteristics and Values of Taking Apart a Fuel Injector
| Characteristics | Values |
|---|---|
| Tools | High-speed cutoff wheel, Dremel, Ultrasonic cleaner |
| Process | Raising the needle opens the spray nozzles and injects fuel. After injection, the pressure on the needle weakens, and the spring returns it to its original position. |
| Challenges | Some parts are pressed together and cannot be taken apart without destroying them. |
Explore related products
What You'll Learn
Ultrasonic cleaning
To clean a fuel injector using an ultrasonic cleaner, begin by selecting a suitable location. It is ideal to be near a sanitary drain for easy disposal of the cleaning solution. Check with local authorities and ensure that it is safe to pour the solution down the drain, even if it is biodegradable.
Prepare the cleaning solution by filling the tank with water and adding the correct amount of cleaning solution concentrate. For example, in a 3/4 gallon tank, add approximately 2/3 cup of concentrate, and for a 1.6-gallon tank, use about 1-1/4 cups. Degas the solution by operating the injector cleaning system for 15-20 minutes to drive off inhibiting entrained air and mix the solution.
Carefully position the fuel injectors in the basket with the nozzle holes facing upwards. Ensure that the solution can access the interior of the injectors. Activate the ultrasound, lower the basket into the solution, and place the lid on the tank to reduce evaporation and noise. Set the timer for 15 minutes, but note that the cleaning time can be adjusted based on the condition of the injectors. Depending on the injector configuration, you may need to remove the basket and reposition the injectors. Remember to wear protective gloves, as the solution will get hot.
Once the cleaning cycle is complete, remove the injectors from the solution and rinse them in fresh water. Finally, blow-dry the injectors with an air hose.
Fuel Injectors in Saab 93: 2006 Model's Engine Secrets
You may want to see also
Explore related products
Needle and spray nozzles
The needle and spray nozzle are crucial components of a fuel injector, and understanding how to disassemble and maintain them is essential for ensuring optimal performance. Here's a detailed guide to help you with the process:
Disassembling the Fuel Injector Needle and Nozzle
Before beginning the disassembly process, it is important to have a basic understanding of the fuel injector's principle of operation. In a mechanical injector, fuel is supplied at a given pressure, and when this fuel pressure exceeds the resistance of the spring, the needle rises, opening the spray nozzles and initiating fuel injection. After injection, the pressure on the needle weakens, allowing the spring to return it to its original position, closing the nozzles and halting fuel injection into the combustion chamber.
Now, for the disassembly process:
- Remove the injector from the vise and place it close to your workbench.
- Unscrew the nozzle retaining nut. This will prevent small parts from falling and getting lost during disassembly.
- Further disassemble the injector, carefully noting the orientation of each component as you go.
- Clean all parts thoroughly using brake cleaner, carb cleaner, or compressed air. Pay special attention to the nozzle, blowing into the needle hole and the feed passage to ensure they are free of debris.
- Carefully remove the needle from the nozzle. If necessary, use a pair of pliers to gently pull the needle out, being cautious not to scratch the nozzle mating surface.
- Inspect the injector needle for any signs of wear or damage, such as pitting at the tip. If the needle is damaged, both it and the nozzle must be replaced.
- If the needle is in good condition, proceed to the next step. Lubricate the needle by applying a couple of drops of lubricating oil to the needle tip and the largest diameter portion of the needle.
- Reinsert the needle back into the nozzle.
Reassembling the Fuel Injector
- Install all the shims back into the hole. If you are using extra shims to raise the pop pressure, place them under the main thick shim.
- Insert the spring. Ensure that it sits approximately flush with the injector body; if it doesn't, adjust the shims.
- Use the spring as a ramrod to seat the springs properly.
- Install the spring seat, paying attention to its orientation.
- Install the Valve Stop Plate, again noting its orientation. The conical side of the Valve Stop Plate should face the injector body.
- Apply a small amount of lubricating oil to the Valve Stop Plate and the injector body threads to ensure proper lubrication.
- Dribble some oil into the Injector Nozzle Nut to lubricate the threads and the surface where it seats against the nozzle.
- Install the nozzle, ensuring that the Feed Passage is aligned correctly.
- Install the nozzle retaining nut and tighten it until you feel spring tension.
- Test the assembly by pulling the nozzle tip up and down. There should be some play in the nozzle. If there isn't, loosen the nozzle retaining nut slightly.
- Try spinning the nozzle tip while pulling it in and out. If the nozzle spins, disassemble and check your work, as the aligning dowels may be installed incorrectly. If the nozzle does not spin, tighten the nozzle retaining nut to 22 ft-lbs, and your fuel injector is now properly reassembled.
Ford Fuel Injectors: Identifying the Right One for Your Car
You may want to see also
Explore related products
Fuel pressure and resistance
In a return-style system, the regulator adjusts the rail pressure based on the manifold pressure. For example, when an engine is idling and pulling a vacuum, the regulator lowers the rail pressure to maintain an effective pressure of 58 psi. On the other hand, when the engine is making a 10 psi boost, the regulator increases the rail pressure to 68 psi, again resulting in an effective pressure of 58 psi. This constant adjustment of pressure helps to maintain consistent fuel injection and prevent issues such as overfuelling the engine.
The powertrain control module (PCM) plays a crucial role in managing fuel pressure and injector pulse duration. It computes the required fuel volume and adjusts the injector pulse duration accordingly. If the fuel pressure is low or the volume is inadequate, the PCM will attempt to compensate, but this can lead to problems with acceleration and insufficient fuel delivery.
It is important to regularly check the fuel pressure and diagnose any issues to ensure the proper functioning of the fuel injectors and the engine as a whole. This can be done by using a screwdriver to listen for clicking in the injector, checking the fuel pressure regulator for leaks, and measuring the fuel pressure with a gauge.
Cleaning Cylinder Fuel Injectors: Cost and Maintenance Tips
You may want to see also
Explore related products
Snap rings
When taking apart a fuel injector, it is important to be aware of the snap ring that extracts the injector. This snap ring can dislodge and fall into the oil drain hole, potentially causing engine damage.
The snap ring is a crucial component in the fuel injector assembly, and its function is to securely hold the injector in place. When removing the fuel injector, it is essential to loosen the hold-down bolt first, which will allow the injector retainer to extract the injector safely.
In some injector designs, the snap ring may act as a keeper for the hex bolt, ensuring it remains securely fastened within the hold-down assembly. This ring is under tension and can be released with a snap ring tool or a pair of small, pointed nose pliers.
When working with snap rings, it is important to exercise caution and avoid using air tools, as mentioned in the warning. Additionally, it is worth noting that not all fuel injectors have snap rings, and their presence may vary depending on the model and manufacturer.
Overall, the snap ring plays a vital role in the safe and secure operation of the fuel injector, and its proper handling is essential during the disassembly process.
Fuel Injector Costs: UK Price Breakdown and Analysis
You may want to see also
Explore related products
![HiSport Fuel Injector Seal Kits Compatible with Ford Mercury Lincoln Jeep V8 5.4L 4.6L Include O-Rings, Pintle Caps, Seal Spacers and Filter Baskets Universal Repair Set Replaces 0280150962 [8 Set]](https://m.media-amazon.com/images/I/71r8hDT8hoS._AC_UY218_.jpg)
High-speed cutoff wheel
There are several online discussions on the possibility and process of taking apart a fuel injector. However, it is important to note that some sources advise against it, stating that there is no way to disassemble a fuel injector without destroying it. These sources recommend simply cleaning the injector or purchasing a new one.
If you do choose to proceed with taking apart a fuel injector, it is important to exercise caution and follow the necessary safety precautions. One tool that can be used in this process is a high-speed cutoff wheel. Here is some information about this tool and how it can be used:
To use a high-speed cutoff wheel to take apart a fuel injector, you will need to identify the specific type and model of the injector and determine the appropriate cutting technique. It is important to work carefully and wear the appropriate protective gear, including eye protection and gloves. The high-speed cutoff wheel can be used to cut through the metal components of the fuel injector, allowing you to disassemble and examine its internal components.
It is worth noting that taking apart a fuel injector may void any warranties or guarantees associated with the product. Additionally, it is crucial to handle flammable liquids and gases with extreme caution to avoid accidents or injuries. Always work in a well-ventilated area and follow local regulations and guidelines for the disposal of any hazardous materials.
Fuel Injector Testing: Can AutoZone Help?
You may want to see also
Frequently asked questions
It depends on the type of fuel injector. Some injectors cannot be taken apart without being destroyed. If you are looking to clean your fuel injector, an ultrasonic cleaner will do the trick.
First, bring the pressure up on the injector. If the injector drips, sprays a mist, or chatters, you might need new nozzles.
If your car is misfiring, swap the spark plugs and ignition coils between cylinders to see if the misfire follows. If it does, you know those parts are faulty. If the issue stays with the same cylinder, you might have a fuel injector issue.
A car misfire could be due to a bad sensor, bad coils, bad plugs, or gunked-up oil passages in the VCT system.
